ZOOM LIVETRACK L6MAX

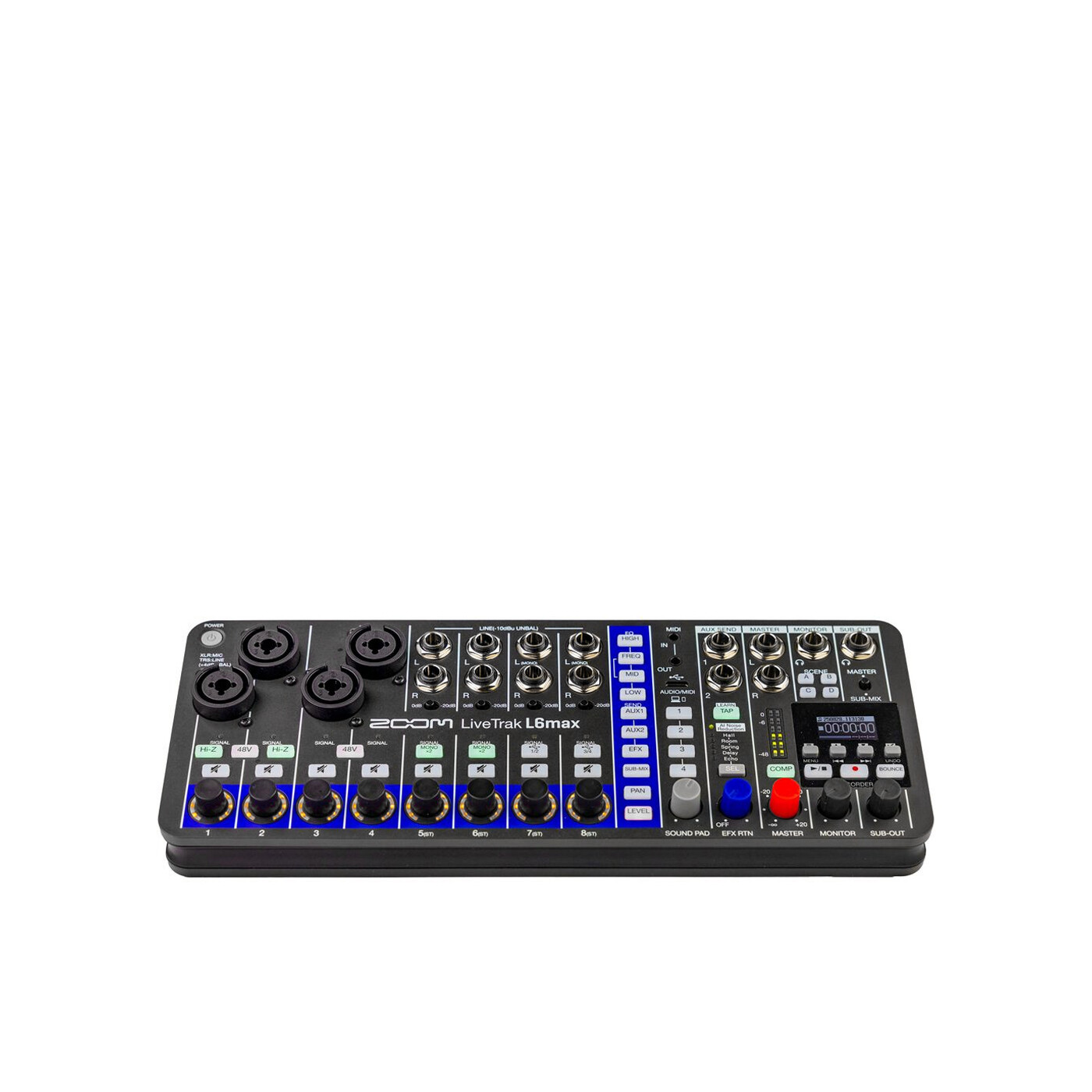

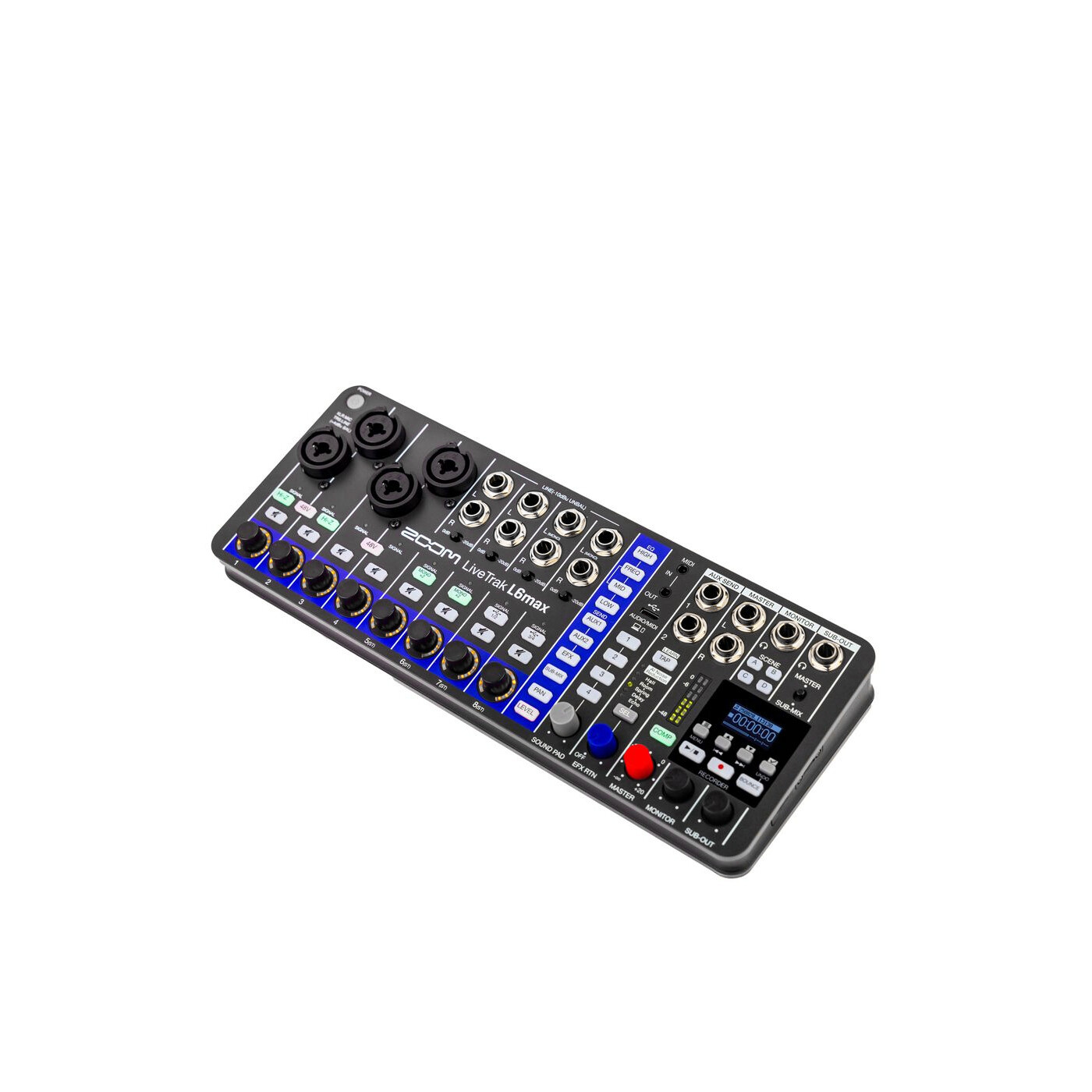

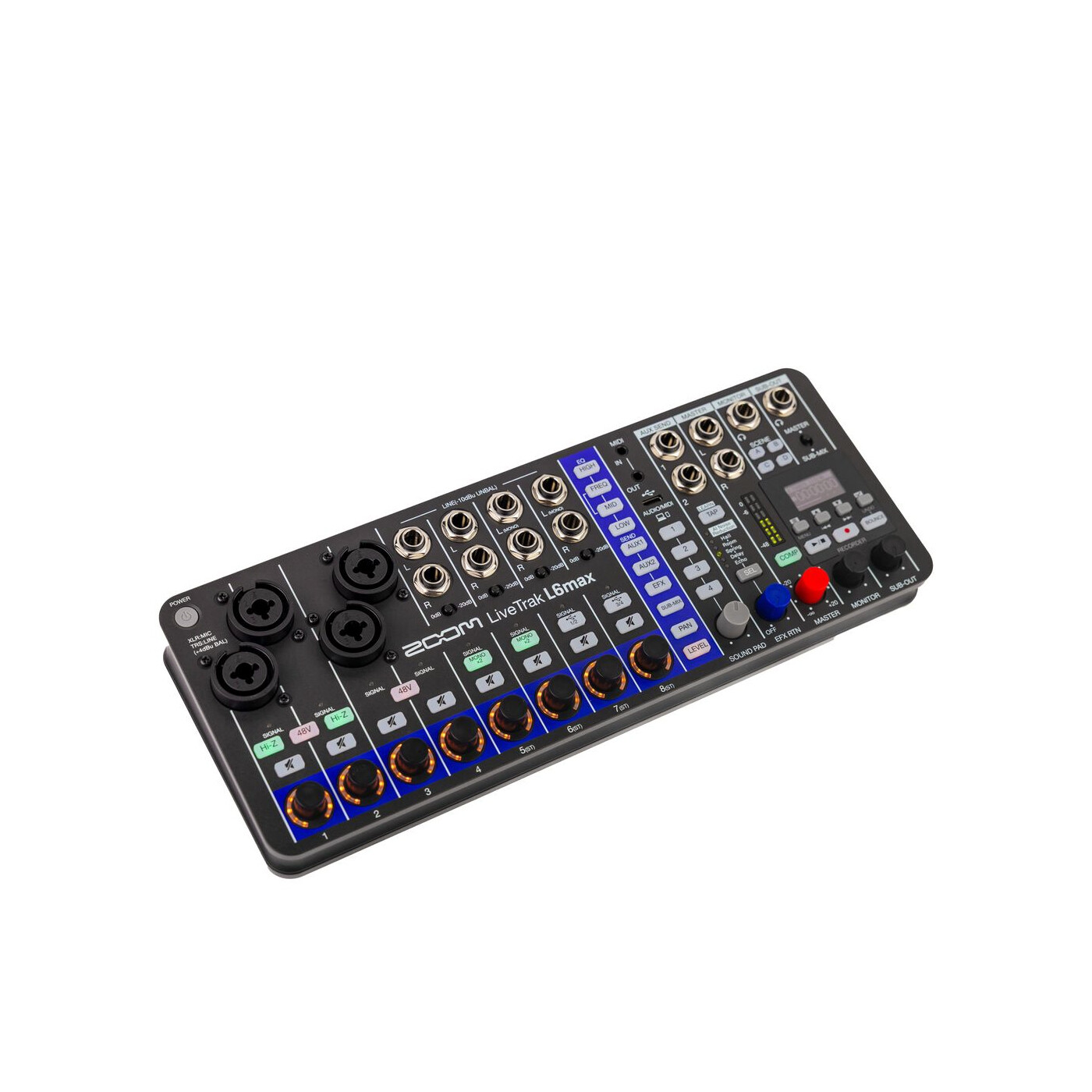

Zoom LiveTrak L6max

12-Channel Mixer & Recorder for Music, Streaming, and Podcasts

• 32-Bit Float, clipping free audio
• Channel 1-4 have Dual-AD Converters
• AI Noise Reduction intelligently removes hum, hiss, and background noise
• 14-in / 4-out audio interfaces
• Two headphone outputs with a customizable Sub-Out mix
• Power via AA batteries, USB bus power, or a mobile battery pack
• Sound Pads with MIDI Sync
• 3-Band EQ, perfect tone on each channel
• Unlimited Overdubs with Bounce Track
• Onboard effects including Reverb, Delay, and Echo

Big Mixer Energy

The LiveTrak L6max is packed with all the features you’d expect from a full-size mixer, plus a multi-track recorder. It’s compact, battery powered, and ready to be the centerpiece of your live show, rehearsal, or podcast.

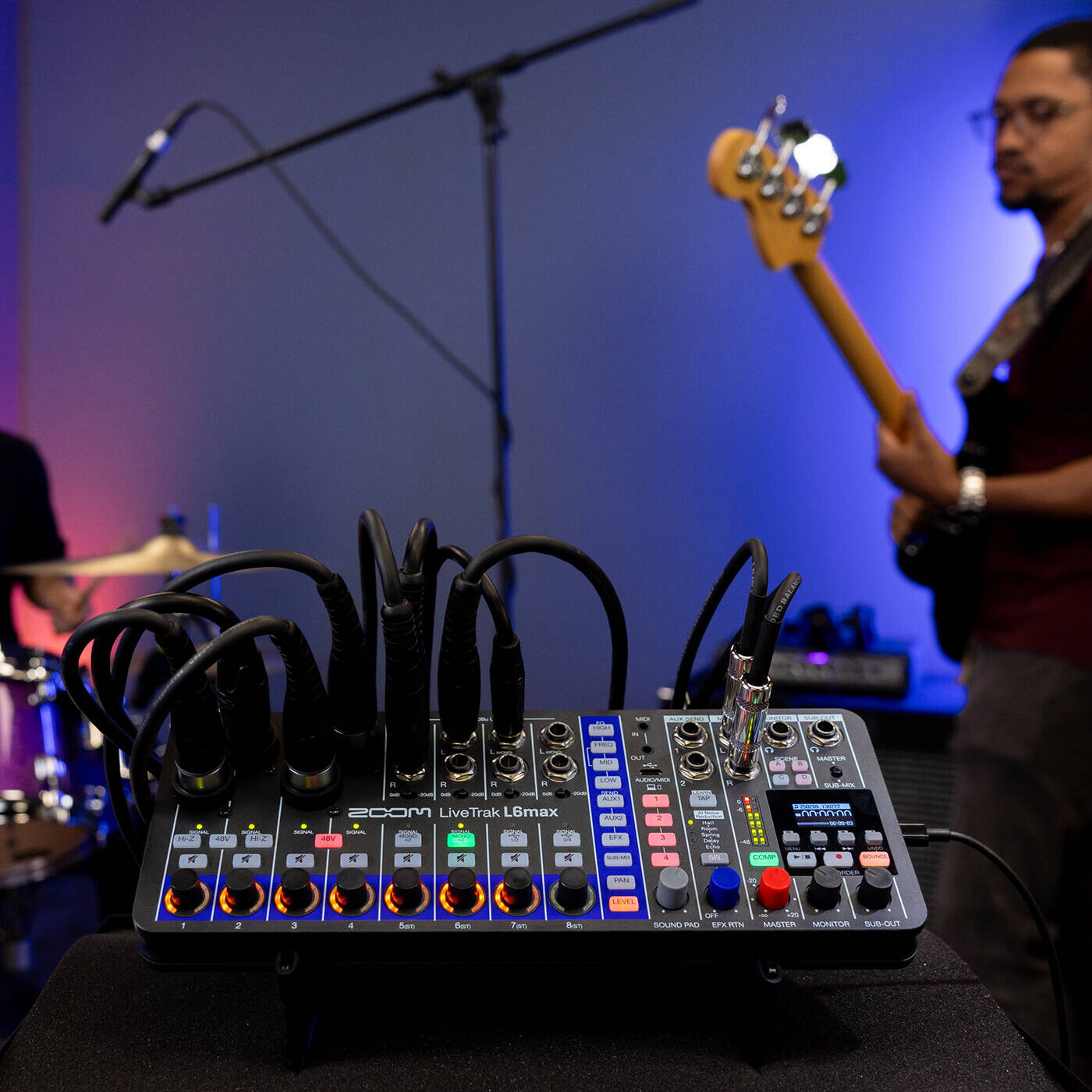

Small Enough for a Duo, Big Enough for a Band

Whether you are a full-band, an acoustic duo, or a solo performer, the L6max is ready. With 4 combo inputs (including 2 with Hi-Z) and 8 line inputs, its 12 channels offer the flexibility you need for any session.

Custom Monitoring Options

Two headphone outputs with a customizable Sub-Out mix lets you monitor exactly what you need, wherever you are on stage.

High-Output Ready

Channels 5-8 include a -20 dB PAD switch so you can handle loud sources such as vintage synths and Eurorack modules. No attenuator required.

OLED Display

The high-contrast OLED display helps you create projects and adjust settings with ease.

14 Tracks of Recording

Capture up to 12 individual tracks plus a stereo mix directly to SD cards up to 2TB. Projects can be saved and recalled for mixing anytime.

Unlimited Overdubbing

You can mix and bounce tracks to the dedicated ‘bounce track' freeing up additional channels to keep adding layers. If the bounce doesn’t hit the mark, ‘undo’ it and try again. Even after a bounce, individual tracks are saved to the SD card for future mixing.

AI Noise Reduction

Turn on AI Noise Reduction and let the L6max intelligently remove hum, hiss, and background noise - while preserving every detail of your voice and instruments.

Let's Get Loud

For huge drums and loud guitar solos, the L6max records clip-free audio in 32-bit float. Channels 1-4 have dual-AD converters, keeping mic signals pristine across extreme dynamics.

EQ for Each Channel

A 3-band EQ lets you dial in the perfect tone with LOW, HIGH, and variable MID EQ on each channel.

Onboard Effects

Build the perfect mix with onboard effects including Reverb, Delay, and Echo. Use the TAP key to set delay times.

Advanced Compressor

The master track compressor adds punch and saturation to your mix. With 32-bit float the audio will never clip, even at high volumes.

Easily Record with your Smartphone or Computer

The L6max can be used as a 32-bit float 14-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the microSD card. It’s also a control surface for your favorite DAW.

MIDI I/O and USB MIDI

Connect external synths and grooveboxes or integrate with MIDI apps on your computer and mobile devices.

Flexible Routing with AUX Sends

Two AUX Sends with pre/post-fader options for FX loops and monitor feeds.

Sound Pads with MIDI Sync

Trigger jingles, sound effects, or samples on demand. Sound Pads can even sync to a MIDI clock for live electronic performances.

Scene Memory

Store up to four mixes and recall them anytime with a single button.

Customize with the L6 Editor App

The free L6 Editor app for Mac and Windows lets you customize pads, effects, and MIDI assignments with ease.

Stay Powered, Stay Mobile

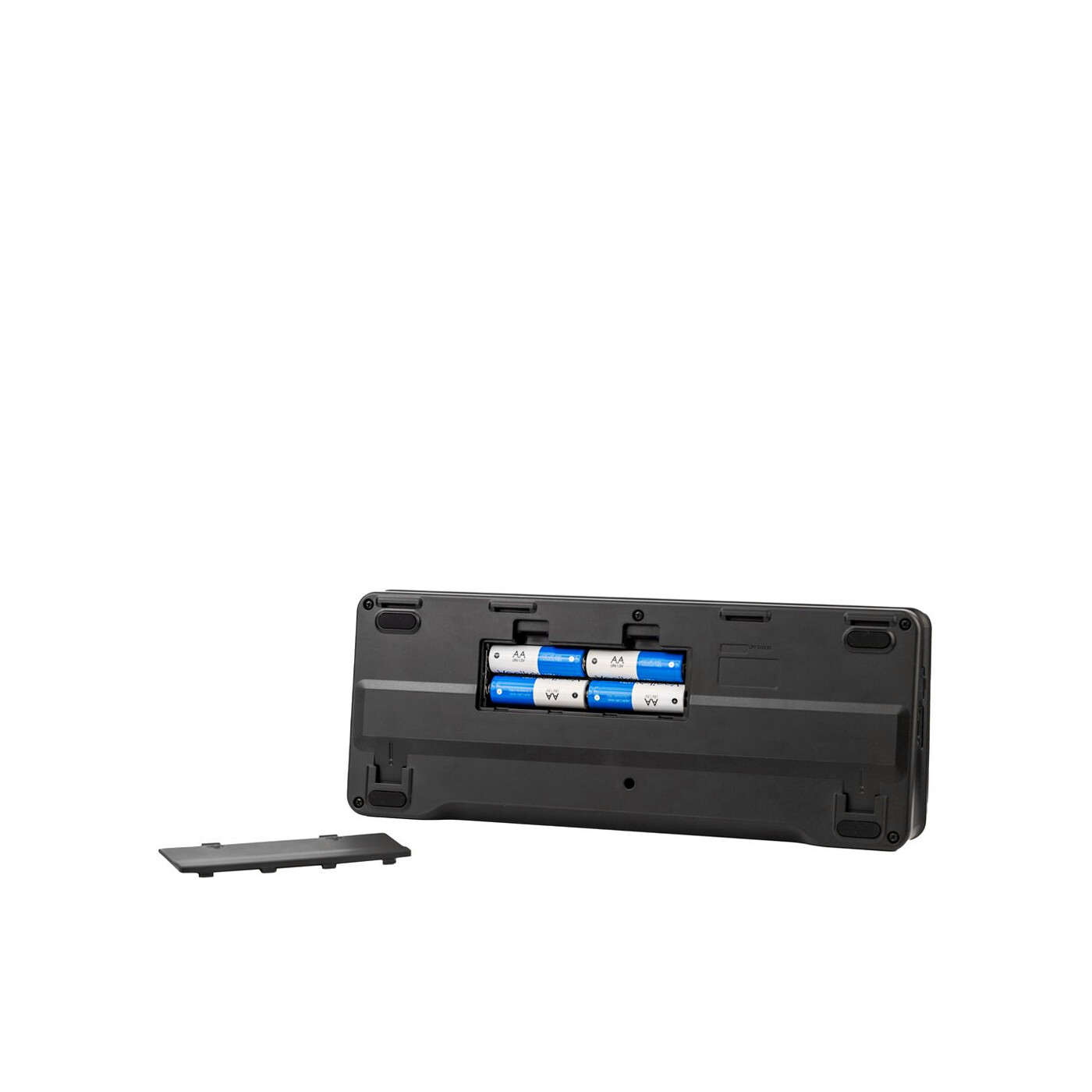

Power the L6max via AA batteries, USB bus power, or a mobile battery pack.

Euro Rack Integration

Add the optional ERL-6 rack mount adapter to install the L6max in a Euro Rack setup and power your modular rig.
