APUTURE FRESNEL F10

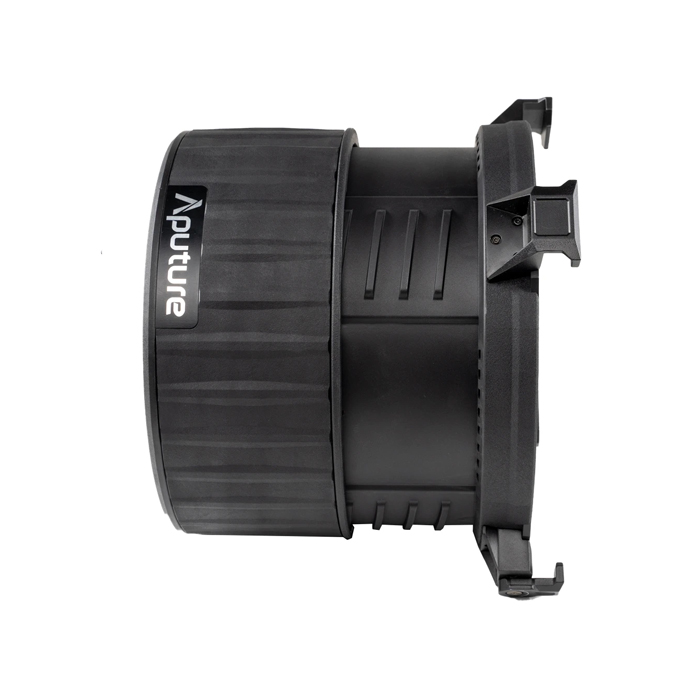

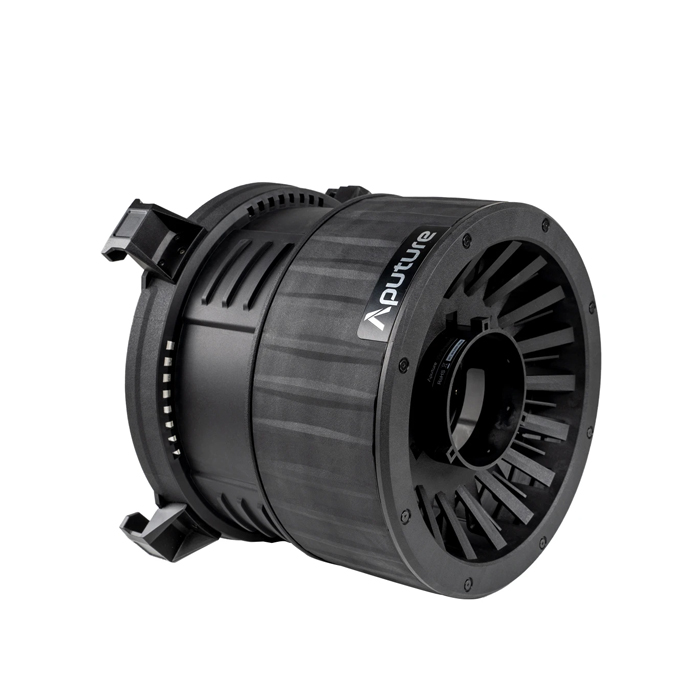

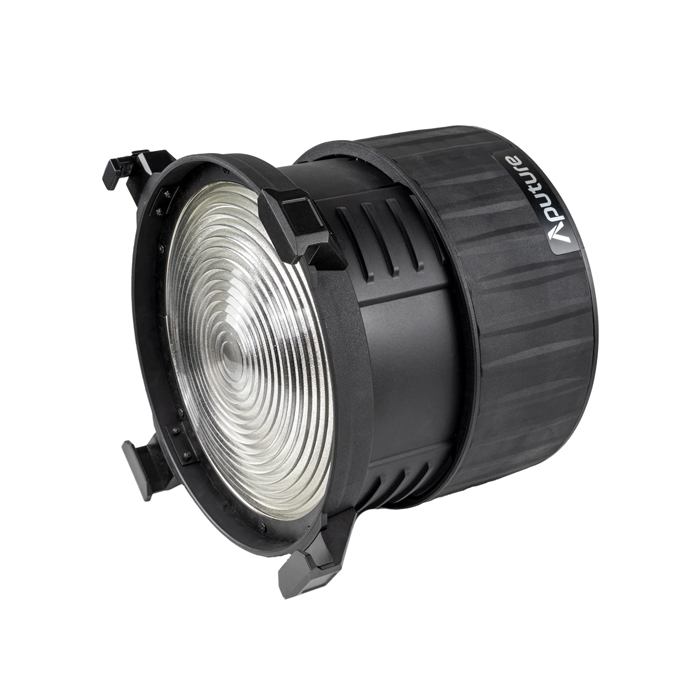

Aputure F10 Fresnel

The Aputure F10 Fresnel is the first industry-standard 10-inch Fresnel made for modular Bowens Mount fixtures. With its wide 250mm (9.84in.) glass Fresnel, the F10 both immensely intensifies the output of a point-source LED, but also results in a quality of light lighting technicians will find similar to a Tungsten 5K or Studio 2K.

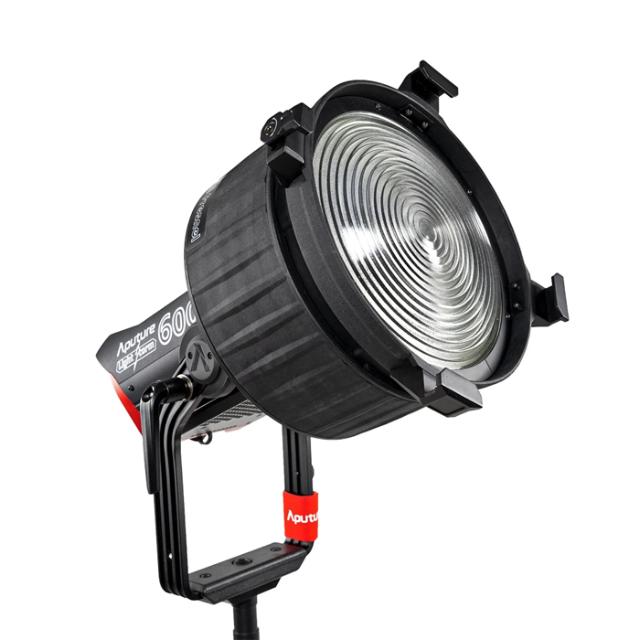

The F10 Fresnel functions at its best when paired with the Aputure LS 600d Pro, a 600W Daylight COB LED. Together, this combination eclipses Studio 2K Tungsten lights, and approaches the intensity of 5K Tungsten fixtures at flood.
With a combined flood output of 11,440 lux and spot output of 29,300 lux at 3 meters, The 600d Pro and F10 Fresnel even compete on par with higher-powered HMIs.
The F10 Fresnel matches the unique design of the Fresnel 2X, utilizing a two-stage optical system to maximize light output.
Utilizing a rear aspherical focusing element, the F10 Fresnel optimizes the output of an LS 600d Pro to fill the front Fresnel Element, resulting in up to 340% additional output in Flood mode.
To ergonomically and precisely adjust its variable 15°-45° beam angle, the F10 Fresnel uses Aputure’s helicoid focus design introduced in the Fresnel 2X. This seamless design requires no extra knobs or handles. Simply twist the lens ring, and adjust the spot/flood controls.

Aputure F10 Fresnel Top Features

• Up to 29,300+ lux @ 3 Meters with the Aputure LS 600d Pro (15° Spot Beam Angle)
• 15°-45° Spot-Flood Variable Beam Angle
• 250mm Glass Fresnel Lens: The surface area of the front Fresnel element matches larger traditional Fresnel fixtures like tungsten 5Ks. The larger lens can even increase the output lux up to 10 times
• Dual Lens Optical System for Maximum Light Output: A rear optical element optimizes the beam angle of a flatchip point-source LEDs for the front Fresnel lens
• Compatible with the Bowens Mount LED lights, such as the Aputure LS 600d Pro, 300d II, 300x, 120d II, etc
• Compatible with F10 Barn Doors: Utilizing a die-cast metal front ring and drop-in accessory slot to makes it compatible with the F10 Barndoors
• Seamless, Ergonomic Focusing: The F10 Fresnel uses the same helicoid focusing mechanism found on the Fresnel 2X, for a smooth, precise spot/flood experience
• Heat-resistant Design: Composed of durable, heatresistant materials, the F10 Fresnel can withstand the high-wattage point-source lights like the LS 600d Pro
• Durable Carrying Bag: The F10 Fresnel comes packaged inside an specially designed padded fabric carrying bag
