Arri X22 modular frame for 2 x SkyPanel X21

ARRI X22 Modular Frame for 2 x SkyPanel X21

• Use with X Modular Yoke
• Quick-lock system and toolless installation
• Two high-strength tilt locks
• includes two daisy chain cables for power, and two for Ethernet, and two truss pins

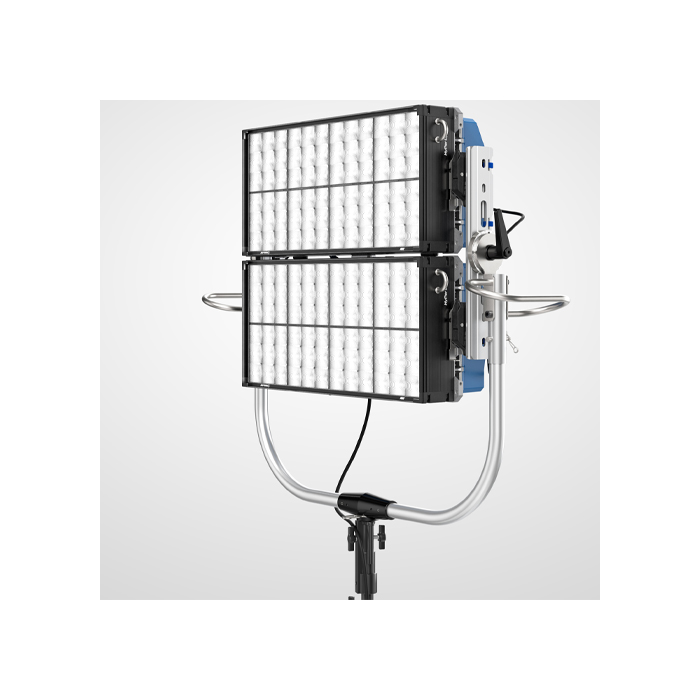

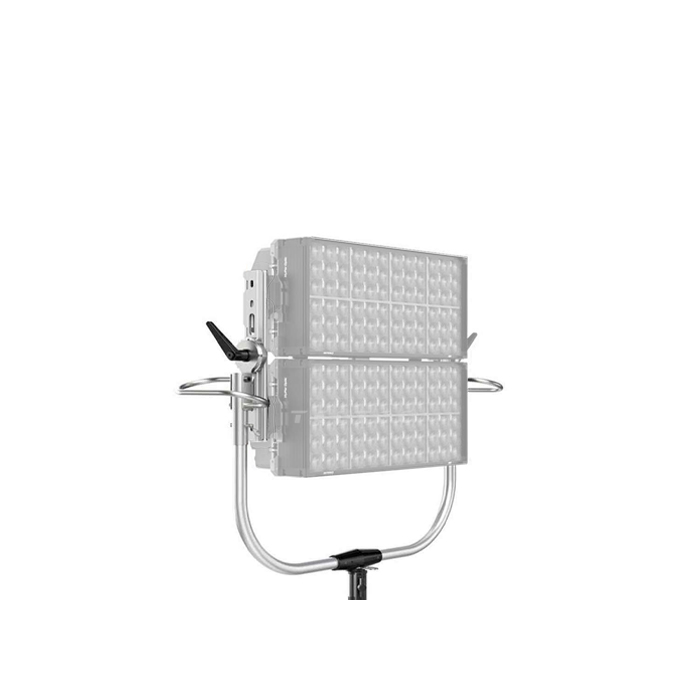

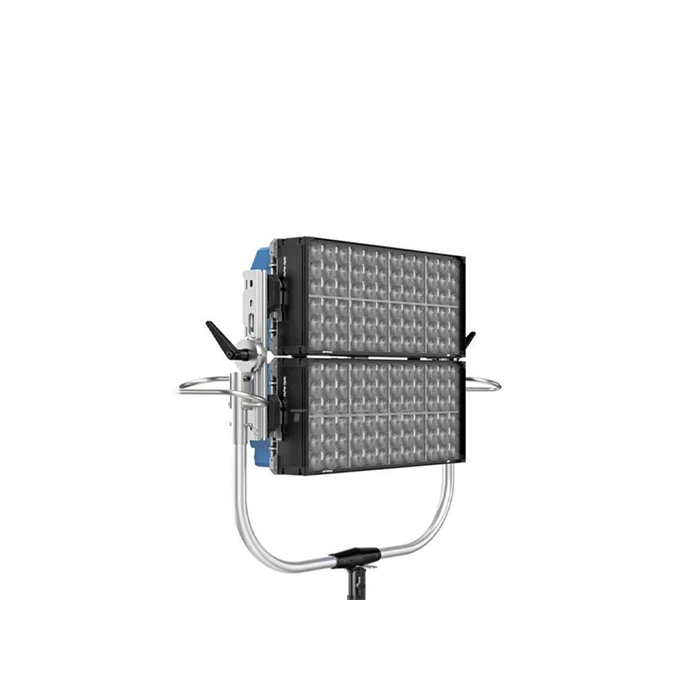

The X22 Modular Frame is a system that allows the mounting of two X21 fixtures in an array.

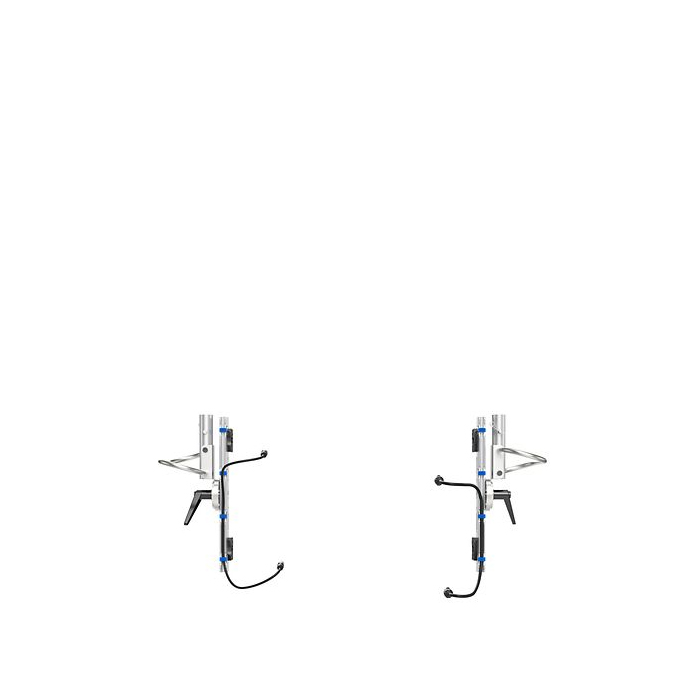

The system includes aluminum profiles with integrated daisy chain cabling for Ethernet and power, yoke adapters, large stainless-steel handles, high strength tilt locks and robust tilt lock levers. Each frame includes two Quick-Lock Brackets that are optimized for use with HyPer Optics and X21 Domes, and the distance between brackets can be adjusted for use with S60 Adapters. The product also includes an angle indicator close to the side lever and two truss pins that hold the frames in place when mounted onto the X Modular Yoke. The Modular Frame can be inserted in the X Modular Yoke for a seamless stirrup format.

Weight: approx. 4,5 kg / 9.9 lb
