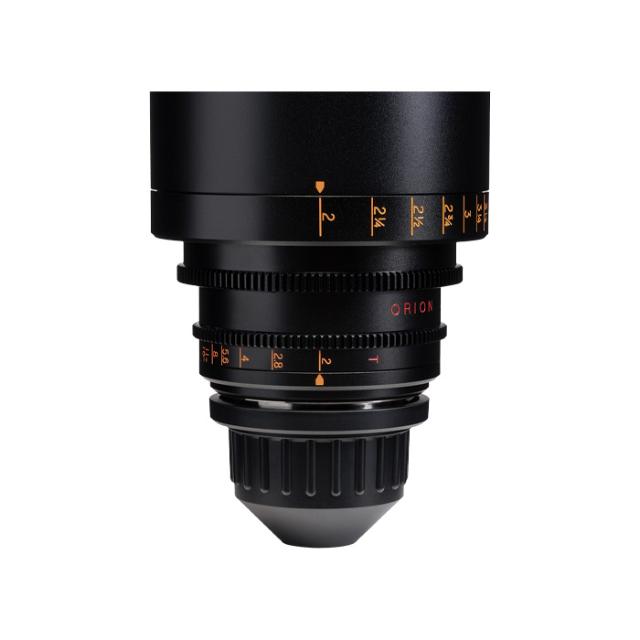

ATLAS ORION 40MM ANAMORPHIC PRIME - METRIC SCALE

Atlas Orion 40mm 2X Anamorphic Prime – Metric Scale

• Fast T2 aperture for exceptional low-light performance and creative depth of field control
• Interchangeable Mount System with native PL or EF mount options
• Works with E-mount or Micro 4/3 camera with appropriate adapters
• Covers full-frame (FF), large format (LF) or Vistavision with our 1.6x LF Extender
• Focus has a deep 270° travel rotation
• Cine pitch 0.8 mod gearing on both iris and focus ring allow for simultaneous drive control
• Disproportionate perspective magnification (Telephoto lens with wide-angle field)
• Exceptional optical performance, with modern mechanics and vintage look
• Characteristic cyan streak flares, artistic barrel distortion, and minimal chromatic aberration

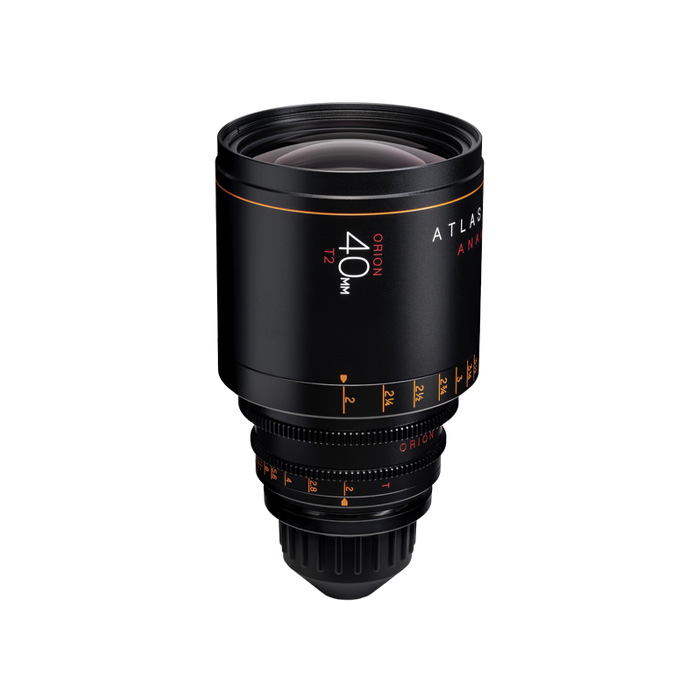

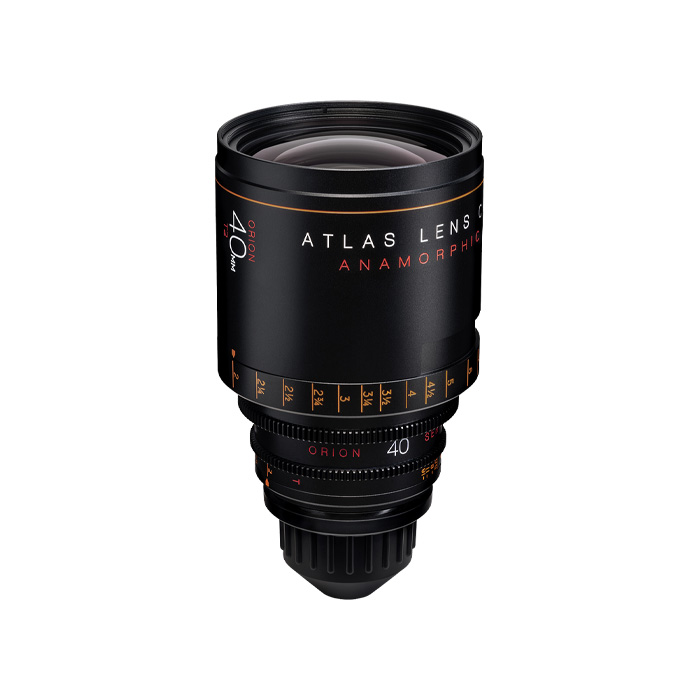

Orion 40mm

Designed by cinematographers for cinematographers, the Orion 40mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super 35-sensor cine-style cameras. The 40mm creates a wide-angle field of view with the shallow dept of field found in a telephoto prime. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

Orion Series

Orion Series lenses combine the aesthetic of vintage anamorphic lenses with modern convenience, adaptability, and dependability.
Orion Series 2X anamorphic prime lenses are built to be a universal filmmaking tool — perfect for the latest professional film and digital cinema cameras with native PL mount or just as easily adapted to Canon EF-based cinema cameras.

Orion Series lenses deliver the striking beauty of painterly waterfall bokeh, disproportionate breathing, and signature yet controlled flare.

At the heart of Atlas Lens Co. Orion Series is a true front-anamorphic group. They offer vintage optical characteristics to include in your cinematic storytelling toolkit with a mechanical functionality that won't leave you feeling confounded by compromise.

Orion Series Anamorphic Lenses are built to be a universal filmmaking tool - ready for the latest Digital Cinema PL mount cameras like Arri Alexa or Red DSMC2, Canon mount cinema cameras like the C300, or adapted Sony E-Mount or Micro 4/3 cameras, and are even designed to accommodate the rotating mirror shutter of 35mm Motion Picture Film Cameras following Arri PL Flange requirements.
Whether your project requires you to shoot digital or film, the Orion Series T2 has the coverage you need and boasts a larger than S35mm Image Circle.

Why anamorphic?

The same vertical field-of-view of an equivalent spherical focal length gives you twice the horizontal field-of-view (2X). Capture wide-angle images with the shallow depth-of-field of a telephoto prime lens, creating a uniquely cinematic sense of depth and perspective magnification.

Anamorphic for all.

Atlas Lens Co. wanted to create the lenses they wanted for their own films – optically pleasing yet mechanically robust – and share anamorphics with more image-makers everywhere.

Orion 40mm Technical Specs:

• T-Stop Range: T2 - T16
• Minimum Focus: 0.56 m
• Weight: 2.4 kg
• Length: 18.9 cm
• Front Diameter: 114 mm
• Image Circle: 31 mm
• Horizontal Field-Of-View: 66°
