BLACKMAGIC DESIGN HYPERDECK STUDIO HD PLUS

Professional broadcast decks that record and playback using SD cards and SSD media

The HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media. HyperDeck Studios feature modern design with more codecs and quieter cooling.
All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. When you've finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there's even built in timecode and reference generators for syncing multiple units.

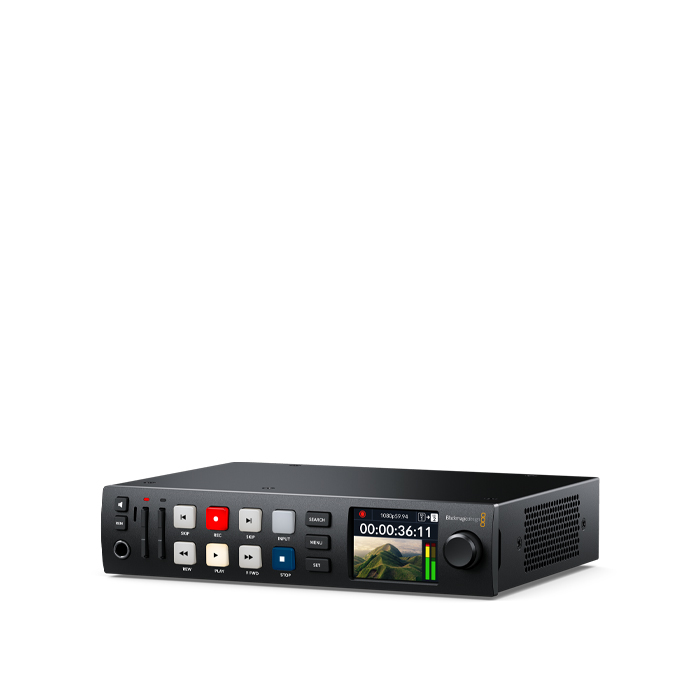

Elegantly Designed Professional Broadcast Deck

New broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel.
The search dial features an active clutch, just like a traditional broadcast deck. With dual media slots, you can change cards without interrupting recording.

Mastering Recorder

All models record to H.264, ProRes and DNx files, so are perfect for recording broadcast masters.
You can even use PCM or AAC audio. You get everything you need to send shows to broadcasters and for uploading to YouTube.

Bright Color LCD Status Display

HyperDeck Studio features traditional deck style transport controls, including a search dial for jog, shuttle and scroll. The compact LCD shows timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback.
It also displays information about each card’s recording status, along with video format, frame rate information and audio levels.

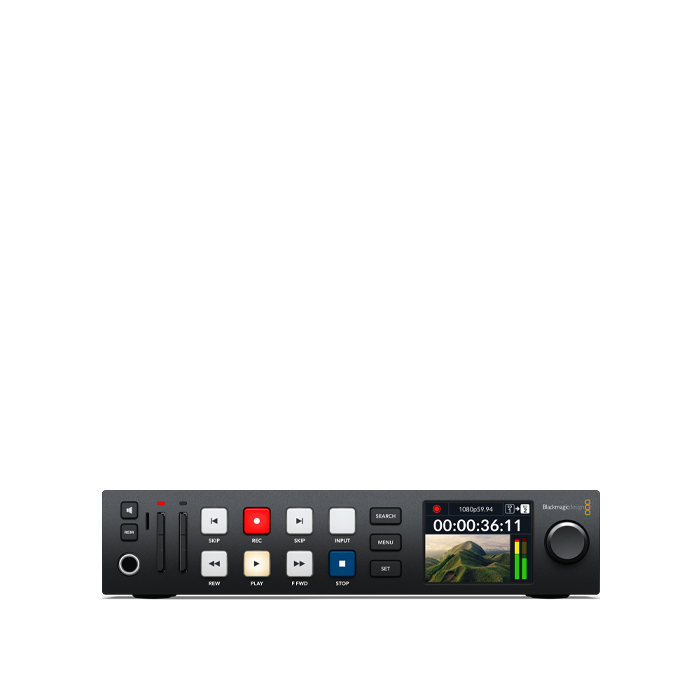

Traditional Broadcast Deck Controls

HyperDeck Studio includes a traditional broadcast style control panel that's very fast to use. Simply press the record button and you instantly start recording the video input to a file. There are transport control buttons for playback, rewind, fast forward, previous clip, next clip and more. Any button pressed on the front panel is sent to the rear RS-422 remote output for looping control to multiple HyperDecks. It also include a front panel speaker and headphone socket for live audio monitoring.

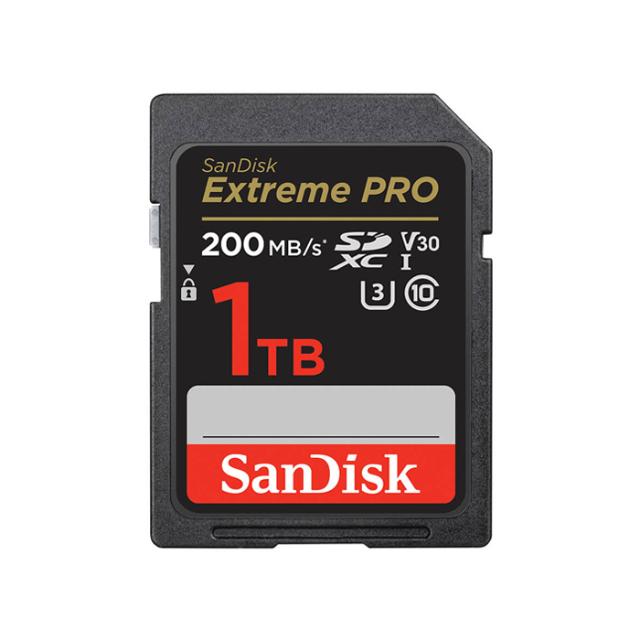

Supports SD Cards, UHS‑II Cards or SSDs

All HyperDeck Studio models support recording to common SD cards and UHS-II cards so you don't need expensive custom media.
When using H.264, the files are so incredibly small you get very long recordings even on smaller low cost cards. Plus, you can even record to external USB disks. With H.265, you can record up to 58 hours in 2160p60 Ultra HD or up to 157 hours of H.264 recording in 1080p59.94 on a 1 TB card.

Record to External USB-C Media Disks

If recording to other types of media is required, the USB-C expansion port lets you plug in an external flash disk for recording. USB-C flash disks have unlimited capacity because they can be physically larger than an SD card or SSD.

Popular ProRes, DNx, H.264 and H.265 Files

Hyperdeck include DNx and ProRes file formats. However all models also include H.264 in quality levels up to full 10 bit 4:2:2 when recording in NTSC, PAL, 720p, 1080p and true 1080i interlaced formats. That means you get tight 60:1 to 285:1 compression ratios for very small files at full broadcast quality. Plus you can choose uncompressed PCM audio, or even AAC audio when uploading files to YouTube. All models support both ExFAT and HFS+ disk formats and long duration single file recordings. It even support ProRes 4444 allowing fill and key playback.

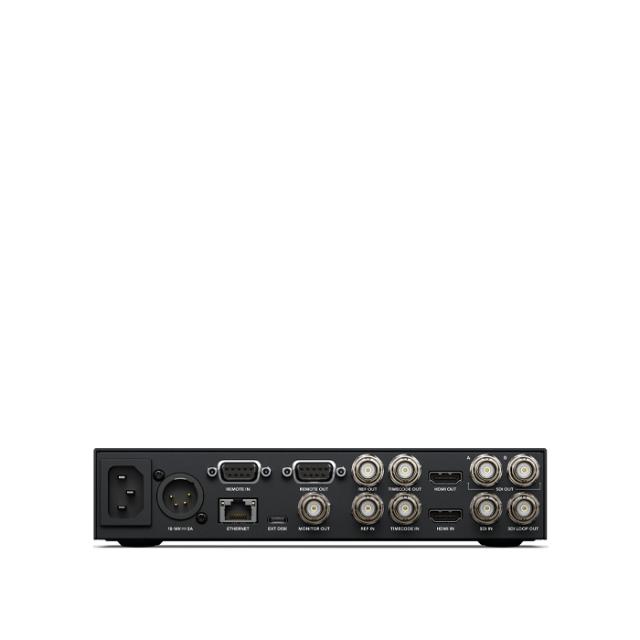

Advanced Broadcast Connections

HyperDeck Studio features a wide range of video and audio connections such as 3G-SDI, 6G-SDI or 12G-SDI.
There's even a dedicated SDI monitoring output with on screen status. Hyperdeck HD Plus include two SDI outputs so you can play ProRes 4444 files, allowing simultaneous fill and key output for keying in live production switchers.
The internal timecode and reference generator connections can be looped to sync multiple units for ISO recording.

Choose 3G‑SDI, 6G‑SDI or 12G‑SDI Models

With multi-rate SDI, you get support for the most popular video standards. The SDI and HDMI connections will automatically switch video standards, so handle SD, HD and Ultra HD formats depending on the model. SD formats include NTSC and PAL. 720p HD standards include 720p50 and 720p59.94p. 1080i HD interlaced formats include 1080i50 and 1080i59.94.
1080p HD formats include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck can even support 1080 PsF formats.

Fill and Key Outputs for Broadcast Animations

The HyperDeck Studio Plus can play ProRes 4444 HD files to the 2 separate SDI fill and key outputs. That means you can use HyperDeck Studio as a graphics clip player for broadcast animation because the ProRes 4444 file’s alpha channel will be automatically converted to the key SDI output for realtime keying in a live production switcher.

Advanced HDR Support and Monitoring 3D LUTs

When recording, the SDI and HDMI inputs will also automatically detect HDR video standards and then tag the files with the correct HDR information. Static metadata PQ and HLG formats are handled according to the ST2084 standard. Plus the front panel LCD has a wider color gamut for both Rec. 2020 and Rec. 709 colorspaces. It even allow you to load a 3D LUT into the monitoring output to add looks or to convert film to video gamma.

Includes Professional Multi Channel SDI Audio

HyperDeck Studio includes professional multi channel SDI audio for recording up to 16 channels. When recording from the SDI input, you can select in the menu to record 2, 4, 8 or 16 channels of audio in real time.

Built in Timecode and Sync Generators

With a timecode and sync generator built into all models, you can stack multiple units for digital signage or multi channel recording. Each HyperDeck has dedicated outputs for reference and timecode, direct from the internal sync and timecode generators.
