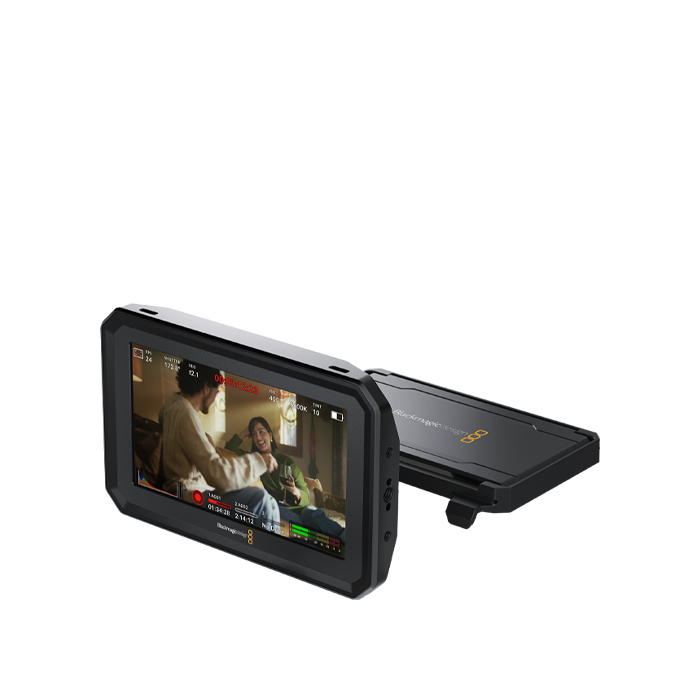

Blackmagic Pyxis Monitor
- 5″ HDR touchscreen monitor with full camera control
- Multiple mounting points on top and bottom
- All video, power and camera control via a single USB-C connection
- Removable sunshade for improved visibility
- Built in tally light
- 3 user assignable buttons for quick access to functions
- Built in accelerometer for image orientation
- Available as monitor only, monitor with PYXIS Monitor Mount, or monitor with EVF mount
Adjustable high brightness touchscreen monitor designed for PYXIS and URSA Cine cameras. Connects via USB so it extends the camera functions with live video, HUD settings and menus. Includes sunshade.
Add Touchscreen Monitoring with Camera Control

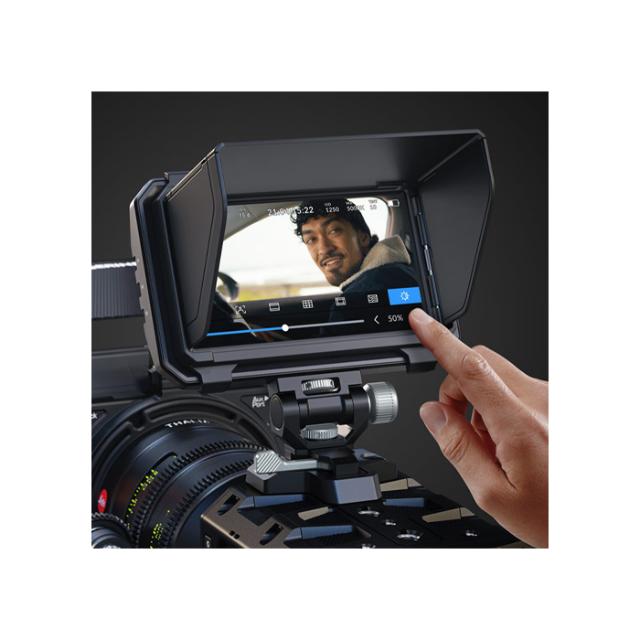

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere! It provides the same controls and overlays as PYXIS’ built in LCD, so it’s perfect to use when rigging or accessories block the internal display.

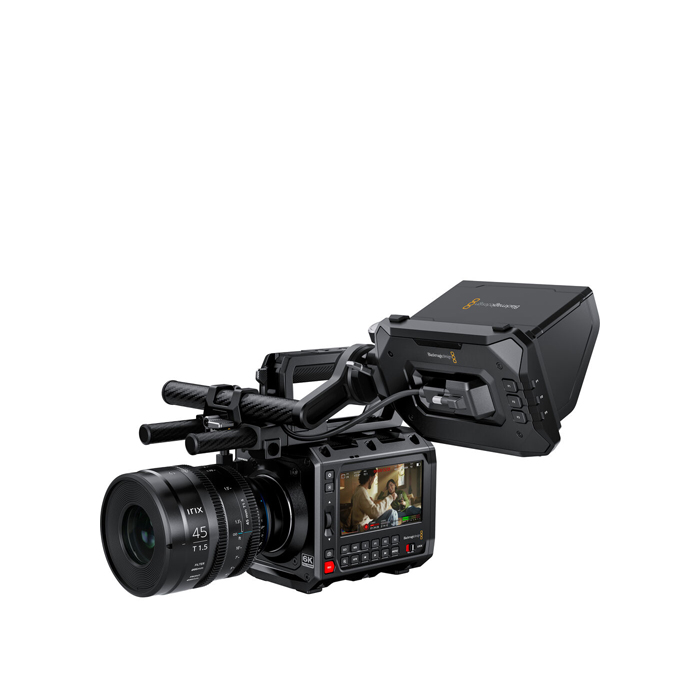

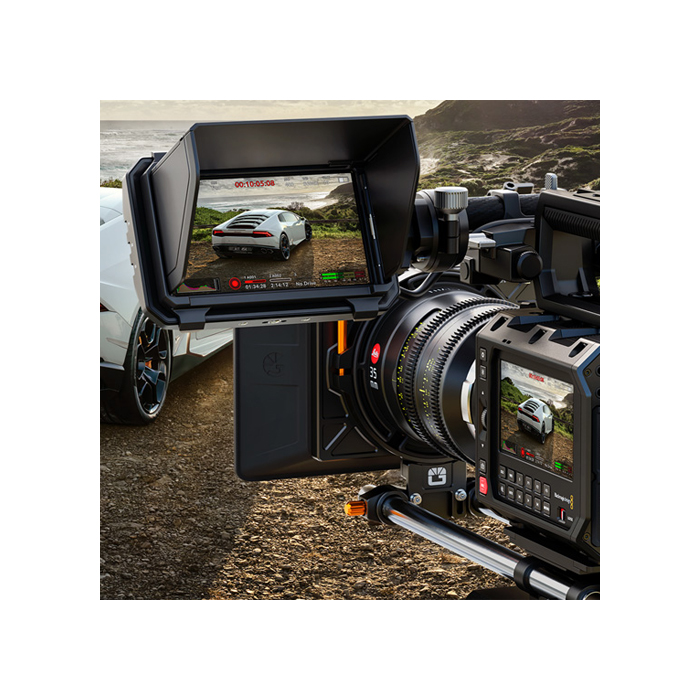

Multiple mounting points make it easy to attach on any camera rig and use as a large viewfinder for easier focusing and framing. Or use it as an assist station so crew can frame and monitor shots from any position on set!
There are 3 customizable buttons for quick access to zebra, focus assist, false color and more. Plus, the bright 1500 nit display and removable sunshade ensure visibility, even in sunlight!
Features:
- Display Size: 5 inch
- Display Resolution: Full HD 1920x1080
- Display Type: LCD Capacitive Touchscreen
- Display Brightness: 1500 nits
- Frame Rate: Up to 60fps
- Tally: Rear Facing LED Tally Light
- Accelerometer: Automatically rotates image when monitor mounted upside down
Control:
- On Screen Controls: Tap screen to control Monitor Overlays,Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
- Button Controls: Includes F1, F2, F3 assignable functionbuttons to recall preset parameters ortoggle functions.
- Function Button Presets: FPS: Preset Value, Iris: Preset Value, WB: Preset Value, ISO: Preset Value, Shutter: Preset Value.
- Function Button Toggle: Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, False Color + Zebra, OIS, Stream, Still.
- Mounting Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern, 2 x M4 bottom mounting points, 1 x 1/4-20 side mounting point with ARRI locating pin pattern, 2 x M4 side mounting points.
Power Requirements:
Compatible Cameras:
- Blackmagic PYXIS 6K
- Blackmagic PYXIS 6K PL
- Blackmagic PYXIS 6K EF
- Blackmagic URSA Cine 12K LF
- Blackmagic URSA Cine 17K 65
In the Box:
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
