Blackmagic Studio Converter

ATEM Studio Converter is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback!
Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed.

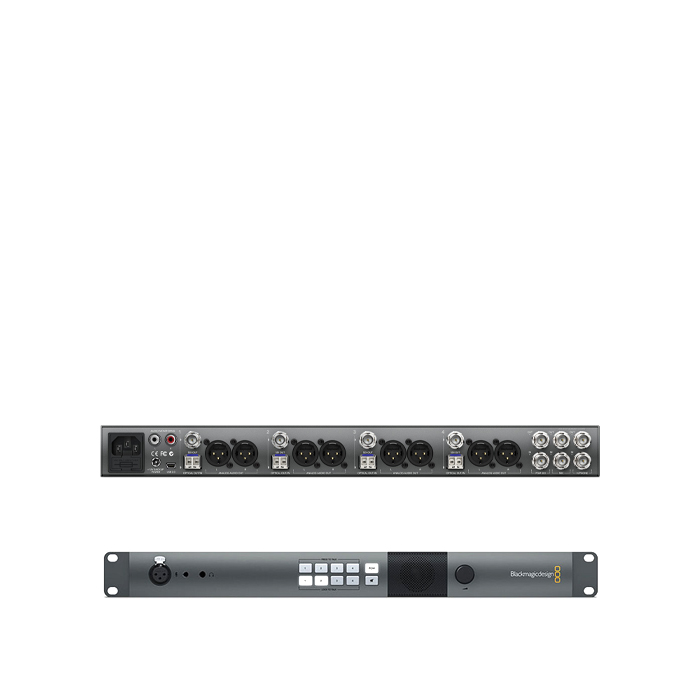

ATEM Studio Converter’s rack mount design has 4 bi-directional fiber converters that convert each camera feed from optical fiber to SDI and output balanced analog audio on XLR connectors.
Also included is loop program SDI in, plus AES/EBU microphone and headphone loops that let you link multiple ATEM Studio Converters.

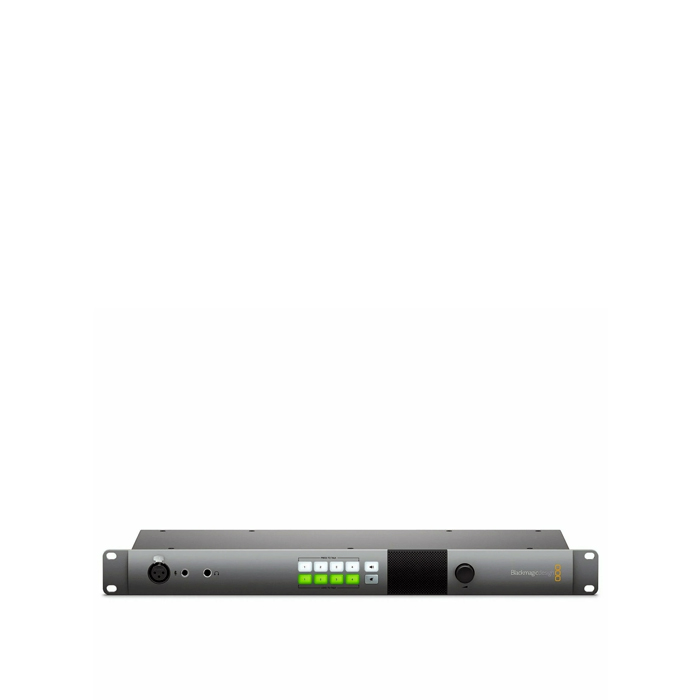

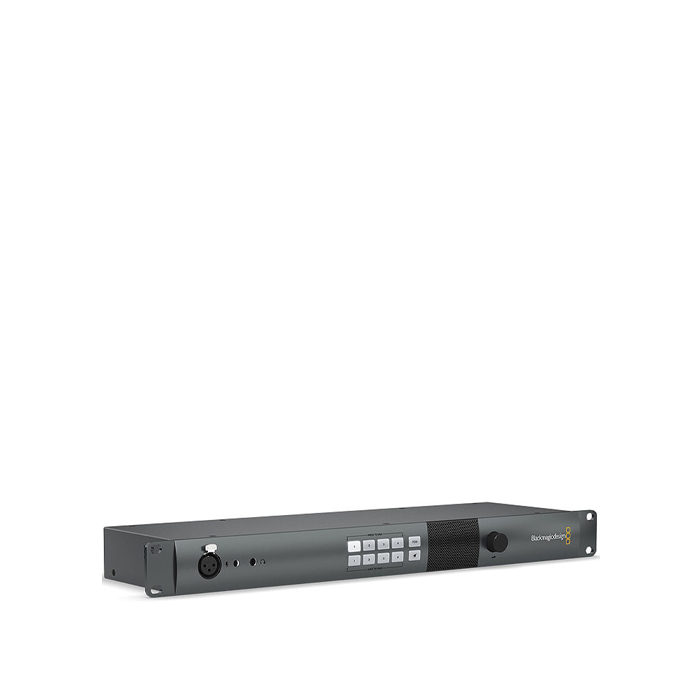

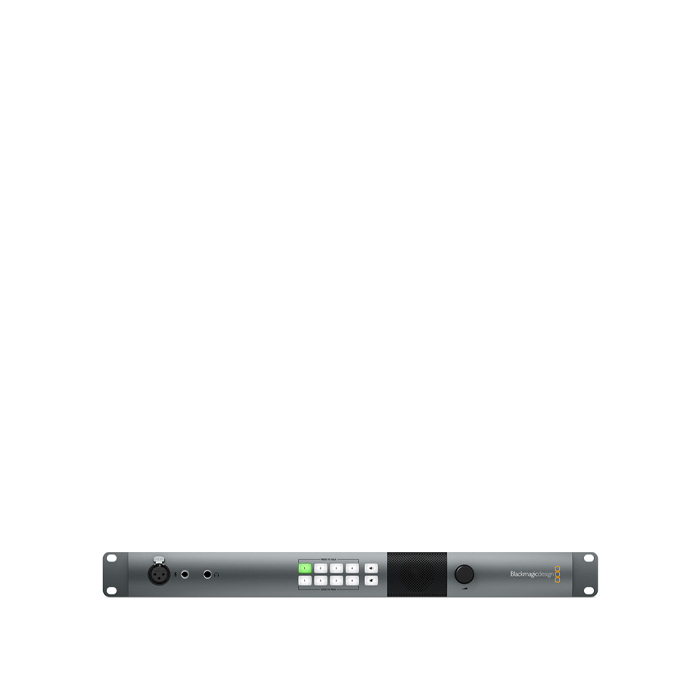

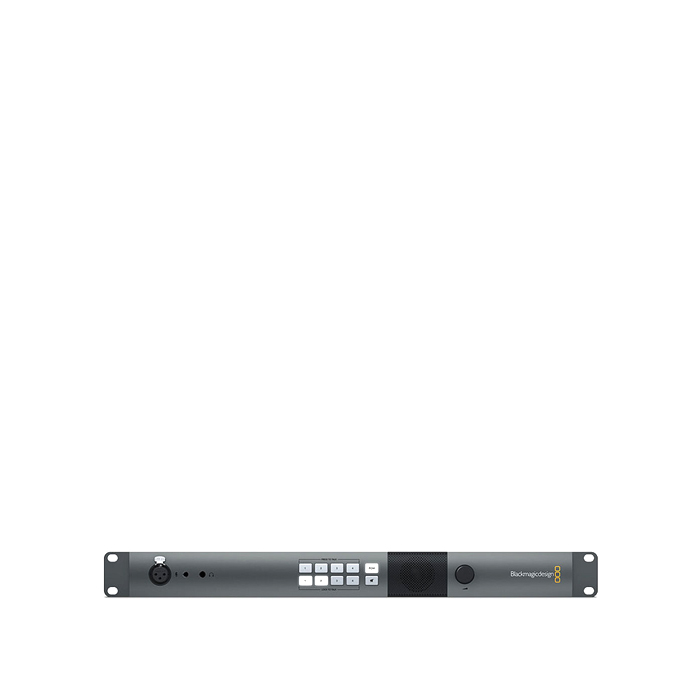

ATEM Studio Converter features a stylish machined aluminum front panel for a super tough design that also includes microphone and headset connections, backlit press to talk buttons, plus a built in speaker and volume control for talkback.

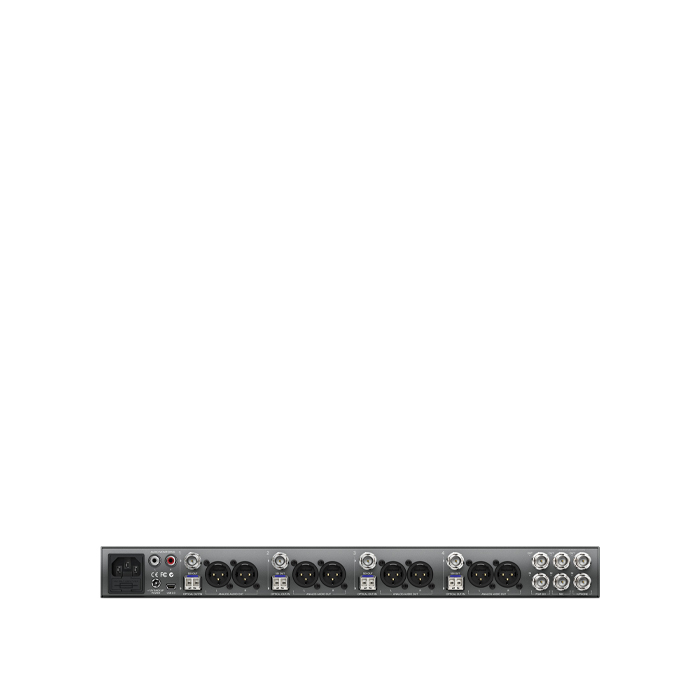

All video and audio connections are on the rear panel and the built in power supply supports 110V to 240V.

Talkback

During busy live production it's vital to be able to talk to your camera operators. ATEM Camera and Studio Converters take advantage of the 16 channel SDI audio standard and embed the talkback into rarely used channels 15 and 16.
ATEM Camera Converter uses standard PC or iPhone type headsets while the ATEM Studio Converter uses more robust aviation headsets that are available in hundreds of different styles!
ATEM Studio Converter also features a built in microphone input and speaker so you don't need to use a headset.

Tally

It's important for camera operators to know when their camera is on air, so they don't inadvertently change their shot when millions of people could be viewing!
ATEM Camera and Studio Converters support SDI tally output from the program feed of switchers, such as Blackmagic Design's ATEM range of live production switchers.
When a camera is on air a red LED illuminates on the ATEM Camera Converter and a red tally border is displayed on the converter's SDI and HDMI monitoring outputs.

Connections

SDI Video Input

• 1 x 10 bit SD/HD switchable program input from switcher, including tally information.

SDI Video Output

• 4 x 10 bit SD/HD switchable camera outputs.
• 1 x 10 bit SD/HD switchable program loop thru output connects to another ATEM Studio Switcher.

Talkback Audio

• Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.

Analog Audio

• 1 x stereo RCA monitoring output.

AES/EBU Audio Input

• 1 x combined headphone input. 1 x combined microphone input. Combined inputs for connecting to other ATEM Studio Converters.

AES/EBU Audio Output

• 1 x combined headphone output. 1 x combined microphone output. Combined outputs for connecting to other ATEM Studio Converters.

Balanced XLR Audio Output

• 4 x camera stereo analog audio outputs.

Optical Fiber Video Input

• 4 x single mode SD/HD switchable camera inputs with LC connector.

Optical Fiber Video Output

• 4 x single mode SD/HD switchable camera outputs with LC connector.

Optical Fiber Audio Input

• 1 x single mode camera audio inputs with LC connector.
• Channels 1 & 2 are camera audio.
• Channels 15 & 16 are intercom audio.

Optical Fiber Audio Output

• 1 x single mode camera audio outputs with LC connector.
• Channels 1 & 2 are camera audio.
• Channels 15 & 16 are intercom audio.

Computer Interface

• 1 x mini-B type USB 2.0 connector for firmware updates.
