BRIGHT TANGERINE MISFIT KICK MKII ONE TRAY KIT
B1235.0106

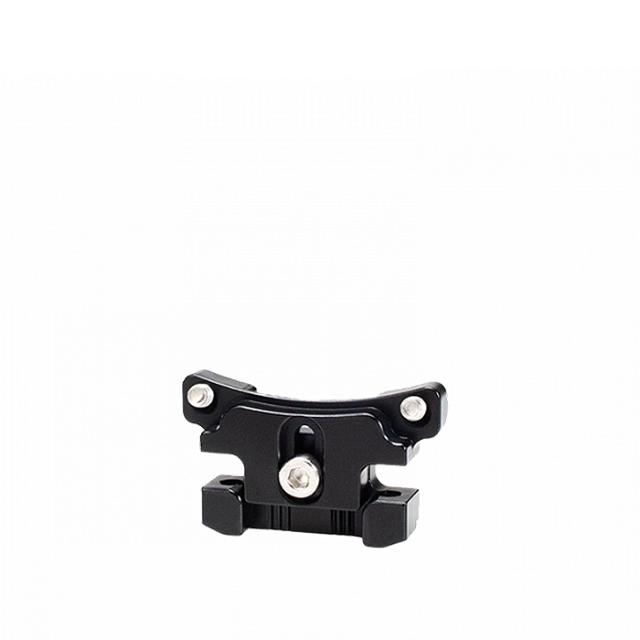

Connect smaller diameter frame safe clamp adapters to the 15mm LWS Bracket with this extension bracket. Compatible for 100, 104, 110 & 114mm clamp adapters with the Misfit Kick (Mk I & II), 360 & Prodigy Air Deflector or ARRI LMB 4×5.
Each Frame Safe Clamp Adapter is configurable for fixed rod support. Depending on the clamp adapter size, you may require a support extension that attaches the clamp adapter to the 15mm LWS support bracket.

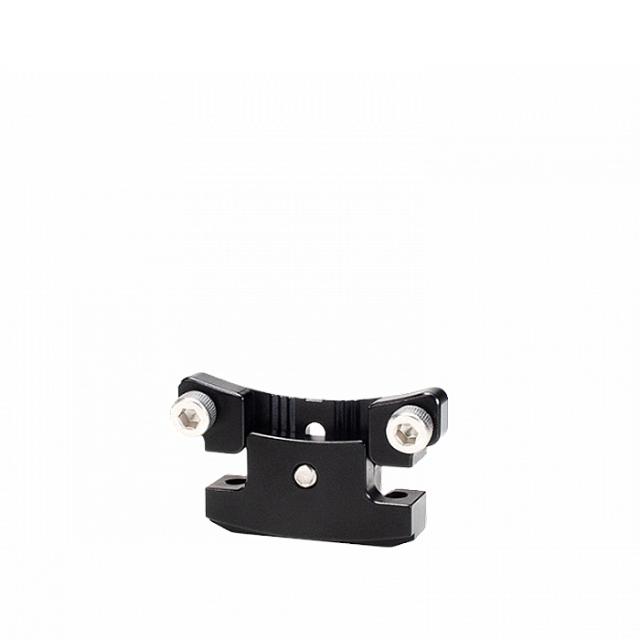

This support extension is designed for the 100, 104, 110 & 114mm Frame Safe Clamp Adapters and attaches using two screws.
The support extensions are height adjustable and set on a guided track. Raising and lowering the extension sets the height position of the matte box and is secured using the set screw.

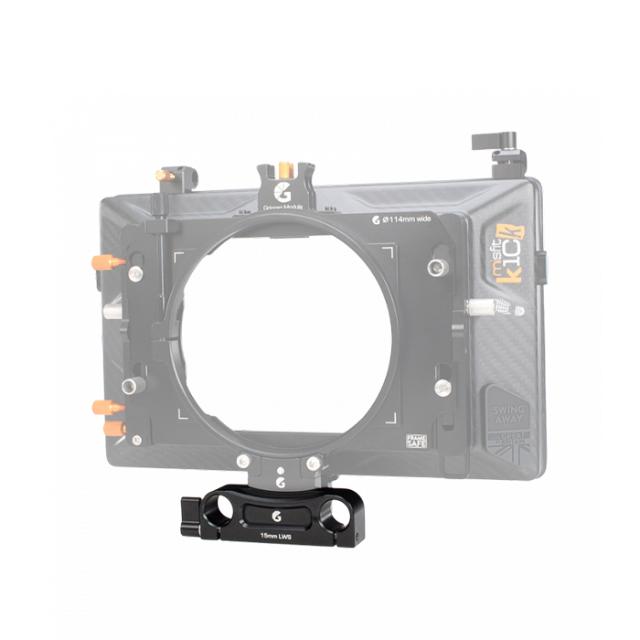

The 15mm LWS Support Bracket (B1235.1002) attaches to the bottom of the extensions using the two captive screws on the support bracket.

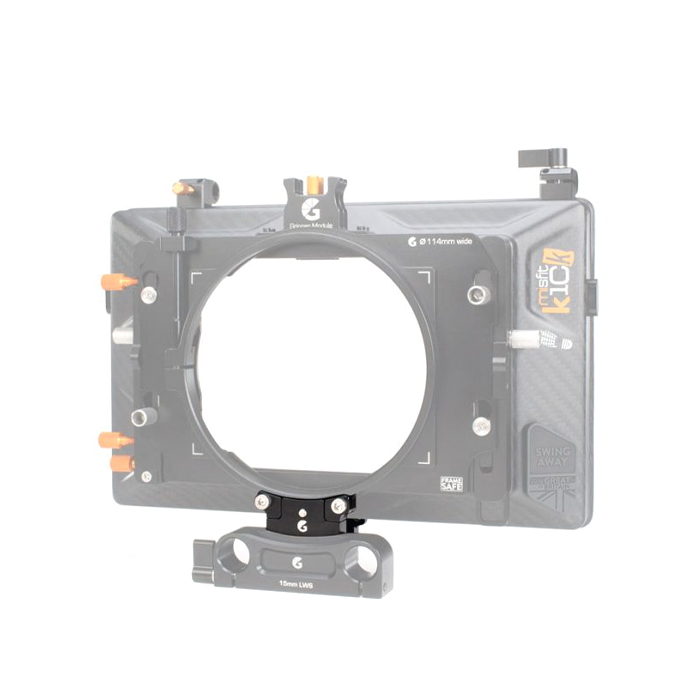

The extension is compatible with a range of matte boxes including the Misfit Kick (Mk I & II), 360, Prodigy Air Deflector or ARRI LMB 4×5 when combined with our Frame Safe clamp adapters.
It is built from precision cut and anodised from aluminium.
Producent | Bright Tangerine |
Kategori | Matte box |
