DZO PICTOR 14-30/50-125/20-55MM T2.8 BLACK BUNDLE

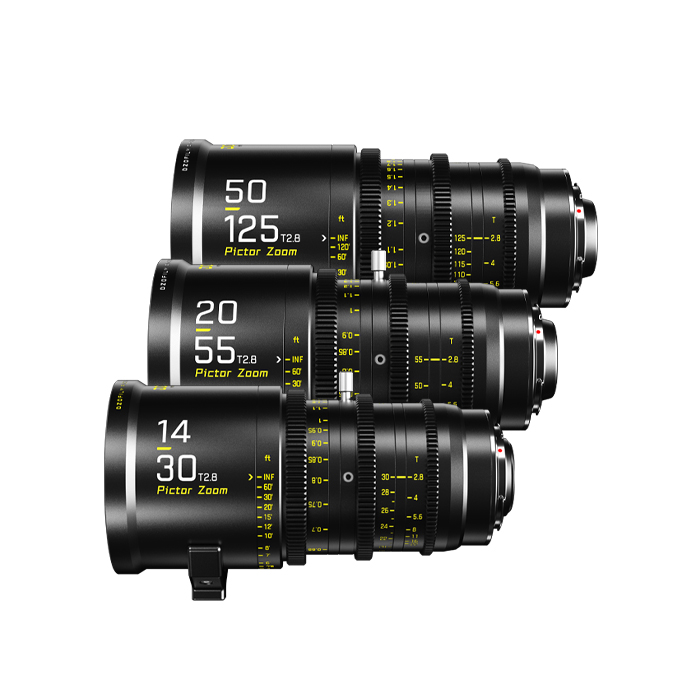

DZOfilm Pictor Zoom Kit 14-30mm T2.8 / 20-55mm T2.8 / 50-125mm T2.8 Black PL / EF Mount

• Maintains focus throughout the zoom range
• Natural Color Rendering
• Covers S35 sensors
• 16-Bladed iris for soft, creamy bokeh
• Interchangeable lens mount
• 270° Focus Rotation
• Consistent design

Parfocal Design

Center image stay sharp during zooming in or out. No matter from close-up to wide shot, or rapidly zoom out to long shot, whit the Parfocal design, focus keeps still all the way along.

Minimal Breathing

Thanks to the floating structure, the breathing of Pictor Zoom lenses are insignificant during focusing.

Versatile and Ultra compact

At just 1.6kg, Pictor Zoom can be easily mounted on a crane, JIB, tripod, ROV or other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting.
Be a better Run-and-Gun Filmmaker and have no fear of any complicated scenes or quick shooting. Time saving, without frequent lens changing,

Gentle Sharpness and Vivid Look

From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.

Soft Bokeh

Excellent subject separation is achieved using 16 aperture blades, which creates soft dreamy out of focus areas. This adds depth to the scene and isolates the subject from the background.

Consistent design

Highly consistent in color and mechanical control, which satisfies the needs on demanding shoots.
Cinema 0.8 standard pitch on Focus, Iris, Zoom ensures maximum compatibility with multiple Follow Focus and wireless systems, Experience exceptional build quality and attention to even the smallest details with Pictor Zoom lens.

14-30mm:

• T-Stop: T2.8 – T22
• Optical Construction: 21 elements in 17 groups
• Close Focus: 0,6m
• Iris Control: 61°
• Focus Control: 270°
• Zoom Control: 100°
• Iris Blades: 16
• Weight: 1880g

20-55mm:

• T-Stop: T2.8 – T22
• Optical Construction: 18 elements in 15 groups
• Close Focus: 0,6m
• Iris Control: 65°
• Focus Control: 270°
• Zoom Control: 100°
• Iris Blades: 16
• Weight: 1520g

50-125mm:

• Optical Construction: 18 elements in 13 groups
• Close Focus: 0,8m
• Iris Control: 72°
• Focus Control: 270°
• Zoom Control: 100°
• Iris Blades: 16
• Weight: 1700g
