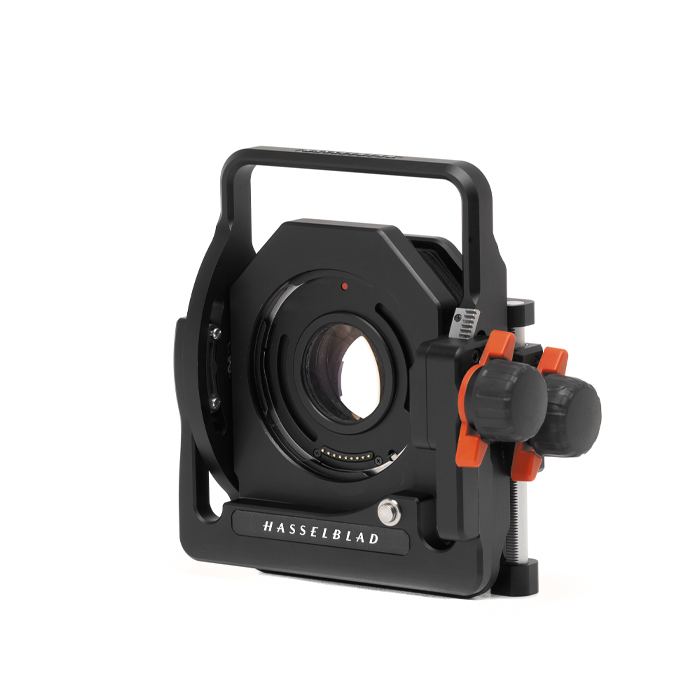

HASSELBLAD HTS 1.5 TILT/SHIFT ADAPTER 3043400

Hasselblad HTS 1.5 Tilt/Shift Adapter

The revolutionary HTS 1.5 is a tilt and shift adapter that can provide a pivotal step-up for many Hasselblad photographers. Designed for the HCD24mm, HCD28mm, HC35mm, HC50mm, HC80mm and the HC100mm lenses it, in effect, adds six different “tilt and shift lenses” to the range.
With the extension tubes, H13, H26 or H52, the HTS 1.5 can also be used for close-up work. Especially in combination with the Macro Adapter that improves the close range performance with the HC 50-II lens.
This simple device solves not only technical challenges, but also provides exciting opportunities for creative solutions as well.
The combination of well- known optical principles combined with the latest in digital image control, provides a powerful package that will expand photographic expression to new levels.

“Shift” is the moving of a lens, up and down or to the sides, from its central position while retaining its perpendicular orientation to the film plane. Simply put, the adapter expands the diameter of the projected image circle at the film plane. This allows for much greater freedom in “placing” the image area within the now much broader circle before vignetting takes effect. And most importantly, all this happens without moving the orientation of the camera in relation to the subject.
So if verticals, for example, are acceptable in the viewfinder, they will remain so whatever the amount of shift to include the “hidden” parts of the image. Simple but ingenious.

“Tilt” differs from shift in that the normal perpendicular orientation of the lens to the film plane is changed resulting in a change in the plane of focus. This means that at any given aperture/focus setting, the depth of field in the subject will not remain as simply the space between two measured points from the camera as is normally the case, but increased or decreased. This amount is user controlled.
Once again, simple but ingenious.

The HTS 1.5 works best with:

• HCD24mm
• HCD28mm
• HC35mm
• HC50mm II
• HC80mm
• HC100
• Extension Tube 13, 26 & 52mm
• Macro Converter

The HTS 1.5 is not compatible with:

• H1,7X converter
• CF lens adapter
• HC 50-110
• HCD 35-90
• HC 120
• HC 120-II

Specifications:

• Focal length conversion factor: 1.5x
• Aperture reduction: -1.3 stops
• Width/Height/Depth: 140 mm / 146 mm / 77 mm
• Weight: 750g
