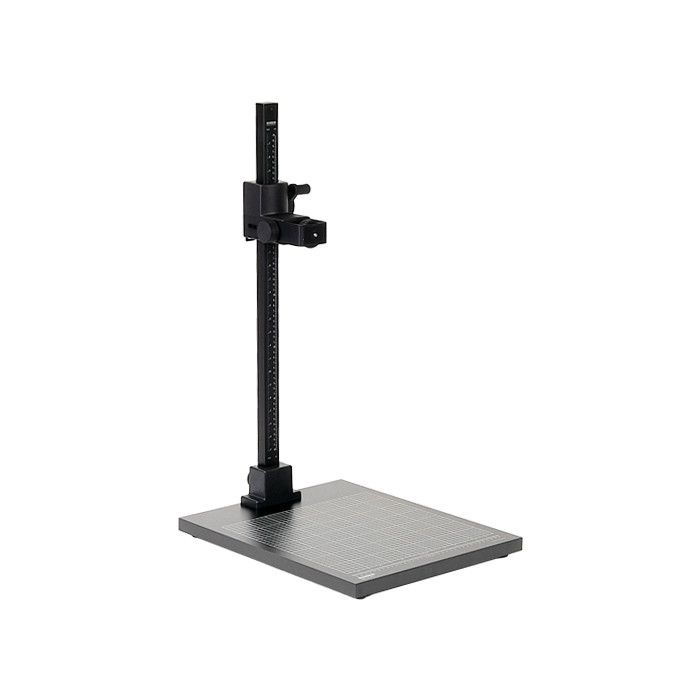

KAISER 5411 RS 2 XA COPY STAND

Kaiser 5411 RS 2 XA Copy Stand

Many two-dimensional originals and small objects require a special set-up for capturing the image: The camera should look vertically down at the subject.
In many cases an accurate, repeatable alignment is indispensable. This can be achieved by using special camera stands – known as copy stands in the „world of photography“.

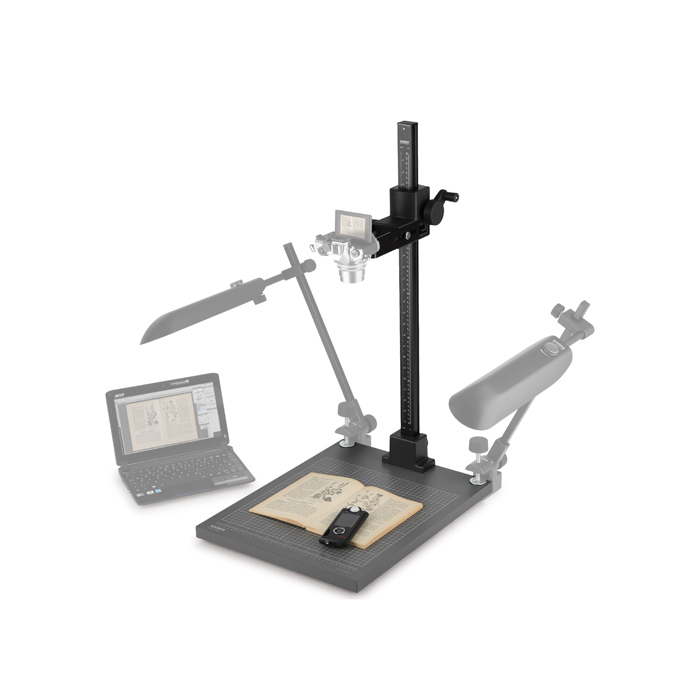

Stand and lighting equipment together with a suitable camera represent a complete solution for these image capturing jobs.
The Kaiser range of camera stands and lighting equipment is organized in „system families“, within which the individual components are coordinated to harmonize with each other.

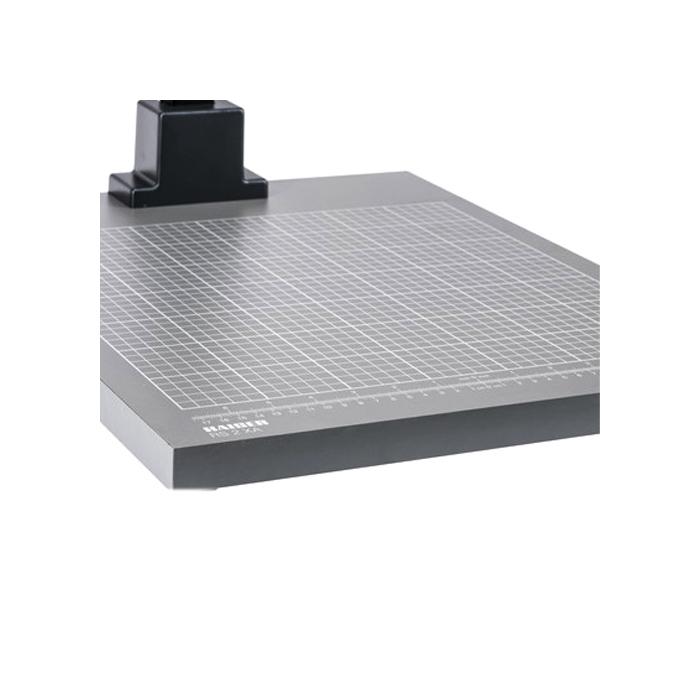

• Non-reflective matt grey baseboard with printed fine grid and cm/inch scale
• Matt-black, anodised aluminum, section tube column with cm/inch scale

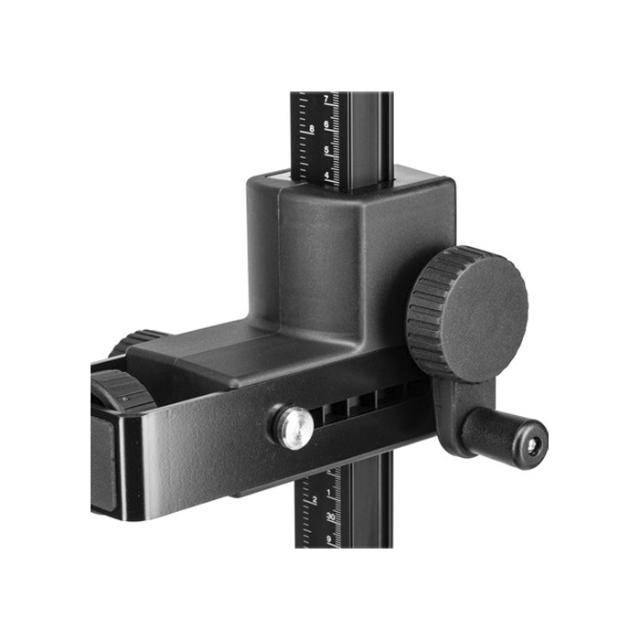

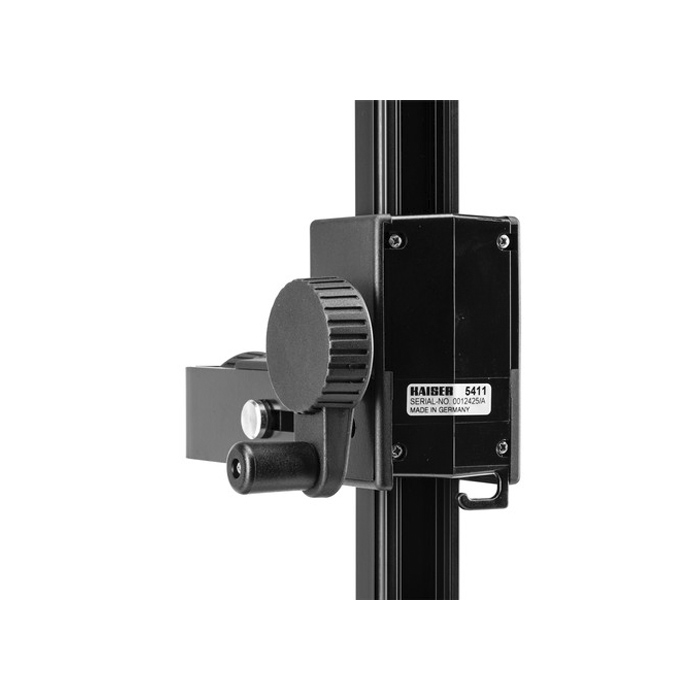

• Hand-cranked height adjustment by friction drive in plastic bearings

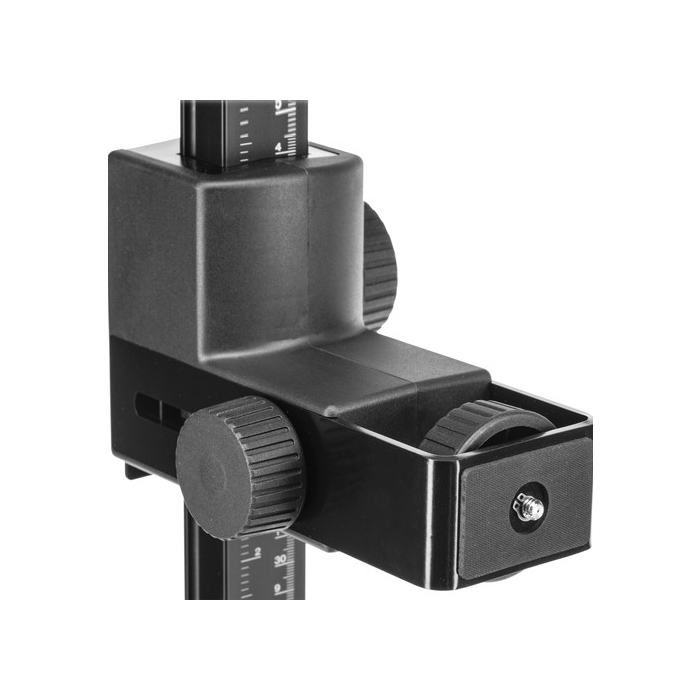

Column can be mounted rotated 180°. With horizontally adjustable camera arm to change the distance to the column, moves approx. 7 cm (2.7 in.) back and forth. 1/4” mounting thread.

Specifications:

• Base Board Dimensions: 500 x 400 x 25 mm
• Base Board Type: Aluminum die-cast, gridded, non-reflective, matte gray, cm and inch scale
• Bushing Thread Mount: 1/4”-20
• Column Cross Section: 35mm
• Column Height: 76 cm
• Maximum Payload Capacity: 1,5 kg
• Camera arm: Horizontally adjustable 12,5-19,5 cm
