NANLITE DUAL-PANEL COUPLER F. PAVOSLIM 120C

Nanlite Dual-Panel Coupler and Softbox Kit for PavoSlim 120C / 120B

• Join two PavoSlim 120 panels together as a single larger light source

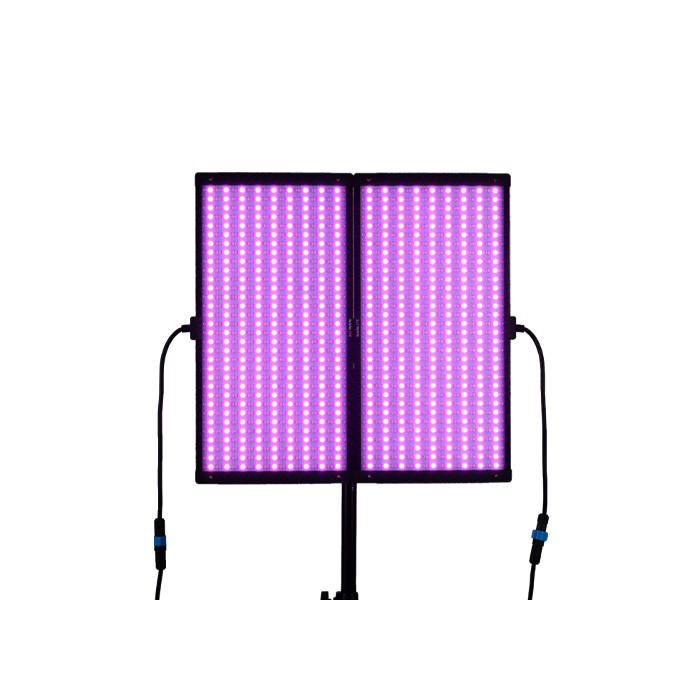

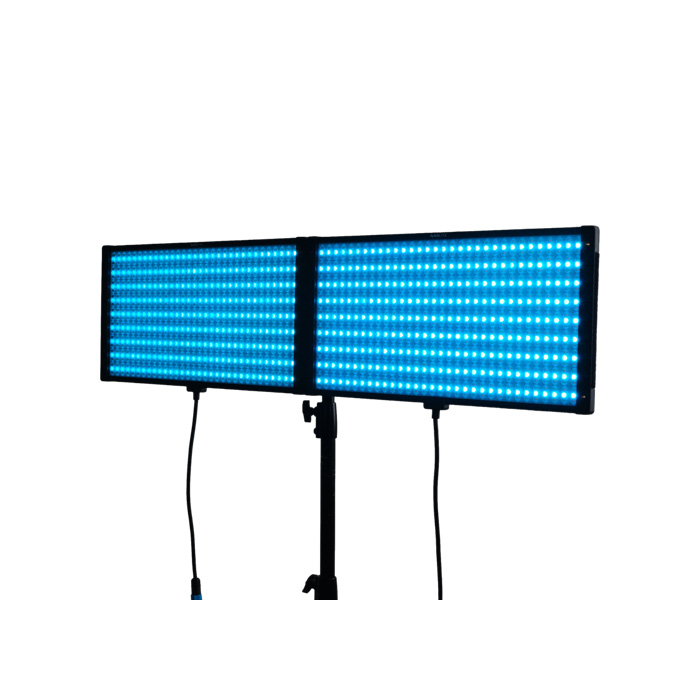

• 2 brackets are included to configure in either a 2x2 or 1x4 configuration
• Includes a softbox, 2 layers of diffusion, and 2 egg-crate grids for either 2x2 or 1x4

The Nanlite Dual-Panel Coupler and Softbox Kit provides the hardware needed to join two PavoSlim 120C or 120B LED panels together in either a 2x2 or 1x4 configuration. It also includes a folding softbox that can be fitted to either size, two sets of dual-layer diffusion and two egg-crate grids to accommodate both size configurations, and a carrying bag for storage and travel.

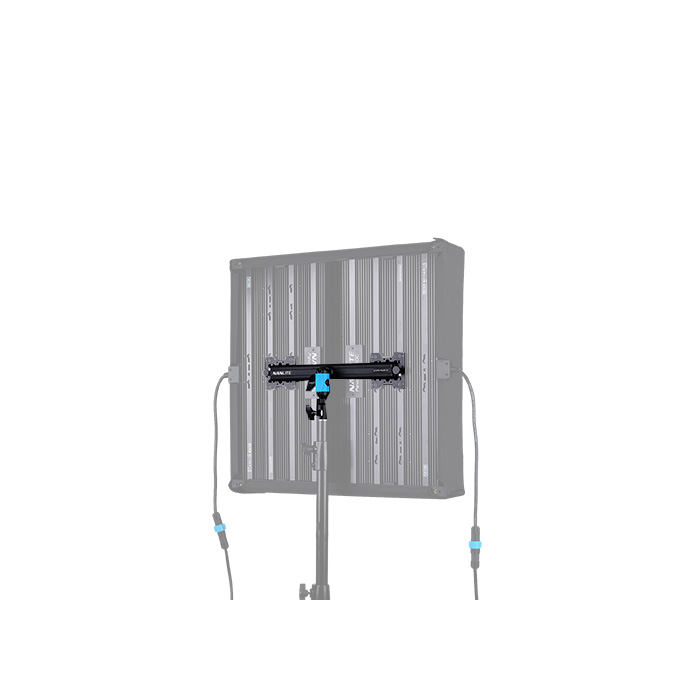

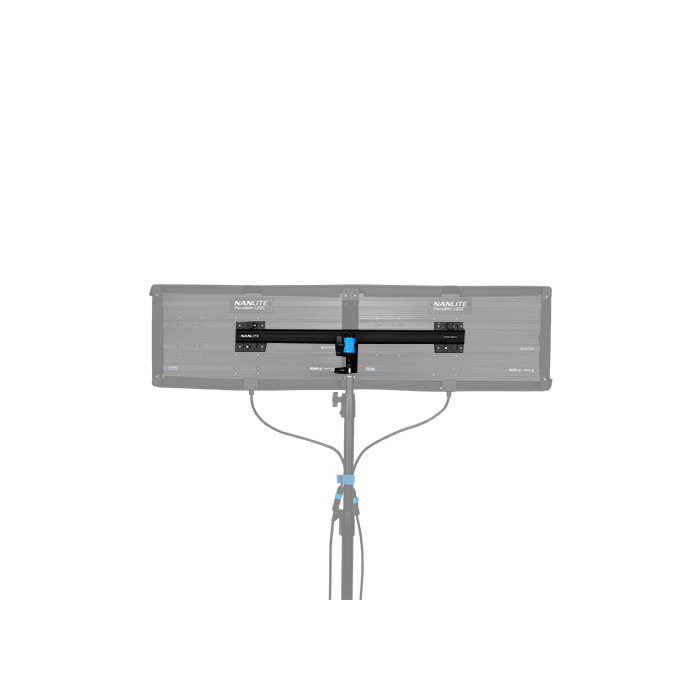

The coupling hardware attaches to the center mounting points on the back of the PavoSlim panels and utilizes the same 4-pin locking system as the PavoSlim mounts. There are two of these coupling brackets included at fixed lengths to accommodate either the 2x2 or 1x4 configurations. The center of the brackets features a stand mount that can be swiveled and locked into the exact position you need.

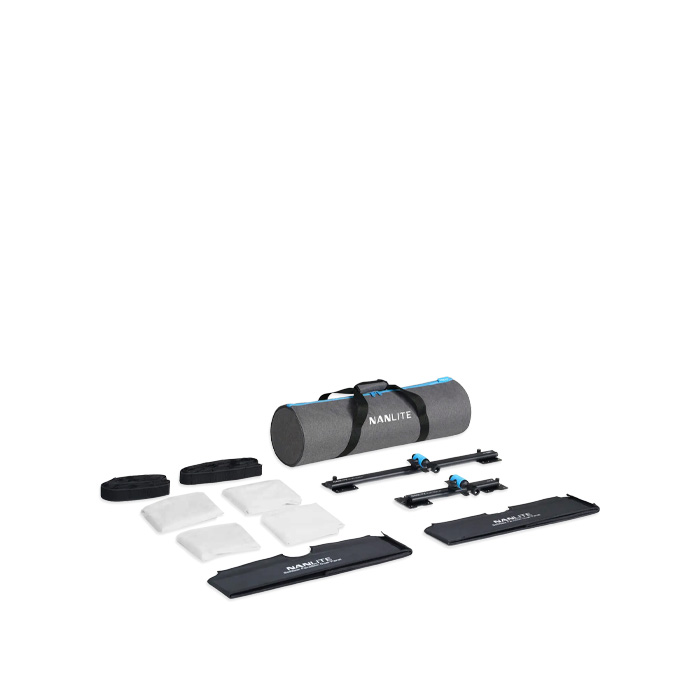

In the Box:

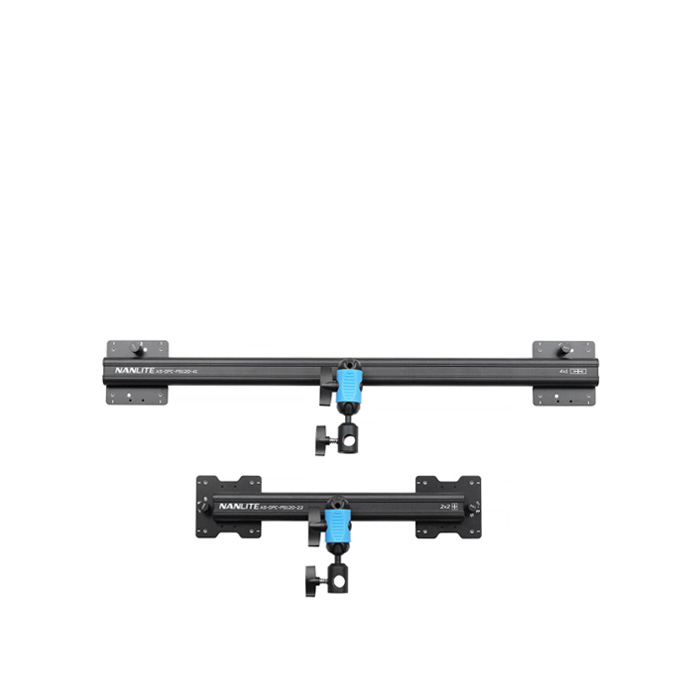

• AS-DPC-PS120-22 PavoSlim Dual-Panel Coupler 2x2
• AS-DPC-PS120-41 PavoSlim Dual-Panel Coupler 4x1
• SB-PS120-DP Softbox PavoSlim Dual-Panel
• 2 x 2 Eggcrate
• 2 x 2 Lite Diffuser
• 2 x 2 Standard Diffuser
• 4 x 1 Eggcrate
• 4 x 1 Lite Diffuser
• 4 x 1 Standard Diffuser
• Carrying Bag
