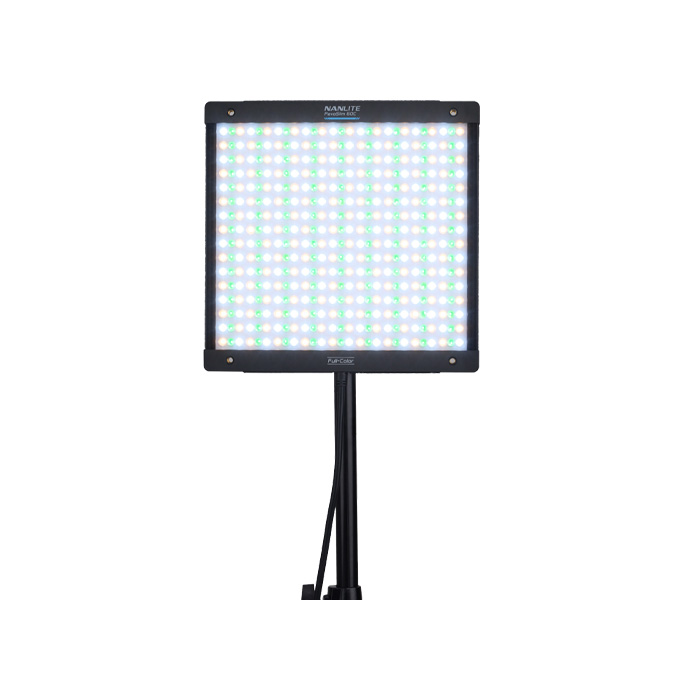

NANLITE PAVOSLIM 60C RGBWW LED PANEL

Nanlite PavoSlim 60C RGBWW LED Panel

• 60W RGBWW LED Panel
• 7074 lux @ 1m /5600K
• CRI: Average 96, TLCI: Average 97
• Multiple power options

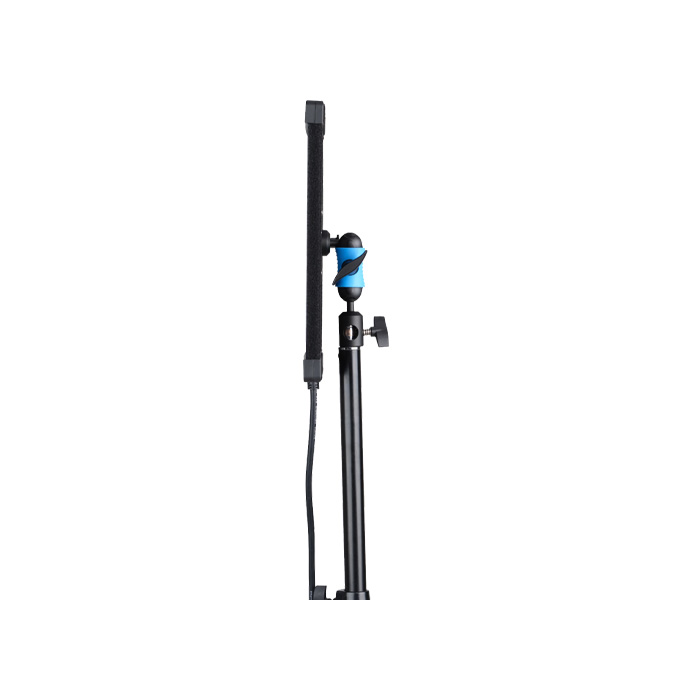

• Durable metal housing - only 1.86cm thick
• Rapid set up, within one minute
• Wireless control options - LumenRadio CRMX, NanLink App

Nanlite has once again explored the potential of the panel light source, bringing creators a new generation of LED panel light: The PavoSlim. The slim and lightweight design, fast and convenient installation, high luminance and accurate color rendering are combined to create the full color PavoSlim 60C.
The PavoSlim will empower creators with more flexible options to achieve their visions.

Durable Metal Housing - Slim and Lightweight

With the metal housing, the PavoSlim 60C proves that slimness and ruggedness are not contradictory. Even after being equipped with a complete set of diffuser and accessories for installation, it is still lighter and thinner compared to the traditional light mats. This makes it become necessary no matter in the small studios, low-ceiling locations or film and television sets with strict requirements.
The Nanlite team has developed a dedicated optical system for the individual chip of PavoSlim. Combining efficient heat dissipation and excellent optical design, the PavoSlim achieves 4 times output comparing to the average output of similar products.

Rapid Deployment

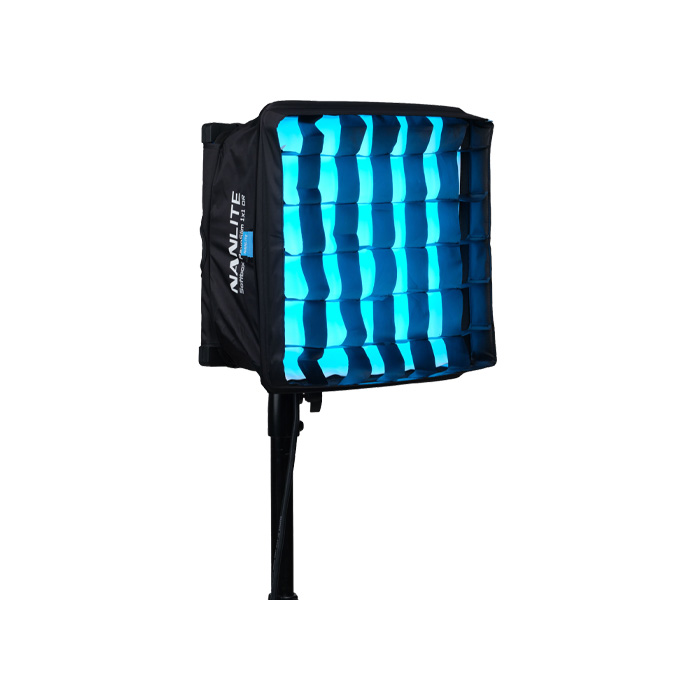

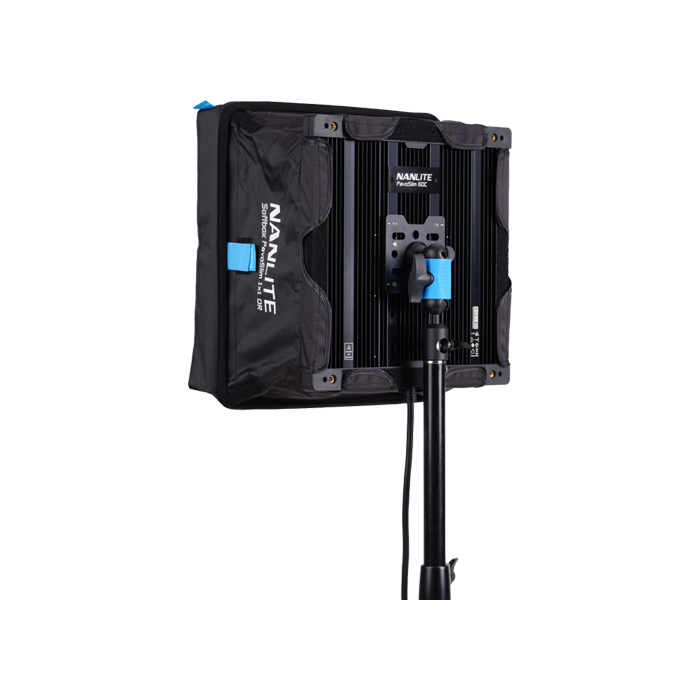

Every element of the PavoSlim 60C is designed for rapid deployment since every minute counts on set. Even the accessories are designed with the same philosophy for easy and rapid setup, enabling creators to effortlessly complete installation within one minute. It is worth mentioning that the PavoSlim 60C softboxs adopt an innovative compression design for rapid setup and breakdown in seconds.

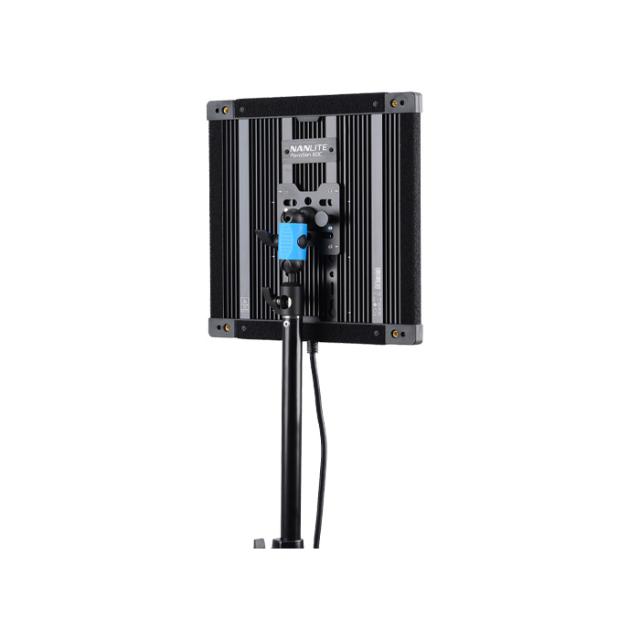

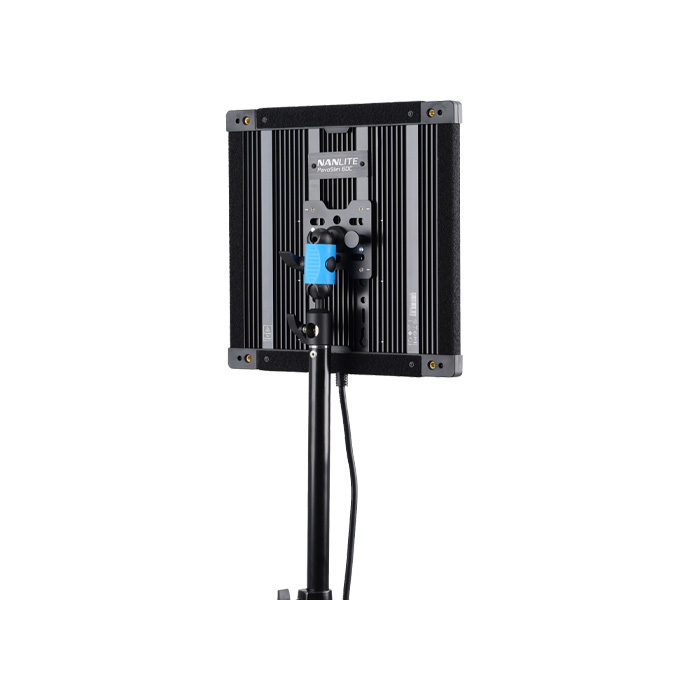

The back of the fixture has multiple sockets for installation, meeting flexible needs in various situations.
The control unit is designed with a quick release plate, which is compatible with the quick release clamp (Included) that also used for Forza II series fixtures (suitable for light stands and trusses). The control
unit can also be hung on the light stand by its strap.

Various Modes

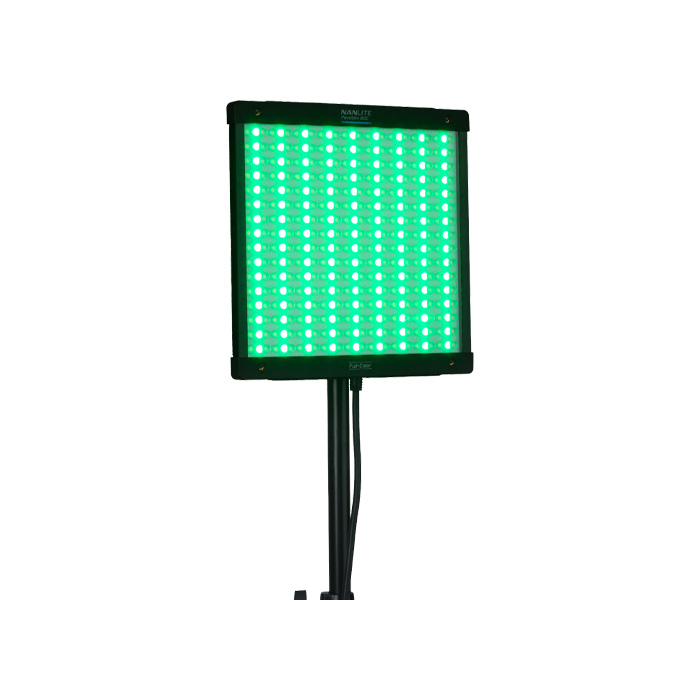

With RGBWW color mixing technology, PavoSlim 60C provide multiple modes for lighting options.

CCT Mode: 2700-7500K G/M ±150

HSI Mode: In this mode, the hue, saturation and intensity of light could be quickly adjusted with an option
of 36,000 colors.

GEL Mode: Considering the wide application of gels, the PavoSlim 60C are built in with 151 gels. This will not only reproduce colors of commonly used gels, but also eliminate the steps of installing the gels, and offer more convenience for ambient and emotional expression.

Effect Mode: PavoSlim 60C are equipped with 15 effects, enabling the simulation of scene lighting effects. Various parameters of each effect can be adjusted on-board, while more customized settings can be obtained by Nanlink App, LumenRadio CRMX and DMX/RDM.

Professional Control Options

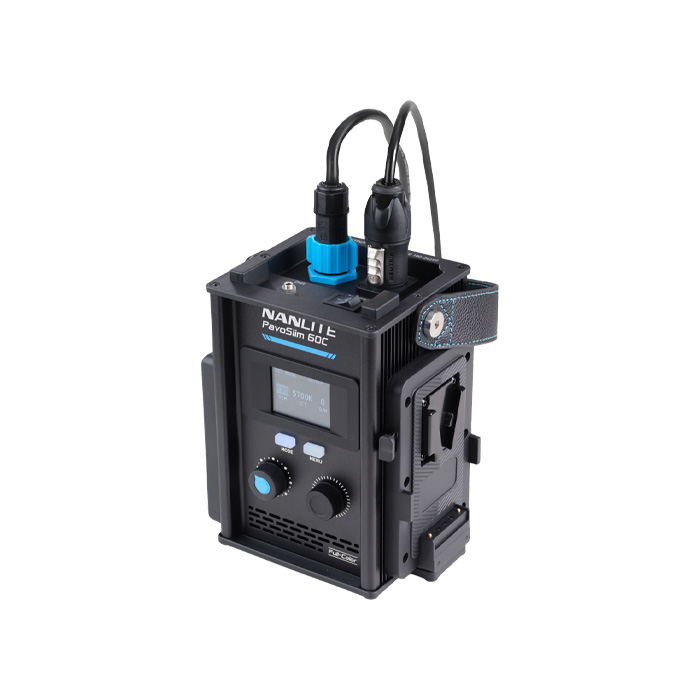

The PavoSlim 60C can be controlled on the included power control unit. The design of two buttons, two knobs, and the two-inch screen makes the operation straightforward.

With built-in 2.4G and Bluetooth modules, the PavoSlim can be easily connected to the Nanlink App.
This not only helps users easily achieve wireless intelligent control for lighting in small and medium spaces
like studios, but also make it possible to integrate with point-source and tube lights from
Nanlite to create diverse and complementary lighting solutions for scenes.

In addition, through the stable connection and control via wired DMX/RDM, PavoSlim can be applied in the film and TV standard control system, jointly controlled with other lighting fixtures in the same DMX network, making implementation of lighting effects simpler and more efficient.

Moreover, the PavoSlim 60C are equipped with LumenRadio CRMX, achieving wireless DMX/RDM reception. This will make them work with various lighting fixtures on set, combining stability with flexibility, and bringing creativity and efficiency to professional imaging.

Multiple Power Options, Deploy Anywhere

The PavoSlim 60C provide multiple power supply methods: PavoSlim 60C can be powered by AC power, V-mount batteries and NP-F batteries. All power supply methods support full power output, making it excellent for both indoor and outdoor scenarios. Besides, the PavoSlim 60C support hot swapping among different power supply modes, allowing for ongoing shooting without interrupting operations.

Slender & Durable Case

The included carrying bag follows the design concept of the Nanlite family. Solid structure with, internal explicit space partitions help storage more conveniently. The external reinforced stitching ensures a more durable bag.

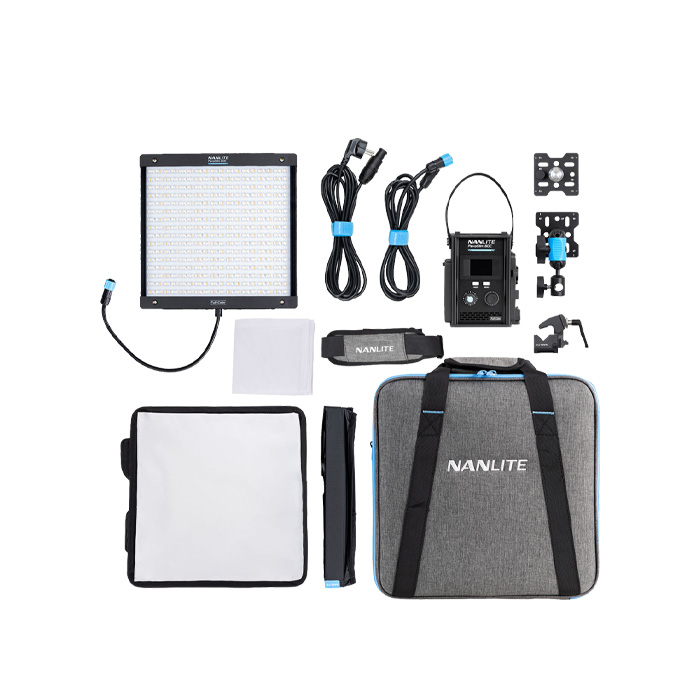

In the Box:

• 1 x PavoSlim 60C
• 1 x Control Unit
• 1 x Universal Holder
• 1 x Quick Release Clamp
• 1 x Baby Pin Holder
• 1 x DC Connection Cable 2.6M
• 1 x AC Power Cable 4.5M
• 1 x Softbox
• 2 x Diffuser (1 x Standard Diffuser + 1 x Lite Diffuser)
• 1 x Eggcrate
• 1 x Carrying Bag
• 1 x User Manual
