NANLUX EVOKE 900C W FL-35YK SPOT LIGHT & FLIGHTCAS

Nanlux Evoke 900C RGBLAC Spot Light with FL-35YK & Flight Case

• Ultra wide 1800K – 20000K CCT range with G/M ±200 adjustment
• 12940 lux @ 3m with 45° reflector / 5600K, 940W rated power
• CRI average 96, TLCI average 96
• Multiple control methods DMX/RDM, Art-Net/sACN, Nanlink App, LumenRadio CRMX
• Weather resistant IP55 rated fixture and power supply
• Intelligent 4 modes fan with noise level as low as 25dBa in SMART mode

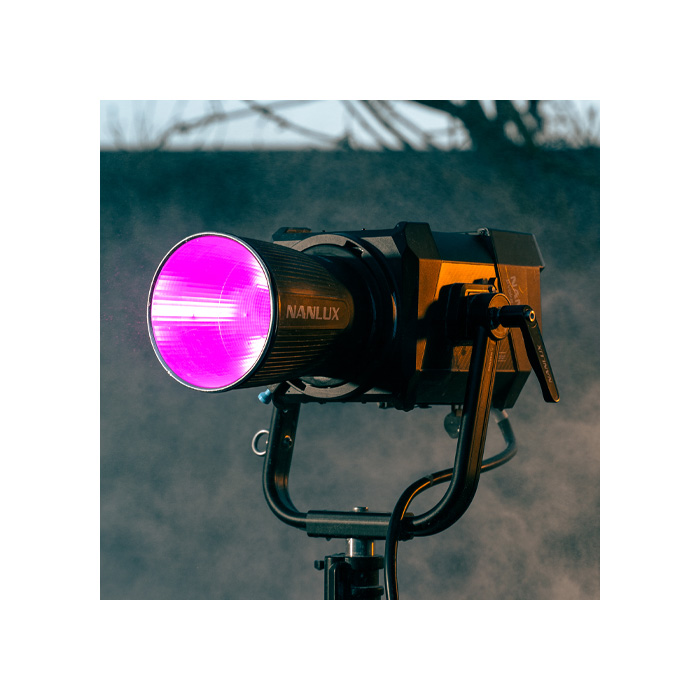

The Nanlux Evoke 900C is a compact light with a powerful output and wide color spectrum. Despite of its low weight of 7,7kg (light fixture only) it can still manage to boast a staggering output of 12940 lux@3m (with 45° reflector at 5600K).
The LED comes with the state-of-the-art RGBLAC six color mixing system that adds lime, amber and cyan on base of the primary RGB-colors and reaches a new altitude in color accuracy.
The RGBLAC color mixing technology provides more color options and an ultra-wide 1800K-20000K CCT range with G/M ±200 adjustment.
Thanks to the technology it produces excellent color rendering compared to other RGB/RGBW/RGBWWW LED´s with an average CRI/TLCI of 96/96 and TM-30 Rg average of 94/TM-30 Rf average of 100.

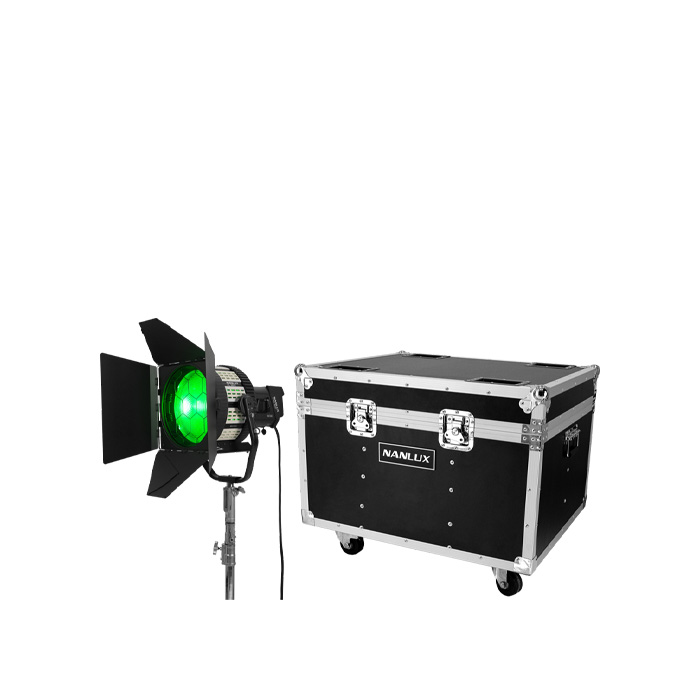

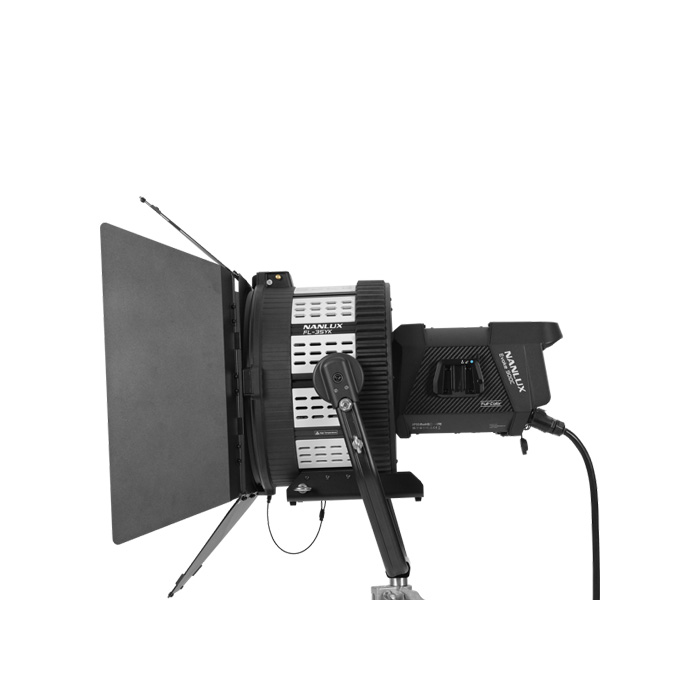

The specially designed fresnel with NL Mount, is compatible with the Evoke 900C and 1200 series. With a new center-mounted yoke offers a more balanced orientation plus a non-rosette locking hinge allowing for a smooth tilt movement. Illuminance level is boosted when attached with the FL-35YK. The fresnel is focusable from 11°-45°, providing an excellent Hollywood level hard light solution.

Extraordinary output and flexibility

As a point source LED, a quick switch between soft and hard light can be easily achieved on the Evoke 900C via attaching different modifiers. Flooding, spotting and cutting are also a sure thing in order to provide more light shaping freedom for image making.
For virtual production, which has unlimited potential in the future of production, the Evoke 900C will make the presentation with more natural looks, create realistic and natural light, thus greatly improve shooting efficiency.

Blending six colors, achieving new heights

The Evoke 900C is adopted with the state-of-the-art RGBLAC six color mixing system -- adding Lime, Amber and Cyan on base of the primary colors RGB, reaching a new altitude in color accuracy.
The RGBLAC color mixing technology on the Evoke 900C enables more color options, and the ultra-wide CCT range also renders the accurate sunlight or moonlight while maintaining excellent light quality all the time.
The G/M±200 of uv adjusting range gives the Evoke 900C the ability of not only calibrating the G/M deviation, matching common light sources or other brands LED lights on the market, but also giving a more cinematic look to the frame.

Comprehensive Controls, Intuitive Operation

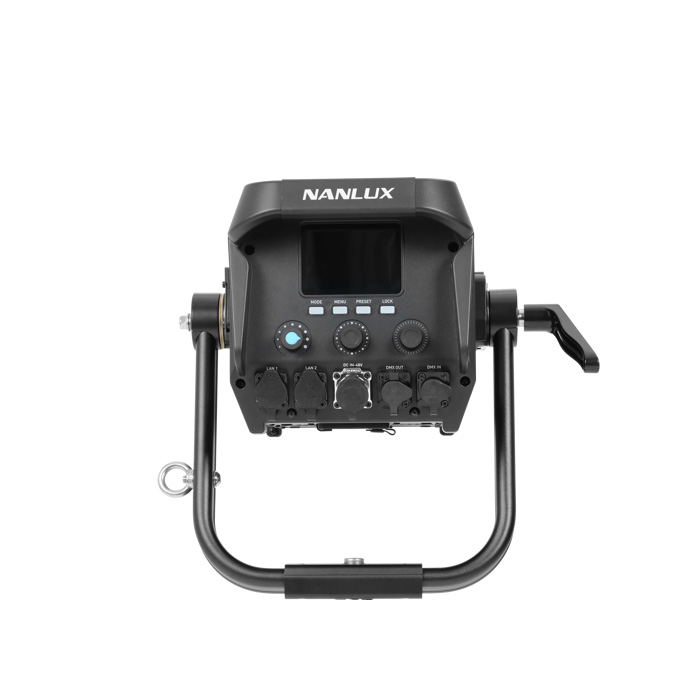

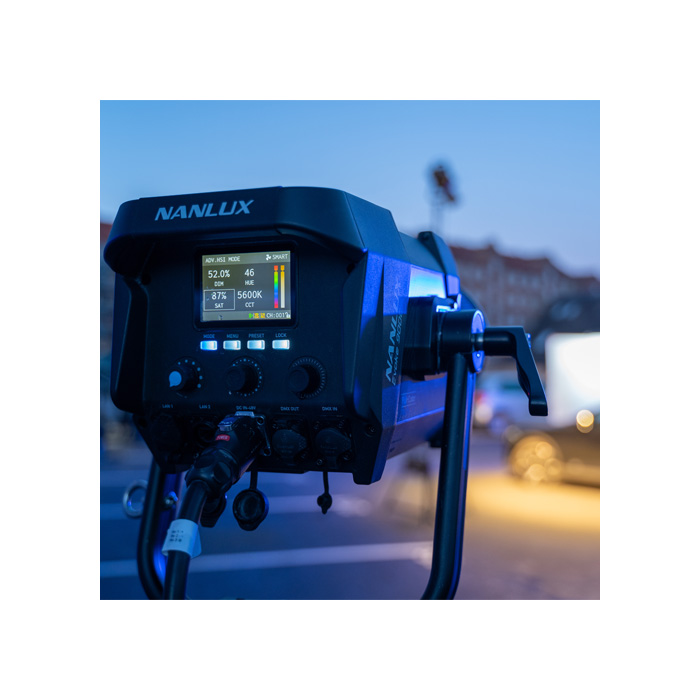

The Evoke 900C is built with a combination of 4 buttons, 3 knobs and an upgraded 3.5 inch full-color TFT screen, gives users an intuitive interface and a better operating experience. More comprehensive wired and wireless control methods are available for offering more flexibility for creators based upon the actual scenarios. The fixture comes with DMX 5-pin port, supporting DMX/RDM control and guaranteeing stable operation for large scenes.

The Evoke 900C is equipped with 5-pin XLR in&out ports and LAN in & out ports, supporting basic DMX/RDM control and Ethernet control based on Art-Net/sACN protocol. Through the LAN ports Art-Net/sACN control, the Evoke 900C could not only easily achieve a much longer distance of signal transmission than traditional cable plus a more convenient control across multiple universes, without affected by signal decay.
But also embed seamlessly into Unreal Engines lighting system with the matching DMX mode, allowing the Evoke 900C to respond correctly to changes in the virtual environment in real time.

Access the NANLINK wireless control system through the built-in 2.4G/Bluetooth modules to achieve a precise and professional lighting control experience with ease.Through the built-in LumenRadio TimoTwo module, Evoke 900C can receive or transmit CRMX signal, and have the ability to cooperate with other lighting fixtures.

More lighting modes

The Evoke 900C incorporates more versatile lighting modes -- CCT mode with G/M adjustment, Advanced HSI mode, RGBW mode, XY coordinates and GEL mode. And a DMX mode is developed specifically for virtual production under DMX control.
The wide and complete selection of lighting modes gives users the key to adjust colors at will. The Evoke 900C has 15 built-in effects to simulate the real lighting effects with all parameters adjustable via On-board, NANLINK APP, DMX and other control methods.

Advanced HSI mode:

Based on the original HSI mode and expand a higher level of customization, support free adjustment of the Intensity, Hue, Saturation and White Point Color Temperature.

RGBW mode:

R/G/B/W channels can be controlled separately for more accurate color. More than 1.84e+19 colors are accessible via DMX console.

XY coordinates:

Precise color control through adjusting on the XY coordinates in the selected color gamut of CIE1931 color space.

GEL mode:

Based on traditional gels, the gel mode provides a wide selection of 151 gels, saving times on the gels installation process, and bringing a more convenient way in presenting the color and mood.

True color - true mirage

In today’s rapidly upgrading image-related technology, virtual production brings a new possibility by utilizing intelligent lighting systems, arc LED screen and virtual rendering system. The corresponding perspectives and images in the virtual space can be presented through screen and lighting effects by capturing and computing the movement of the camera in real-time, so that the actors and crews can have a immersive feeling in action.
As an intelligent lighting, the Evoke 900C provides various lighting effects in the form of point source lighting with full color functionality, and achieve connections and integration in a higher level via specially developed DMX mode and Ethernet control combining with virtual rendering system.

NANLUX have developed DMX mode - RGB (NO DIMMER) specially to meet the demands from virtual production.
By removing dimmer channel and adding Gamma responding option at the same time, lighting control for virtual production will become easier and more responsive.
The Evoke 900C has the built-in Ethernet control upon Art-Net/sACN protocol for the first time, facilitating the integration into Unreal Engine’s lighting system, enabling fast and accurate respond to virtual environment changes in real time, enhancing the image expression with better detail.

Robust structure, weather resistant

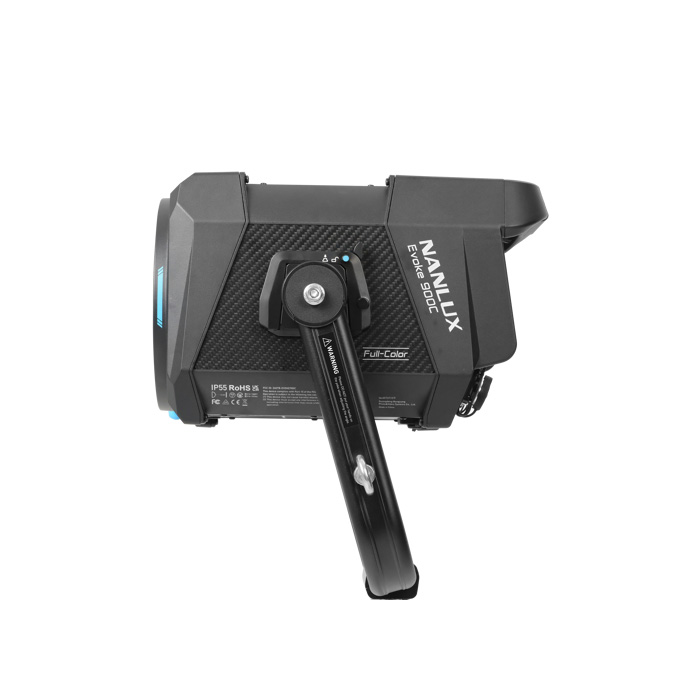

Evoke 900C retains the great features of the Evoke family for outstanding weatherproof performance -- IP55 rated for both the fixture and power supply, making it capable of withstanding extremely inclement weather conditions, the light is a trustworthy weapon for making astonishing images.

Intelligent fan, handling both dissipation and denoising

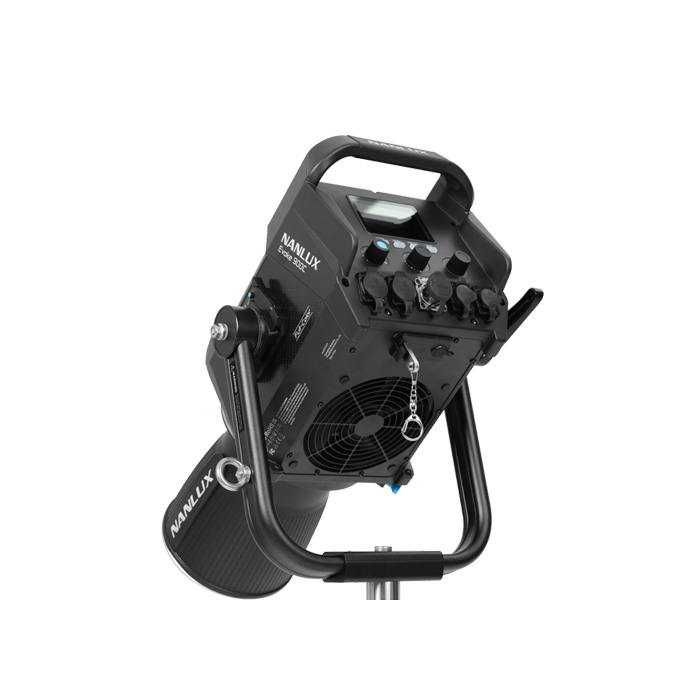

Evoke 900C incorporates a new generation adjustable fan control system with SMART, FULL SPEED, LOW SPEED and OFF 4 modes, effortlessly meeting various sound recording requirements. Noise level is at 25dBA under SMART mode. Exceptional performance for both dissipation and noise control will surely bring a better shooting experience for professional productions.

Maximum modifiers, maximum shaping

The Evoke 900C continues with NL mount, supporting a seamless integration into NL mount ecosystem, takes various light shaping requirements into account with multiple modifiers. Besides, the Evoke series are also compatible with other professional modifiers, such as DoPchoice. NANLUX always participates in the construction of professional lighting systems with a friendly and open attitude.

In the box:

• 1 x Evoke 900C
• 1 x Yoke
• 1 x Power Supply
• 1 x FL-35YK Lens

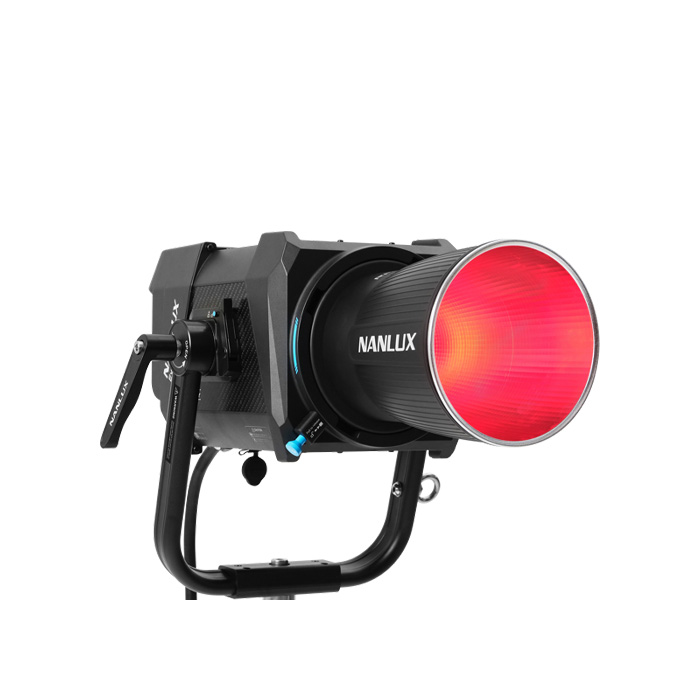

• 1 x RF-NLM-45 Reflector
• 1 x DC Connection Cable 7.5m
• 1 x AC Power Cable 6m
• 1 x AS-CP-QR-EV Quick Release Clamp
• 1 x USB Flash Drive
• 1 x WS-RC-C2 Remote Controller
• 1 x User Manual

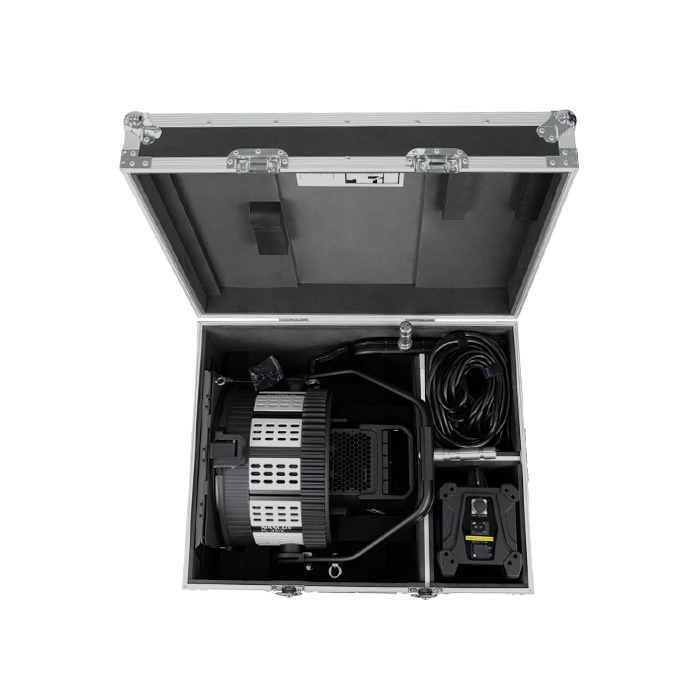

• 1 x CC-EV1200-FL-YK-FT Flight Case
