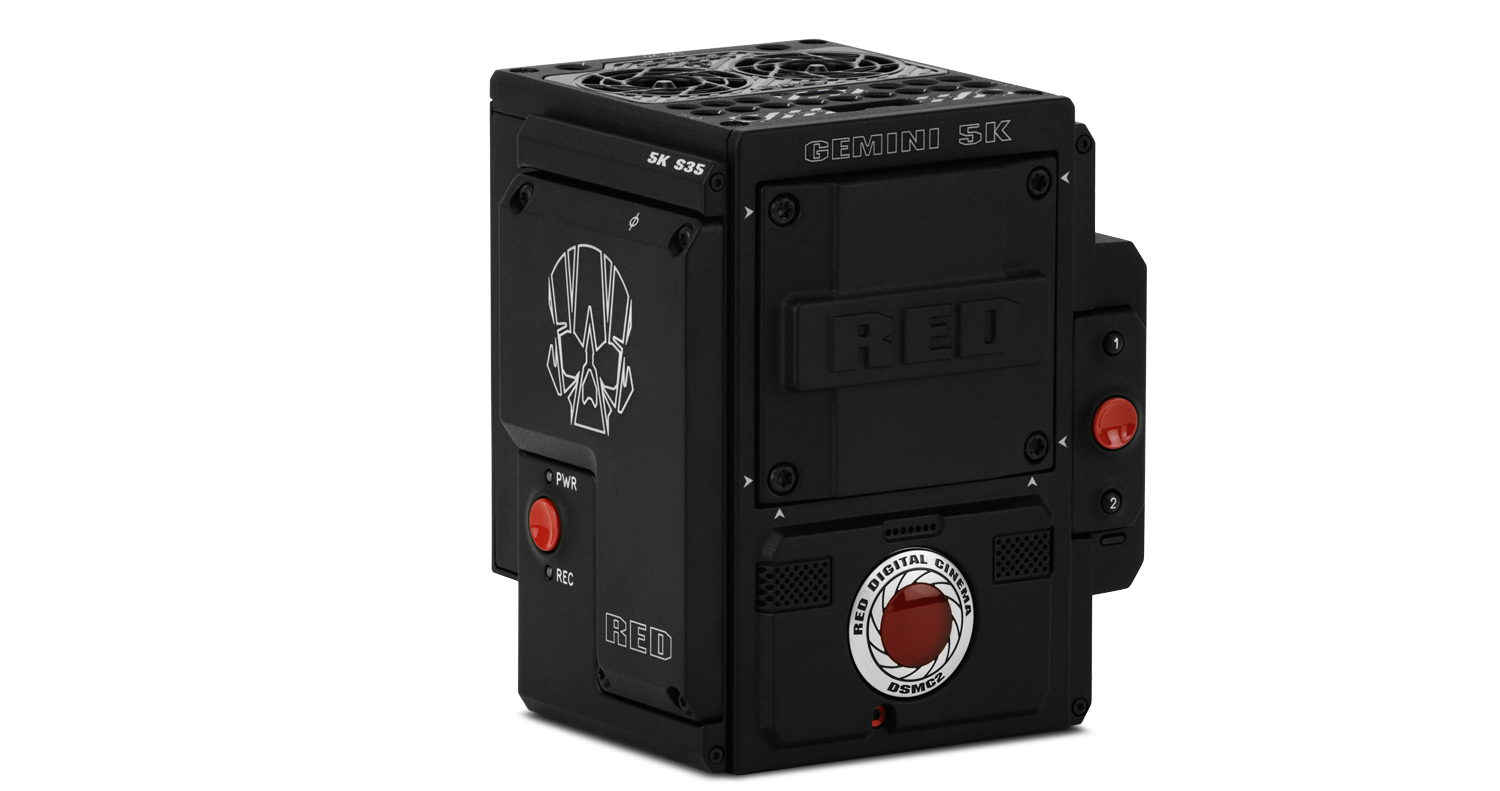

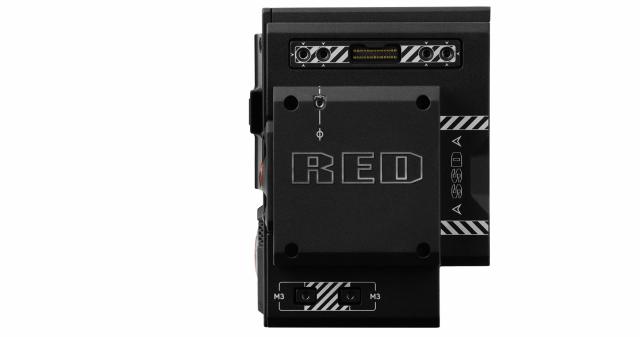

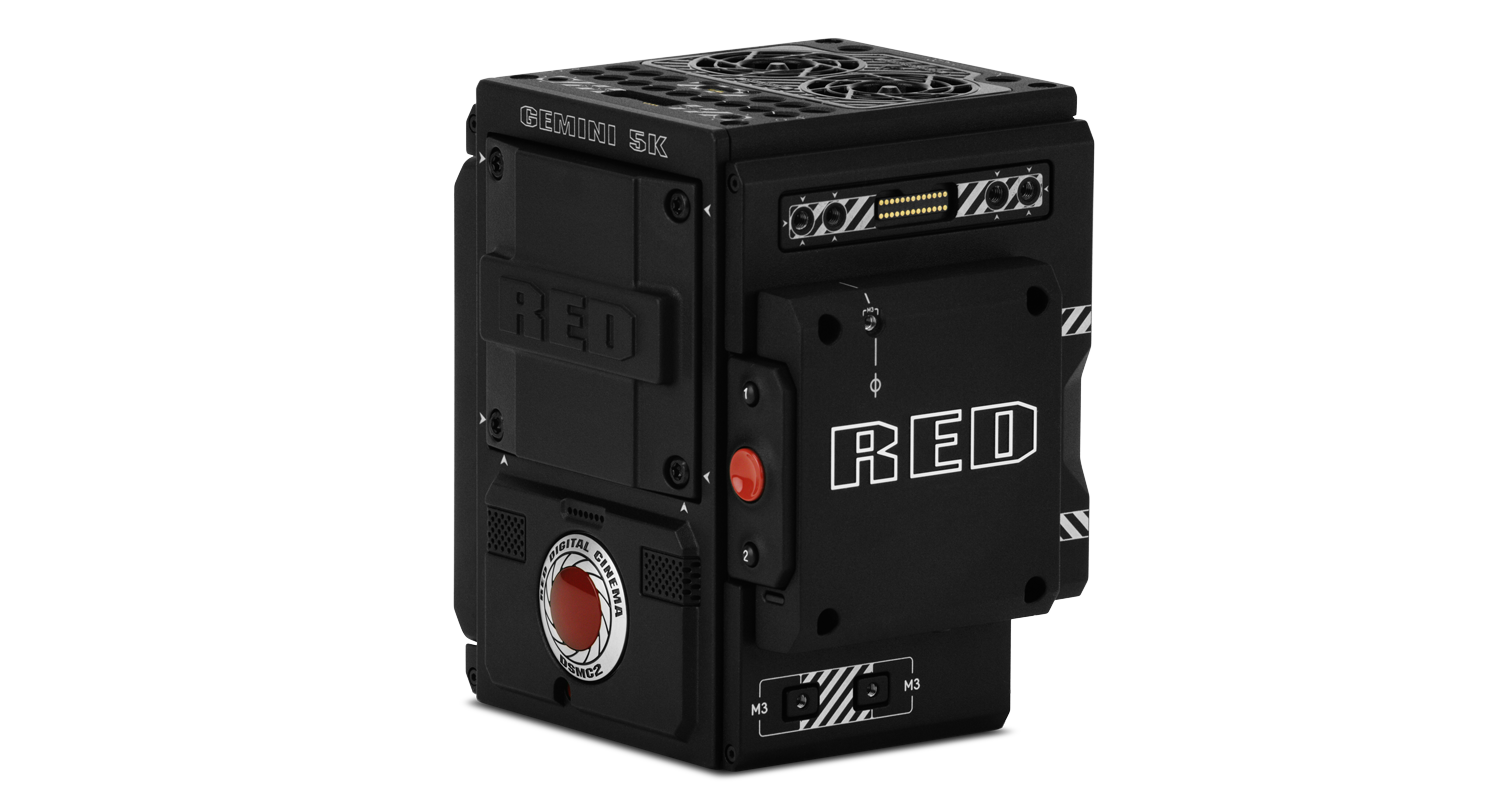

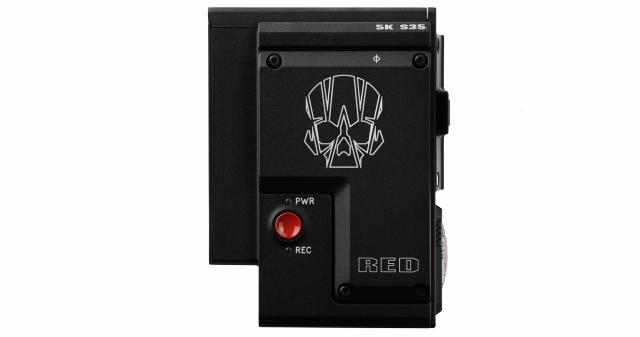

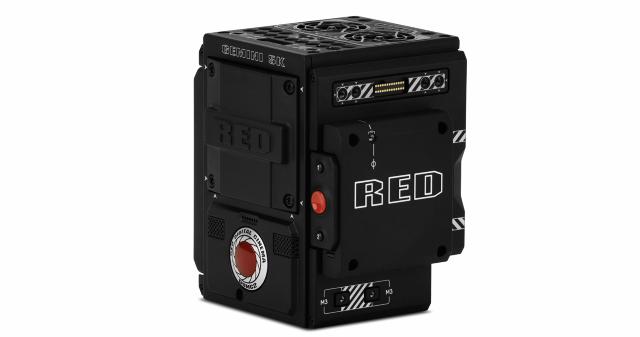

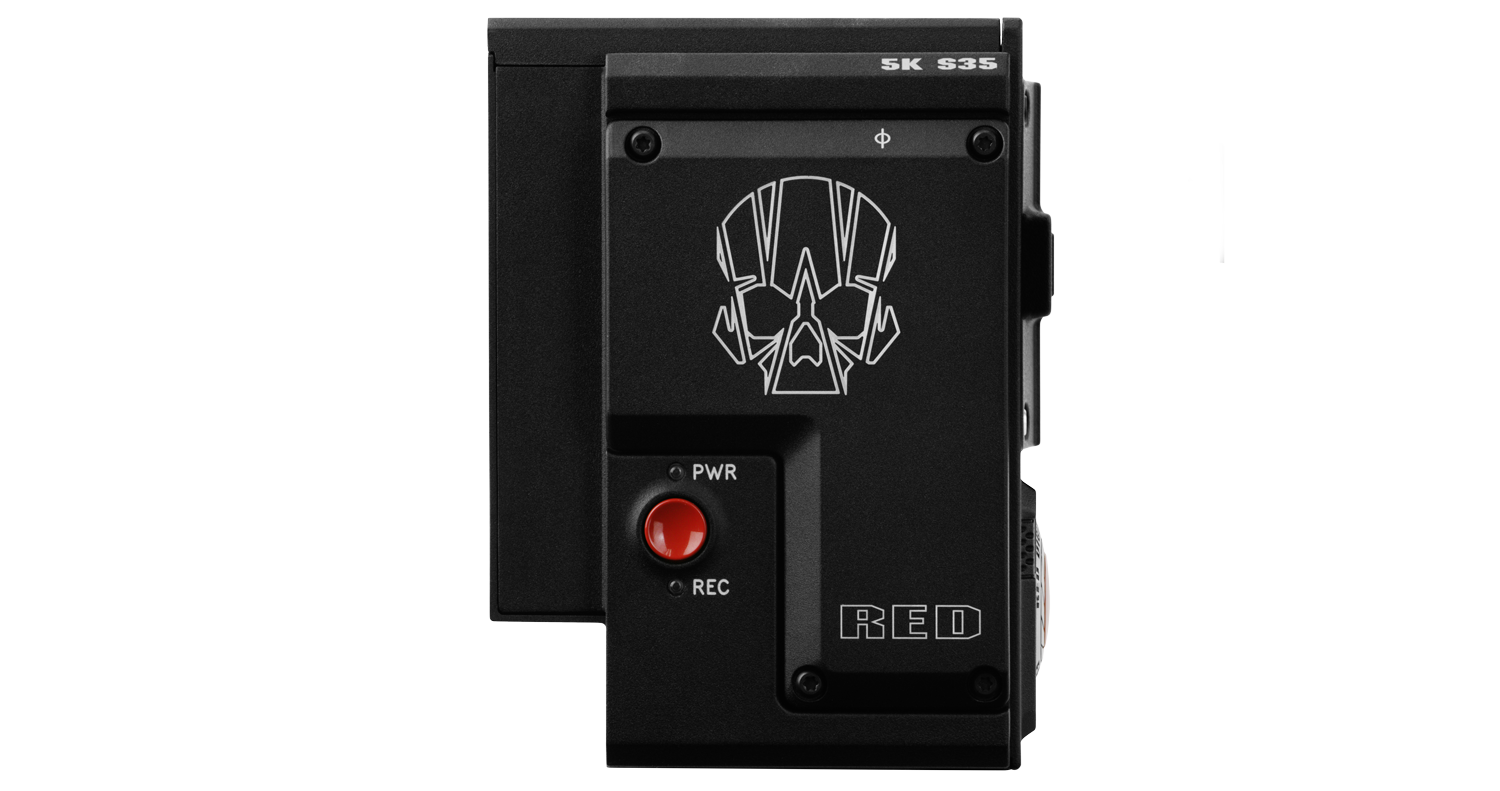

RED® DSMC2 GEMINI 5K S35

710-0305
186.562,50 DKK OutOfStock
  • Århus Ikke på lager
  • København Ikke på lager

Carsten Iversen
carsten@goecker.dk
35865105
København

Relateret tilbehør

Beskrivelse

DSMC2 BRAIN

The camera BRAIN is the primary building block of the RED system, housing the image sensor and advanced computing components. A DSMC2® BRAIN is capable of data write speeds of 300 MB/s, can simultaneously record in REDCODE RAW and Apple ProRes or Avid DNxHR/HD, and is offered with three sensor options - delivering incredible dynamic range and up to 8K resolution. With features like cable-free peripherals, integrated media bay, wireless control, DSMC2 is the most powerful and intuitive camera to date. It is also compatible with a growing arsenal of modules and accessories—from RED and other Third-Party manufacturers. Tack on interchangeable OLPFs and lens mounts and DSMC2 gives you the ultimate control over your footage.



GEMINI 5K S35

  • 15.4 Megapixel Dual Sensitivity CMOS Sensor
  • 30.72 mm x 18 mm (Diagonal: 35.61 mm)
  • 96 fps at 5K Full Format (5120 × 2700)
  • 75 fps at 5K Full Height 1.7:1 (5120 × 3000)

Dual Sensitivity Modes: Standard Mode for well-lit conditions and Low Light Mode for darker environments



SPECS

SENSOR TYPE

GEMINI 15.4 Megapixel Dual Sensitivity CMOS

EFFECTIVE PIXELS

5120 × 3000

SENSOR SIZE

30.72 mm x 18 mm (Diagonal: 35.61 mm)

DYNAMIC RANGE

16.5+ stops

MAX DATA RATES

Up to 300 MB/s using RED MINI-MAG (480GB & 960GB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

MAX FRAME RATES

75 fps at 5K Full Height 1.7:1 (5120 × 3000)
96 fps at 5K Full Format (5120 × 2700), 120 fps at 5K 2.4:1 (5120 × 2160)
120 fps at 4K Full Format (4096 × 2160), 150 fps at 4K 2.4:1 (4096 × 1728)
150 fps at 3K Full Format (3072 × 1620), 200 fps at 3K 2.4:1 (3072 × 1296)
240 fps at 2K Full Format (2048 × 1080), 300 fps at 2K 2.4:1 (2048 × 864)

PLAYBACK FRAME RATES (PROJECT TIMEBASE)

23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions

REDCODE SETTINGS RANGE FROM 2:1 UP TO 22:1

3:1 REDCODE at 5K Full Height (5120 × 3000) and 24 fps
6:1 REDCODE at 5K Full Height (5120 × 3000) and 60 fps
2:1 REDCODE at 5K Full Format (5120 × 2700) and 24 fps
8:1 REDCODE at 5K Full Format (5120 × 2700) and 96 fps
2:1 REDCODE at 4K Full Format (4096 × 2160) and 24 fps
6:1 REDCODE at 4K Full Format (4096 × 2160) and 120 fps

REDCODE RAW ACQUISITION FORMATS

5K Full Height 1.7:1 (5120 × 3000), 5K Full Height 6:5 (3600 × 3000), and Ana 2x, 1.3x
5K Full Format (5120 × 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 × 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
3K Full Format (3072 × 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 × 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

APPLE PRORES

ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps

AVID CODECS

DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps

CONSTRUCTION

Aluminum Alloy

WEIGHT

3.35 lbs (BRAIN with Integrated Media Bay)

OPERATING TEMPERATURE

0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE

–20°C to 50°C (–4°F to 122°F)

RELATIVE HUMIDITY

0% to 85% non-condensing

COLOR MANAGEMENT

Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing

AUDIO

Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz

REMOTE CONTROL

Integrated R.C.P. WiFi antenna
Ethernet, RS232, and GPI Trigger with DSMC2 expander module

MONITOR OUTPUTS

3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

MONITOR OPTIONS

DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection.
RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable.

REDCINE-X PRO DELIVERY FORMATS

4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4

VIDEO EDITING SOFTWARE COMPATIBILITY

Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro



Specifikationer

Producent RED
Kategori Videokamera
Antal effektive pixels 15.4 MP
Sensor størrelse Super 35
Bredde 9.5 CM
Dybde 12.5 CM
Højde 14.4 CM
Vægt 1540 G
Videoopløsning 5K 75p, 4K 120p, 2K 240p
Videoformat REDCODE RAW, ProRes
Frame Rate 240 fps @ 2K
