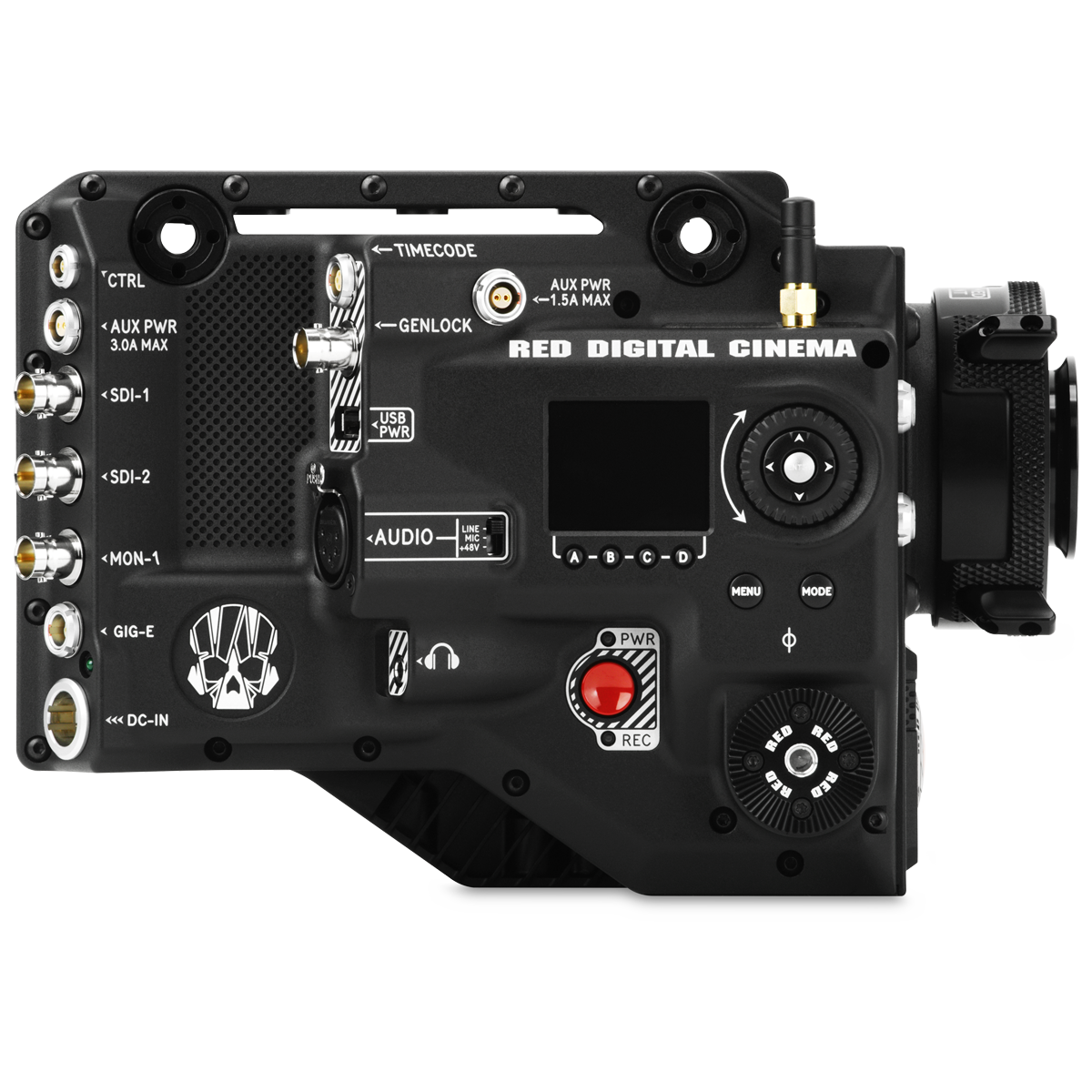

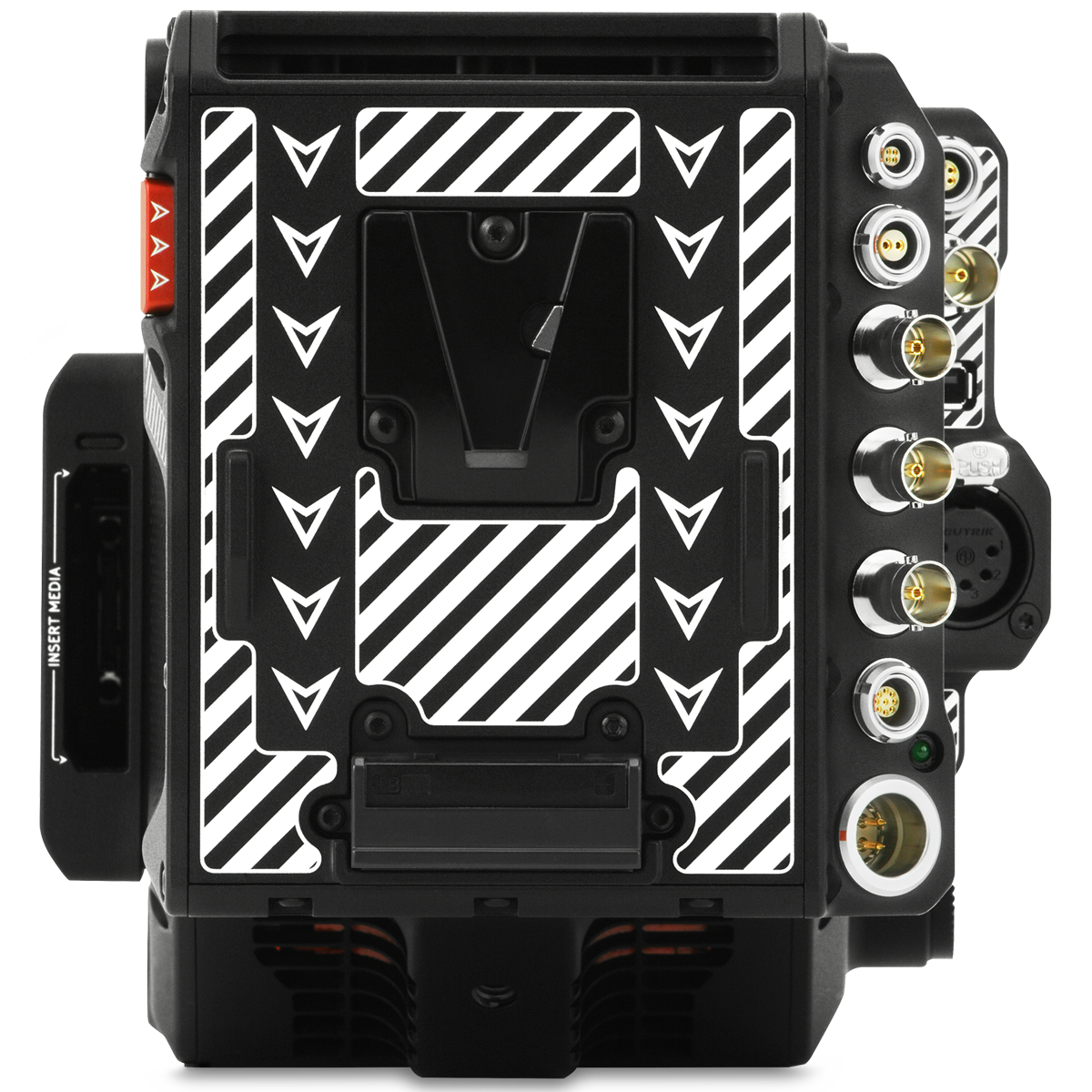

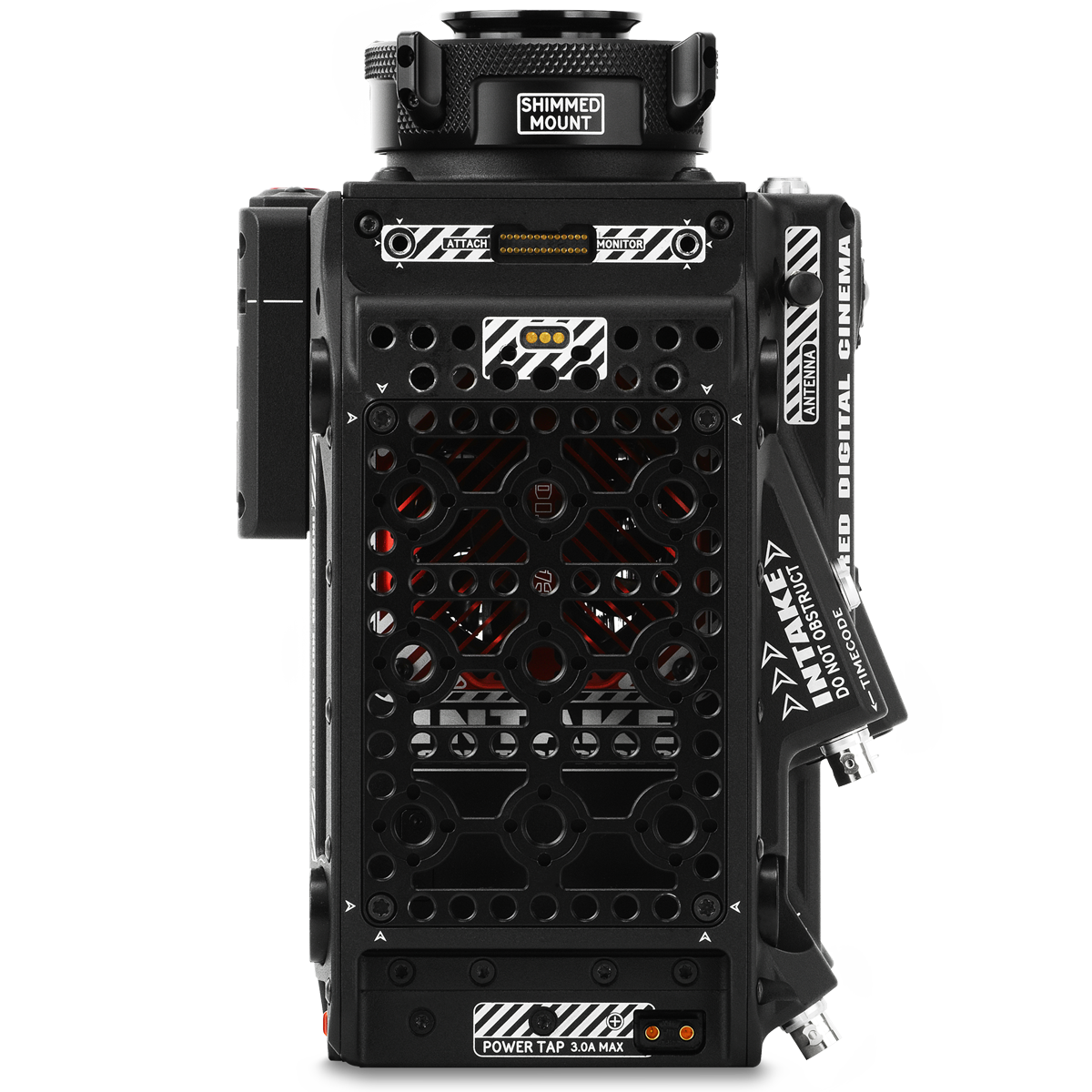

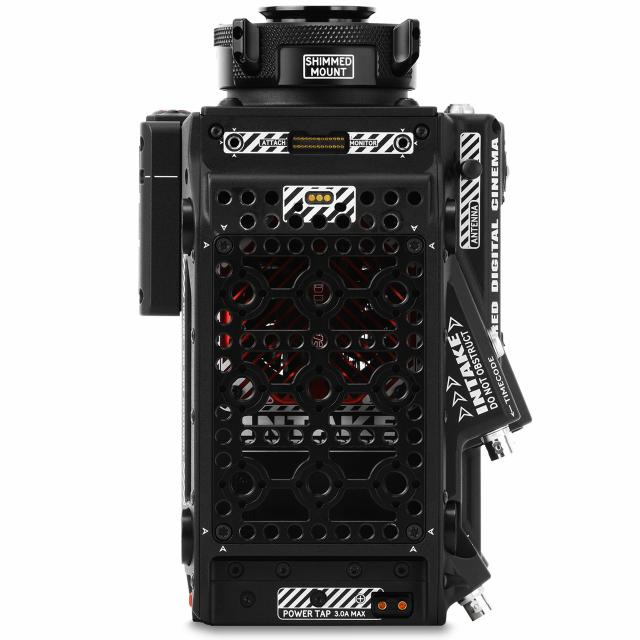

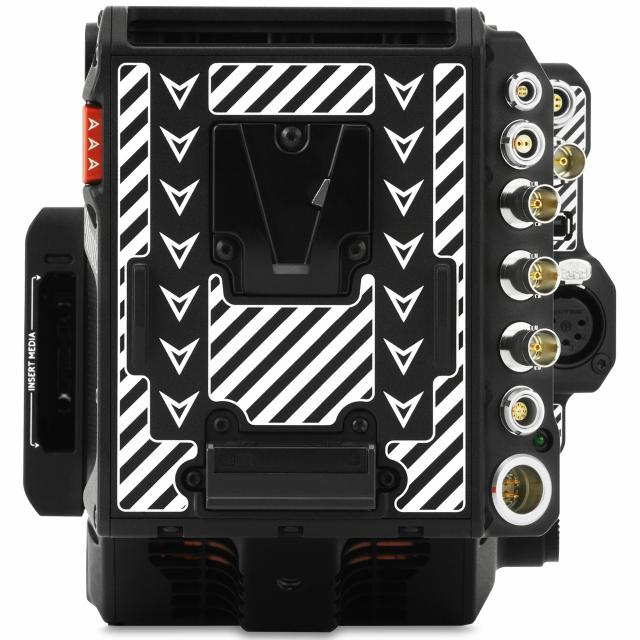

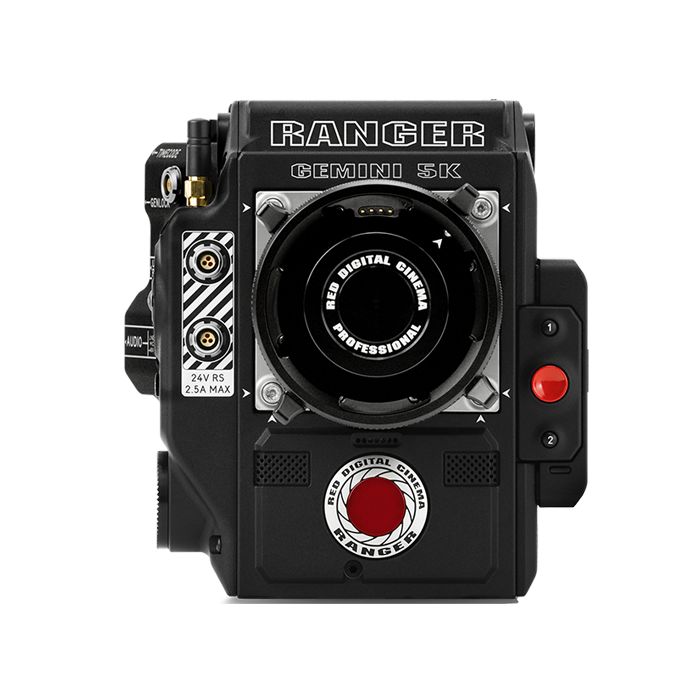

RED® RANGER GEMINI V-LOCK PL MOUNT

710-0332
239.062,50 DKK OutOfStock
  • København (Click & Collect) Ikke på lager
  • Århus (Click & Collect) Ikke på lager

Carsten Iversen
carsten@goecker.dk
35865105
København

Relateret tilbehør

Beskrivelse

RED's RANGER is an all-in-one camera system that features an integrated and less complex platform for filmmakers. The standardized camera body weighs around 7.5 pounds (depending on battery), supports wide input voltage (11.5V to 32V), and boasts more independent SDI and AUX power outputs as well as an integrated XLR audio input. It also has a larger fan for quieter and more efficient temperature management.

Features like integrated I/O's, 24V power out, shimmed PL Mount and improved thermal performance give users peace of mind in any shooting environment. The camera will ship complete with necessary rigging and support for improved set-up time.

RED RANGER is available with three difference sensor options: MONSTRO 8K VV, HELIUM 8K S35, and GEMINI 5K S35. All three sensors deliver stunning resolution and image quality—creating clean and organic images that bring your footage to life. The MONSTRO and HELIUM sensors take the next step in exceeding beauty offered by film - up to 17x more resolution than HD—and over 4x more than 4K. For flexibility in any situation, GEMINI is RED's highest sensitivity sensor to date and offers significantly increased performance in low-light settings and improved performance in shadows.



RED RANGER WITH GEMINU 5K S35 SPECS:

SENSOR TYPE

GEMINI® 15.4 Megapixel Dual Sensitivity CMOS

EFFECTIVE PIXELS

5120 x 3000

SENSOR SIZE

30.72 mm x 18.00 mm (Diagonal: 35.61 mm)

DYNAMIC RANGE

16.5+ stops (Both Sensitivities)

MAX DATA RATES

Up to 300 MB/s using RED MINI-MAG® (480GB, 512GB, 960GB & 1TB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

MAX FRAME RATES 1

75 fps at 5K Full Height 1.7:1 (5120 x 3000)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)

PLAYBACK FRAME RATES
(PROJECT TIMEBASE)

23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps, all resolutions

REDCODE SETTINGS
RANGE FROM 2:1 UP TO 22:11

3:1 REDCODE at 5K Full Height (5120 x 3000) and 24 fps
6:1 REDCODE at 5K Full Height (5120 x 3000) and 60 fps
2:1 REDCODE at 5K Full Format (5120 x 2700) and 24 fps
8:1 REDCODE at 5K Full Format (5120 x 2700) and 96 fps
2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps
6:1 REDCODE at 4K Full Format (4096 x 2160) and 120 fps

REDCODE RAW
ACQUISITION FORMATS2

5K Full Height 1.7:1 (5120 x 3000), 6:5 and Ana 2x, 1.3x

5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 4:1, 8:1, and Ana 2x, 1.3x

4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

APPLE PRORES

ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 30 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps

AVID CODECS

DNxHR HQX at 4K (4096 × 2160) 12-bit up to 30 fps
DNxHR HQ and SQ at 4K (4096 × 2160) 8-bit up to 30 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHR HQ and SQ at 2K (2048 × 1080) 8-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ and SQ (1920 × 1080) 8-bit up to 120 fps

CONSTRUCTION

Aluminum Alloy

WEIGHT

7.30 lbs (with Integrated Media Bay, PL Mount, and Gold Mount)
7.50 lbs (with Integrated Media Bay, PL Mount, and V-Lock)

OPERATING TEMPERATURE

0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE

–20°C to 50°C (–4°F to 122°F)

RELATIVE HUMIDITY

0% to 85% non-condensing

COLOR MANAGEMENT

Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs
Variable number of 3D LUT outputs
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing

AUDIO

Integrated dual channel digital stereo microphones,
uncompressed, 24-bit 48 kHz
Integrated dual channel 5-pin XLR
with preamplifiers, uncompressed, 24-bit 48 kHz



REMOTE CONTROL

External R.C.P. WiFi antenna with SMA connector Ethernet,
RS232, and GPI Trigger



MONITOR OUTPUTS

3G-SDI (HD-SDI) and MON-1
1080p RGB or 4:2:2, 720p RGB or 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio



MONITOR OPTIONS

DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection. RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, DSMC2 Touch 7.0" Ultra-Brite LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LCD/EVF Adaptor A or DSMC2 LCD/EVF Adaptor D, and LCD/EVF cable.



REDCINE-X PRO
DELIVERY FORMATS

4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4



VIDEO EDITING SOFTWARE
COMPATIBILITY4

Adobe Premiere Pro, AVID Media Composer,
DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro





Specifikationer

Producent RED
Kategori Videokamera
Objektiv mount PL (Possitive Lock)
Antal effektive pixels 15.36 MP
Sensor størrelse Super 35
Batteri V-Mount
Bredde 16 CM
Dybde 20.6 CM
Højde 15.3 CM
Vægt 3400 G
Videoopløsning 5K 75p, 4K 120p, 2K 240p
Videoformat REDCODE RAW, ProRes
Frame Rate 240 fps @ 2K
