SIRUI BCH-10 BROADCASTING HEAD 75MM

Sirui BCH-10 Broadcast Video Tilt Head, 75mm Halfball

With a maximum load capacity of up to 6kg, this fluid video head was designed for video cameras and DSLRs. Thanks to the fluid system with separately adjustable frictions for panning and tilting, it enables soft, smooth and vibration-free camera operation.

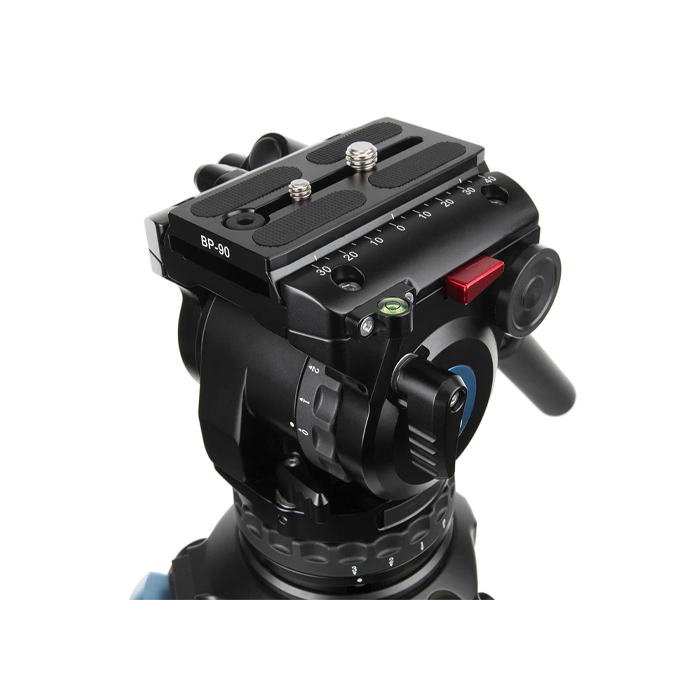

SIRUI Unique Double-Insurance Locking System of Quick Release Plate prevents camera from accidental sliding. For safety reasons, the safety lock system is used and the mounting plate can only be removed to the rear. Quack Release Platform with Scale Value for Reposition and Second Adjustment of Equipment: The BP-90 mounting plate has a rubberized support surface of 90 x 41mm, has 2 x 1/4" and 2 x 3/8" threaded screws for attaching cameras.

For precise alignment, there are two level levels at the top and bottom, the lower one is equipped with lighting (battery included). The counterbalance can be adjusted in three stages from 3-6kg.

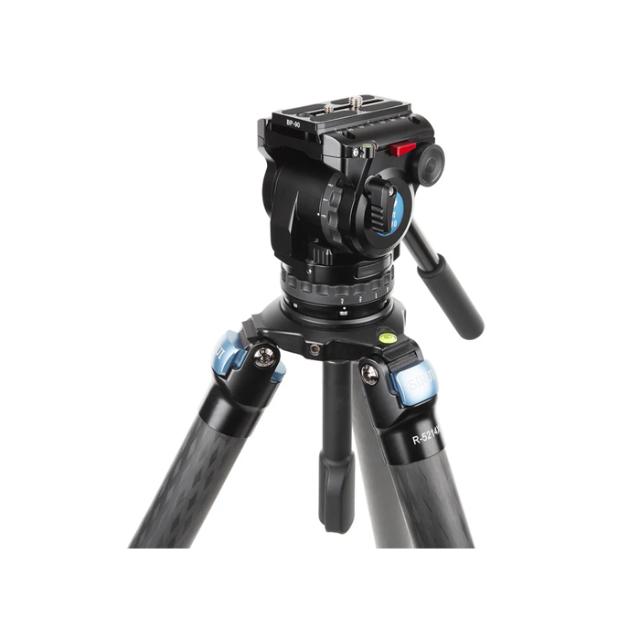

The BCH-10 is mounted with the 75mm levelling hemisphere on tripods with a half shell, with its help, the head can be aligned very well and fixed quickly.

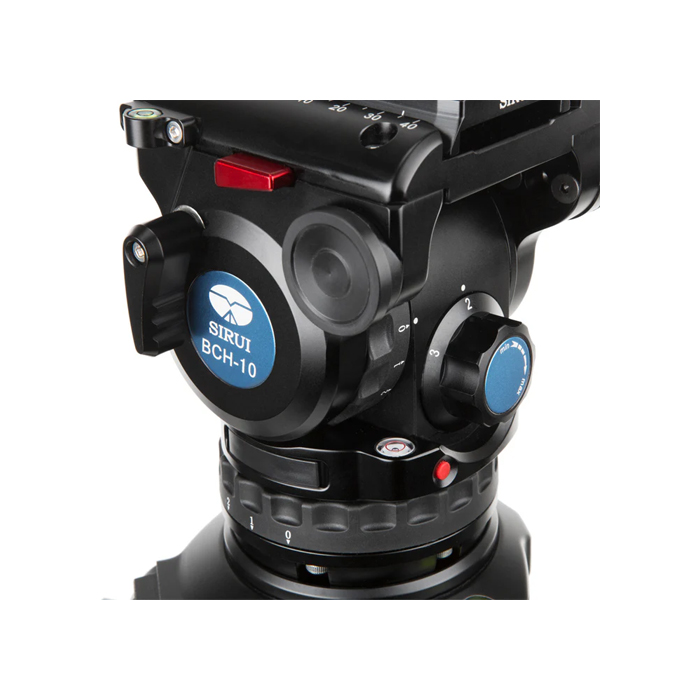

Internal counterbalance and friction control systems for smooth shooting. 7 Positions of Friction Control for Panning and Tilting, “0” stands for Frictionless Operation. 13 Positions for Counterbalance Adjustment.

Specifications:

• Inclination: -65° to +90°.
• Counterbalanced weight: 3-6kg
• Hemispherical diameter: 75mm
• Swivel arm length: from 30-47cm
• Max. Load capacity: 6kg
• Dimensions L x W x H (with handle): 90mm (385mm) x 149mm x 312mm
• Weight: 1.8kg
• Material: aluminum

In the Box:

• 1 x SIRUI BCH-10 Fluid Video Head
• 1 x SIRUI BP-90 removable Plate
• 1 x Transport Bag
