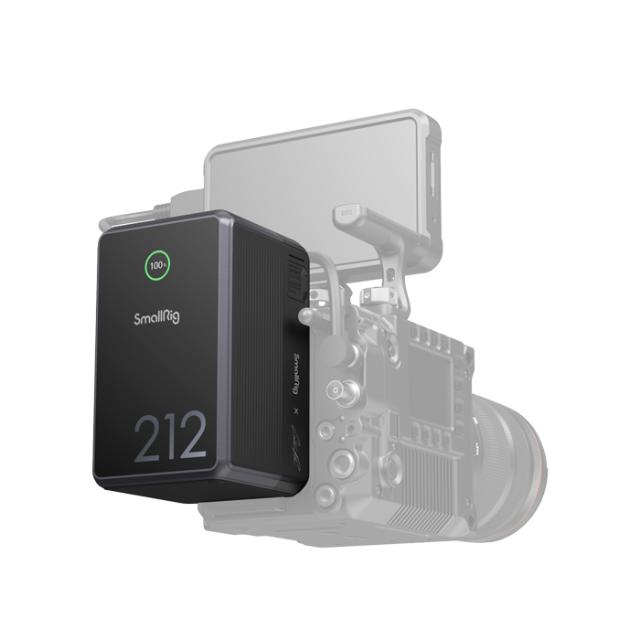

SMALLRIG 4293 V-MOUNT BATTERY VB212 MINI X CALEB P

S4293
4.300,00 DKK OutOfStock
  • København (Click & Collect) Ikke på lager
  • Århus (Click & Collect) Ikke på lager
  • Onlinelager (1-2 dages lev.) På lager

Kenneth Lauritzen
kenneth@goecker.dk
35865126
København

Jakob Worre
jakob@goecker.dk
35865142
Aarhus

Lars Thestrup
lars@goecker.dk
35865106
København

Bo Christensen
bc@goecker.dk
35865144
Aarhus

Ronni Jaqué
ronni@goecker.dk
35865107
København

Beskrivelse

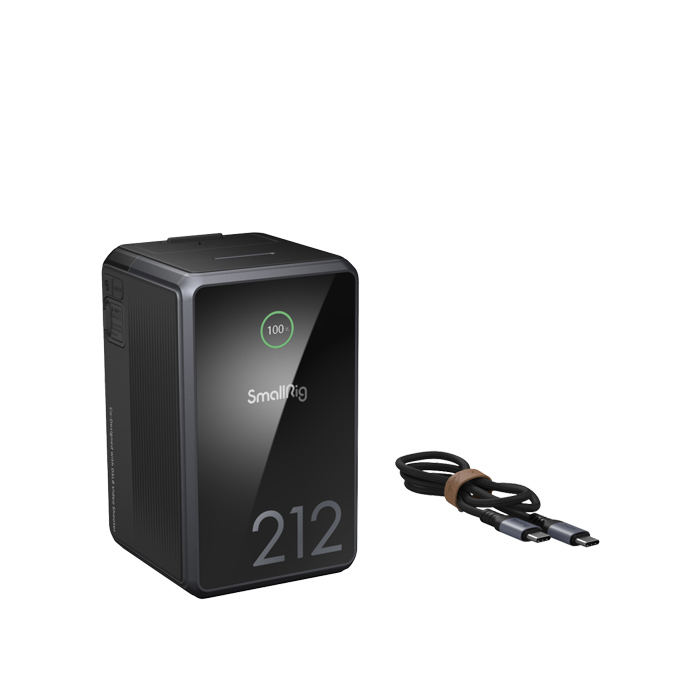

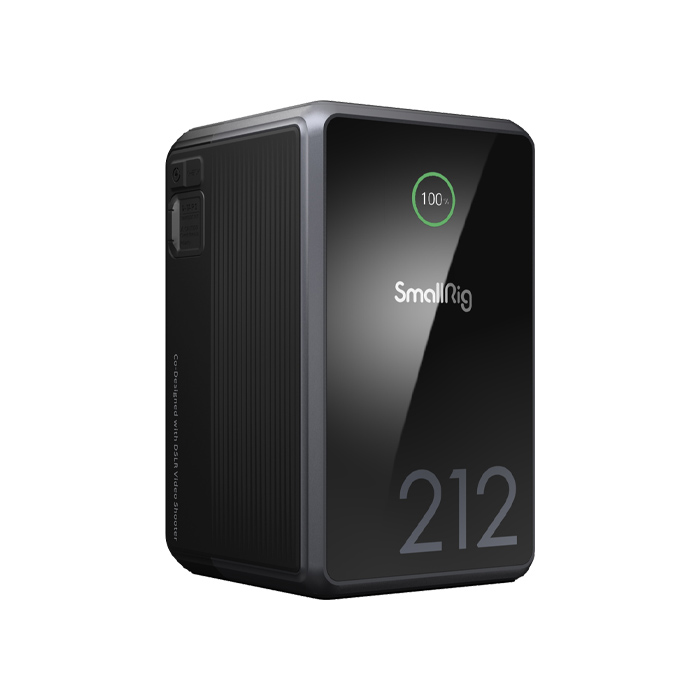

SmallRig 4293 Mini V-Mount Battery VB212 X Caleb Pike

  • Intelligent BMS chip supports 140W (Max.) fast charging, fully charged in 2.5 hours
  • Imported top-class large-capacity LG battery cell endures repeated charging and discharging
  • Highly integrated design, ultracompact and travel-friendly

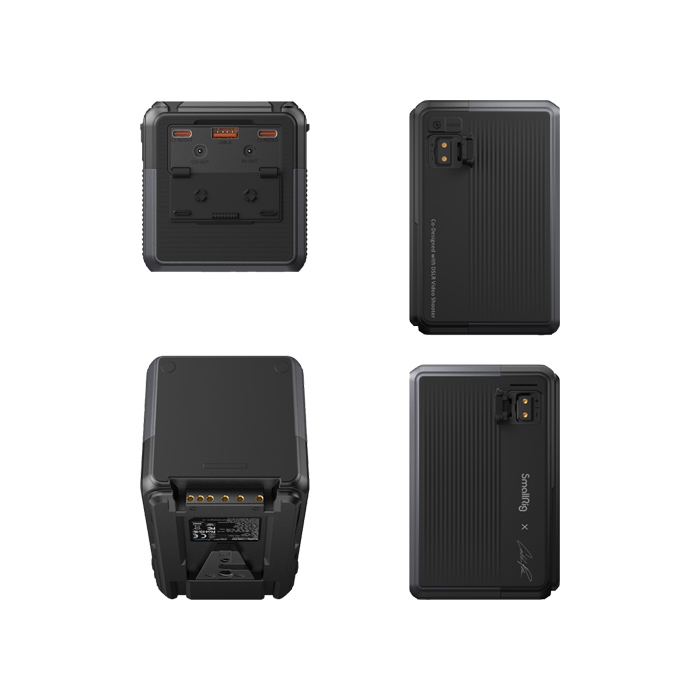

  • Multiple interfaces: two USB-C ports, two D-Tap ports, one USB-A port, DC 8V-OUT, DC12V-OUT
  • Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging
  • Four layers of aluminum frames on the inside with silicone coating on the outside
  • The use of materials makes the battery robust, drop-proof, heat-resistant, and flame-retardant
  • Durable, scratch-resistant PC and acrylic front cover
  • TFT display shows battery status clearly and accurately
  • The accurately designed cover and well-positioned grooves allow for convenient operation

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293 adopts a highly integrated design, reducing the battery size and making it lighter and more portable. The battery combines fast-charging protocol chips, MCU, voltage control, and BMS chips.

It supports a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC, etc.), Two-way PD fast charging and discharging 140W (Max), and adaptive voltage / current regulation, etc.  In addition, its customized intelligent BMS system ensures faster and safer charging by providing overcurrent / short circuit / overtemperature / overvoltage protection, etc.

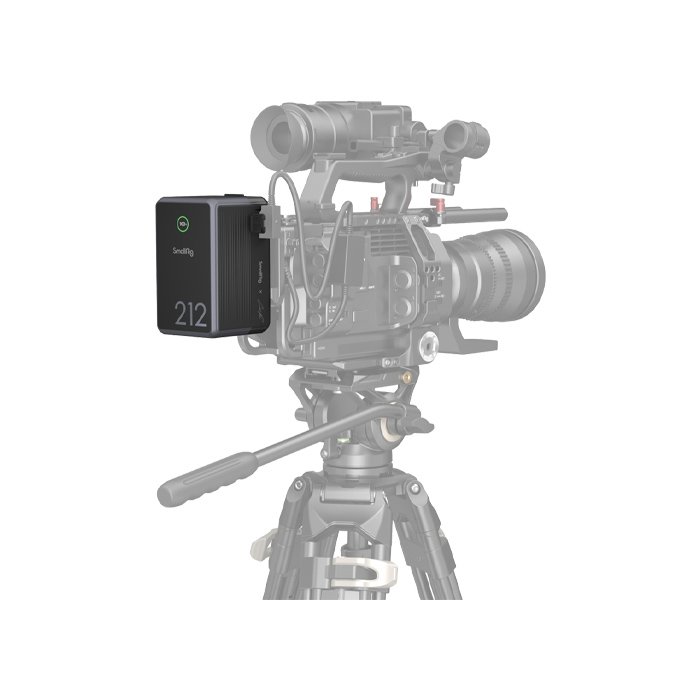

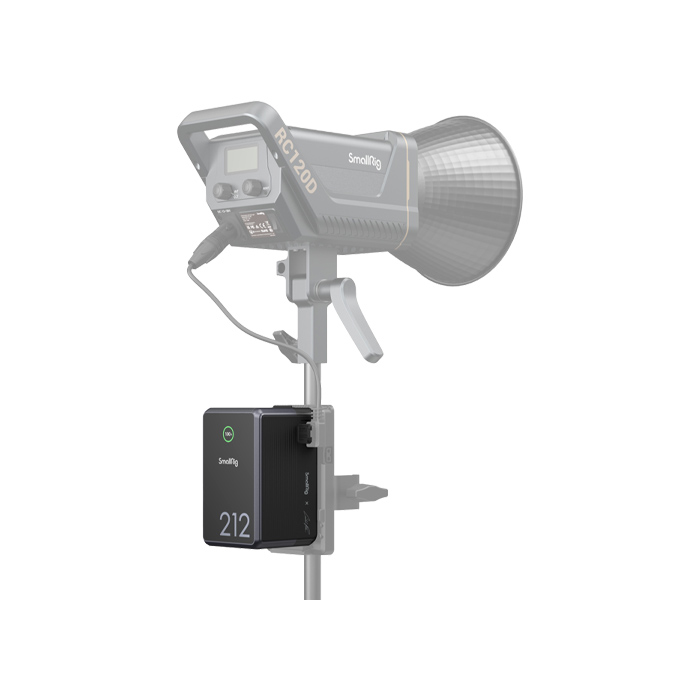

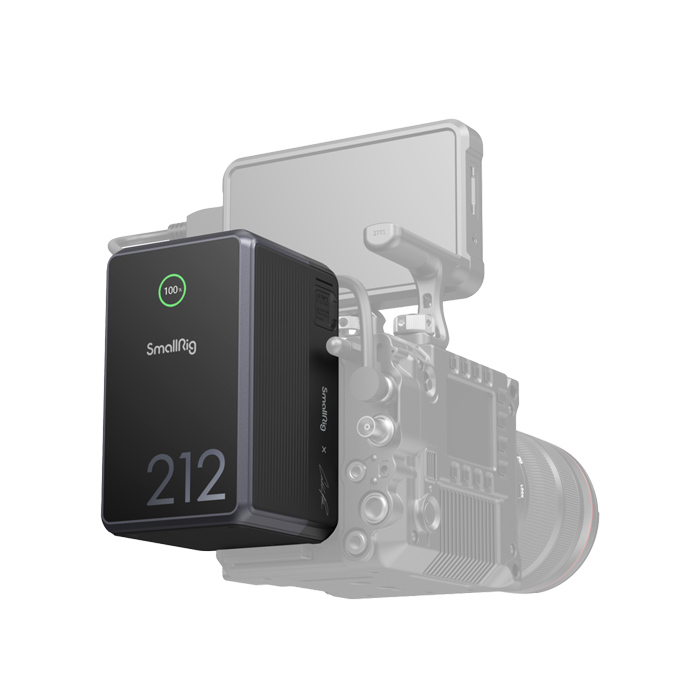

The battery body is equipped with D-Tap / USB-C / USB-A / DC 8V-OUT / DC12V-OUT /  BP interfaces, which can charge or power camera / video camera / monitor / wireless image transmitter / LED video light / mobile phone / laptop etc., without using any V-mount plates.

The BMS chip has a built-in 16-bit Smart ADC, which, combined with the MCU and a TFT display, allows you to keep track of the battery status anytime, anywhere. Built-in premium battery cells (no inflated capacity) can be charged and discharged cyclically, ensuring excellent performance and stability.

The design complies with internationally recognized standards such as MSDS / UN38.3 / IEC62133 / UL2054 / UL62368, making it safer to use. The aluminum alloy body with a silicone coating provides robustness and makes it drop-proof. TPU and PC V0 materials make the battery heat-resistant and fire-retardant.
Scratch-resistant PC and acrylic cover add durability and protect the TFT display that shows battery status clearly and accurately. The accurately designed cover and well-positioned grooves allow for fast and easy interaction with the dust cover.
Overall, this item is safe and powerful enough for you to capture every wonderful moment without any worries.

Specifications:

  • Product Dimensions: 132.1 x 82.7 x 79.3mm
  • Materials: Aluminum Alloy, Silicone, TPU, PC V0
  • Capacity: 14.76V 14.4Ah 212.544Wh

Rated Power:

  • Output: 212W
  • Input: 140W

Input:

  • USB-C1 / USB-C2: 140W (Max.)
  • D-Tap1: 8A (Max.)
  • BP: 10A (Max.)

Output:

  • USB-C1 / USB-C2: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.)
  • USB-A: 5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
  • BP: 14.76V / 19A (Max.)
  • D-Tap1: 14.76V / 10A (Max.)
  • D-Tap2: 14.76V / 6A (Max.)
  • 8V-OUT: 8V / 3A (Max.)
  • 12V-OUT: 12V / 3A (Max.)

Charging Protocol:

  • USB-C1 / USB-C2: PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
  • USB-A: QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A

Specifikationer

Producent Smallrig
Kategori Batteri
