SMALLRIG 5147 CAGE FOR LUMIX S1RII/S5II/S5IIX/G9II

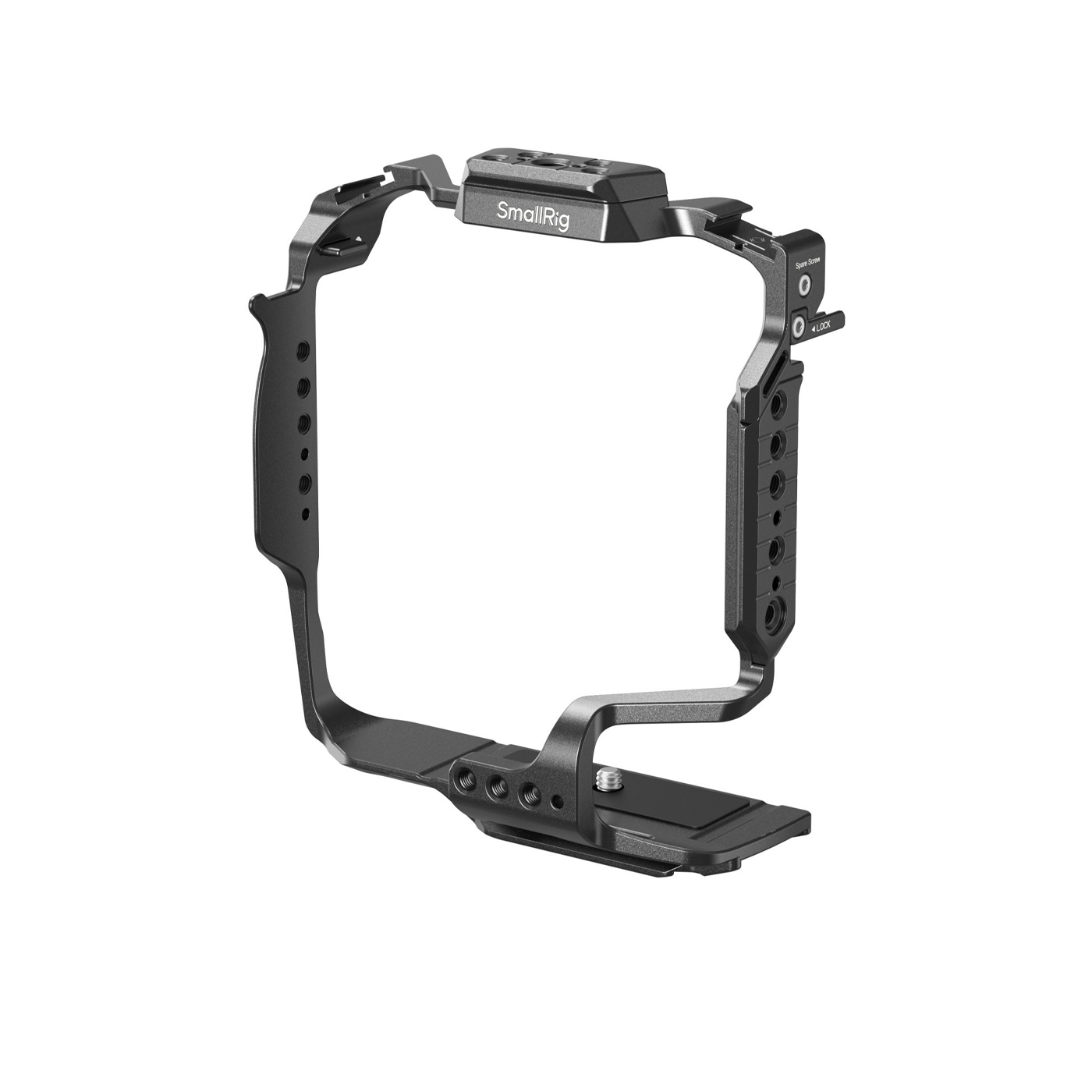

SmallRig 5147 Cage for Panasonic S1RII / S5II / SIIX / G9II with DMW-BG1/DMW-BG2

• All-in-one full cage protects the camera and improves grip experience
• HawkLock H21 Quick Release NATO rails at the top and on the left side
• Two HawkLock H18 cold shoe mounts at the top for microphone, LED light, etc.
• Anti-twist three-point locking design
• Arca-Swiss plate supports tripod and DJI RS gimbals

SmallRig Cage for Panasonic LUMIX S1R II / S5 II / S5 IIX / G9 II with DMW-BG1 / DMW-BG2 Battery Grip 5147 is designed to attach accessories and protect the camera. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches.

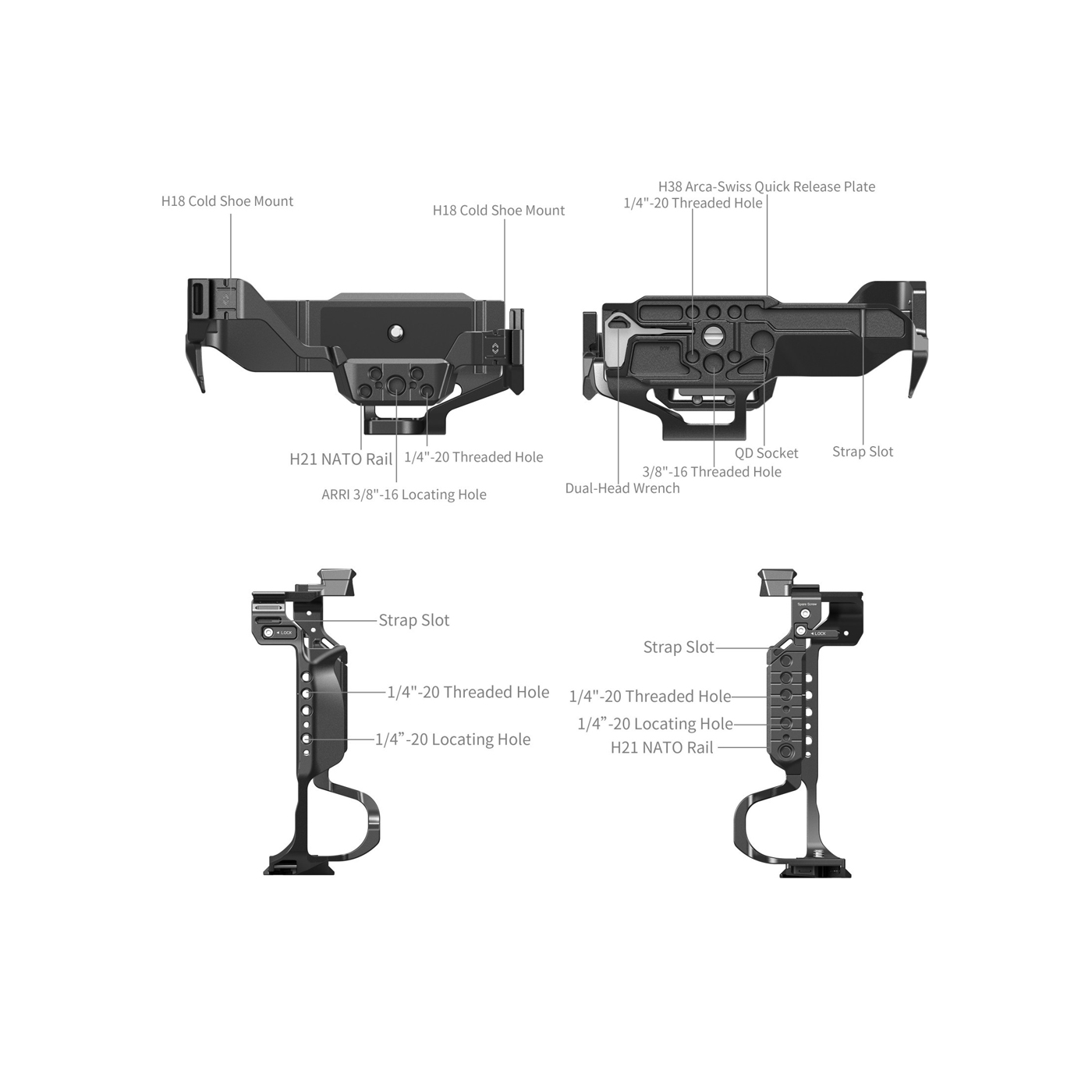

Among its accessory mounting points, 1/4"-20 holes and ARRI 3/8"-16 locating holes support Top Handle 2165C, Side Handle HSN2093C, etc. for easy camera movement and more stability; and the top ARRI 3/8"-16 locating hole fits Monitor Mount 2903B.
It also comes with two cold shoe mounts to attach the microphone, an LED video light; a top NATO rail for Top Handle 4483; a left NATO rail for Side Handle 4485; and a bottom QD socket to install a QD shoulder strap.
At the bottom, there is an Arca-Swiss quick-release plate, suitable for DJI RS 2/ RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for Arca-Swiss Quick Release Plate 3154.

The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap 3848, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.

Note:

1. Please remove the side lock adapters before installing the cage.
2. The cage is compatible with Panasonic DMW-XLR1 / XLR2, recommended to use [SmallRig Top Handle for Sony XLR-K1M / K2M / K3M and Panasonic DMW-XLR1 / XLR2 3082], please remove the cable clamp at the bottom of the XLR before using 3082.

Specifications:

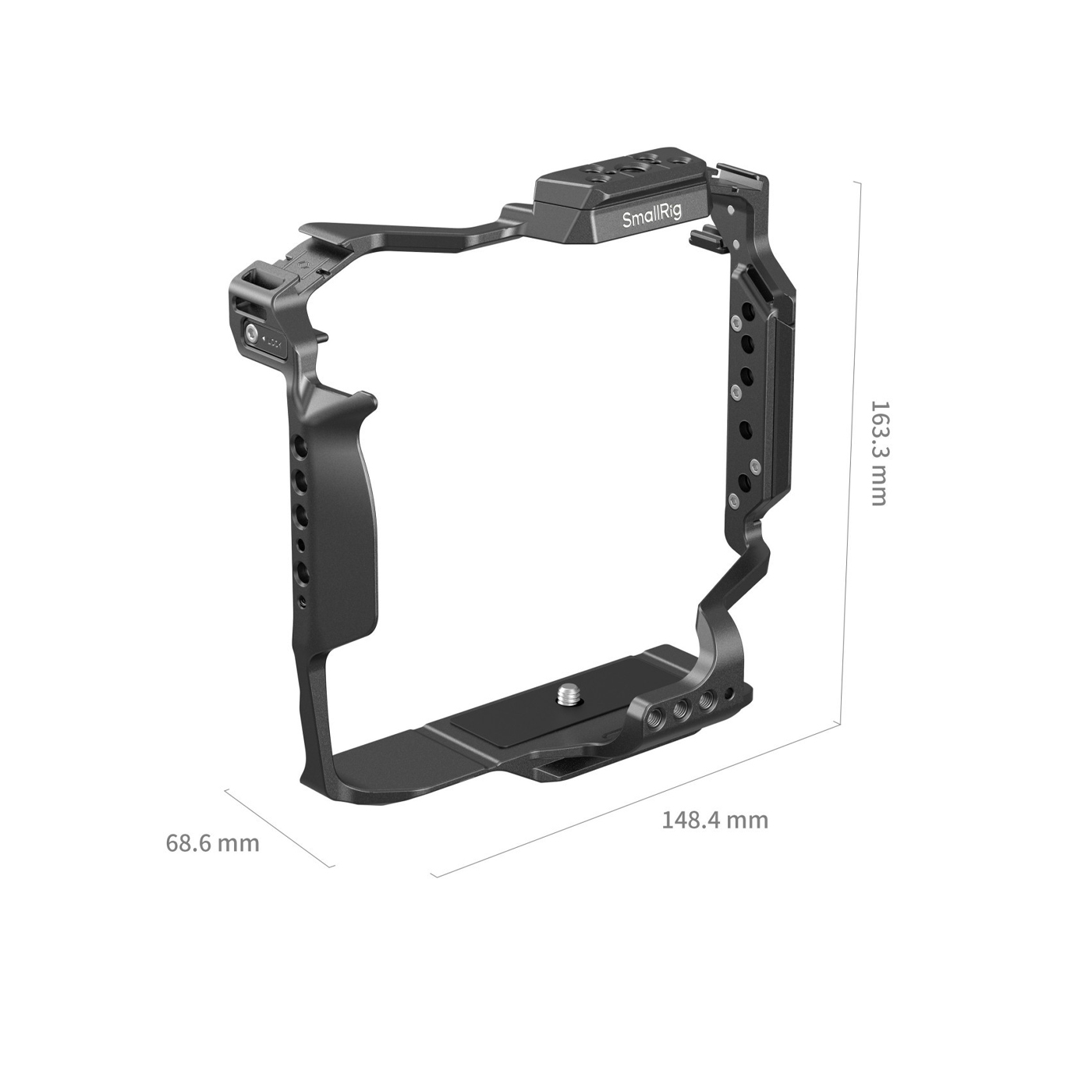

• Product Dimensions: 148.4 × 68.6 × 163.3mm
• Product Weight: 190.0 ± 5.0g
• Materials: Aluminum Alloy, Stainless Steel, Silicone
