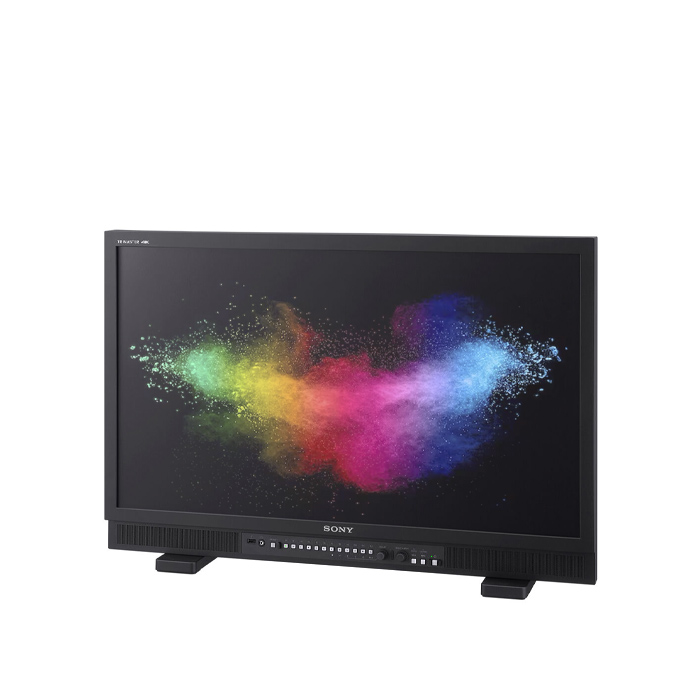

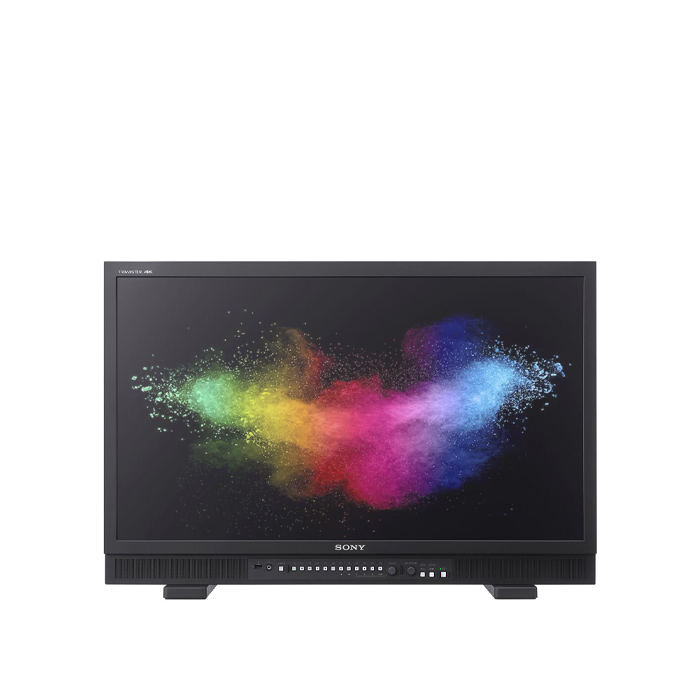

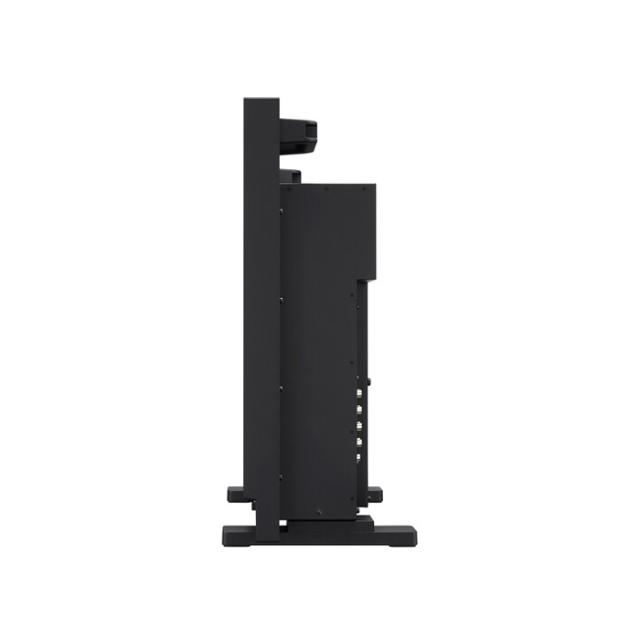

SONY PVM-X3200 32" PROFESSIONAL VIDEO MONITOR

Sony PVM-X3200 32” Professional Video Monitor

• 32” 3840 x 2160 16:9 TFT Active Matrix LCD
• Waveform, vector scope, color gamut scope display, Quad view and 3D Lut support and more
• False color, camera focus function, grid display, zoom, timecode display, audio level meter and more
• Wide choice of connections including 2 x 12G HD-SDI BNC, 2 x 3G HD-SDI BNC, 1 x HDMI, LAN
• Color-matched with BVM-HX Series 4K HDR Master & LMD-A Series HD HDR Picture Monitors
• All-white luminance of 1000 cd/㎡

PVM-X series monitors expand footprints in 4K HDR production

Expand your 4K HDR production and color match with the industry-leading BVM-HX series Master Monitor. With its compact size and high portability, the PVM-X series monitors bring all-white luminance of 1000 cd/㎡ to production monitoring across a wide range of applications.

Acclaimed TRIMASTER™ image technology

Sony's TRIMASTER™ architecture is purpose-built to get the highest performance from professional displays. Its core technologies deliver accurate color reproduction, precise imaging and remarkable consistency in picture quality. Advanced panel controls and signal processing have been refined for the ultimate experience in image reproduction.

Consistent color matching

Make sure every part of your production works with the same high-grade images. Whether you’re filming HD or 4K, Sony's PVM-X Series Monitors seamlessly color-match with the BVM-HX Series 4K HDR Master Monitors and LMD-A Series HD HDR Picture Monitors. The premium LCD panel offers 1000 cd/m² luminance for easy on-set, studio and in-truck monitoring.

More efficient productions and HDR-to-SDR conversion

Move efficiently between HDR and SDR with the optional PVML-HSX1 HDR-SDR conversion license for live production. And convert color spaces, OETF, progressive to interlace, quad-link 3G to single-link 12G, and 4K to HD at the same time. Compare HDR and converted SDR images side by side and output converted pictures to other 4K or HD monitors too, via the enhanced monitor output.

Adaptive contrast for quick reviews

Enabling you to confirm the total balance of highlights and low lights at a glance, thanks to our Dynamic Contrast Drive. Backlight luminance adapts so you can easily review the balance of highlights and low lights. Enjoy better black representation during night scenes and clearer highlights in brighter, daylight filming. Access a dynamic contrast ratio of 1,000,000:1 with the press of a single function key by default (F12 key).

Find every detail in the shadows

Monitor the details in darker areas of your image, with three Black Detail Modes for a range of lighting situations. Black level is reduced without affecting gamma, so you can inspect the shadow with the correct colors and grey scale intact. Easily move between modes with pre-assigned function keys by default (F10 key for mid/ F11 key for high).

• Black detail low: Suitable for very dark scenes, nighttime scenes, it emphasizes details in the sky, water, and shore.
• Black detail mid: Suitable for dark scenes, such as dusk, and emphasizing the details of the rocks.
• Black detail high: Suitable for indoor scenes with dark areas, emphasizing the details of the subject’s hair and face.

Control the image with 4K & HD scopes with HDR/SDR scale

Display a waveform monitor, vector scope and color gamut scope simultaneously, with scales for both HDR and SDR. Confirm the input signal level and output luminance, with a choice of three waveform displays, luminance, RGB/YCBCR parade or RGB overlay with the gamut error display.

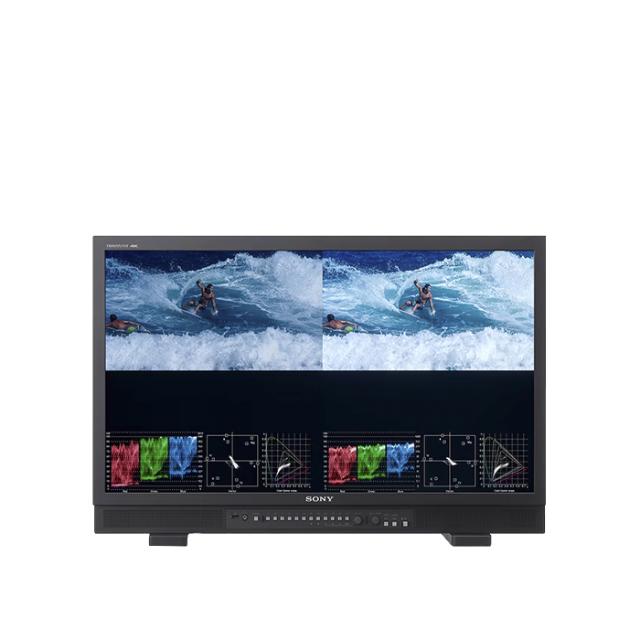

Quad view display for multiple looks

Explore and compare settings, with a quad-view display (Only HD input sources) that shows everything you need. Individual settings are available for EOTF (in SDR and HDR), SDI/HDMI, RGB/YCBCR, color space, transfer matrix, color temperature, contrast and brightness. Each display view can apply User 3D LUTs and it’s even possible to display scopes in dual and triple picture modes.

User 3D LUT signal output support

Check pre-graded images, wherever you are. The user LUT function allows you to apply customized LUTs in quad-view mode for side-by-side comparison. Simply load User 3D LUT files via the USB port and take advantage of the PVM-X Series’ tetrahedral LUT interpolation, which delivers smoother grey scale reproduction.
From V4.0 firmware onwards, the optional PVML-TDX1 3D LUT baked output license and PVML-SCX1 signal conversion output license allow PVM-X Series monitors to output a converted picture from the enhanced monitor output. User 3D LUT files can be loaded to internal memory via the USB port at the front of monitor. 33 grid points or 17 grid point .cube files as well as BBC type 1, 2 and 3 LUTs are supported.

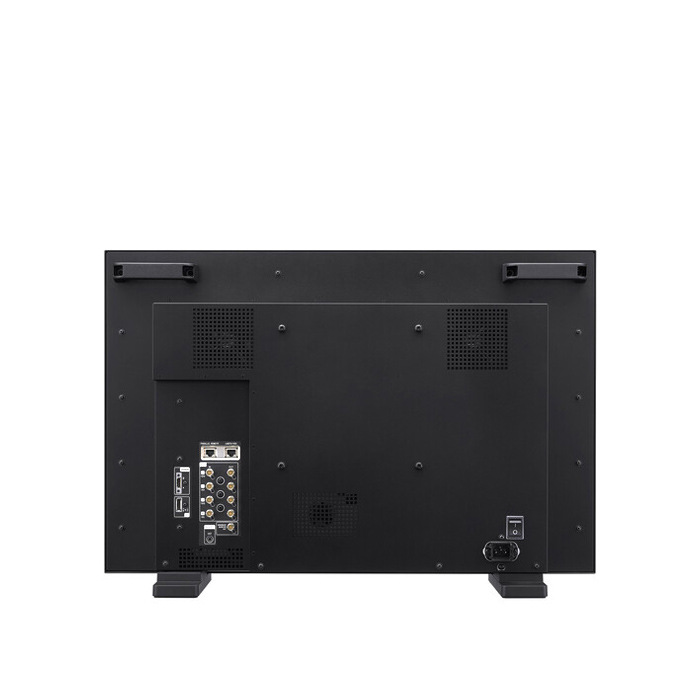

A wide choice of 4K connections

A range of built-in standard input interfaces can simplify systems and streamline productions of all scales: 12G/6G/3G/HD-SDI BNC (x2), 3G/HD-SDI BNC (x2) and HDMI (x1). 12G simplifies wiring, from simple to large-scale field systems. Quad-link 3G-SDI supports more ‘traditional’ devices, while HDMI simplifies interfacing with devices such as rasterizers, multi-viewers, digital cameras, set top boxes, UHD Blu-ray players and PCs.

Fast, easy set-up for multiple monitors

Save time and provide a uniform experience with the ability to copy monitor set-up parameters to multiple monitors. Set the parameters for one monitor and then configure all remaining monitors via USB memory. Use Monitor Auto White Adjustment for a color temperature calibration function that quickly matches white balance across all PVM-X Series monitors.

A menu designed for speed and customization

Adjust, save and retrieve monitor settings easily with intuitive menus display. Create and rename up to 30 different channels according to your preferences.
By pressing the ‘Channel Select’ button, operators can check channel settings on the channel status view, and then change the settings of selected channel by pressing and holding the ‘Select/Enter’ button for more than 2 seconds.
Operators can quickly review and modify the existing settings at a glance with the newly developed overarching hierarchical settings menu.
Access the function key settings menu quickly by pressing and holding down the function key. Save all monitor data and lock it with a password. Ideal for rental use, the power-on setting loads data at start-up including last memory and factory presets.

Powerful stereo sound for busy environments

Monitor sound in stereo, even in noisy settings like busy sets and loud machine rooms. Two 2W front speakers offer powerful sound. And muting can be instant, through the pre-assigned function key.

Other Features:

On-set and editing:

• False color and camera focus functions (from V3.0 firmware)
• Flexible and variable area markers, aspect marker and center marker
• Grid display (from V4.0 firmware)
• Zoom function
• Yoke-mount and wall-mount capability
• Audio level meter display
• Timecode display
• User reset

Studio and OB Trucks:

• Side by side view
• Automatic HDR setting by Video Payload ID and SR Live Metadata
• In-monitor display (from V4.0 firmware)
• Network control function and parallel remote (from V4.0 firmware)
• EIA standard rack-mount capability (X2400 and X1800 only)
• Internal signal pattern
• Chroma up function (from V4.0 firmware)
• Closed caption (from V4.0 firmware)
• Mono, blue only and R/G/B off
• Screen saver
