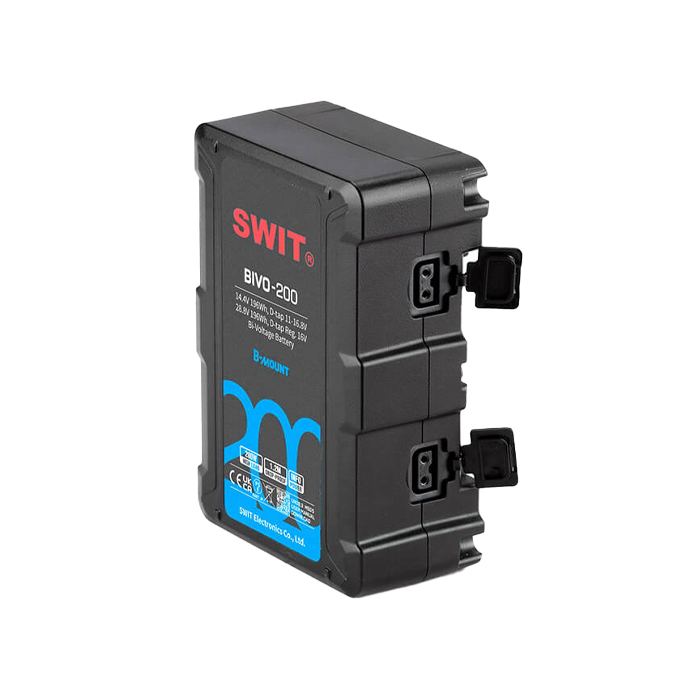

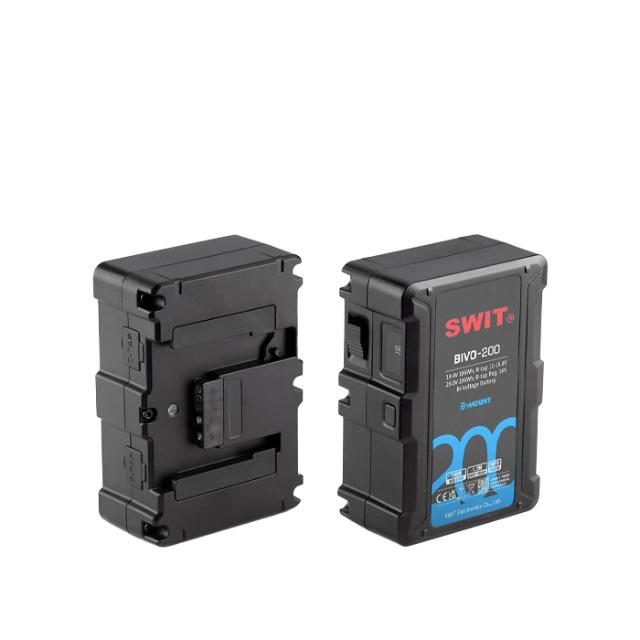

SWIT BIVO-200 B-MOUNT BATTERY

Swit BIVO-200 B-Mount Battery

• 14.4V/28.8V Bi-voltage B-mount
• 196Wh high capacity
• 200W constant high load
• 33.6V 100W fast charging
• D-tap 11-16.8V output ×2
• OLED power info display
• Built-in LED torch
• Strong 1.2m drop off proof
• Multiple circuit protections

BIVO-200 is a 14.4V(10.8-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras, Blackmagic URSA Cine 12K and various regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

196Wh Capacity, 200W Load

BIVO-200 battery has 196Wh large capacity, run more than 2 hours on ARRI ALEXA 35 camera. The battery provides at least 200W constant high load for cine cameras and devices.

2x D-tap Power Output

BIVO-200 provides with 2x D-tap power sockets. When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V; When the battery works at 28.8V voltage, the D-tap output regulated 16V, to power all kinds of camera-top devices.

OLED Power Info Display

BIVO-200 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.

LED Torch

You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds

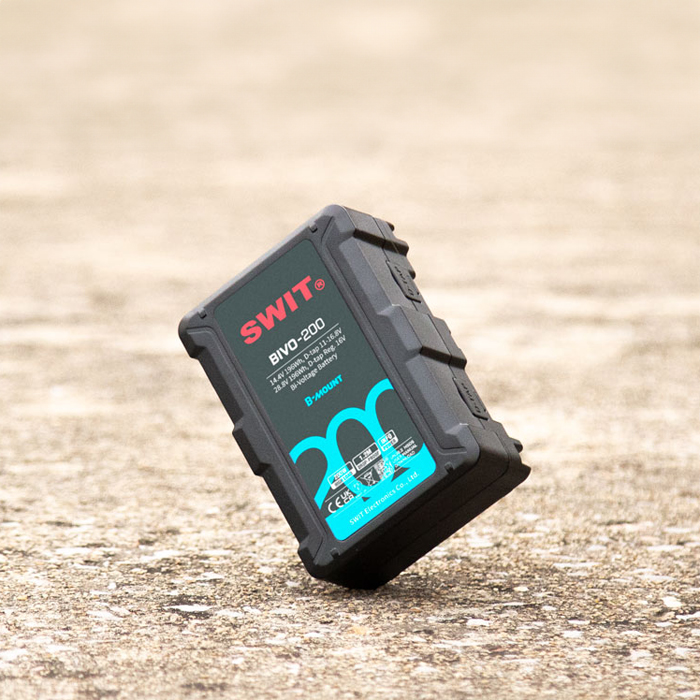

1.2 meters Drop-off Proof

BIVO-200 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
