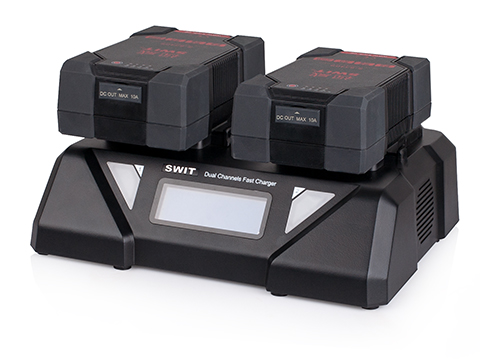

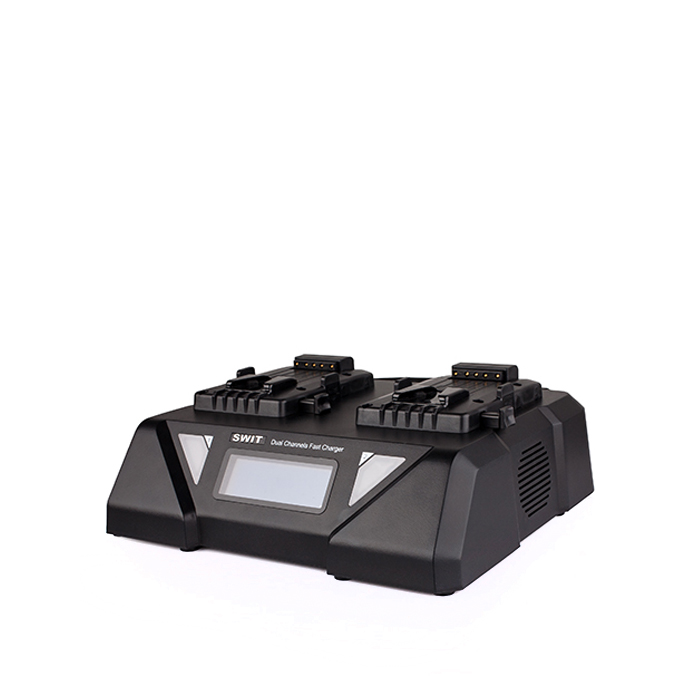

SWIT S-3812S V-MOUNT SUPER FAST CHARGER 2 CHANNEL

Dual-channel Fast Charger

Max charging current: 6A

S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.
The following battery models support 6A fast charging:
S-8340S, S-8360S, D-8161S
And for other batteries, the charging current is 3A.

AC-DC Adapting Output

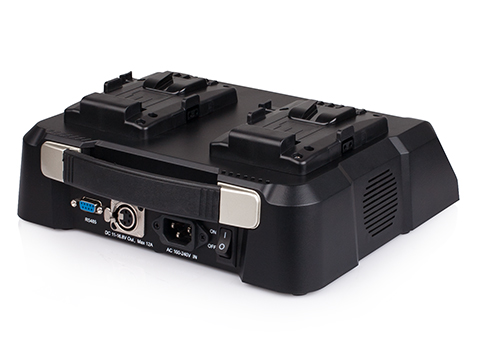

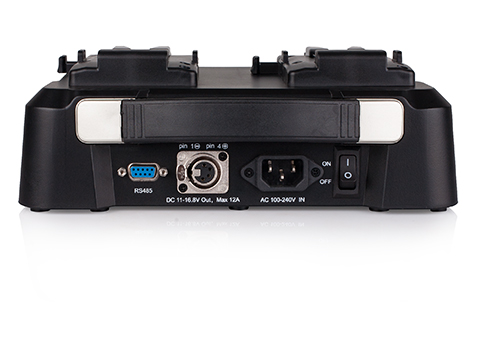

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential)

Battery-DC Adapting Output

You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A.

LCD Charging Info Display

S-3812S has an LCD screen to display the real time charging/adapting information, includes:

•   Battery Charging/Discharging status
•   Real time capacity and percentage
•   Real time Voltage/Current
•   Remaining time to fully charged
•   Remaining time to fully discharged
•   Battery cycle times
•   Adapting output current and power

3-color LED Indicators

S-3812S has the 3-color LED indicators for both 2 channels:

• Red light slowly flashes: The battery is charging
• Red light fast flashes: The battery is about to fully charged
• Green light constant: The battery is fully charged
• Green light flashes: The battery is adapting output
• Orange light flashes: Battery or Charger abnormal alert

2-ch V-mount Fast Charger

• 2-ch simultaneous charging
• Identify battery type and adjust charging method
• 6A fast charging for SWIT particular batteries
• 3A charging for normal batteries
• Support AC to 4-pin XLR output
• Support battery to 4-pin XLR output
• LCD display charging/adapting info
