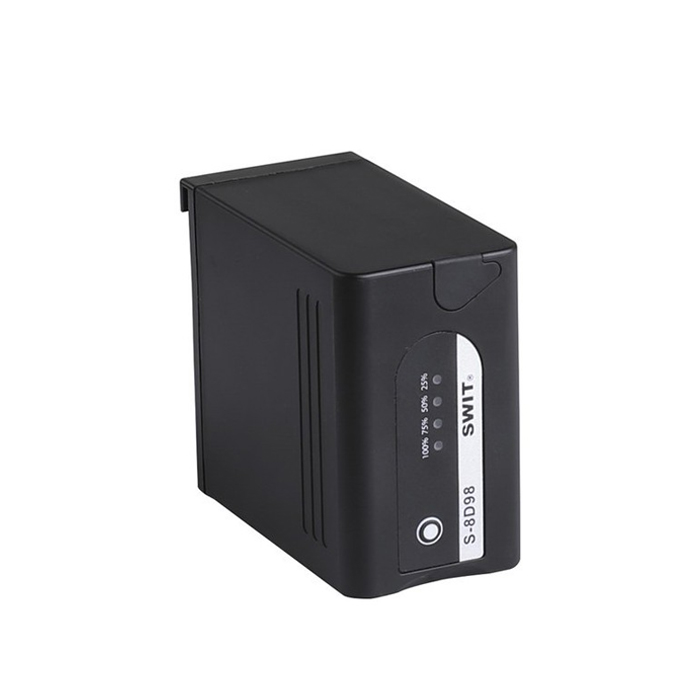

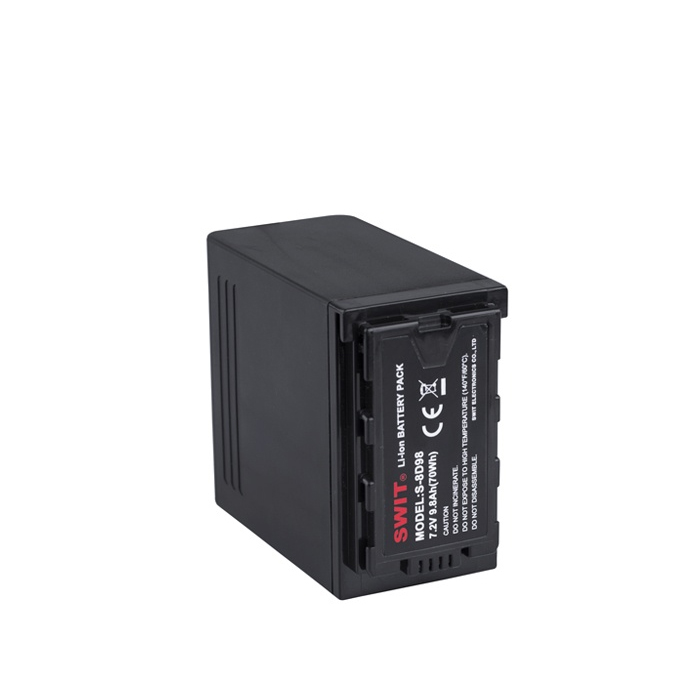

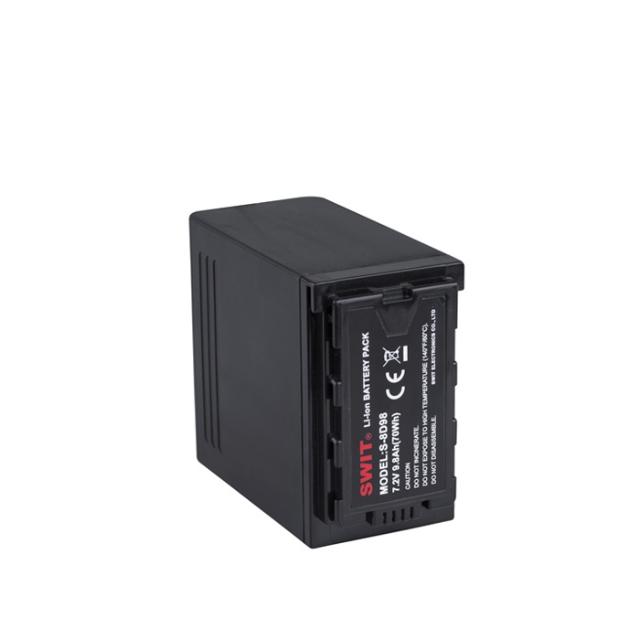

SWIT S-8D98 BATTERY PANASONIC 70WH (EVA-1)

• Li-ion battery of 7.2V nominal voltage
• For Panasonic AU-EVA1, AG-DVX200, etc
• Comparable to Panasonic VW-VBD58
• Comparable to Panasonic AG-VBR59
• Can be charged by Panasonic DE-A88
• Can be charged by SWIT S-3602D
• 70Wh / 9800mAh capacity
• 4-level LED power indicator
• 7.2V Pole-tap DC output
• 5V/1A USB charging output
• Multiple circuit protections

Panasonic EVA1,DVX200 Compatible

Similar battery for Panasonic VW-VBD58/AG-VBR59

S-8D98 is the replacement battery for Panaso- nic VW-VBD58 or AG-VBR59, compatible with Panasonic AU-EVA1, AG-DVX200 and AJ-PX- 270/285, etc.

70Wh/9800mAh Capacity

With 7.2V nominal voltage, the S-8D98 has 70Wh / 9800mAh capacity, and can run more than 3 hours on AU-EVA1 camcorder.

Build-in Pole-tap DC Socket

For DC output or Charging input

A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D98 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.

Build-in 5V/1A USB Socket

Use S-8D98 as Power Station to your cell phone.

It’s rather a fantastic function to have a USB socket on the DV battery!
Connect your smart phone or pad to the USB socket, press the “Check” button, and then the S-8D98 starts to output 5V/1A power to charge your devices.

4-level LED Power Indicator

The S-8D98 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging

The S-8D98 can be charged on Panasonic original charger DE-A88, and SWIT also provides the Dual channel charger S-3602D or 4-ch charger LC-D421 for S-8D98, will take about 6 hours to charge from empty to 100%.
