ZOOM H5 STUDIO HANDY RECORDER

ZOOM H5studio

• 16/24-bit and 32-bit float recording
• Large 19.4mm XY microphones, 140 dB max SPL
• 2 x XLR/TRS combo jacks, 1 stereo mini jack inputs
• Stereo mini jack line out to connect directly to a camera & headphone connector
• Captures up to six tracks (four iso-tracks plus a stereo mix)
• Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN)
• Impressive 132dB dynamic range
• RF shielding keeps interference from smartphones and Wi-Fi routers out
• Wireless timecode from the ATOMOS UltraSync BLUE (TCA-1 or BTA-1 Required)
• The largest mics ever on a Handy Recorder
• Full color 2” LCD with real-time waveforms
• H5studio uses microSDHC/microSDXC cards up to 2TB
• USB audio interface for Mac, Windows, iOS, and Android
• 4 x AA alkaline batteries for up to 15 hours of recording
• Power through the USB-C port

The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and clarity.

F-Series Power, Now in Your Hands

The H5studio features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN). With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range, capturing everything without noise or distortion.

Complete Control, Zero Clipping

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping. The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production.

Six Tracks Up to 192 kHz

The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.

Protect Your Sound

Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.

Advanced Limiters

The H5studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.

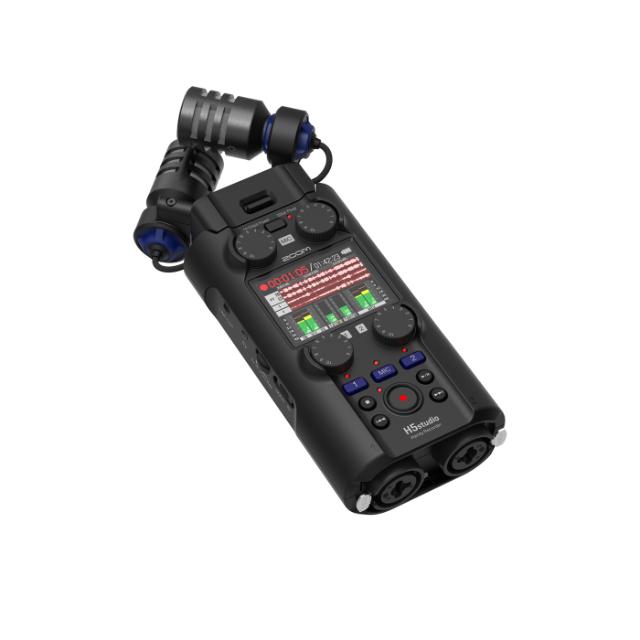

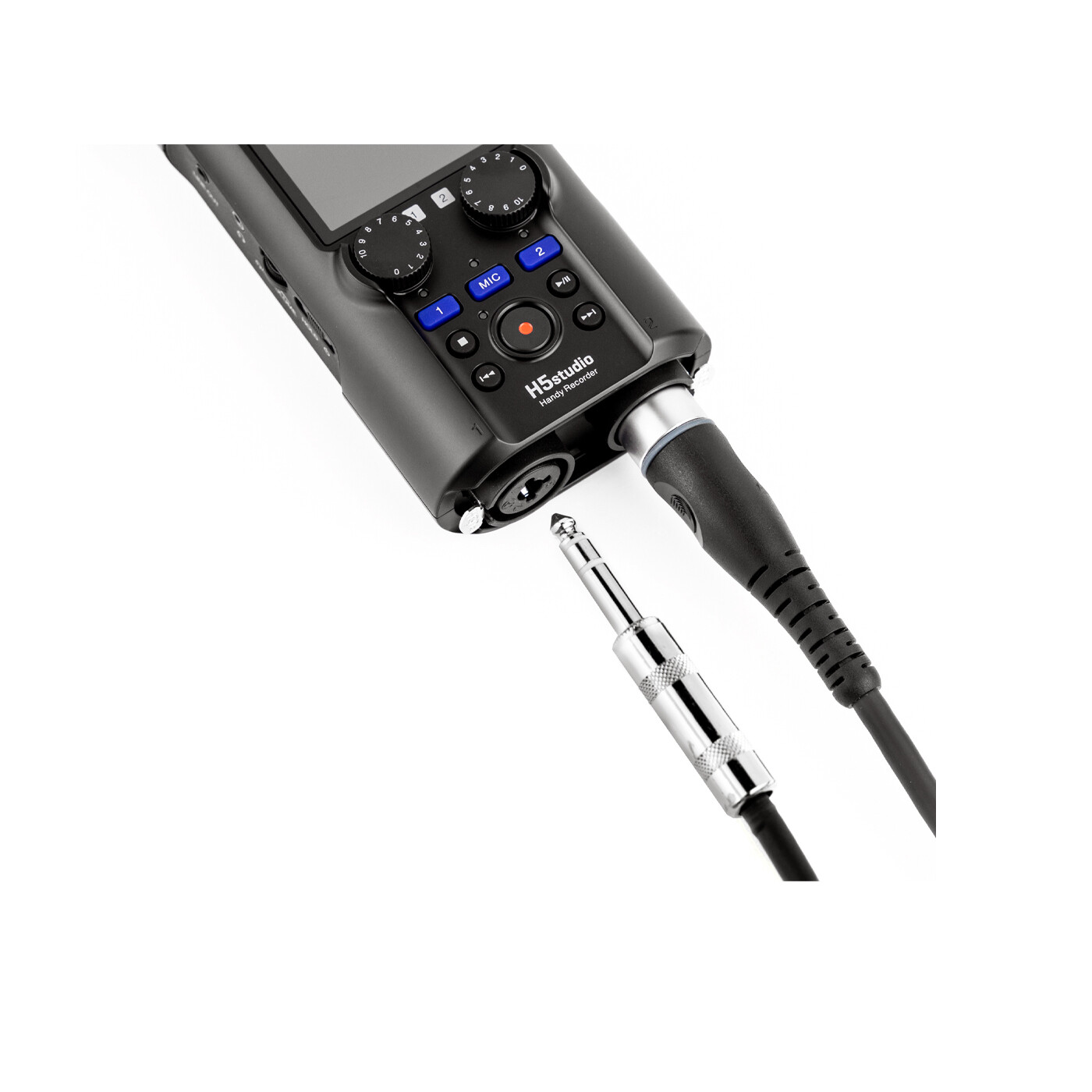

The Inputs

The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

Next Generation Capsule System

The H5studio’s 3.0 capsule system (Compatible with SSH-6e, EXH-6e) supports 32-bit float and gives creators more options to use the right mic for their recording.

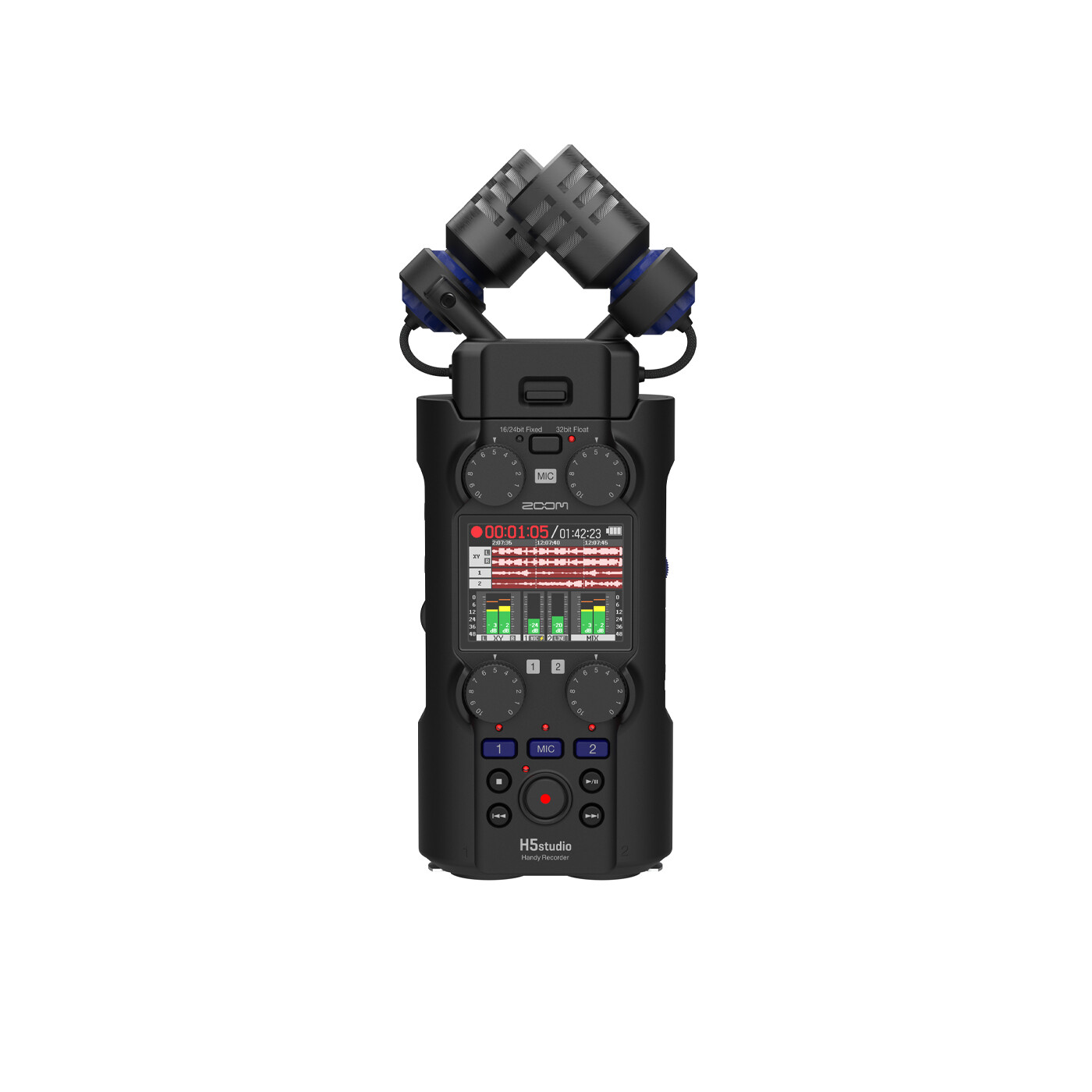

Waveforms & Levels

Monitor input levels and real-time waveforms with the full color LCD, making it easy to adjust and monitor audio in real time.

Headphone Out

Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.

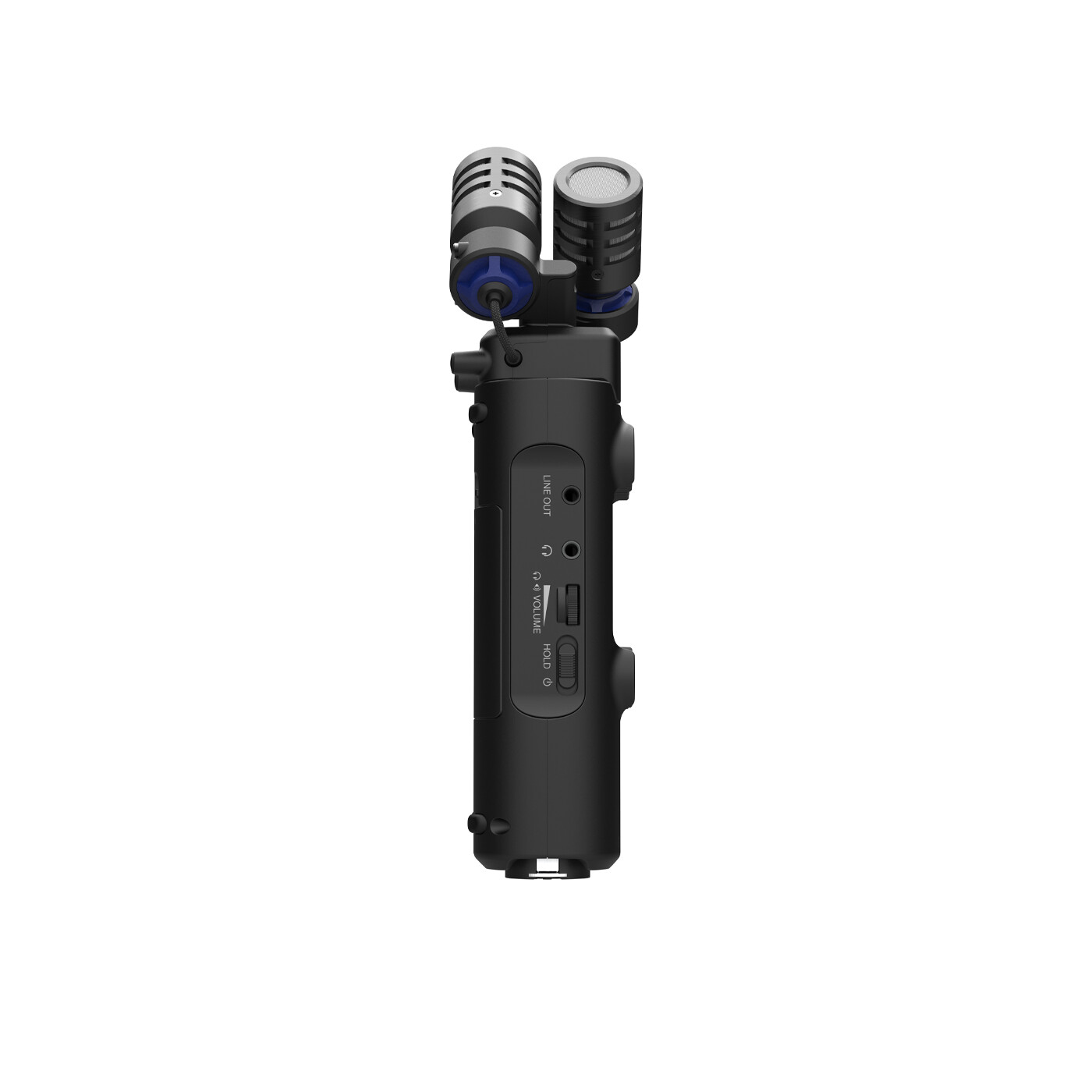

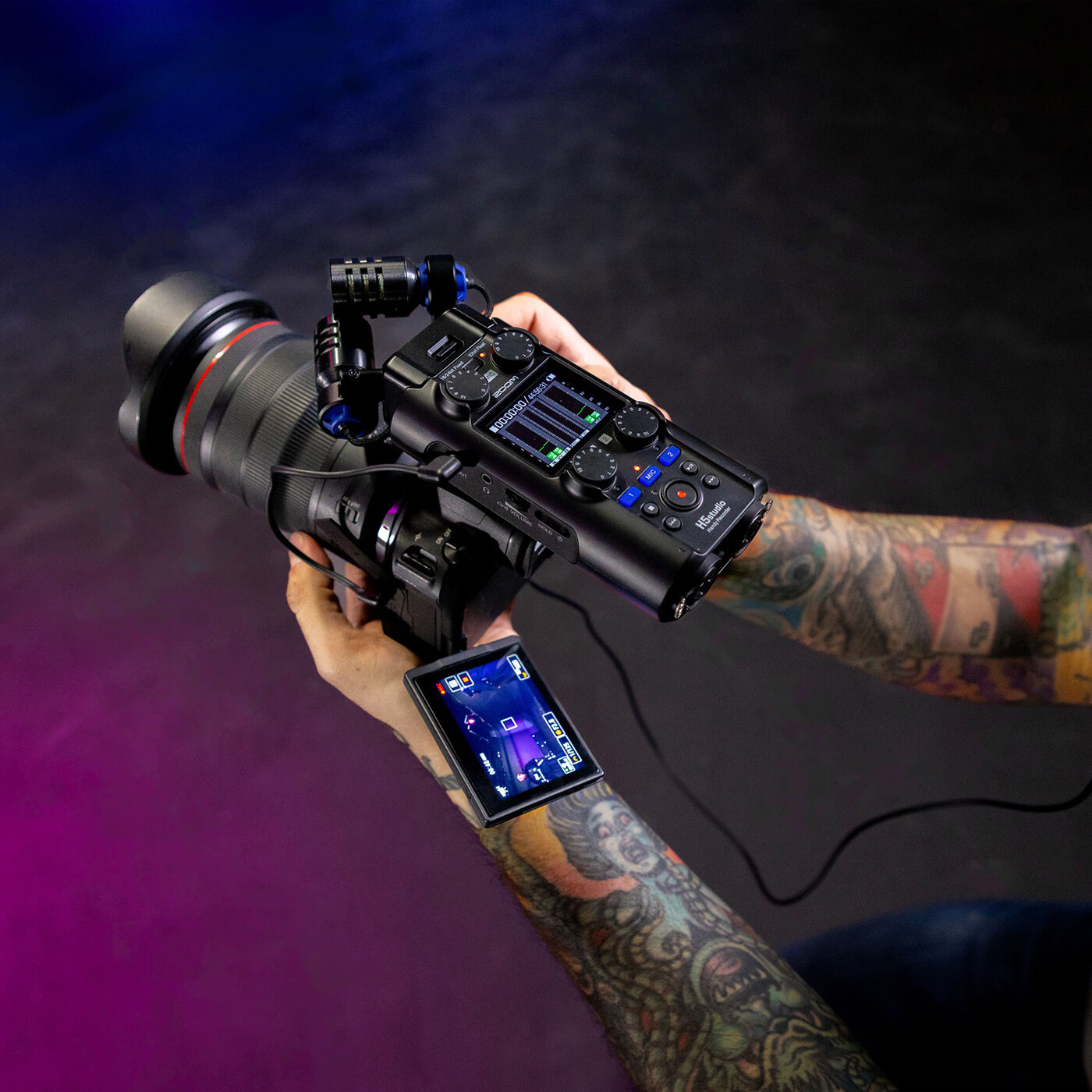

Line Out

Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

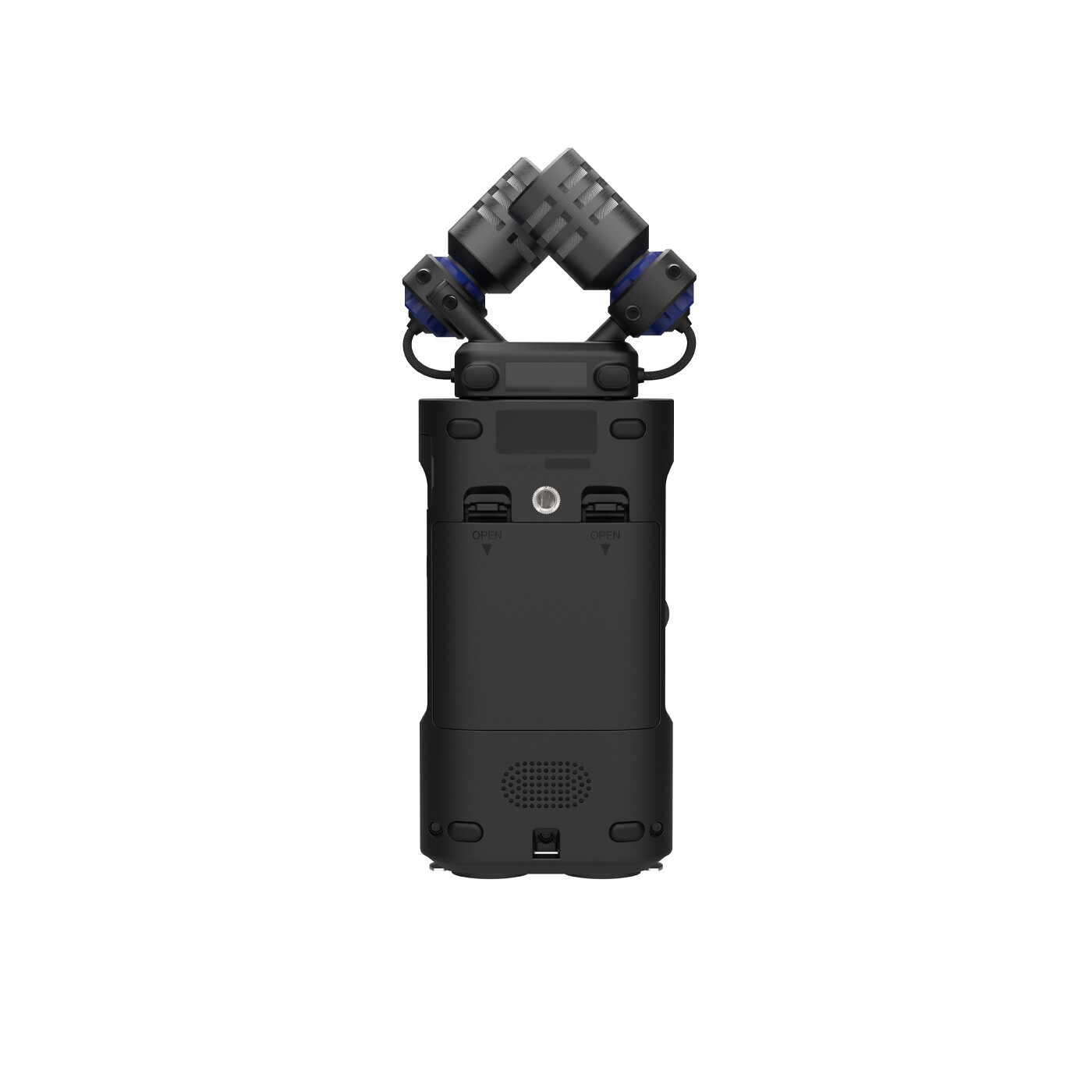

Onboard Speaker

The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

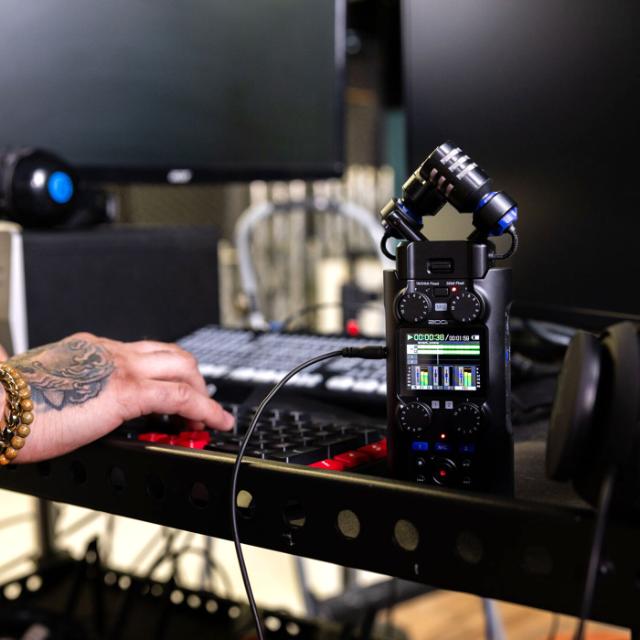

USB audio interface

The H5studio is a 4-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Sync Smarter

The TCA-1 timecode adapter (Available separately, releasing summer 2025) generates and outputs timecode or jams to an external clock. You can also receive wireless timecode from the ATOMOS UltraSync BLUE (TCA-1 or BTA-1 Required).

Wireless control

With the ZOOM Handy Control & Sync app for iOS, you can remotely manage multiple Zoom recorders (Current compatible models: H2essential, H5studio), control start/stop, and synchronize timecode effortlessly (BTA-1 or TCA-1 required).

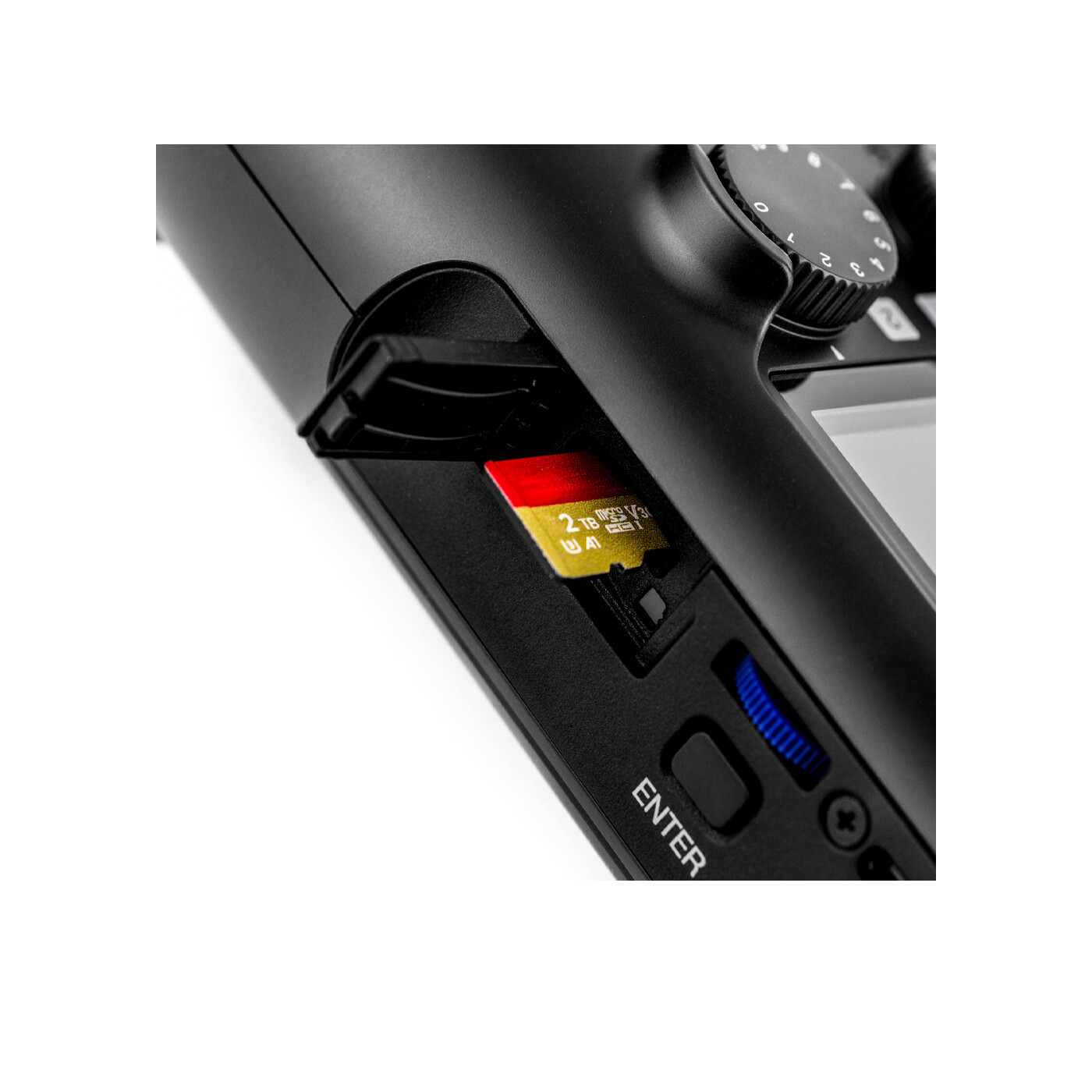

Up to 2TB of Storage

The H5studio uses microSDHC/microSDXC cards up to 2TB (sold separately).

Power Up

Operates on 4 AA alkaline batteries for up to 15 hours of recording. Power through the USB port using a USB mobile battery or AC adapter (sold separately: AD-17).

Accessibility

The H5studio is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

Accessory pack

The optional accessory pack (APH-5s) includes a padded shell case, hairy windscreen, AC adapter, and USB-C cable.
