CORE CXVM-FX6 SONY MICRO V-MOUNT PLATE

Core CXVM-FX6 Micro V-Mount Plate for Sony FX6

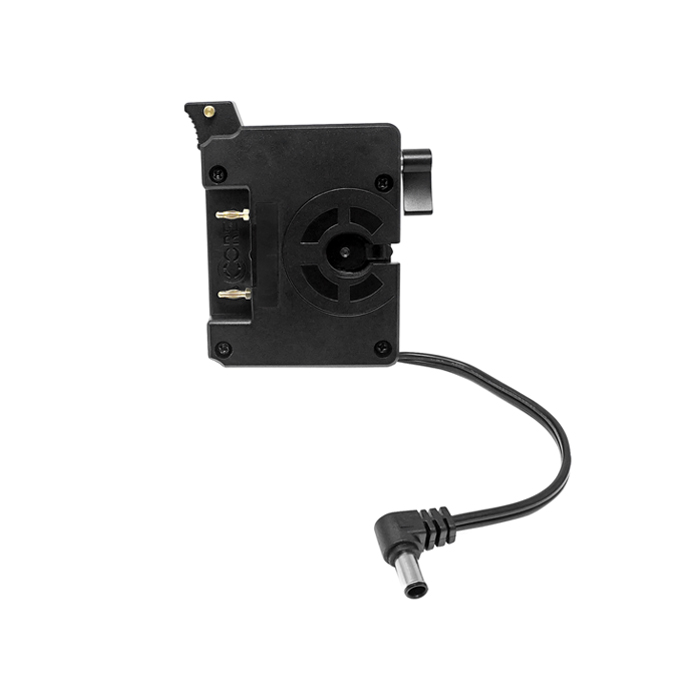

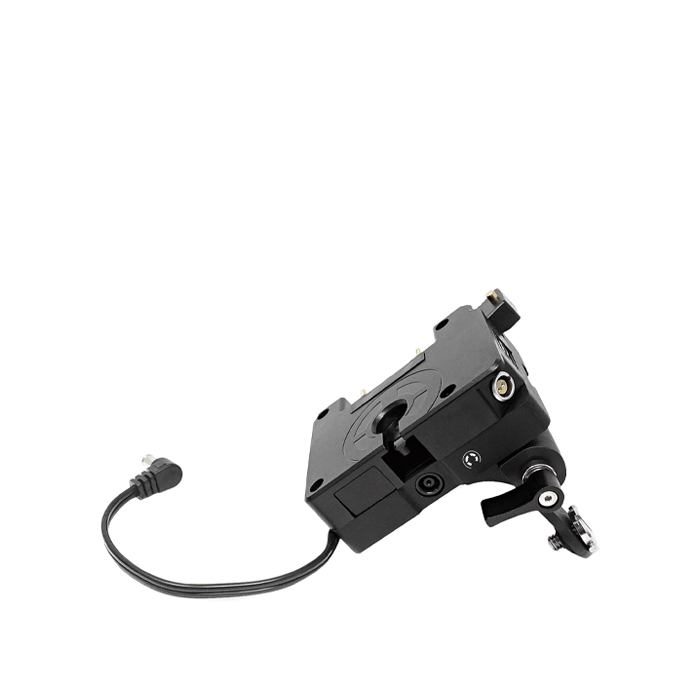

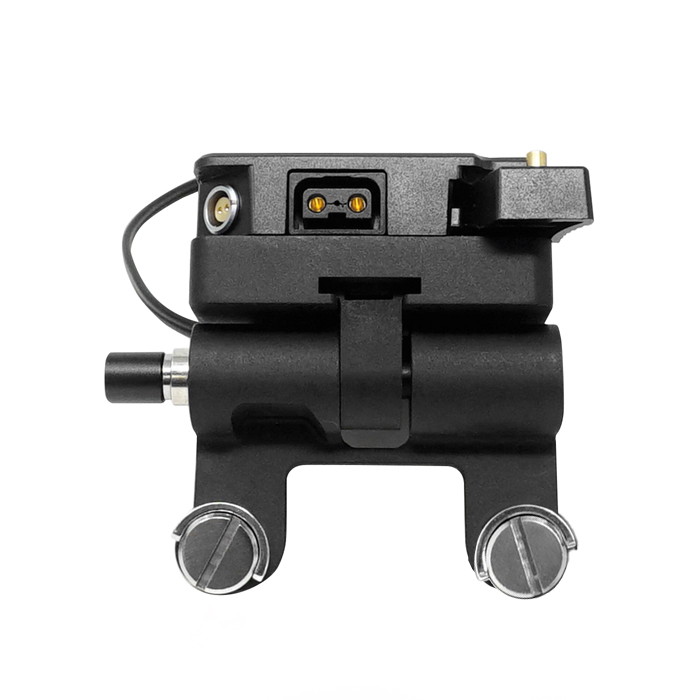

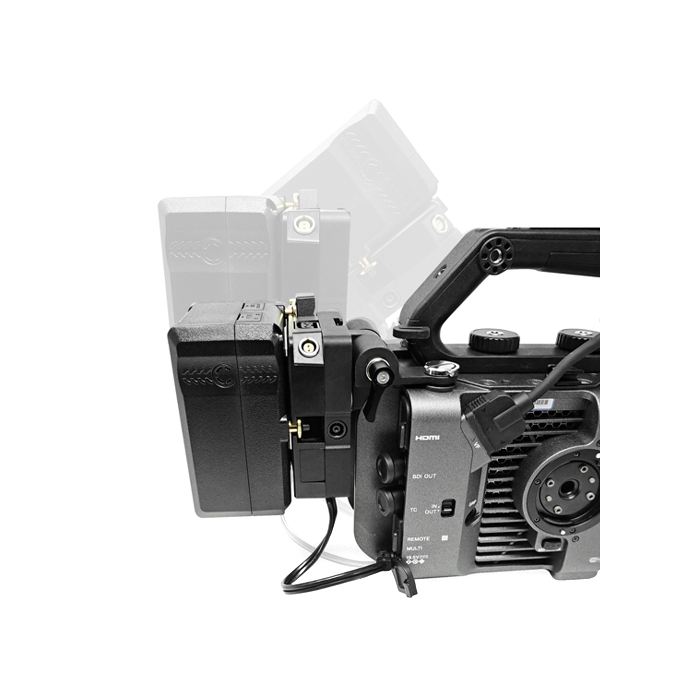

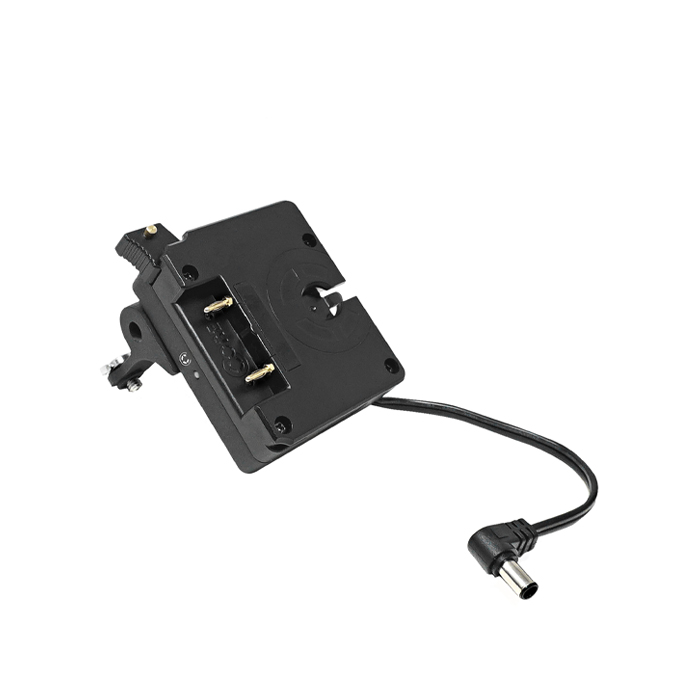

The FX6 Plate mounts directly to the back of the Sony PXW-FX6. The milled aluminum product inserts attaches into the top of the camera (with included screw hardware) to provide a secure platform for mounting V-mount batteries directly onto the FX6 camera.

It has a 19.5v DC output with a visual low battery warning LED and a DC barrel input (OEM camera power supply) for hotswapping between external and on-board power. In addition, it’s equipped with a D-tap/powertap and USB to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.

Up to a BP-U100 battery pack fits inside of the battery cavity on the camera, allowing the user to hotswap batteries. Once the on-board pack dies, it will automatically pull power from the BP-U battery and you will see the battery indication on the viewfinder change.

Specifications:

• On-board Input: 11.9v-16.8v, unregulated
• DC Input: DC power input utilizing the cameras power supply
• Output for camera: 19.5v regulated +/- 1v
• Powertap: DC 11.9-17v, unregulated
• USB: DC 5v, unregulated
• Size: 11,6 x 7,1 x 4 cm
• Weight: 272 g
