Denz Premium Optics for RED Compact EVF

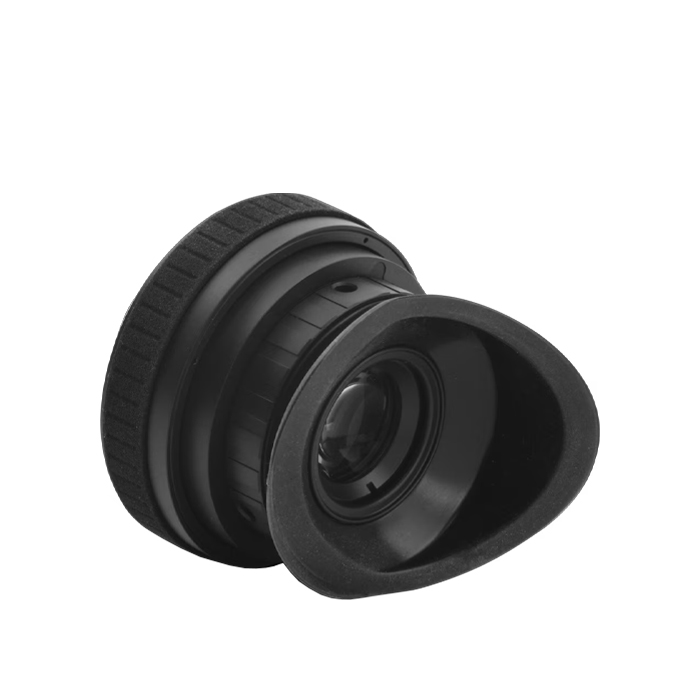

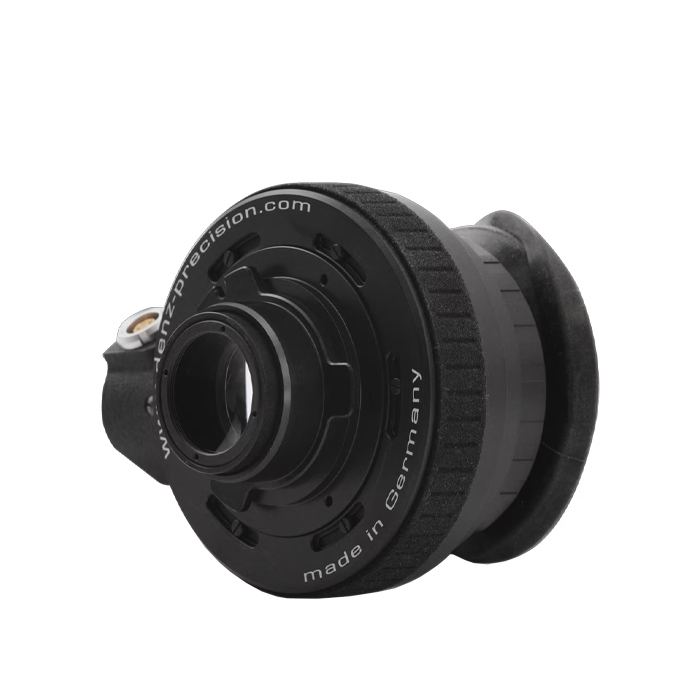

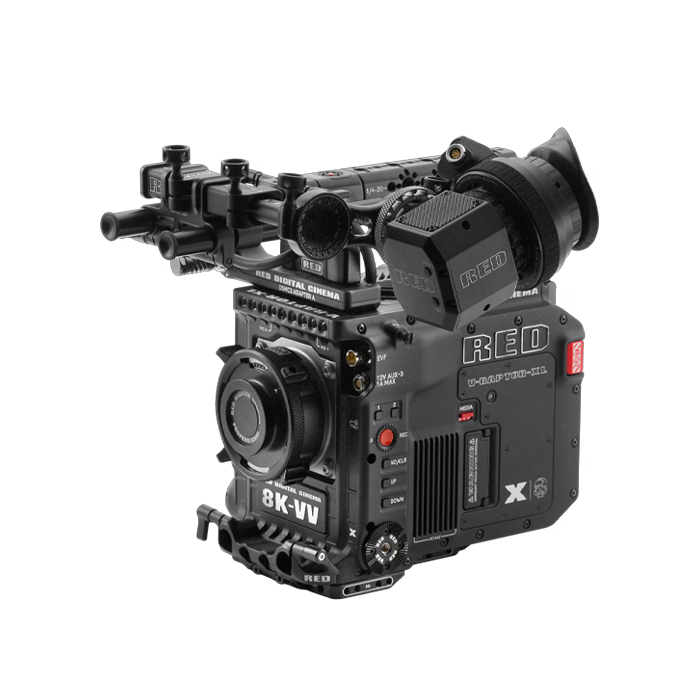

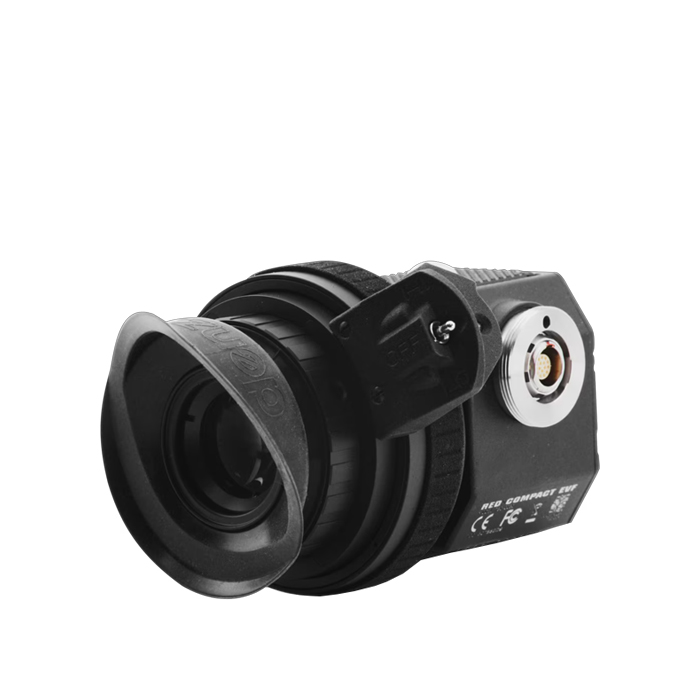

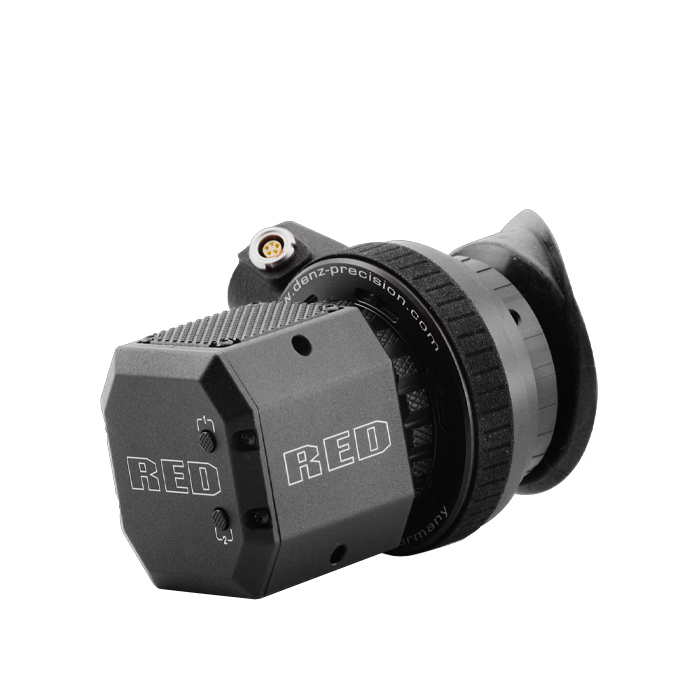

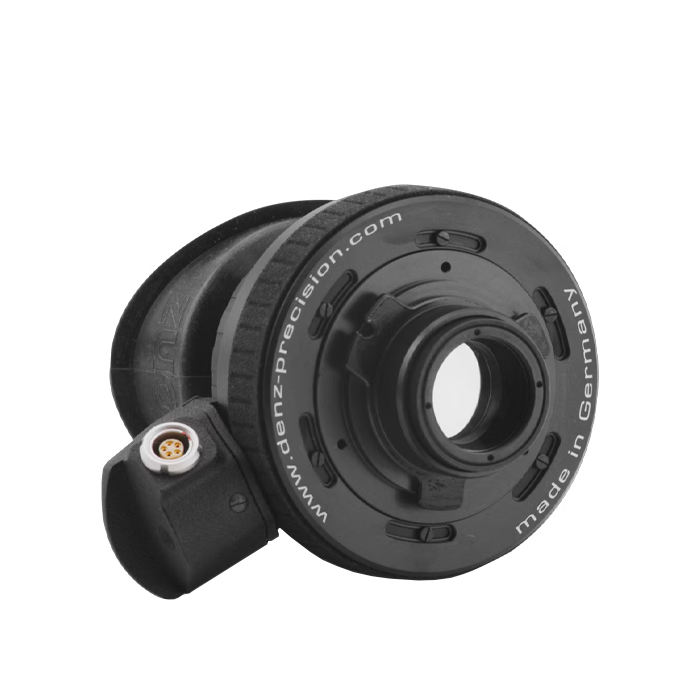

The Denz Premium Optics upgrade for RED Compact EVF is a quick and seamless option to enhance the RED Compact EVF and DSMC2 RED EVF (OLED). This ocular attaches to the integrated bayonet mount on the EVF, replacing the standard optics and providing the following enhancements to the EVF:

• Higher optical qualities with a sharper image to assist with operating and pulling focus
• Improved off-axis viewing angles
• Increased diopter range of -4 to +3
• Integrated ocular heater for humid or sub-zero conditions to prevent fogging
• A quick connect eye-cup for easy adjustability and light blocking

Notes:

• The RED Compact EVF is sold separately.
• When using the RED EVF Mount and RED EVF Extension Arm, a thumbscrew must be replaced by a wing nut (2x included) to enable full motion of the EVF.
• If the supply voltage is too high (> 40V), the electronic circuit of the eyecup might be damaged.
• For issues or troubleshooting, contact office@denz-precision.com

Warning:

DO NOT point the RED Compact EVF eyepiece at direct sunlight. Continued exposure to direct sunlight can damage the EVF. When the operator is not using the EVF, they must keep the eyepiece pointed away from sunlight. Damage to the RED Compact EVF caused by continued exposure to direct sunlight is not covered under the warranty.

In the Box:

• 1 x Denz Premium Optics
• 1 x Denz Eye Cup
• 1 x Allen Wrench
• 2 x RED 20mm Wingnut and Shim
• 1 x RED P-Tap-to-5-Pin Power Cable
• 1 x RED 2-Pin-to-5-Pin Power Cable

Specifications:

• Dimensions: 77mm x 90mm x 104mm (H x W x D)
• Weight: Approx. 400g
• Material: Aluminum, Plastic
• EVF Mounting: Via RED Compact EVF/DSMC2 EVF Bayonet Mount
• Diopter Range: -4 to +3
• Voltage: 10-32 VDC (Inverse polarity protection safety shutdown at overvoltage and undervoltage)
• Current Consumption:
• Approx. 0.54 A at 12 VDC
• Aprrox:0.30 A at 24 VDC
• No residual current when switched off
• Heating Power: Approximately 7W regardless of supply voltage
• Two temperature settings:
• HI for very cold conditions up to -18°C/-0.4°F
• LO for normal conditions and climate
• Power In: 5-Pin 0B (Pin 1 Power / Positive, Pin 4 Ground / Negative)
• Operating Temperature: –30°C to 50°C
