RED Compact EVF Pack

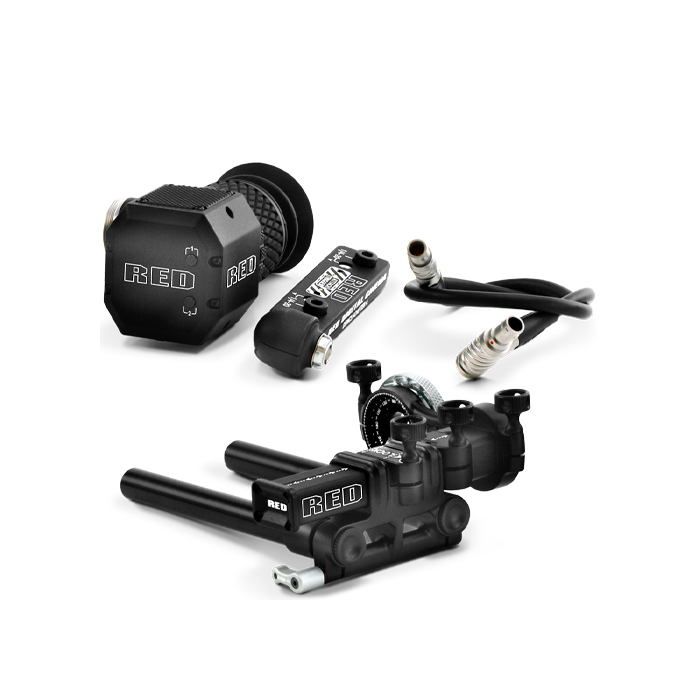

The RED® Compact EVF Pack is compatible with KOMODO-X™ (Firmware support coming late February 2024), V-RAPTOR®, and V-RAPTOR® XL cameras. The pack includes the RED Compact EVF, a DSMC3™ Adapter A, a RED® EVF Mount, and an 18" Right-to-Straight EVF cable.

This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3™ camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.

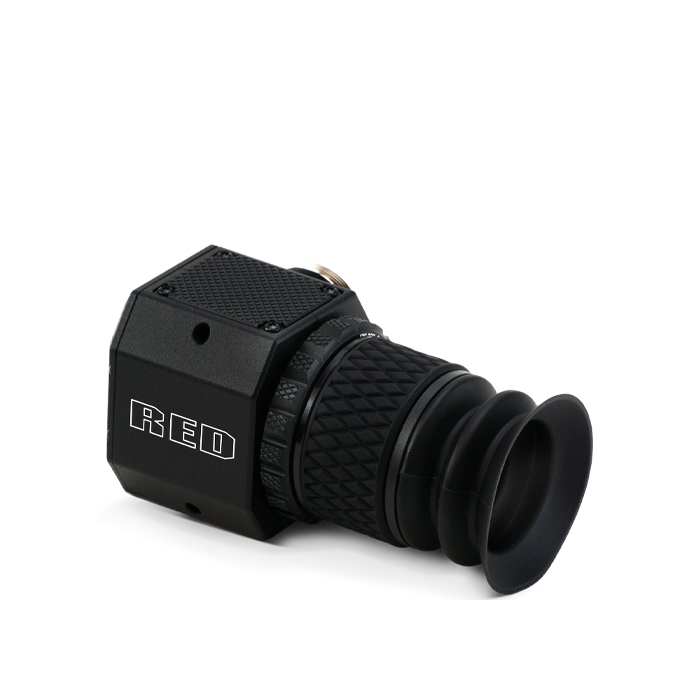

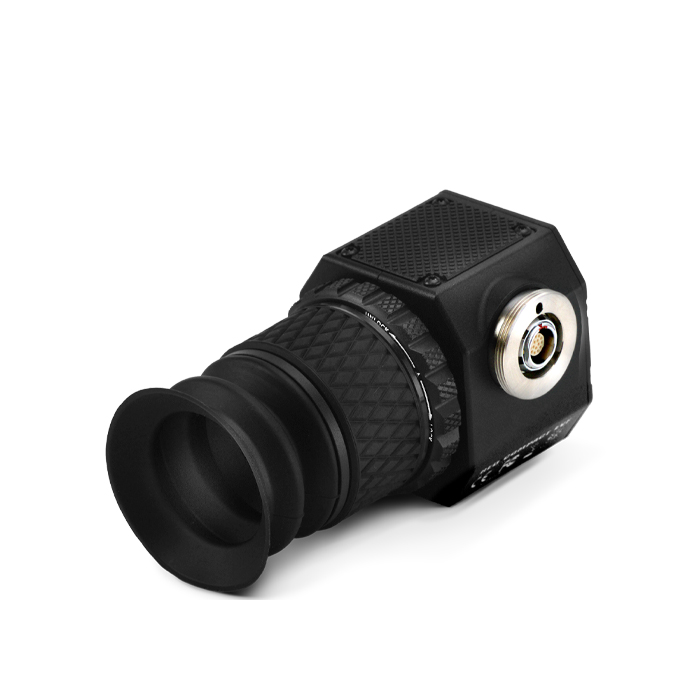

The RED Compact EVF is a single cable monitering solution for DSMC3 camera systems. It features a 1080p micro-OLED display and user-assignable buttons to quickly access tools such as peaking and magnify, or to control the camera's settings such as ISO, FPS, and White Balance.
The RED Compact EVF includes an adjustable diopter, a quick-connect mount for use with the RED EVF Mount or a 1/4-20 mount plate for use with third-party options, and an updated secure eyecup mounting system that also allows the operator to easily replace the eyecup.


Camera settings control is only supported on DSMC3 systems.


DO NOT point the RED Compact EVF eyepiece at direct sunlight. Continued exposure to direct sunlight can damage the EVF. When the operator is not using the EVF, they must keep the eyepiece pointed away from sunlight. Damage to the RED Compact EVF caused by continued exposure to direct sunlight is not covered under the warranty.

Camera Compatibility:

  • DSMC: NO
  • DSMC2: YES
  • DSMC3: YES
  • Ranger: YES
  • Komodo: NO
  • Komodo-X: Coming Soon
  • V-Raptor: YES (When used with the DSMC3 Adapter A)
  • V-Raptor XL: YES (When used with the DSMC3 Adapter A)

In the Box:

  • 1 x RED Compact EVF
  • 1 x 1/4-20 Mount Plate

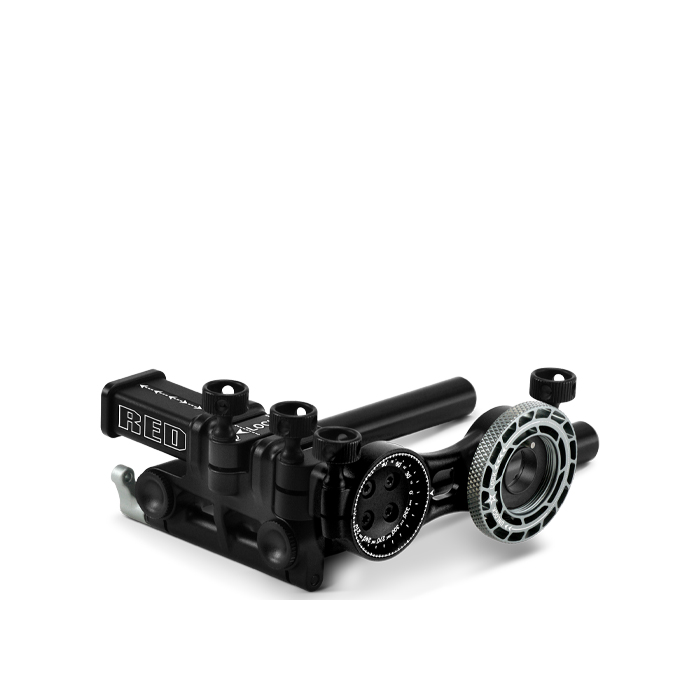

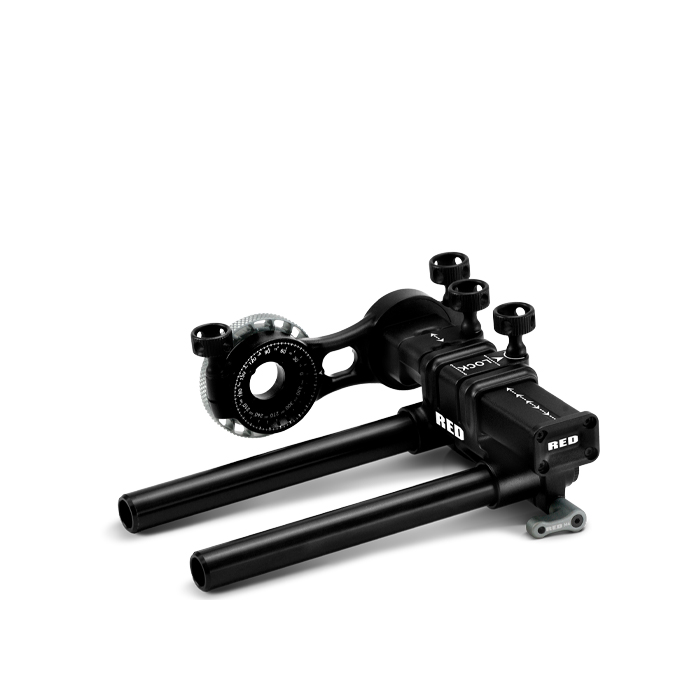

  • 1 x RED EVF Mount
  • 2 x 15 mm Rods (2.3 in. / 60 mm)

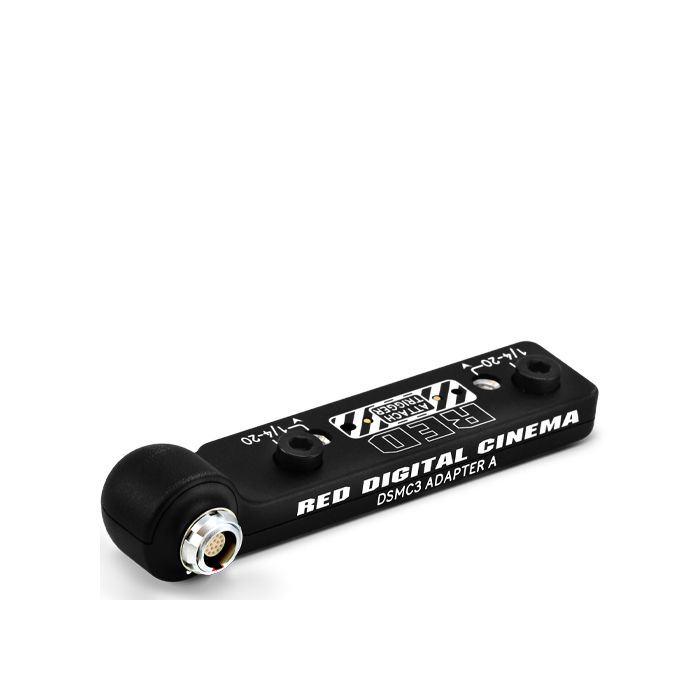

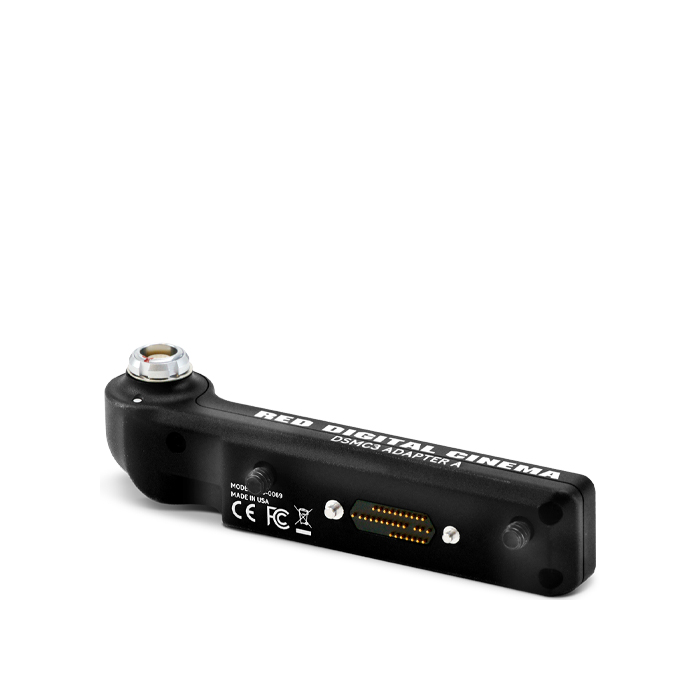

  • 1 x DSMC3 Adapter A

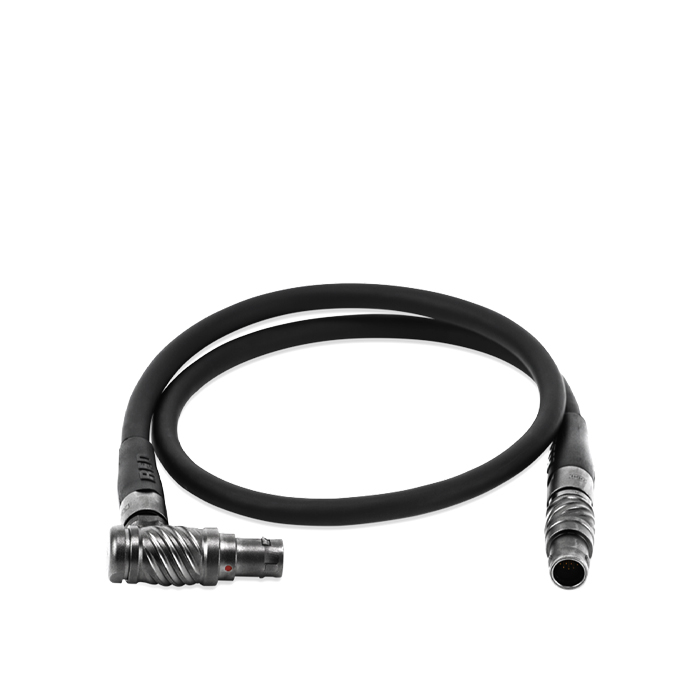

  • 1 x EVF Cable Right-to-Straight 18"


  • Dimensions: 61,7mm x 62,5 mm x 121,9 mm
  • Weight: 360 g
  • Material: Aluminium
  • Camera Mounting: Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points.
  • Resolution: 1920 x 1080
  • Bit Depth (Color): 8-Bit
  • Contrast Ratio: > 10000:1
  • Display Framerate: 60FPS
  • Optics: Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions
  • Diopter Range: – 2.5 to + 2.5 diopter correction range
  • Buttons: Two buttons for camera control or user defined buttons
  • Power Consumption: 2.5 W


Producent RED
Kategori Søger
