RED REDVOLT NANO-V

RED REDVOLT NANO-V

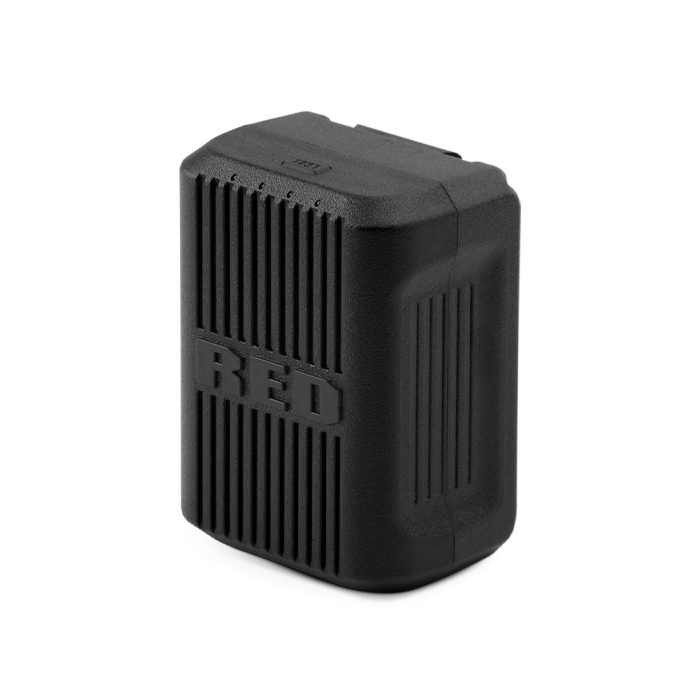

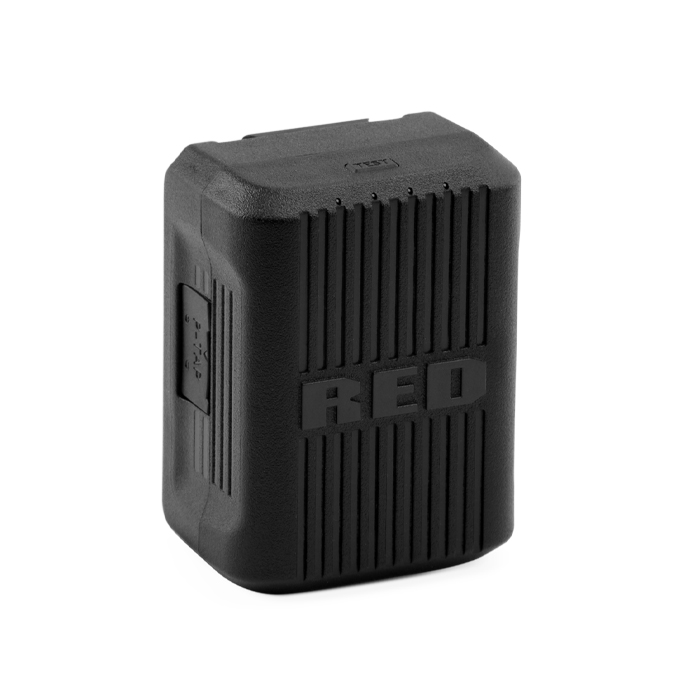

The REDVOLT NANO-V battery is a small, lightweight power solution for the Komodo-X.
Weighing in at only 0.63lbs (288g), it is ideal for gimbals, drones, and other setups where form factor and weight matter. The batteries dimensions (66 mm x 88 mm x 44 mm) ensure the camera retains completely flat surfaces on the top and sides, allowing users to attach various combinations of cages and plates, without issue.

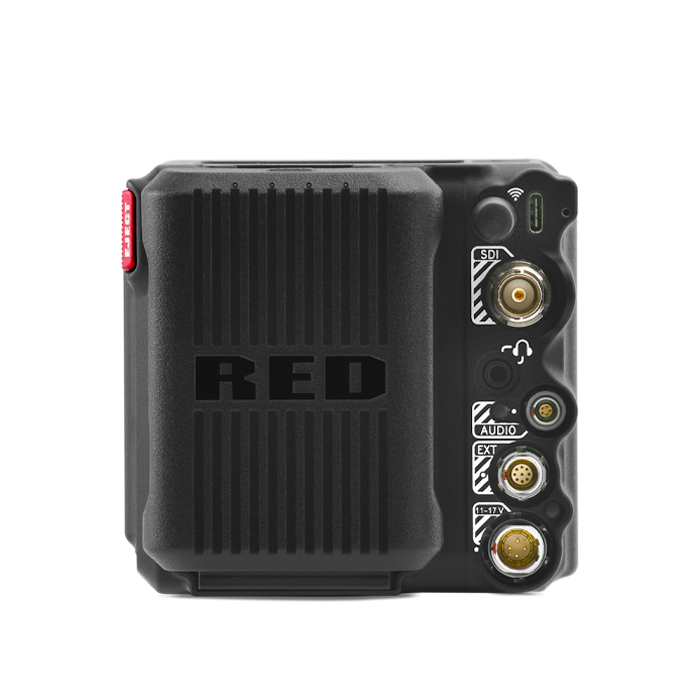

Featuring a 49 Wh capacity and with a maximum output current of 6 amps, the battery can power the Komodo-X and DSMC3 RED Touch 7.0” LCD when you want to shoot in as light a configuration as possible.

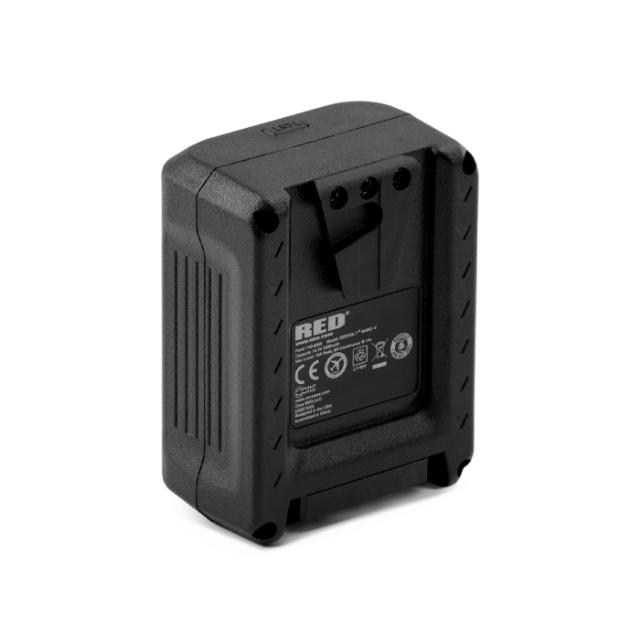

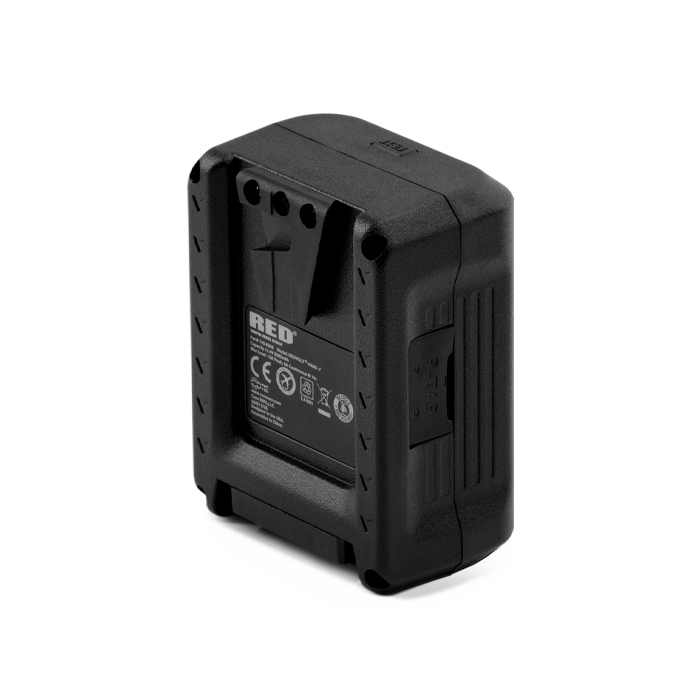

REDVOLT NANO-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock batteries.

Specifications:

• Capacity: 3300mAh / 49Wh
• Output voltage: 14.4 VDC
• Operating temperature: 10°C - 45°C
• Charging temperature: 0°C - 40°C
• Storage temperature: 20°C - 50°C
• Dimensions: 66 x 88 x 44mm
• Weight: 288g
