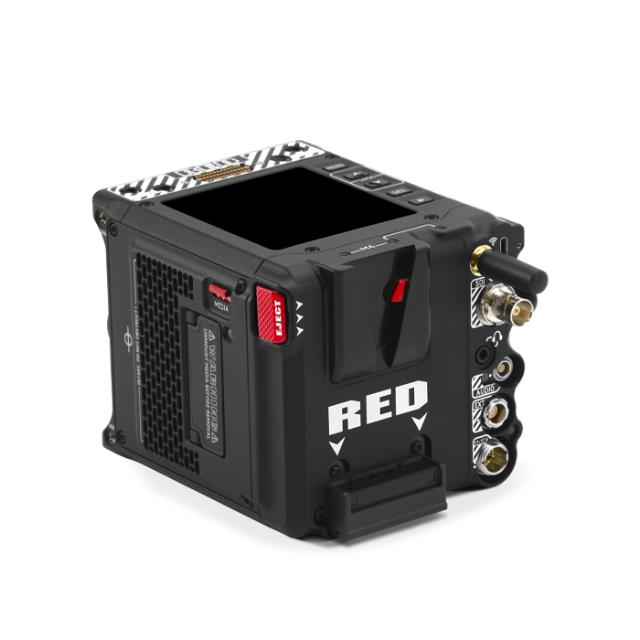

RED KOMODO-X

710-0356
92.343,75 DKK 64.781,25 DKK OutOfStock
  • København Ikke på lager
  • Århus På lager

Carsten Iversen
carsten@goecker.dk
35865105
København

Beskrivelse

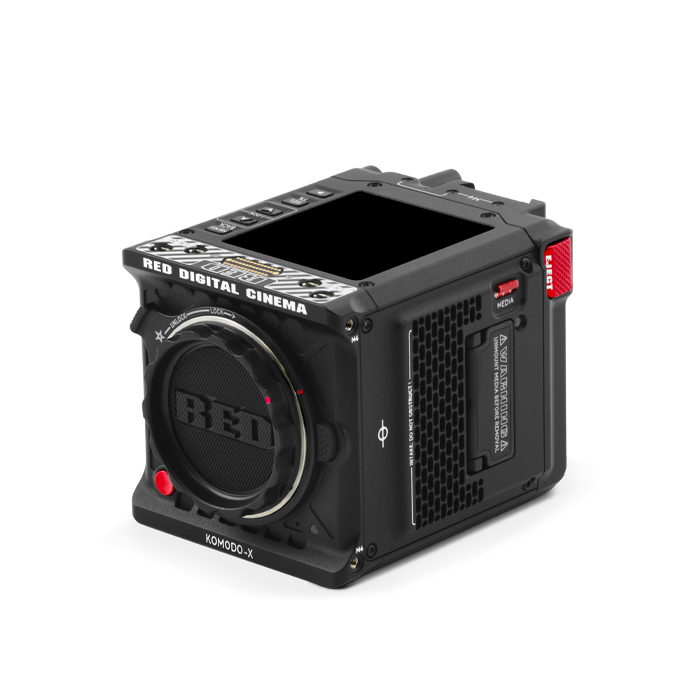

RED Komodo-X

  • 19.9mp Super 35 global shutter CMOS sensor
  • 16.5+ stops dynamic range
  • Locking RF lens mount
  • Up to 6K 80p & 4K 120p video
  • 12G-SDI, USB-C, 5-Pin audio ports
  • 6K streaming via RED Connect

Next evolution of the Komodo line with all-new 6K global shutter sensor that multiplies frame rate and dynamic range performance with a new advanced platform.

Next generation global shutter sensor

Komodo-X features a completely overhauled sensor architecture, with updated pixel design and improvements in both detail and color in shadows.

  • 6K at 80fps & 4K at 120fps
  • Komodo-X achieves 80fps in 6K and 120fps in 4K, thanks to the new sensor design and processing, as well as support for CFexpress.
  • Improved body design
  • A robust locking RF mount, with professional micro v-lock battery interface and all-new assignable tactile buttons.

Advanced platform

Expanded I/O, including updated monitoring capabilities with support for DSMC3 touch LCD, built-in USB Type-C, and newly engineered audio hardware, including locking +48V audio connector with improved preamp.

Production ready

Komodo-x carries on the legacy of a shockingly small form factor, but now with more advanced i/o options, allowing for more professional monitoring, cabling and powering, as well as expanded remote capabilities like red connect.

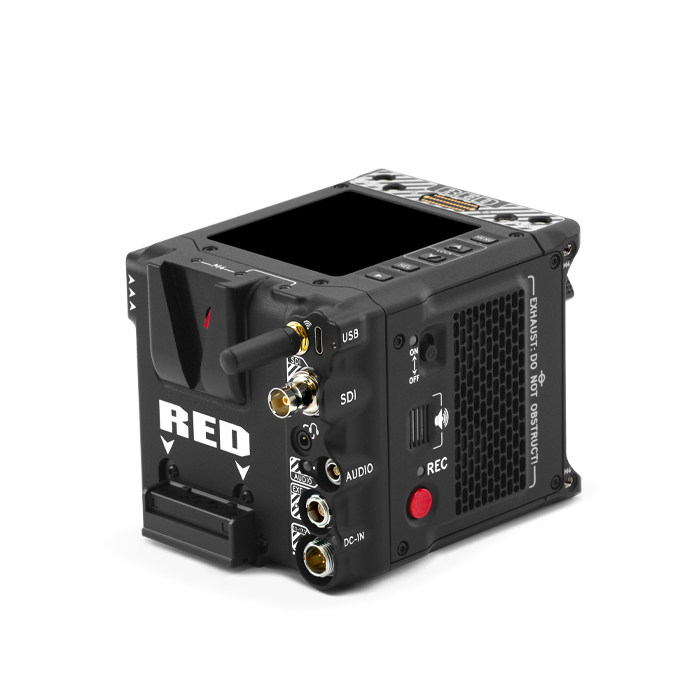

Expanded I/O array

The enhanced komodo-x platform advances capabilities for monitoring, audio, and livestream connections.

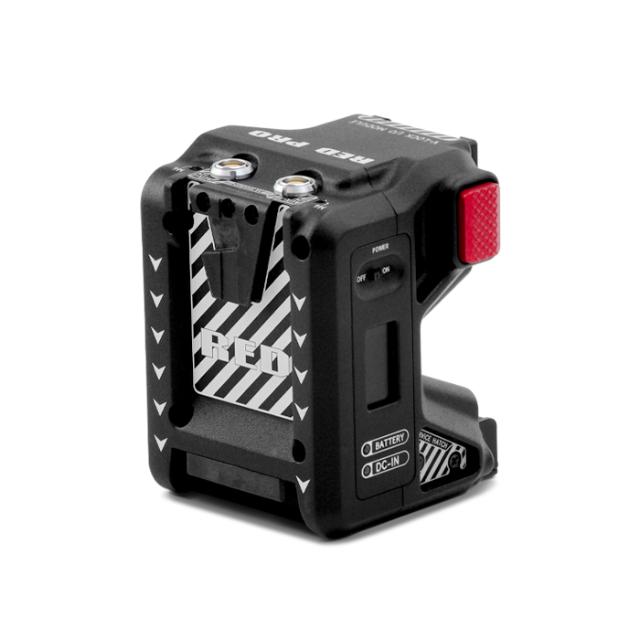

With key improvements for professional workflows, the Komodo-X now shares many features with the DSMC3 line while still maintaining the impressively small Komodo form factor. An integrated micro V-Lock allows for direct attachment of professional micro V-Lock batteries without the need for adapters and is also compatible with the upcoming RED Pro I/O Module to provide auxiliary power and compatibility with full sized V-Lock batteries.

  • Full sized 1B DC-in connector
  • Professional level audio over locking 5-pin connector
  • Native USB Type-C connection
  • 12G sdi for up to 4K 60p output
  • 1080p ip livestream for web and in-app monitoring

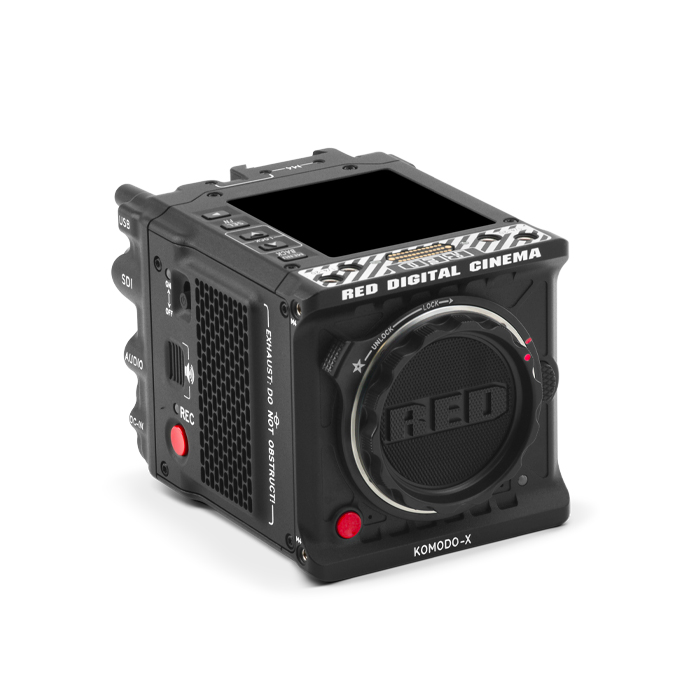

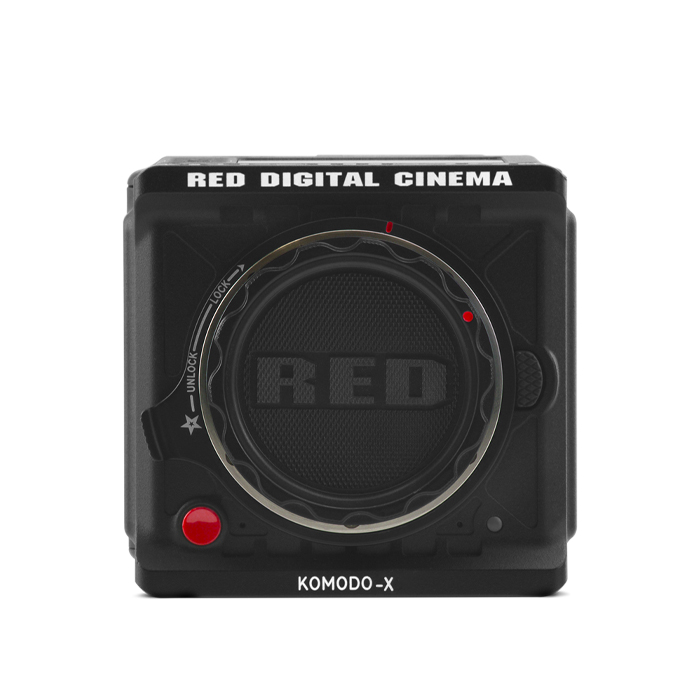

Locking RF mount

The flexible and powerful rf mount system now features new locking mechanism for additional rigidity and peace of mind.

A reinforced RF lens mount with locking mechanism maintains the flexibility of toolless switching between multiple lens mount types, while providing the stability and rigidity professionals need. Komodo-X is also fully compatible with /i PL lenses using the RED RF to PL Adapter.

  • Rugged and durable design built to support large array of lenses and adapters
  • Compatible with RED RF-PL adapters

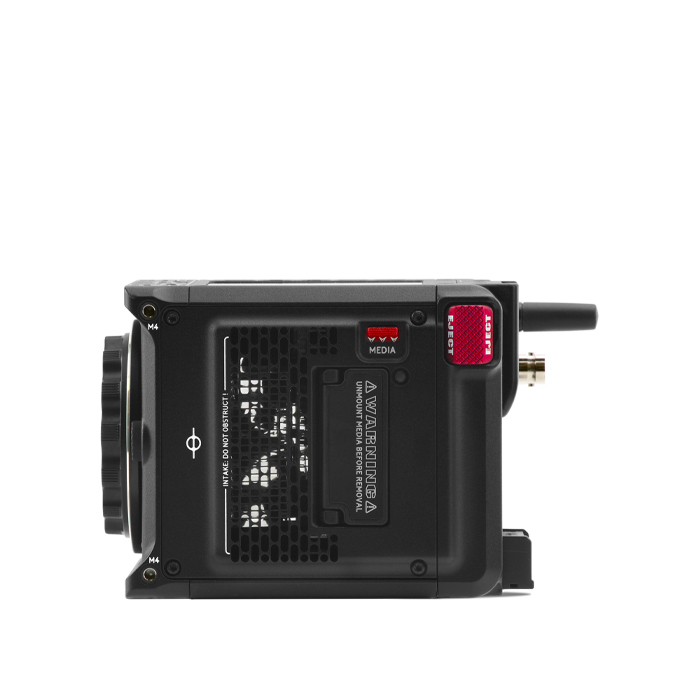

CF Express

Komodo-X uses standardized and high-performing CFexpress Type B media to ensure the best reliability and performance possible.

  • Higher capacities for longer run times
  • Up to 17 hours record time with 4tb CFexpress card
  • 3x faster offload times than CFast media

Native micro V-lock

Adopting the advanced v-raptor battery and dc-in interface allowing for efficient and high-capacity battery options while maintaining small form factor.

  • Compatibility with new REDvolt Nano-V batteries
  • Features rear M4 mounting screws for additional 3rd party battery flexibility
  • Share batteries across V-Raptor and Komodo-X bodies

Network enabled

The integrated USB Type-C interface expands remote capabilities and usability of the Komodo-X with minimal latency.

  • 5Gbps network control and offload with cloud connectivity
  • App-based multi-cam control
  • Upload and download via FTPS
  • 1080p livestream capability
  • Compatibility with RED Connect
  • Compatibility with RED Control and RED Control Pro

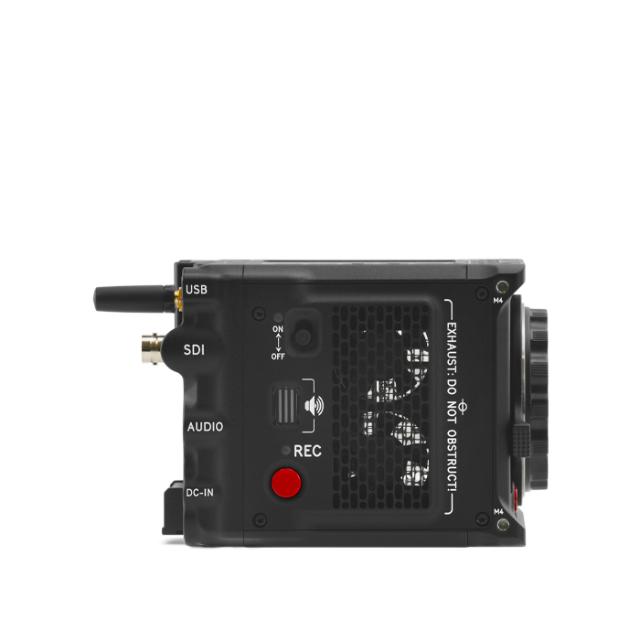

Interface expansion

Komodo-X offers robust and powerful systems, with USB Type-C interfaces, ethernet offload capabilities, timecode and genlock compatibility and more.

12G SDI, full sized DC-IN, USB Type-C, and a phantom powered locking audio connector further enables Komodo-X to seamlessly integrate into any professional workflow. Komodo-X is compatible with DSMC3 RED 5-Pin to Single 3.5mm Adapter to support existing Komodo microphones, or the DSMC3 RED 5-Pin to Dual XLR Adapter for general purpose XLR microphones.

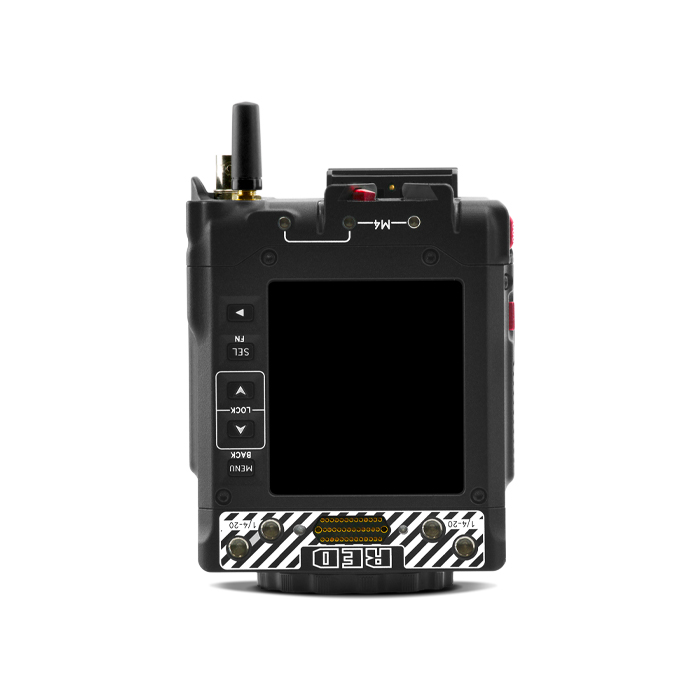

  • Touch screen display
  • Integrated onboard LCD provides comprehensive control and image preview for smallest possible configuration.

DSMC3 touch monitor support

Monitor and control the camera using the direct attach 7” DSMC3 touch LCD, leaving the SDI available for wireless transmitters or other monitors.

An integrated 2.9” LCD allows for simplified control and image preview in compact setups. For more precise monitoring, Komodo-X supports the DSMC3 RED Touch 7.0" LCD which provides a daylight viewable, high-resolution, camera top monitor and control solution without the mess of cables.

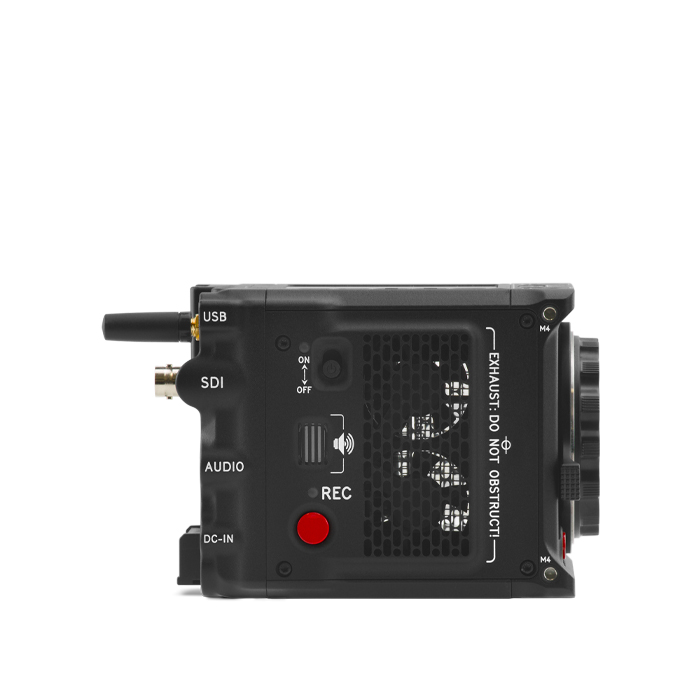

Tactile buttons

On-camera tactile buttons including all-new record buttons with assignable multifunctional control.

Advanced connectivity

Unlock the capabilities of the Komodo-X system through multiple next generation remote connectivity options, including the red control pro app and the all-new red connect technology.

Included:

  • Komodo-X camera body
  • DSMC AC power adaptor pack (150W)
  • RED logo sticker​
  • Komodo-X information card (incl. registration and support info)​
  • 1 year standard warranty

Specifikationer

Producent RED
Kategori Videokamera
Objektiv mount RF (Canon)
Megapixel Opløsning 19.9 MP
Autofokus Ja
Sensor størrelse Super 35
Batteri V-mount
Bredde 12.9 CM
Dybde 10.1 CM
Højde 9.52 CM
Vægt 1188 G
LCD strørrelse 2.9 "
Touchskærm Ja
Lagringsmedie CFexpress Type B
Videoopløsning REDCODE RAW: 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1 up to 80fps 6K Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700) and 16:9 up to 96fps 4K 17:9 (4096 x 2160) and 16:9 up to 120fps 2K 17:9 (2048 x 1080) up to 240fps REDCODE: REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80fps REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120fps REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240fps Apple ProRes: Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60fps ProRes 4444 up to 80fps ProRes 422 HQ, ProRes 422, ProRes 422 LT up to 120fps
Videoformat REDCODE RAW REDCODE HQ REDCODE MQ REDCODE LQ REDCODE ELQ Apple ProRes 4444 XQ Apple ProRes 4444 Apple ProRes 422 HQ Apple ProRes 422 Apple ProRes 422 LT
Mikrofon indgang Ja
Hovedtelefon indgang Ja
USB indgang USB-C 3.2
Frame Rate 240fps at 2K, 120fps at 4K, 96fps at 5K, 80fps at 6K
