BLACK MAGIC URSA STUDIO VIEWFINDER G2

Blackmagic Design URSA Studio Viewfinder G2

• 7” 1920 x 1200 resolution display
• 2000 nits brightness
• Tally light
• 10-bit color precision

The Blackmagic URSA Studio Viewfinder G2 is based on a large 7 inch display and is perfect for tripod mounted studio camera use. It totally transforms the camera into a true studio camera!
The studio viewfinder also includes a large tally light and easy to access controls. It's even fully adjustable! When you’re working live in the studio or out at an event in a large venue such as a stadium, the URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production.

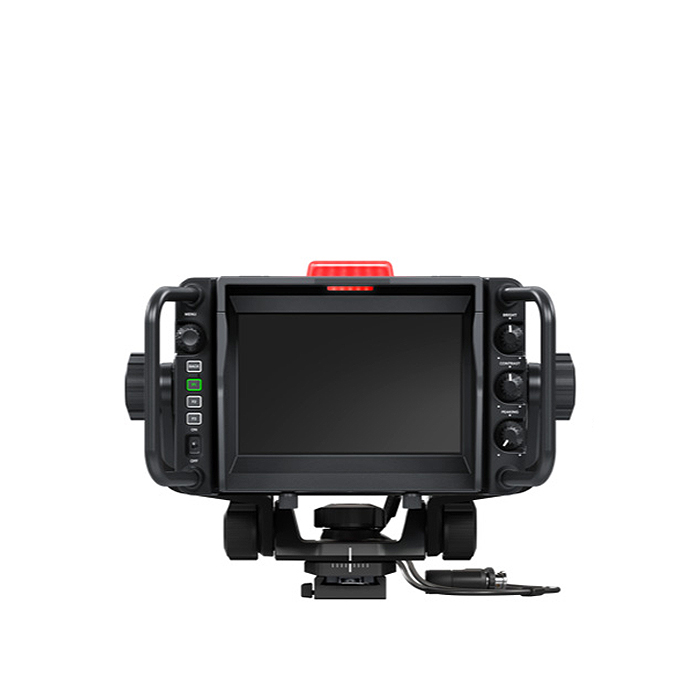

The bright 7” screen has a detachable sunshade and includes large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera.
The large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action.

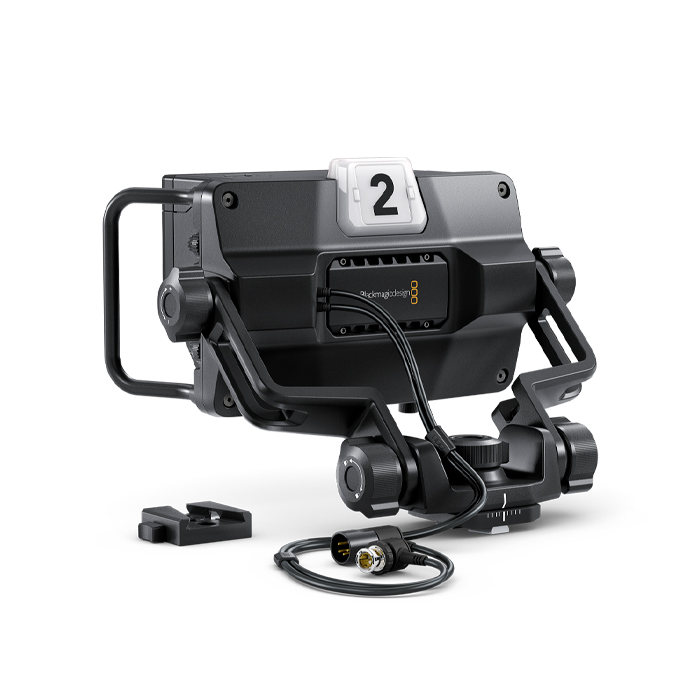

Set up is quick and easy using the included V-Lock plate and it connects directly to the SDI monitor and power output on your URSA Mini, so you don’t need additional cables or power supplies.

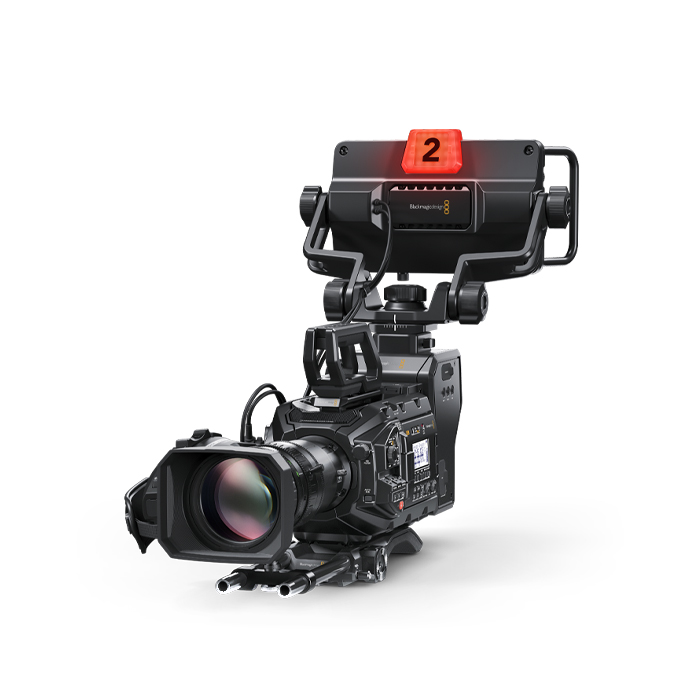

The Blackmagic URSA Studio Viewfinder G2 mounts using a standard V-Lock mount, so it’s easy to attach it to the top of your camera. It can mount to the top of the camera body, or the top of the SMPTE fiber converter if you have one installed on the camera.
It features a bright 7" display with grip handles so it’s very easy to position it independently of the camera, even while your camera is on air.
The mount allows the viewfinder to be tilted up and down and rotated sideways. Then you can adjust the lock knobs to vary the amount of tension on the viewfinder adjustments.
There's also a metal sunshade for use when in bright outdoor locations and the sunshade can be removed quickly when not needed.

Monitor Features:

Controls
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.

Handles
Built in grab handles for positioning the monitor independently from the camera.

Position Adjustment Options
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.

Mounting Options
Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.

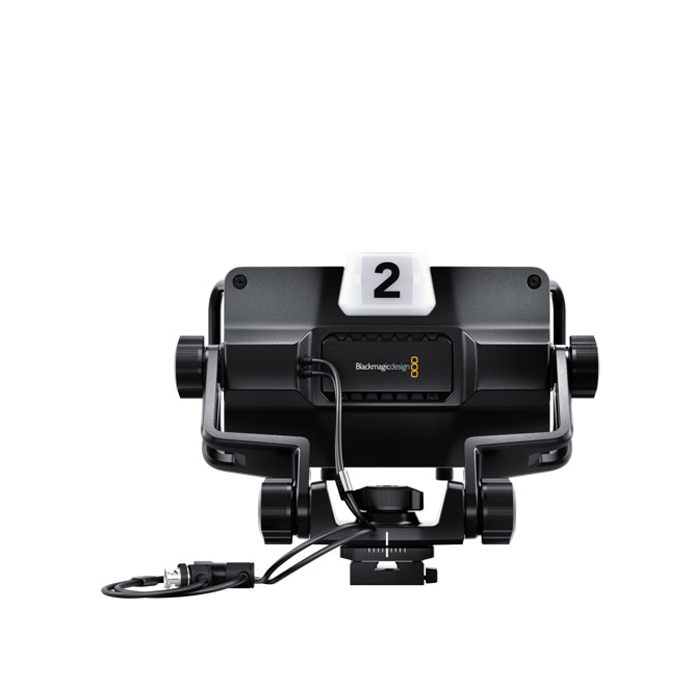

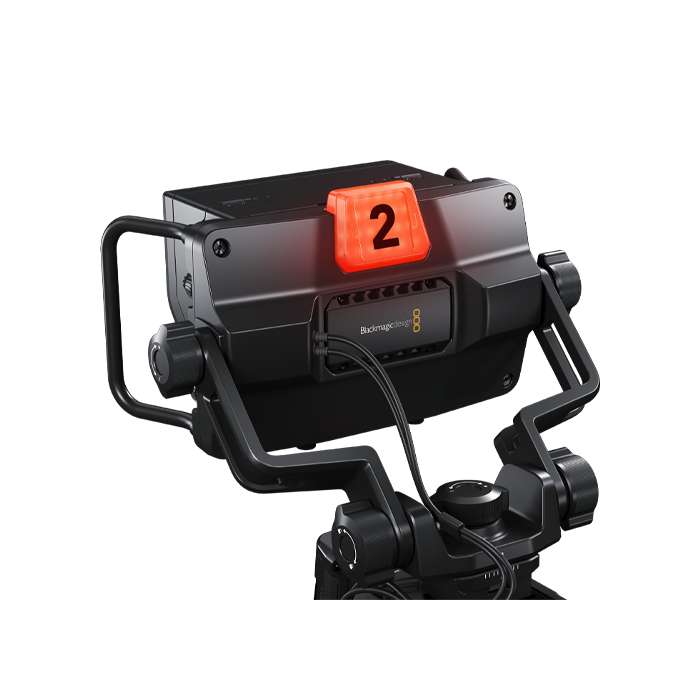

Tally
Large LED tally light with customizable perspex camera numbers.

Metadata Support
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.

Screen Interface
On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.

Connections:

• SDI Video Input: 1 x HD/Ultra HD 3G-SDI via BNC
• Power Input: 1 x 4 pin XLR 12V
• Computer Interface: 1 x USB type C connector for initial setup and software updates
