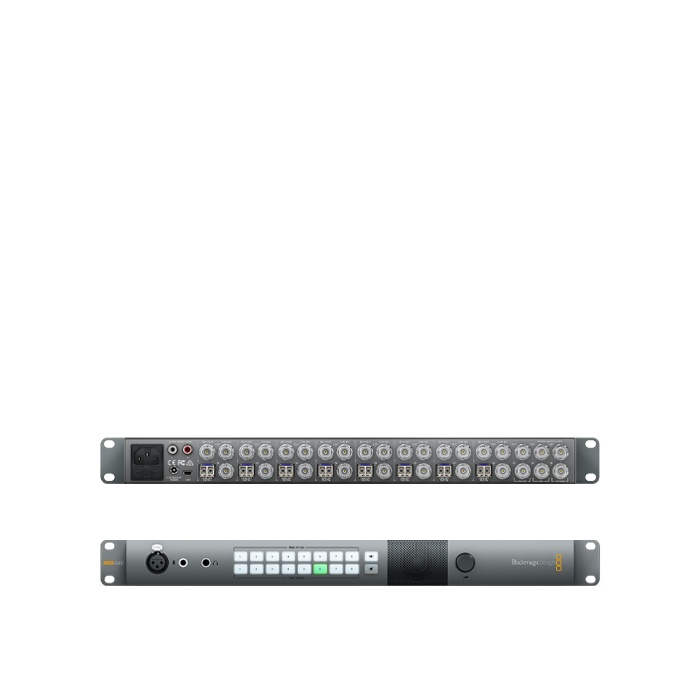

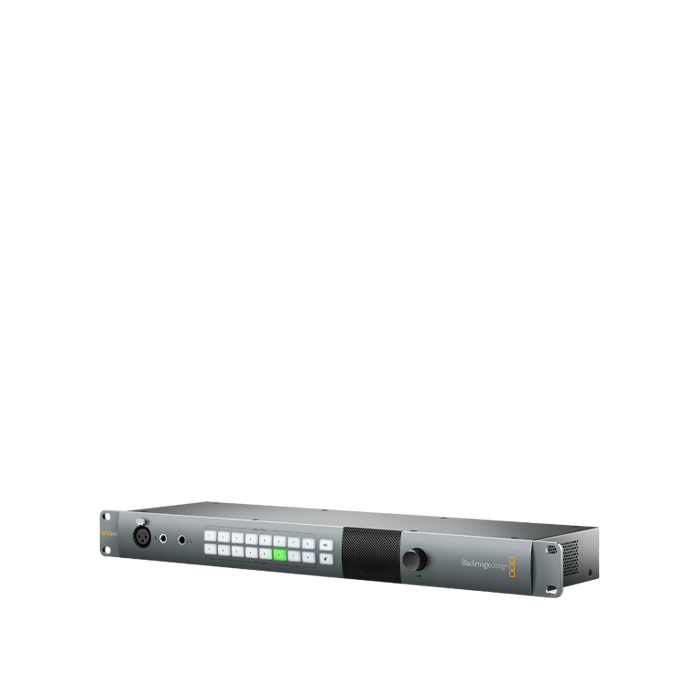

Blackmagic Atem Talkback Converter 4K

  • Up to 8 cameras with SDI talkback using embedded audio channels 15 and 16
  • Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p/60
  • Integrated speakers
  • Supports SDI tally output
  • Fits in a standard rack unit

ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter.
Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required.
Includes push to talk buttons, support for tough and common aviation headsets, loop through for more than 8 camera support, built in speaker, front panel mic input and much more.

Talkback, Tally and video

Talkback and tally, along with video, are sent to each camera over the SDI program return.
The ATEM Talkback Converter takes advantage of the 16 channel SDI audio standard and embeds the talkback into rarely used channels 15 and 16. That means customers don’t need any extra cables to add talkback and tally to their production.

Optical fiber for long distances

Cameras can be connected via regular BNC cables, or the customer can use optional optical fiber modules that allow for placing cameras at massive distances, even miles away from the switcher without any loss of signal quality.
The optional fiber optic modules are standard SMPTE SFP type and can be installed by the customer for any cameras that need the extra distance. Optic fibre cables can be custom made by electricians or can be purchased from electrical wholesalers at low cost, making optical fiber a simple and reliable way to connect cameras.

Atem Talkback

ATEM Talkback Converter 4K is the perfect solution to ensure all the production staff and camera operators stay in touch with each other and work as a unified team during live production. Live event program production usually requires cameras to be spread widely throughout large venues, sporting arenas, concert halls, or even outdoors.
The ATEM Talkback Converter 4K provides talkback for up to 8 cameras, so the entire crew can stay in touch and take direction during live productions. That means directors can create better programs because they can communicate with camera operators and make sure that getting the right shot is never left to chance.

The ATEM Talkback Converter 4K includes a speaker for listening to camera operators and also includes a connection for a general aviation headsets so customers get higher quality talkback headsets with better noise canceling at a much lower cost than traditional broadcast talkback headsets.
Aviation headsets range from single ear models for use in controlled, quiet studio environments all the way to full size, noise canceling headsets for use in the loudest concert and sporting venues.

Connect multiple Atem Talkback Converters

For productions with more than 8 cameras, multiple ATEM Talkback Converters can be connected together so the director can be in communication with a virtually unlimited number of camera operators. The ATEM Talkback Converter is designed to work seamlessly with Blackmagic Studio Cameras.

Specifikationer

Producent Blackmagic
Kategori Konverter
