BLACKMAGIC MINI CONVERTER HDMI TO SDI 6G

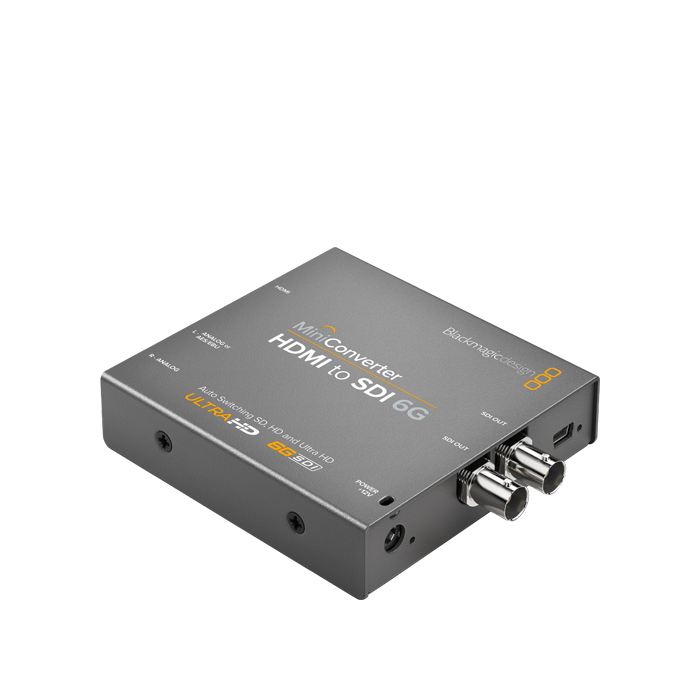

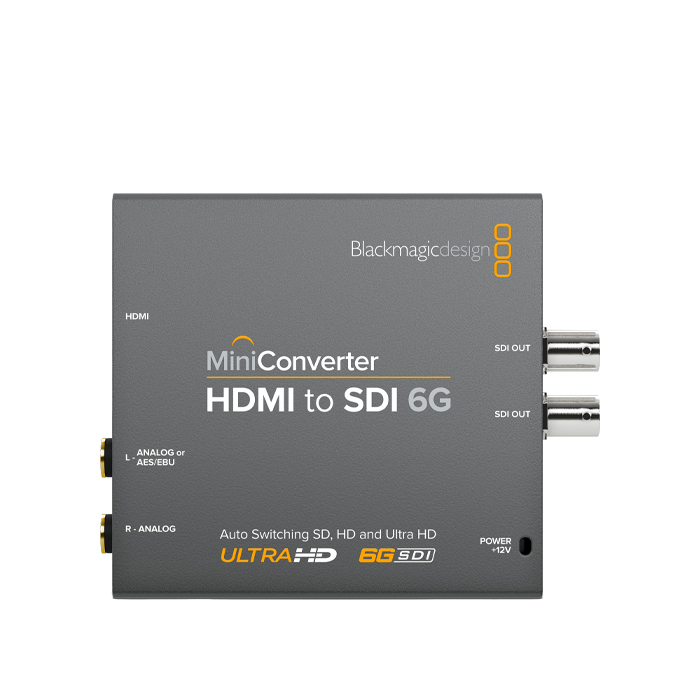

Blackmagic Design Mini Converter HDMI to SDI 6G

• 4K HDMI input
• 2 x 6G-SDI outputs
• Supports SD, HD, UHD 4K & DCI 4K signals
• Automatic input signal detection
• 24-Bit, 48 kHz audio
• Embedded audio into SDI output

Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs.
Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI.

Broadcast quality SD, HD and Ultra HD converters

The broadcast, post production and AV industry rely on Blackmagic Mini Converters to connect all of their equipment together and keep their studios running.
With over 20 different models available, there are Mini Converters with analog, SDI, and HDMI conversions that let you work with virtually all SD, HD and Ultra HD equipment.
That means you can connect analog decks to digital equipment, switch HDMI to SDI, de-embed or embed audio, or even extend signals over massive distances with optical fiber. With so many conversion options, there’s no limit to the equipment you can connect.

Work with SD, HD and Ultra HD

Most Mini Converter models feature 6G-SDI, making them compatible with all SD, HD and Ultra HD formats up to 2160p30.
Ultra HD features a massive 3840 x 2160 frame size that’s 4 times the resolution of regular 1080 HD video.
The 6G-SDI connections are multi-rate, so they are fully compatible with all of your existing SD and HD-SDI equipment, as well as Ultra HD. The advanced SDI connections automatically detect the input signal and switch formats as needed.

Built for any environment

Blackmagic Mini Converters are designed to be used anywhere. You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
Mini Converters have a straightforward, compact design that makes them easy to use and super reliable for 24/7 operation.

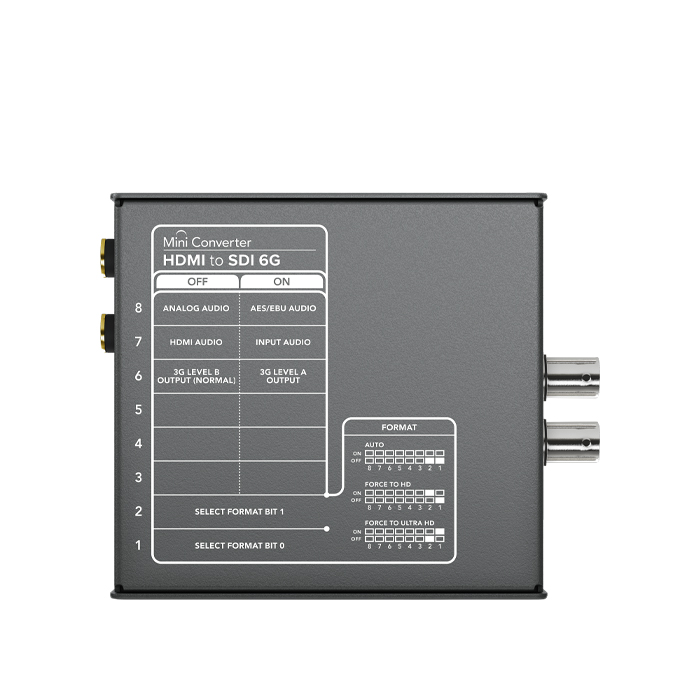

The built in connections are easy to access and use standard cables, plus all models feature built in mini switches to quickly change settings. There’s even a diagram with switch settings printed on the back so you never have to look for the manual.

Safeguard against a damaged SDI cable

Anything can happen during a live production and you can’t afford to lose a signal and go off air.
All Blackmagic Mini Converters with SDI inputs feature an innovative redundant SDI input so you can run a second SDI cable as a back up in case one cable is damaged. This feature is great for outdoor use, or in large, crowded venues where there’s a chance cables might get damaged.
Often it makes sense to run the second cable on a different route than the first. If the main input is lost, the converter automatically switches over to the second input, so you’re always on air.

True broadcast quality for professional use

With the highest quality 10-bit video processing and low jitter SDI, Mini Converters are ideal for the stringent requirements of broadcast, post production and professional AV.
You get incredibly low noise levels when moving between analog and digital video formats.
Low SDI jitter and full SDI re-clocking means you can run long cable lengths without any loss of video quality.
Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats, and then all the way up to massive 3840 x 2160 Ultra HD resolutions.
