Now you can distribute a single SD or HD‑SDI connection to up to 8 different SDI outputs at the same time. You get a true 3G‑SDI design with fully re‑clocked outputs and automatic switching between all SD and HD formats up to 1080p60.
You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don’t need the cost of the Ultra HD model.

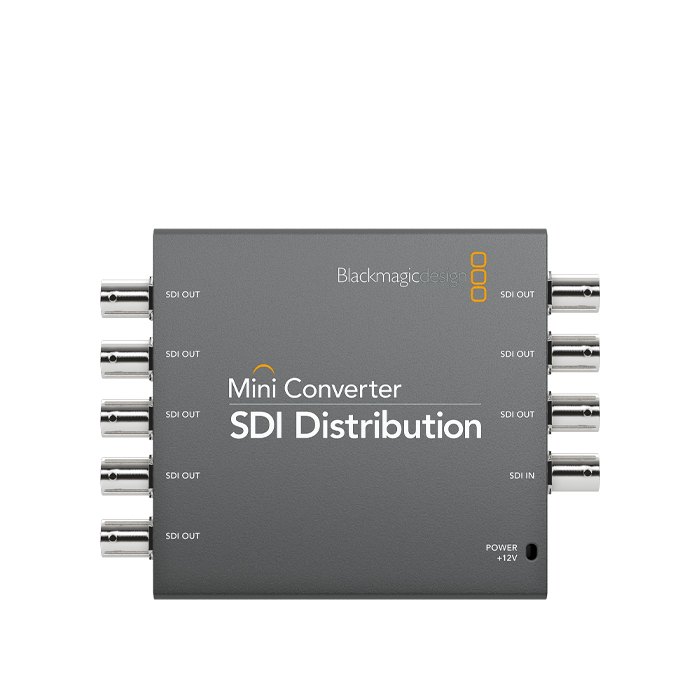

Distribute to 8 x 3G-SDI outputs in all SD and HD formats up to 1080p60.
Blackmagic Mini Converters are designed to be used anywhere. You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
Mini Converters have a straightforward, compact design that makes them easy to use and super reliable for 24/7 operation. The built in connections are easy to access and use standard cables, plus all models feature built in mini switches to quickly change settings. There’s even a diagram with switch settings printed on the back so you never have to look for the manual.
Anything can happen during a live production and you can’t afford to lose a signal and go off air.
All Blackmagic Mini Converters with SDI inputs feature an innovative redundant SDI input so you can run a second SDI cable as a back up in case one cable is damaged. This feature is great for outdoor use, or in large, crowded venues where there’s a chance cables might get damaged.
Often it makes sense to run the second cable on a different route than the first.
If the main input is lost, the converter automatically switches over to the second input, so you’re always on air.
With the highest quality 10-bit video processing and low jitter SDI, Mini Converters are ideal for the stringent requirements of broadcast, post production and professional AV.
You get incredibly low noise levels when moving between analog and digital video formats.
Low SDI jitter and full SDI re-clocking means you can run long cable lengths without any loss of video quality.
Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats, and then all the way up to massive 3840 x 2160 Ultra HD resolutions.
| Producent | Blackmagic |
| Kategori | Konverter |
