BLACKMAGIC MINI CONVERTER SDI DISTRIBUTION 4K

CONVMSDIDA4K
2.895,00 DKK OutOfStock
  • Århus Ikke på lager
  • København Ikke på lager

Carsten Iversen
carsten@goecker.dk
35865105
København

Ronni Jaqué
ronni@goecker.dk
35865107
København

Jakob Worre
jakob@goecker.dk
35865142
Aarhus

Beskrivelse

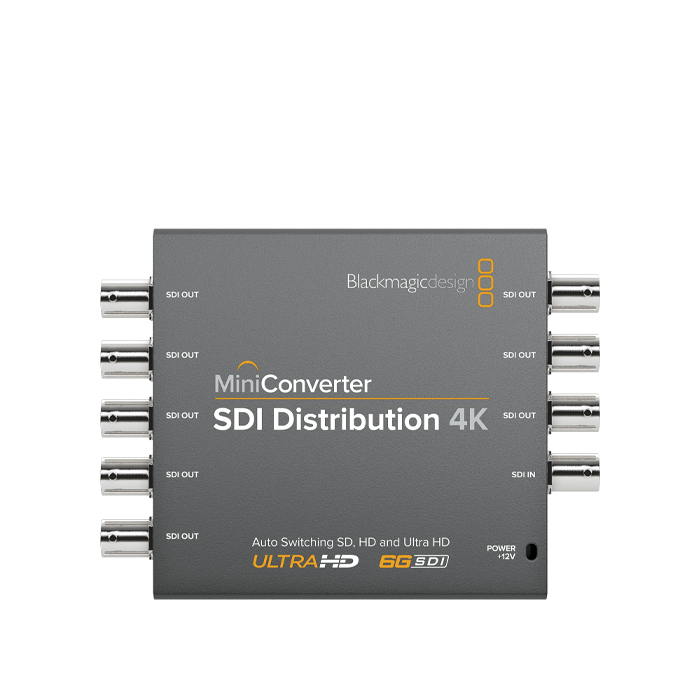

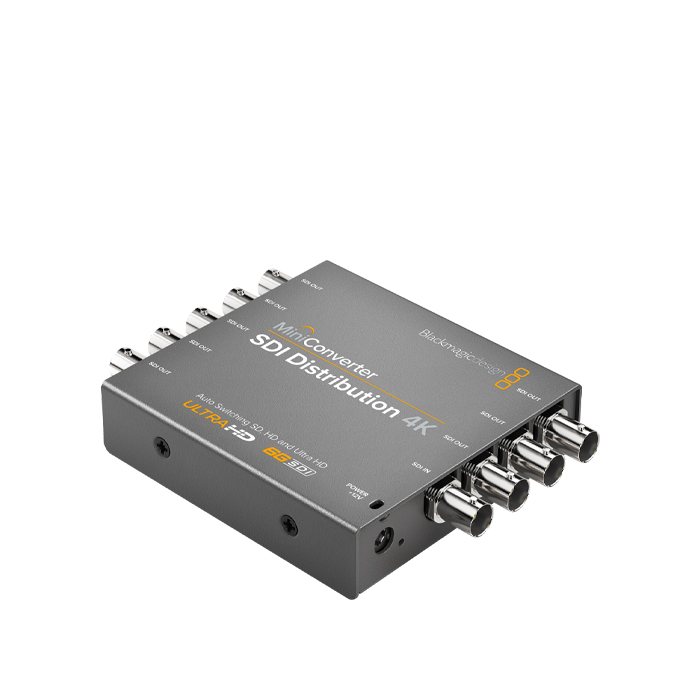

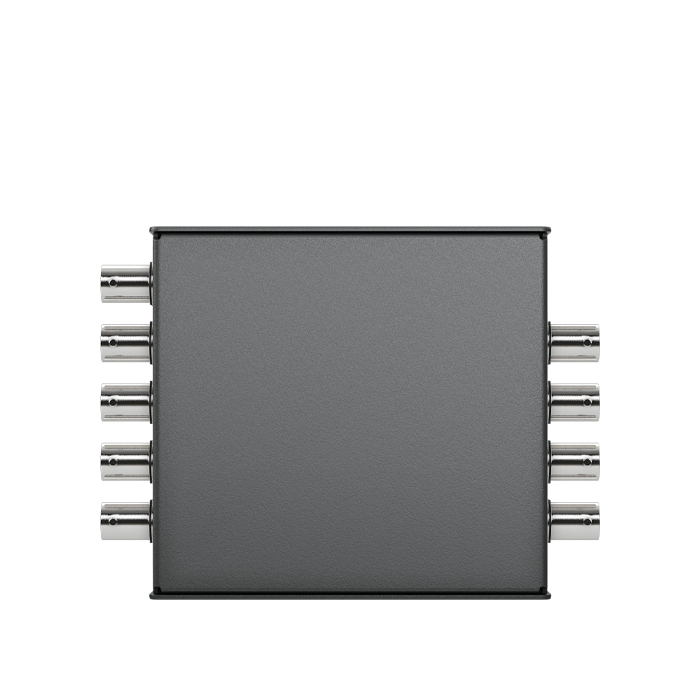

Blackmagic Design Mini Converter SDI Distribution 4K

  • Single link SD/HD/3G/6G-SDI unput
  • 8x single link SD/HD/3G/6G-SDI output
  • Re-clocked outputs
  • Support SD, HD, UHD 4K and DCI 4K signal
  • Automatic input signal detection
  • Ancillary data and embedded audio

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution. Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching between all SD‑SDI, HD‑SDI, 3G‑SDI and 6G‑SDI video formats. Plus all ASI, ancillary and embedded audio formats.
Distribute to 8 x SDI outputs in all formats including SDI, HD-SDI, 3G-SDI and 6G-SDI.

Work with SD, HD and Ultra HD

Most Mini Converter models feature 6G-SDI, making them compatible with all SD, HD and Ultra HD formats up to 2160p30. Ultra HD features a massive 3840 x 2160 frame size that’s 4 times the resolution of regular 1080 HD video.
The 6G-SDI connections are multi-rate, so they are fully compatible with all of your existing SD and HD-SDI equipment, as well as Ultra HD. The advanced SDI connections automatically detect the input signal and switch formats as needed.

Built for any environment

Blackmagic Mini Converters are designed to be used anywhere. You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
Mini Converters have a straightforward, compact design that makes them easy to use and super reliable for 24/7 operation. The built in connections are easy to access and use standard cables, plus all models feature built in mini switches to quickly change settings. There’s even a diagram with switch settings printed on the back so you never have to look for the manual.

Safeguard against a damaged SDI cable

Anything can happen during a live production and you can’t afford to lose a signal and go off air.
All Blackmagic Mini Converters with SDI inputs feature an innovative redundant SDI input so you can run a second SDI cable as a back up in case one cable is damaged. This feature is great for outdoor use, or in large, crowded venues where there’s a chance cables might get damaged.
Often it makes sense to run the second cable on a different route than the first. If the main input is lost, the converter automatically switches over to the second input, so you’re always on air.

True broadcast quality for professional use

With the highest quality 10-bit video processing and low jitter SDI, Mini Converters are ideal for the stringent requirements of broadcast, post production and professional AV.
You get incredibly low noise levels when moving between analog and digital video formats.
Low SDI jitter and full SDI re-clocking means you can run long cable lengths without any loss of video quality.
Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats, and then all the way up to massive 3840 x 2160 Ultra HD resolutions.

Specifikationer

Producent Blackmagic
Kategori Konverter
