BLACKMAGIC MINI CONVERTER SDI TIL AUDIO 4K

BLACKMAAUDIO
2.895,00 DKK OutOfStock
  • Århus Ikke på lager
  • København Ikke på lager

Carsten Iversen
carsten@goecker.dk
35865105
København

Ronni Jaqué
ronni@goecker.dk
35865107
København

Jakob Worre
jakob@goecker.dk
35865142
Aarhus

Beskrivelse

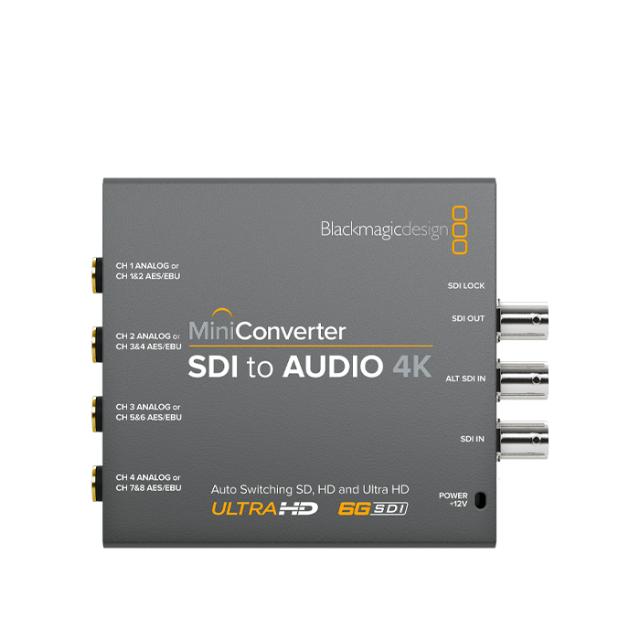

Blackmagic Design Mini Converter SDI to Audio 4K

  • De-embed audio from a SDI signal
  • Single link 6G-SDI input
  • Supports SD, HD, UHD 4K & DCI 4K signals
  • Automatic input signal detection
  • 4 analog or 8 AES/EBU audio channels
  • 24-Bit, 48 kHz Audio

Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more.

Process your audio separately or embedded

In professional broadcast, post and live production workflows, the audio is just as important as the video. Blackmagic Mini Converters maintain the cleanest possible audio signal and always keep it in sync with your video.
Mini Converters support embedded SDI and HDMI audio, and there are several models that let you separately embed or de-embed it to balanced analog or AES/EBU digital connections.
Mini Converters support 24 bit analog and AES/EBU audio, and feature standard 1/4 inch audio jacks so you don't need custom cables.

Built for any environment!

Blackmagic Mini Converters are designed to be used anywhere. You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.

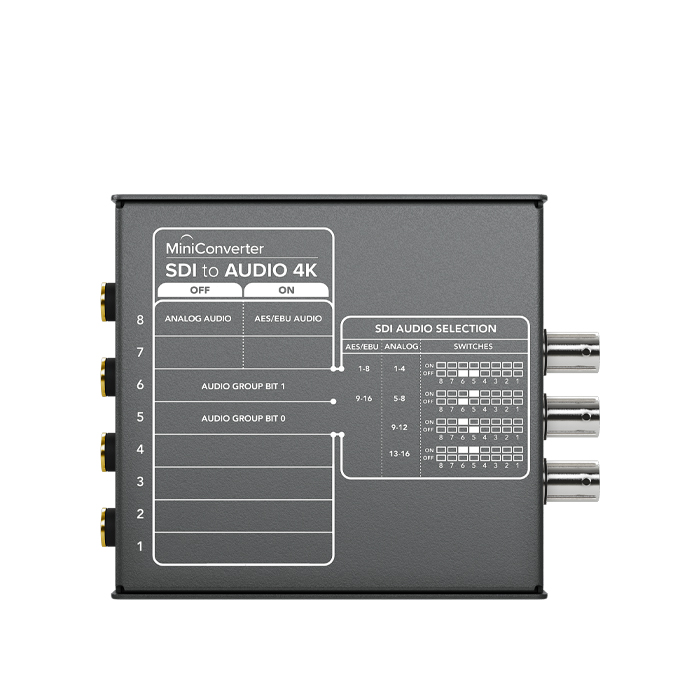

Mini Converters have a straightforward, compact design that makes them easy to use and super reliable for 24/7 operation. The built in connections are easy to access and use standard cables, plus all models feature built in mini switches to quickly change settings. There’s even a diagram with switch settings printed on the back so you never have to look for the manual.

Safeguard against a damaged SDI cable

Anything can happen during a live production and you can’t afford to lose a signal and go off air.
All Blackmagic Mini Converters with SDI inputs feature an innovative redundant SDI input so you can run a second SDI cable as a back up in case one cable is damaged. This feature is great for outdoor use, or in large, crowded venues where there’s a chance cables might get damaged.
Often it makes sense to run the second cable on a different route than the first. If the main input is lost, the converter automatically switches over to the second input, so you’re always on air.

True broadcast quality for professional use

With the highest quality 10-bit video processing and low jitter SDI, Mini Converters are ideal for the stringent requirements of broadcast, post production and professional AV.
You get incredibly low noise levels when moving between analog and digital video formats.
Low SDI jitter and full SDI re-clocking means you can run long cable lengths without any loss of video quality.
Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats, and then all the way up to massive 3840 x 2160 Ultra HD resolutions.

Specifikationer

Producent Blackmagic
Kategori Konverter
