BLACKMAGIC MULTIVIEW 16

Blackmagic MultiView 16

• Monitor up to 16 SDI sources on a single UHD monitor or television
• 16 x 10-bit SDI in/out
• Multi rate support, auto detection of SD, HD or 6G-SDI. Simultaneous view of 4K, HD an SD video
• Monitoring tools, custom labels, audio meters, tally indicators and more

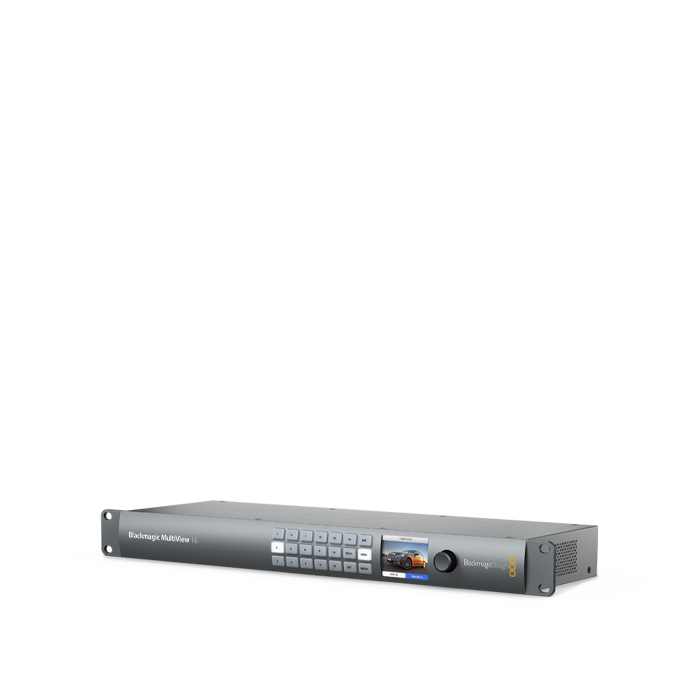

• Built in control panel, buttons for local source routing, scroll wheel and 2.2 inch color display

Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view. Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order. Features full frame re-sync on each input.

Simultaneously view up to 16independent SD, HD and Ultra HD sources

MultiView 16 is perfect for larger installations because it has 16 independent 6G-SDI inputs so you can connect any combination of SD, HD or Ultra HD sources and monitor them all simultaneously on a single display! Router style controls on the front panel, along with the LCD and spin knob, let you adjust settings, route sources to different views, add overlays and more. Output can be set to a 2x2, 3x3 or 4x4 grid, and you can even solo any source full screen.

Multi source monitoring designed for broadcasters

Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don’t have room for multiple monitors. With Blackmagic MultiViews you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources. Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor.

Mix any combination of SD, HD and Ultra HD sources

Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re‑synchronization on all SDI inputs, which means that they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30 on some models, all on the same display at the same time. It's like getting 4 or 16 independent monitors in one.

The world’s highest resolution multi viewer

All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness.
Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before. What this means is when displaying the 2x2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling. MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more.

Advanced Monitoring Tools

Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more. You can also choose which audio source is routed to the video output.
The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.

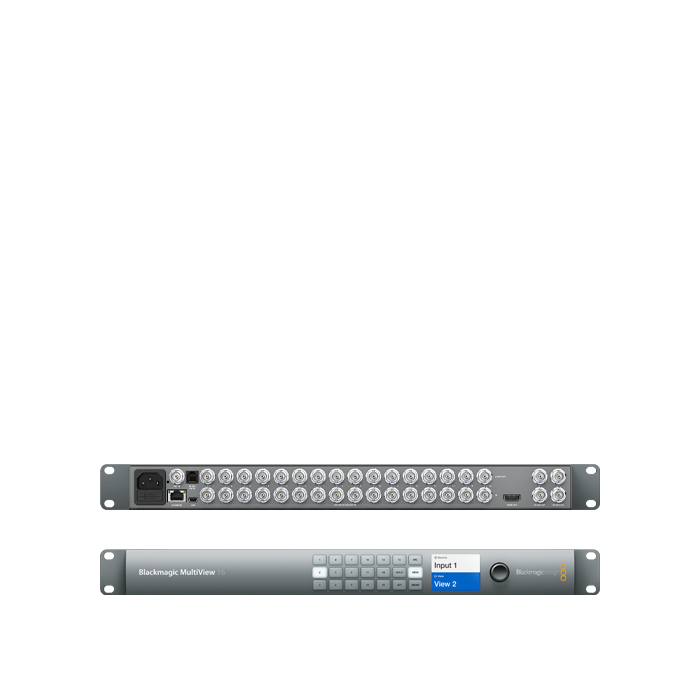

Multi Rate SDI Connections

Blackmagic MultiView models feature multi rate SDI inputs with full frame re-synchronization and some models also have separate loop through outputs, making them compatible with your existing equipment.
The SDI inputs automatically detect and re-sync SD and HD formats, plus some models also re-sync Ultra HD formats up to 2160p30. You get HDMI and SDI output, and MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.

Supports Videohub router protocol for easy external control

MultiView 16 emulates a Blackmagic Videohub router so you get full compatibility with all of the external Videohub software and hardware control panels for routing any of the inputs onto any of the monitoring views.
It can also be controlled via the included software utility on Mac or Windows computers so you can quickly change settings remotely if access to the front panel is restricted. You can even add on screen labels and other settings remotely.
