BLACKMAGIC MULTIVIEW 4 HD

Blackmagic MultiView 4 HD

Affordable HD Multiview converter supports up to 4 views on an HD monitor. Features re-sync on each input for monitoring any combination of SD or HD. Includes on screen audio meters and labels

Monitor up to four different SD and HD sources on the same display at the same time

The new Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display. Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more.
Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices.
Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions.

Designed to be small, durable and easy to use

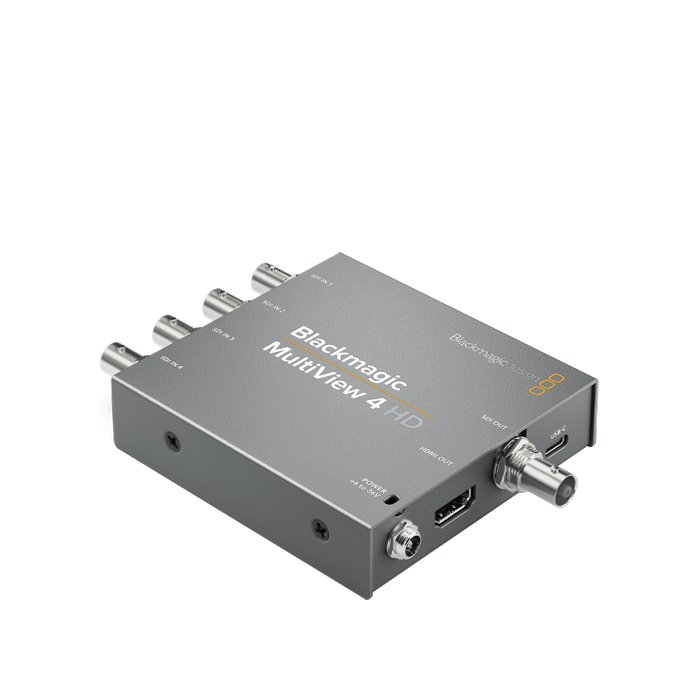

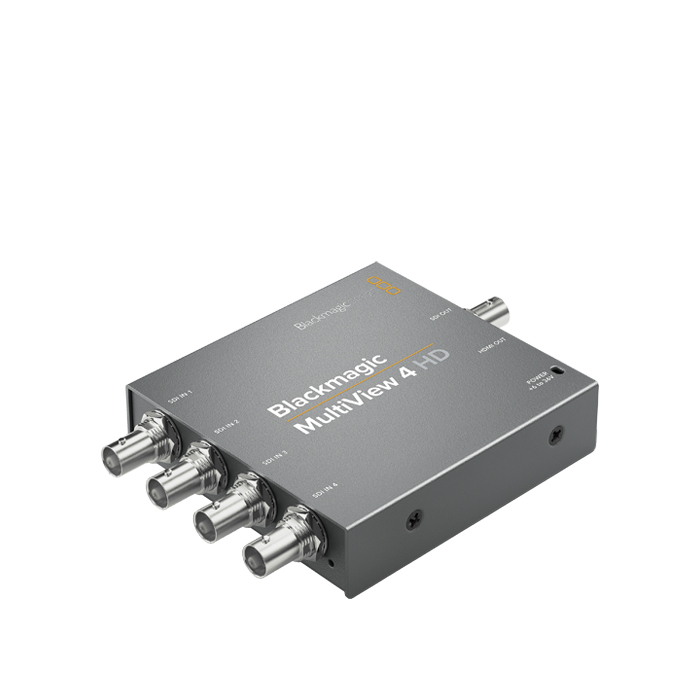

MultiView 4 HD features a very small, all metal design that’s extremely durable so it can be used in harsh outdoor broadcast environments or installed behind equipment. All you have to do is connect your sources and it will automatically output them in a 2x2 grid on a single display.

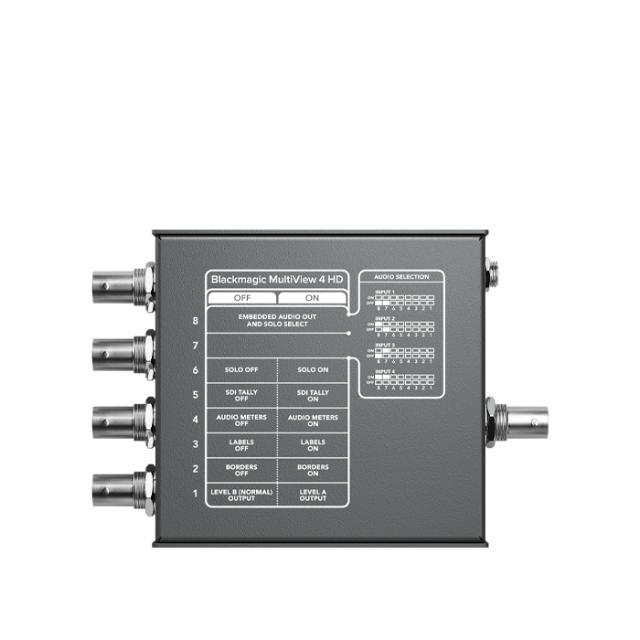

MultiView 4 HD features built in switches that can be used to turn labels on and off, add borders, select audio and more.
Whether you’re in an outside broadcast truck or on location at a live event, you can combine MultiView 4 HD with an HDMI television and build the world’s most affordable professional multiview solution.

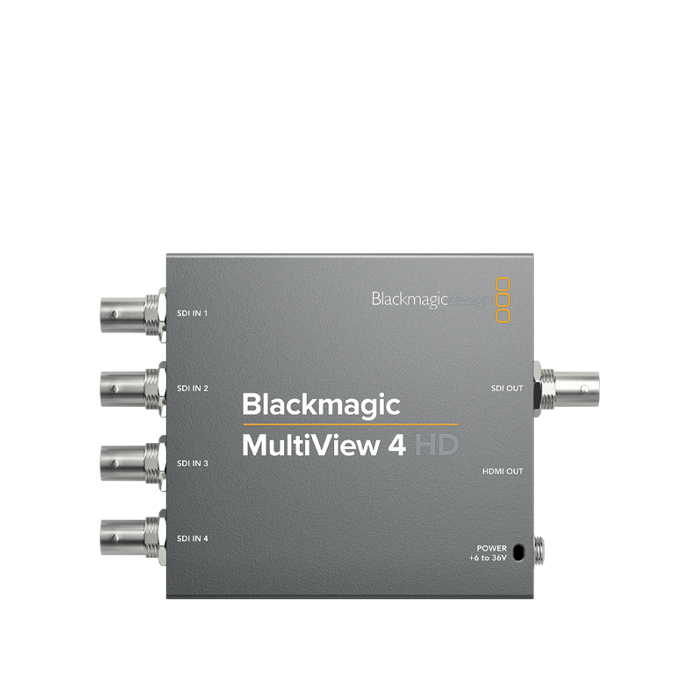

Connections:

• SDI Video Inputs: 4 x 10-bit SD-SDI and HD-SDI
• SDI Video Outputs: 1 x HD-SDI
• SDI Video Multi View Outputs: 1 x 10-bit HD-SDI
• HDMI Video Multi View Outputs: 1 x HDMI type A

Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601
• Audio Meters: Each view, VU standard.
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
• SDI Color Precision: 10-bit 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
• SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

In the Box:

• Blackmagic MultiView 4 HD
• +12V universal power supply with international socket adapters
