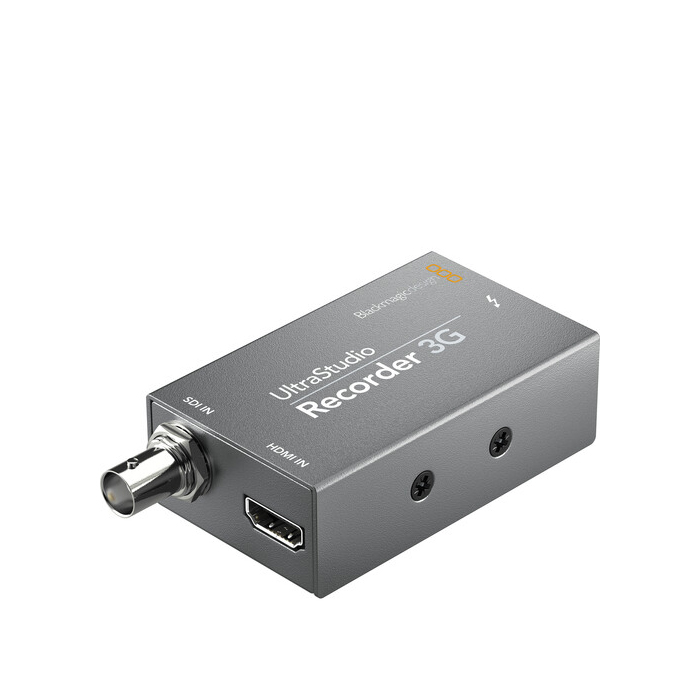

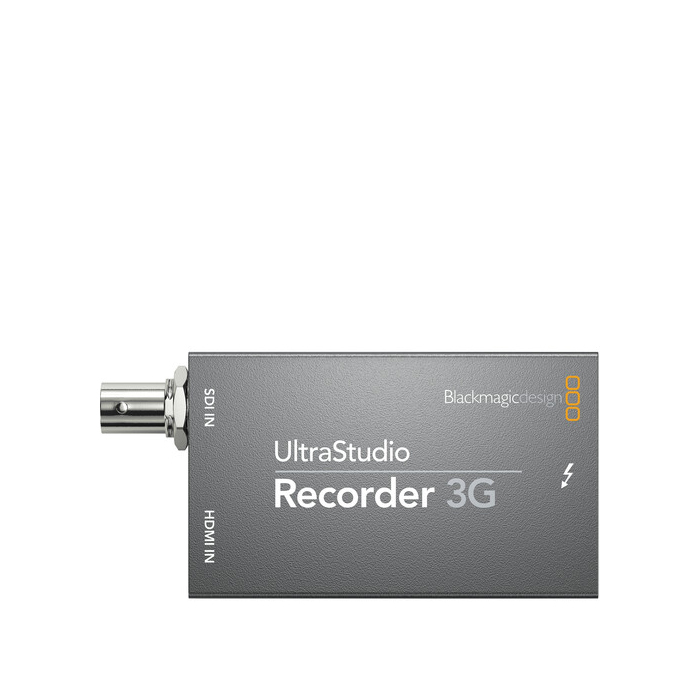

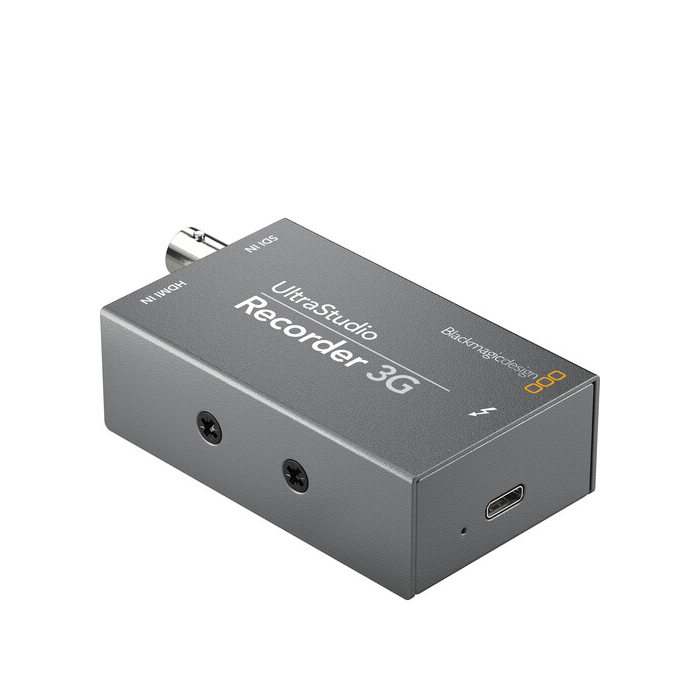

BLACKMAGIC ULTRASTUDIO RECORDER 3G

Blackmagic Design UltraStudio Recorder 3G

• Supports resolutions up to 1080p60
• Record uncompressed and compressed 10-bit video
• Supports YUV and RGB video
• 3G-SDI and HDMI inputs
• Thunderbolt 3 output

Get the world’s smallest pocket sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer.
UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more.
Thunderbolt 3 output enables you to capture or stream video from your camera or other SDI or HDMI source using your computer's Thunderbolt connection.
This recorder supports both YUV and RGB video resolutions up to 1080p60 via 3G-SDI or HDMI.

Connections:

• SDI Video Inputs: 1 x 10-bit SD/HD switchable
• SDI Rates: 270Mb, 1.5G, 3G
• SDI Audio Inputs: 16 Channels embedded in SD/HD
• HDMI Video Inputs: 1 x HDMI 2.0 type A connector
• HDMI Audio Inputs: 8 Channels embedded in SD/HD
• Computer Interface: Thunderbolt 3 (Mac OS, Windows and Linux)

Supported Codecs:

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
