BLACKMAGIC ATEM- PROD. STUDIO 4K

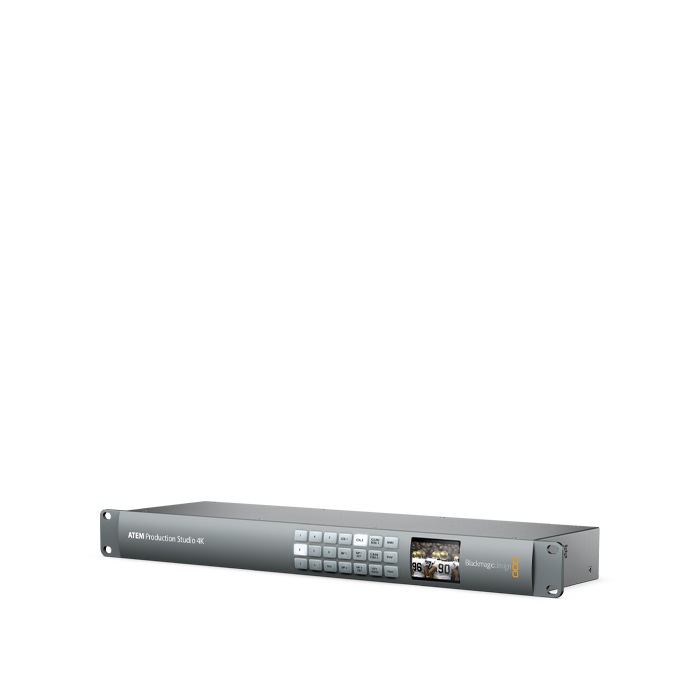

Blackmagic Design Atem Production Studio 4K

• Supports 10-Bit NTSC/PAL/HD/UHD 4K
• Supports 4K resolution over SDI or HDMI
• 4 x 6G-SDI, 4 x HDMI inputs
• Tri-sync/blackburst Ref. sync Input
• 8 x Built-In frame synchronizers
• 1 x Upstream, 2 x downstream keyers

ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections. Features 6G-SDI in SD, HD and Ultra HD.

The World's Most Advanced Live Production switchers

Create stunning multi camera live production with the world’s most advanced production switchers.
ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers.
You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more.

Get innovative software control or choose a hardware panel

You get full switcher control from any laptop or desktop computer with the included ATEM software control panel for both Mac and Windows. For demanding live production environments you can add a hardware based panel such as the ATEM 1 M/E Advanced Panel, the new ATEM 2 M/E Advanced Panel or even the ATEM 4 M/E Advanced Panel.

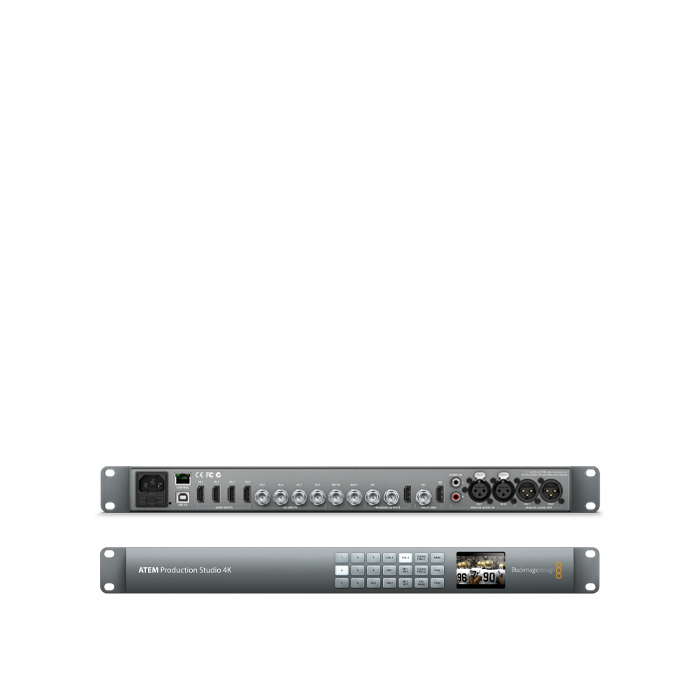

Inputs & Outputs

ATEM switchers include advanced 6G-SDI and HDMI inputs that are SD, HD or Ultra HD switchable up to 2160p30 while the advanced ATEM Broadcast Studio 4K model features 20 12G-SDI inputs for working in HD and Ultra HD up to 2160p60.
Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as laptop computers for live PowerPoint presentations. You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod.

Get all the outputs you need to record your video master and to broadcast your program to the audience at the event. ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks. The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.

Use a single screen for all your monitoring

ATEM's built in multi view lets you monitor the switcher’s video inputs on a single SDI monitor or regular HDMI TV. Multi view outputs in regular 1080i HD, so even if your broadcast is in SD or Ultra HD you can still use a standard TV for monitoring.  You can customize the multi view layout and also add custom labels. Multi view makes it easy to watch your program, preview, and live sources all simultaneously on a single monitor and you can even choose from 4 different screen layouts.

Get dozens of exciting effects and transitions

Use mixes, dips, wipes and more for amazing broadcast quality live switching.
Every transition is instantly available and you get full control of the transition type, pattern, length and other attributes. Create a customized ‘on air’ looks using the large choice of wipe patterns. Also include animated stingers and DVE transitions.

Studio 4K models include a powerful digital video effects processor. Use this amazing high quality DVE to position, resize, rotate and scale live video all in real time. Create professional picture-in-picture effects with customizable 3D borders, shadows and lighting. Add dynamic DVE transitions to your production with squeeze, push, swoosh and spin effects that displace your live video revealing the next source. You can even use the DVE for graphic wipe transitions.

Add multi box compositions quickly and easily with ATEM SuperSource

You get a completely separate 5 layer switcher with the power of 4 picture in picture DVEs and 4 keyers that you can assign to any ATEM video input. ATEM production switchers include media pool memory that lets you download still frames and graphics for keying using the two built in media players. All popular image formats are supported, or you can direct download from Photoshop CC with the included plug-in.

Use pre-recorded HyperDeck clips in live programs

ATEM Switchers work seamlessly with Blackmagic HyperDeck SSD recorders.
You can connect up to 4 HyperDecks as sources, just like cameras, to playback pre-recorded clips during live program production. You can see the clips on each HyperDeck, select any clip, cue it, pre-roll, and play it back at any time. You can even create macros to record from an incoming camera source and play it back in slow motion. That’s perfect for adding pre-recorded spots or promos, credit rolls, or even slow motion instant re-plays to your live program production.

The fastest way to set up and automatically trigger events

To automate complex sequences of precisely timed actions on your ATEM switcher, you can now create powerful shortcuts called macros. Record a sequence of transitions between video sources, including key effects, audio mixer adjustments, camera control settings and more using the ATEM software or hardware control panel.
Macros are saved as XML files that can even be edited with a standard text editor so you can combine them together to build sophisticated sequences that would be impossible to execute manually during a live production.

The flexibility to work in SD, HD or Ultra HD

Support 6G-SDI so you can work in the highest quality Ultra HD, and because the SDI connections are regular BNC connectors, you can also select the switcher to any format and simply plug in your SD or HD equipment. 6G-SDI supports any SDI format from SD, HD up to Ultra HD 2160p30.
That means 6G-SDI gives you compatibility to work in any format, plus you can switch to Ultra HD for incredible quality that’s 4 times the resolution of HD. Work in SD, 720p, 1080i or 1080p up to 60fps as well as Ultra HD up to 30 fps all on the one switcher.

Live mix multi channel audiofrom your cameras in real time

All ATEM switchers feature a powerful built in multi channel audio mixer! You can mix your camera audio and other video sources from both HDMI and SDI inputs, as well as external audio from the analog XLR and HiFi audio inputs. You can use the ATEM audio mixer for direct input mixing or use audio follow video mixing where the audio automatically crossfades when switching from one input to another. The analog audio inputs are great for microphones, audio mixers, music players and more.
