BLACKMAGIC DESIGN SMART VIDEOHUB CLEANSWITCH 12X12

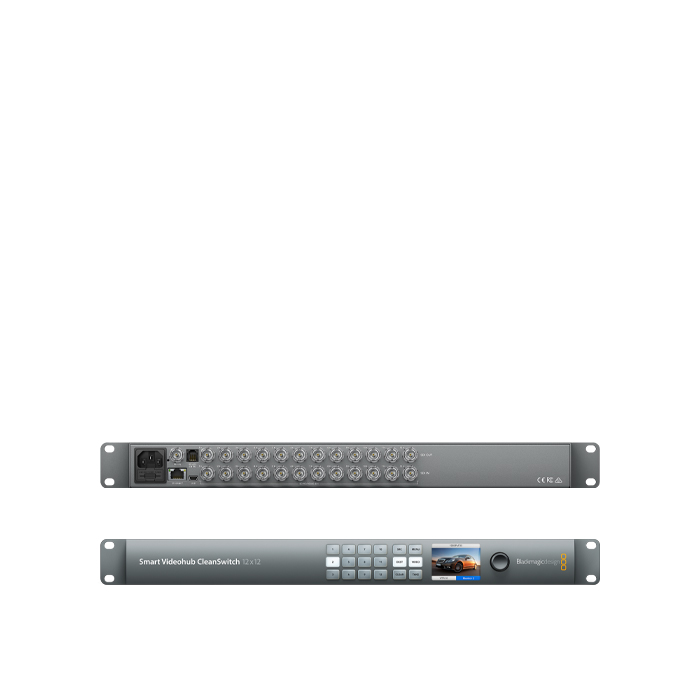

Blackmagic Design Smart Videohub CleanSwitch 12x12

• Routing switcher with frame syncing
• 12 x 6G-SDI Inputs
• 12 x 6G-SDI Outputs
• Supports SD, HD, Ultra HD 4K and DCI 4K
• Adjust all settings, browse menus from the front panel

Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats.

Smart Videohub CleanSwitch 12x12 supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard.
Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.Compact 6G-SDI 12 x 12 video router with built in re-synchronizer in each input. Supports SD, HD and Ultra HD formats up to 2160p30. Includes push button and spin knob control, LCD, Ethernet remote control and more.

Glitch free clean live switching and resynchronization

When you need to cleanly switch between video sources to monitors or directly to air, you need timed or genlocked signals. If you cannot guarantee perfectly timed source signals but you still need to clean switch then Smart Videohub CleanSwitch 12x12 is the special model of Videohub that features resynchronization on all inputs so you get perfect clean feeds every time.
Smart Videohub CleanSwitch 12x12 has all of the same great features of Smart Videohub 12x12 plus includes full resynchronization on every input so the router automatically re times all inputs to ensure clean, glitch free switching between router cross points. Sources of the same resolutions and the same frame rate can even be output directly to air for smooth, cuts only production. Just like all Smart Videohub models, you can control Smart Videohub CleanSwitch directly from the front panel or remotely over ethernet using the Videohub Control Panel software on a Mac or PC.

Broadcast grade routing that's easy to use

Smart Videohub is perfect for broadcast, post or live production! Smart Videohub’s super compact size means it's perfect for use in large broadcast systems or portable mini racks for live production where cameras, switchers, recording and monitors are all simply connected to Smart Videohub. Now you can avoid messy rewiring because you can connect everything to the router and then quickly change connections from job to job without reconnecting a single cable.

Innovative control and monitoring in a compact design

Smart Videohub's beautiful machined aluminum design features new innovative video monitoring control.
Now you can visually route video because the built in monitor lets you see live video, crosspoint connection labels and TV formats displayed simultaneously. You can make selections with the spin knob or switch video with the dedicated button panel. Choose from three incredible models. The Smart Videohub 12x12, 20x20 and 40x40 all feature the amazing new control panel, built in power supply, network control and advanced 6G-SDI connections in a compact design. You can even configure all IP settings on the front of the unit without a computer.

Route your video by looking at it

Scan through video at lightning speed. Smart Videohub's super fast spin knob control lets you dial through your router cross points while displaying live video combined with custom on screen labels. Scroll order is arranged alphabetically so it’s easy to find the crosspoint you are looking for. The spin knob control combined with visual routing is the fastest way to route.

Built in video, label and format monitoring

Now you can monitor all the live video connected to your Videohub. The built in LCD lets you see your video in virtually every TV format. That means you don't need a separate external monitor because it's built into the front panel of the router itself. You can look at any source or destination and confirm the correct video inputs are being sent to the correct video outputs. Built in monitoring is perfect when space is tight, such as mini racks and broadcast trucks.

Different formats, frame rates and resolutions simultaneously

Smart Videohub includes multi format technology so you can simultaneously connect SD, HD and Ultra HD equipment all on the same router at the same time. SDI products from Blackmagic Design will automatically detect the SDI video format when it changes and instantly switch standards. This means you can seamlessly work in NTSC and PAL SD, 720 and 1080 HD and even 2160 Ultra HD at any frame rate, all at the same time on the single router

The broadcast industry’s video standard of the future

With Ultra HD you get 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size. The new Smart Videohub easily handles the enormous data rates of full resolution Ultra HD video as well as SD and HD video.
Ultra HD is the broadcast standard of the future and production of 4K content is accelerating.
Smart Videohub’s advanced 6G-SDI multi format connections are compatible with your existing SD-SDI and HD-SDI equipment as well as the latest Ultra HD gear.

Control routing via network on Mac and Windows

If you want to control your Smart Videohub anywhere then the included free Videohub software control for Mac and Windows is the perfect solution. Videohub control software has a great looking interface with amazing icon buttons. When used with touchscreen PCs, you get a fantastic large screen XY control panel.
You can even download the software control panel for Apple iPad that lets you use it as a fantastic, low cost touch screen router panel, it's free on the App Store.
