BLACKMAGIC DESIGN VIDEOHUB MASTER CONTROL PRO

Blackmagic Design Videohub Master Control Pro

• Routing switcher
• 48 Programmable buttons
• 10 Programmable macro buttons
• RS-422 Input and Output
• Ethernet with PoE for remote control
• Each button is programmable to a specific crosspoint
• Multiple destinations can be programmed

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD. Powers via DC or the Ethernet connection.

Ethernet hardware panel with spin knob control

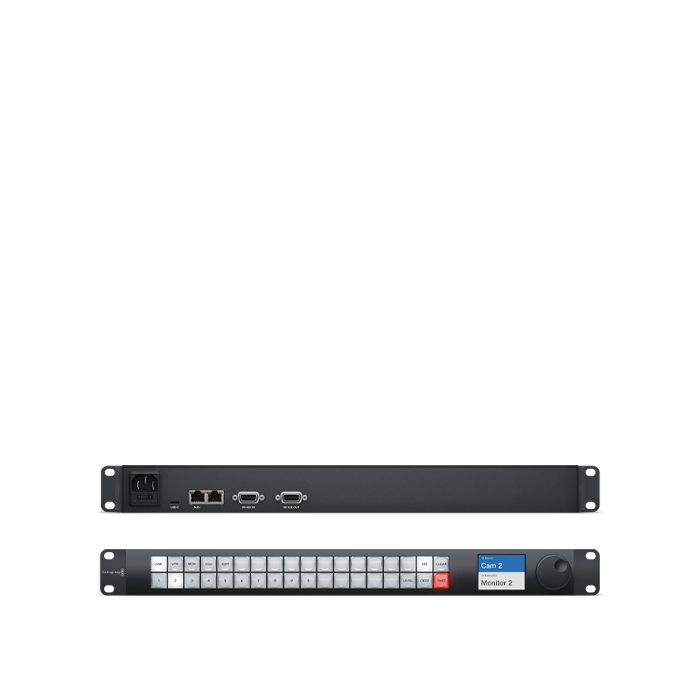

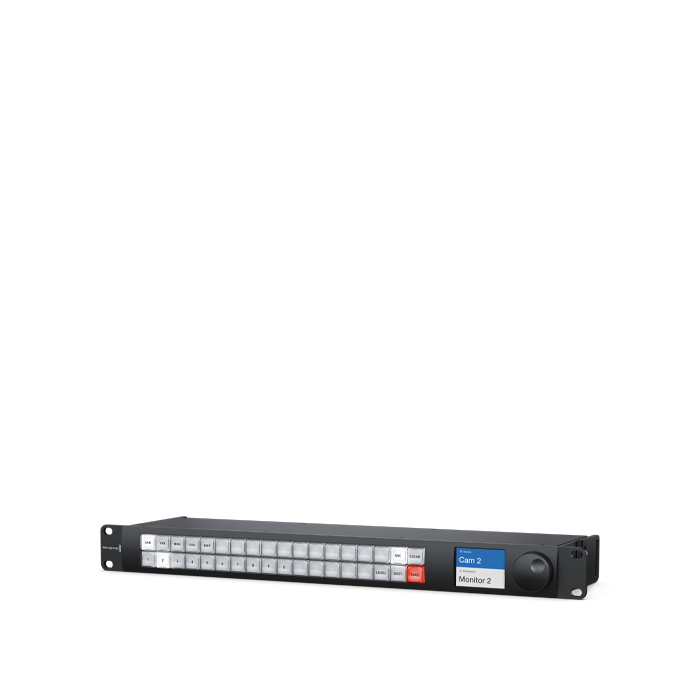

The Videohub Master Control Pro is a remote 1RU panel that gives you complete control over your entire router from anywhere in the studio. Simply connect Master Control Pro to your ethernet network and you get full control of every crosspoint on your router. The front panel features programmable buttons, spin knob control and an elegant LCD for displaying source and destination labels. That means you can see and route all of your cross-points remotely, even on the biggest Videohub.

Connections:

• Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out
• RS-422: In and Out (for future implementation)
• Computer Interface: USB-C for configuration and software updates
• Power: 100 - 240 AC
• Hardware Control: 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen
• Internal Software: Internal Software upgrade via included firmware updater application via USB or ethernet
