BLACKMAGIC DESIGN TERANEX EXPRESS

Blackmagic Design Teranex Express

• Includes famous Teranex processing for extremely high quality up conversion, down conversion
• 12G-SDI/dual link 6G-SDI in and out and upgradable to optical fiber SDI in and out
• Includes full conversion of timecode and subtitles
• 16 channels of frame accurate audio conversions and full audio channel remapping
• Classic Teranex front panel so extremely easy for Teranex customers to integrate and use
• Reference input for built in frame sync feature
• Built in power supply supports 110V to 240V AC

Teranex Express is the world’s first real time SD, HD and Ultra HD broadcast standards converter.
Featuring advanced patented algorithms, Teranex Express gives you the visually transparent, high-quality conversions that are mandated by major broadcasters and studios worldwide.
You get an incredible 1089 SD, HD and Ultra HD up, down and standards conversions in full 10-bit quality. You also get amazing processing with high quality de-interlacing, noise reduction, automatic cadence detection, removal and correction even with edited content, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

Teranex Express is a whole new design featuring the advanced patented Teranex algorithms for the visually transparent quality conversions that Teranex has been famous for and that are often mandated by major broadcasters and studios worldwide. This new model is lower priced and includes an incredible 178 different SD, HD and Ultra HD up and down conversions in full 10-bit quality complete with audio, closed captions, timecode and more.
The built in LCD monitor lets users easily navigate menus and see source format and frame rate with live video, so they don’t have to use an external monitor.

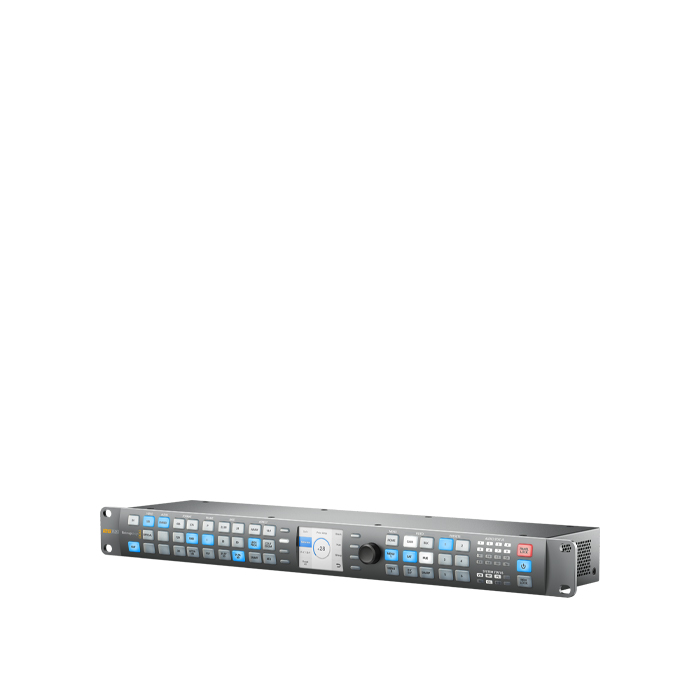

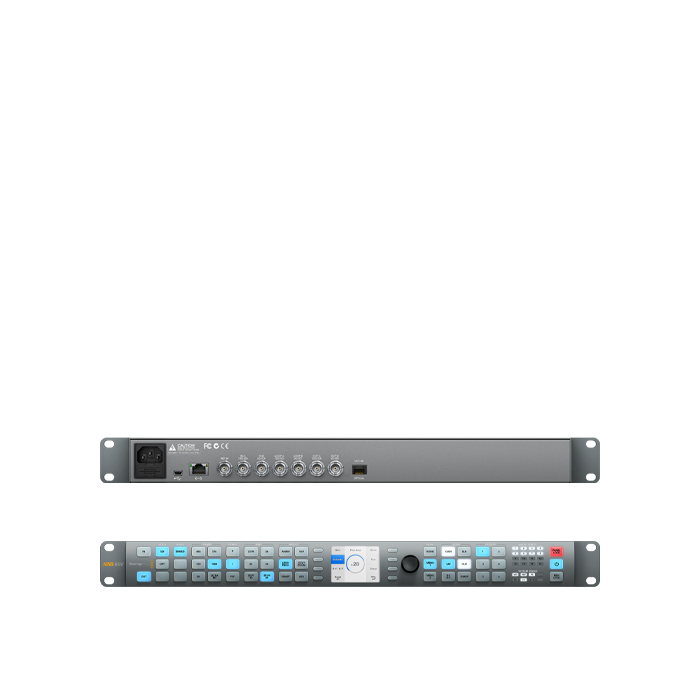

With an elegant machined metal front panel, its compact 1RU size and built in international power supply, Teranex Express is a true premium product from the internal processing quality right through to its attractive exterior design.

Multirate 12G-SDI connections

Teranex Express is the world’s first broadcast converter to include multi rate 12G-SDI connections.
That means it can switch between 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI making it compatible with a wide range of existing SD, HD, and Ultra HD equipment.
These connections can transfer data at an incredible 12 gigabits per second, making them fast enough to support progressive Ultra HD video at up to 60fps. That means Teranex Express will be able to support emerging formats when they become available, making it the most expandable and future proof solution available.

High Quality De‑Interlace

Teranex’s proprietary and patented PixelMotion de-interlacing algorithms are built into the new Teranex Express so customers can get perfect progressive frames from interlaced material.
The real time processing adjusts the aperture on a pixel by pixel basis. That means improved image quality because the vertical resolution is maintained. PixelMotion de-interlacing preserves source detail and, when combined with multidirectional diagonal filters, eliminates jaggies on conversions so you get well defined edges and the sharpest images possible.

Teranex Express also supports conversion of up to 16 audio channels plus timecode and closed caption VANC data. Teranex Express is also compatible with Dolby encoded audio, so it never has to be decoded or re-encoded during up and down conversions of the same frame rate. With Teranex Express, subtitles are always retained and both audio and timecode always stay in perfect sync with your video.
