RED PRO V-LOCK I/O MODULE

720-0064
10.312,50 DKK OutOfStock
  • København Ikke på lager
  • Århus Ikke på lager

Carsten Iversen
carsten@goecker.dk
35865105
København

Beskrivelse

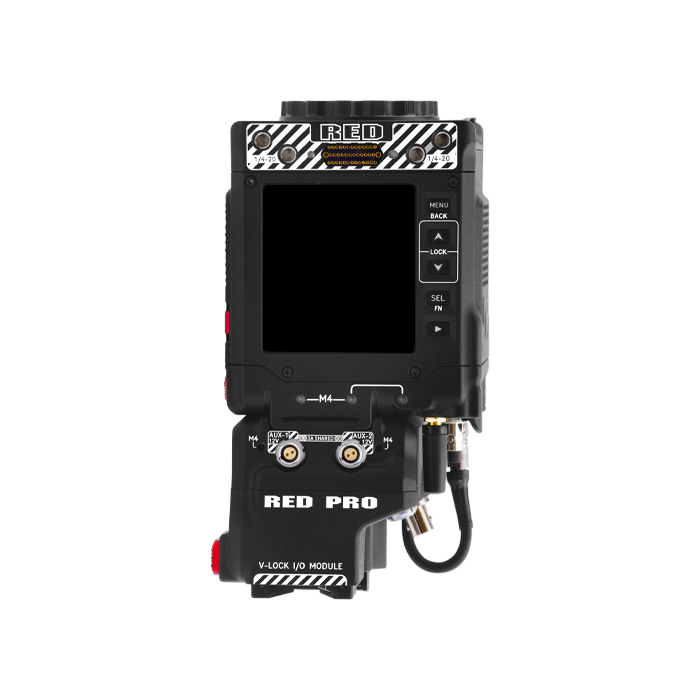

RED Pro V-Lock I/O Module

The RED Pro I/O V-Lock Module offers a variety of input / output connections, as well as an industry standard V-lock mount to power your Komodo-X with higher capacity batteries.

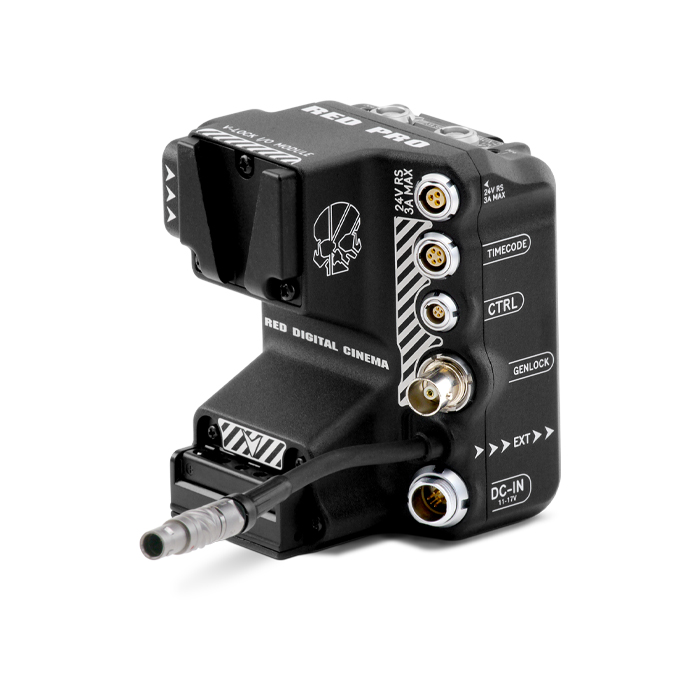

This module Mounts directly to the Komodo-X rear micro V-lock plate, 9-Pin EXT port and offers connections for the following:

  • DC Power Input (DC-IN)
  • Genlock (BNC)
  • CTRL (4-Pin)
  • 1 x 3-Pin 24V (Regulated) Fischer R/S port (3A max)
  • 2 x 2-Pin 12V (Un-regulated) AUX ports (3A combined max)

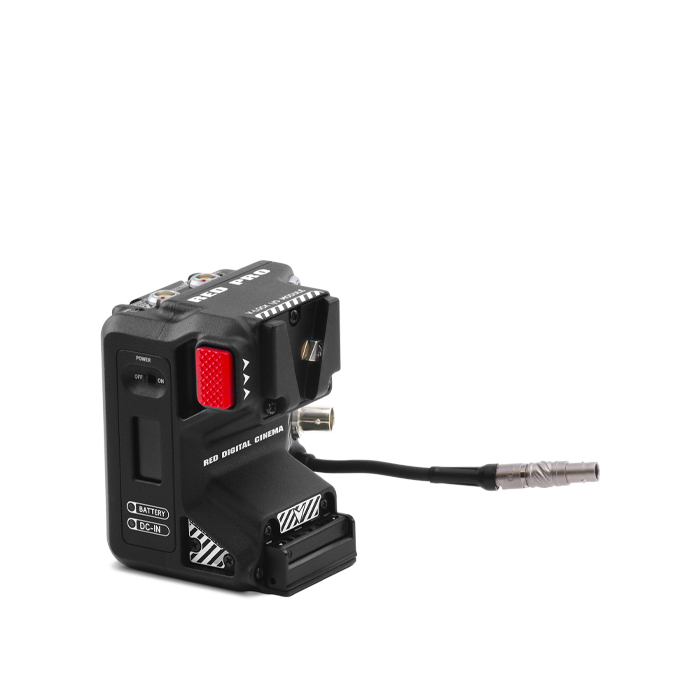

The module also includes an operator side LCD which displays key power voltage and battery percentage information (with compatible batteries) and a power switch to cut power to the module when leaving a battery on the module for long durations.

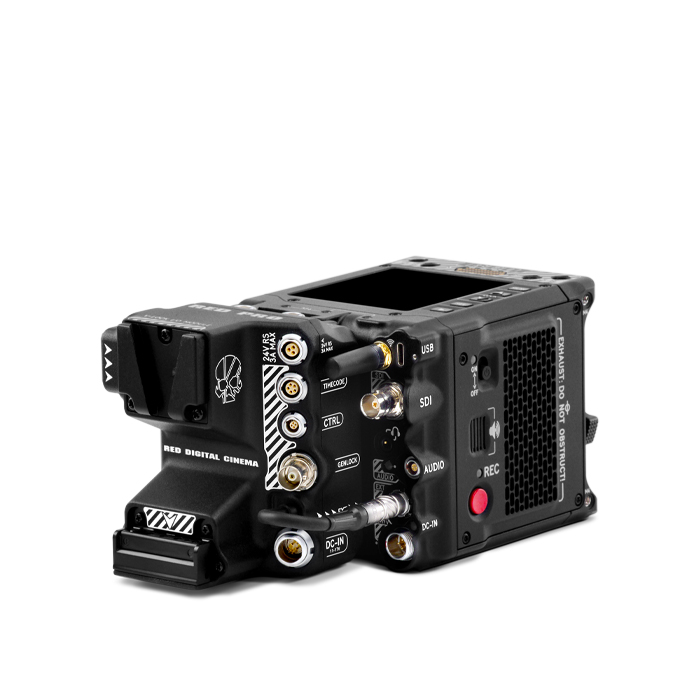

Designed for Komodo-X and compatible with V-Raptor

Specifikationer

Producent RED
Kategori Expansion unit
