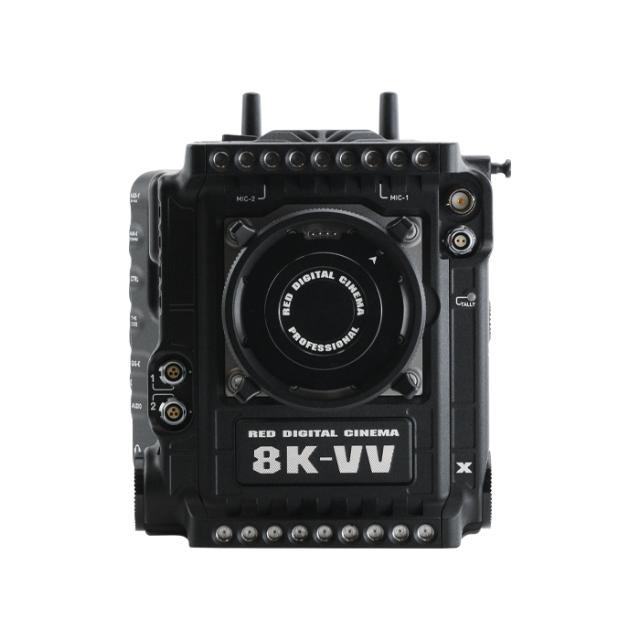

RED V RAPTOR XL X 8K VV PRODUCTION PACK V-LOCK

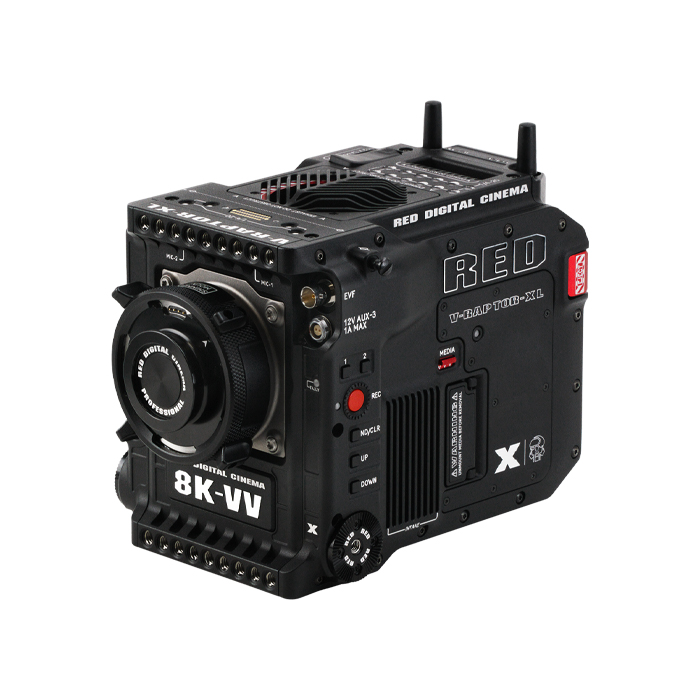

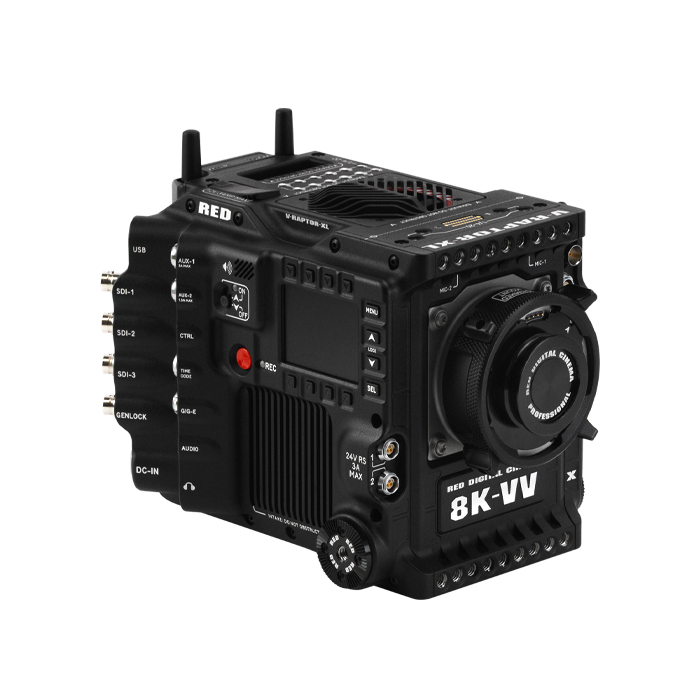

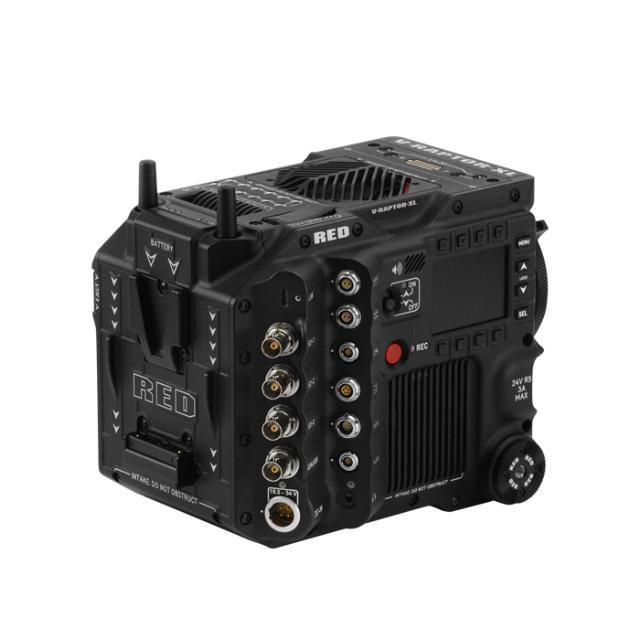

RED V-RAPTOR XL [X] 8K VV Production Pack

V-RAPTOR XL [X] 8K VV combines the strengths of RED's two families of cameras into one powerful all­ purpose workhorse. The frame rates, light sensitivity, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making.
Using RED's newest 8K VV sensor, V-RAPTOR [X] XL leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a large-scale-production ready XL camera body.

Tools of the Trade

• V-RAPTOR XL [X] is designed to support high-end motion picture and television produetions as well as any filmmaker who would benefit an all-in-ane solution.

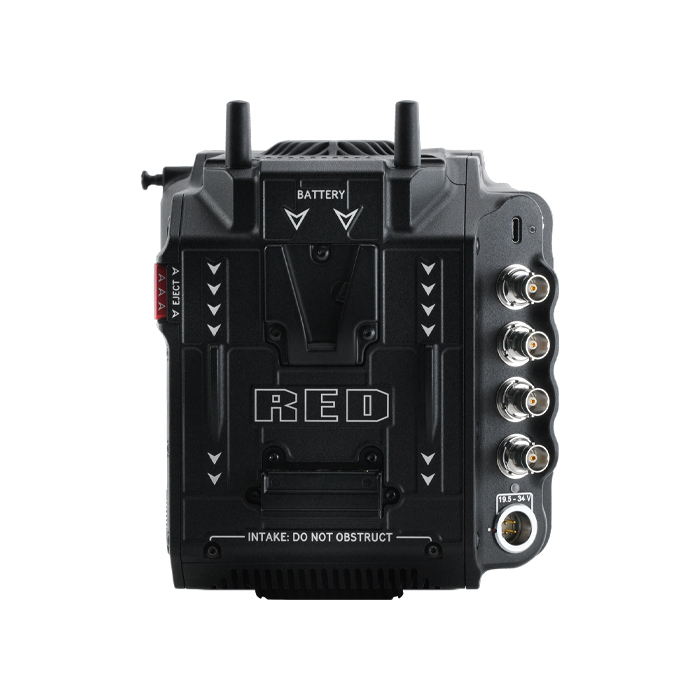

• Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
• Built-in electronic NO allows cinematographers to precisely select their density in ¼, 1/3, and full stop increments, providing never befare seen exposure and depth of field control inside a cinema camera of this level.
• 12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.
• Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3™ RED® Touch 7.O"
• LCD, supports any camera operators viewing preference.
• Wireless timecode, genlock, and camera control, as well as tour SDI outputs support the DIT, giving them access to everything they need at their cart.
• lmproved in-camera audio performance for run and gun single system audio setups.

Additionally, the V-RAPTOR XL [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.

Global Shutter

Capture every movement, flash, and burst, without any compromise in image quality, dynamic range, or flexibility in post. Faithfully capture the motion of your action no matter how fast your subject is moving, with no distortion or jello-effect.

• Sensor Type: V-RAPTOR [X] 8K VV 35.4MP Global Shutter CMOS
• Max Resolution: 8192 x 4320 120fps (4K 240fps)
• Codec: 16bit REDCODE RAW and/or ProRes
• Default Data Rate: 1 Hour ≈ 1,123GB
• Specialty: Global Shutter and High Frame Rates
• Pixel Pitch: 5 Microns

Dynamic Range

With 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights, V-RAPTOR XL [X] delivers both smooth highlight roll-off and unmatched low-light performance.
Where other global shutter cameras sacrifice dynamic range, RED’s internal sensor development has continued to push the boundaries and created the global shutter V-RAPTOR [X] sensor, maintaining the impressive 17+ stops of dynamic range from original V-RAPTOR 8K VV.
With 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights, V-RAPTOR XL [X] delivers both smooth highlight roll-off and unmatched low-light performance.
Capture more color and detail into highlights than ever before, while providing even softer and more subtle highlight roll-off when in uncontrollable or extreme environments. Global Vision’s Extended Highlights offers over 3 stops of additional dynamic range to maintain color and detail even in extreme highlights.

Phantom Track

Capture final pixel and green screen simultaneously from a single V-RAPTOR [X]. Streamline the on-set workflow by distinctly monitoring each Phantom Track independently.
Capture final pixel and green screen simultaneously from a single V-RAPTOR XL [X]. Streamline the on-set workflow by distinctly monitoring each Phantom Track independently and using PTP Sensor Sync, standard genlock, or wireless Ambient Control Network for simple synchronization with the LED Volume.

Electronic ND System

The V-RAPTOR XL [X] features an innovative Electronic ND System which provides unprecedented precision controls for no-compromise exposure management.
Cycle through ¼, 1/3 or full stop increments to choose exposure without compromising the intended shutter speed or aperture. Includes various methods of control via dedicated buttons, LCD display, monitor or remotely via app / RCP2.

Frame Rates

Every camera in the red lineup offers powerful frame rate performance. Shooters can add unique elements like timelapse or speed-ramping to narrative work, pull sharp stills to capture any moment, or replace their specialty-cam shots.

• 8K: 120FPS at 17:9 and 150FPS at 2.4:1
• 6K: 160FPS at 17:9 and 200FPS at 2.4:1
• 4K: 240FPS at 17:9 and 300FPS at 2.4:1
• 2K: 480FPS at 17:9 and 600FPS at 2.4:1

Global Vision

V-RAPTOR XL [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process.
Global Vision's Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HOR finishes, or safter and more subtle highlight roll-off for SDR.
RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrameTM or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live an-set over each SOi.

Integrated I/O Array

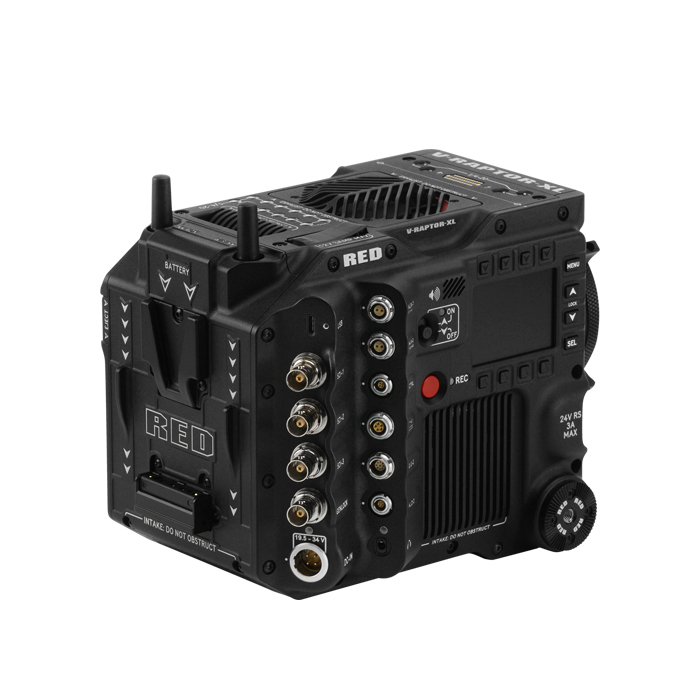

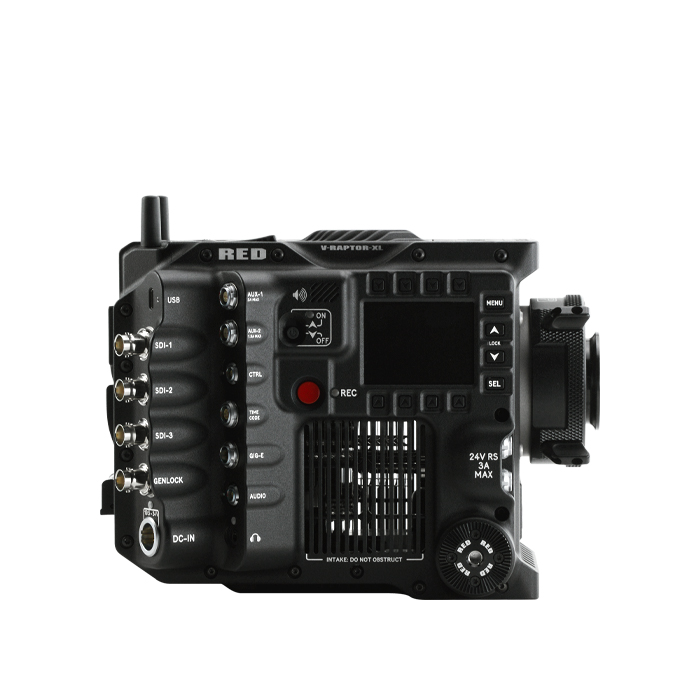

V-RAPTOR XL [X] features the most flexible and robust power and I/O ecosystem available in the market today. 4K and HD SDI monitoring, support for direct-attach monitor, discreet LUT management, intuitively placed power outputs, all designed to support large productions.

Advanced Cooling

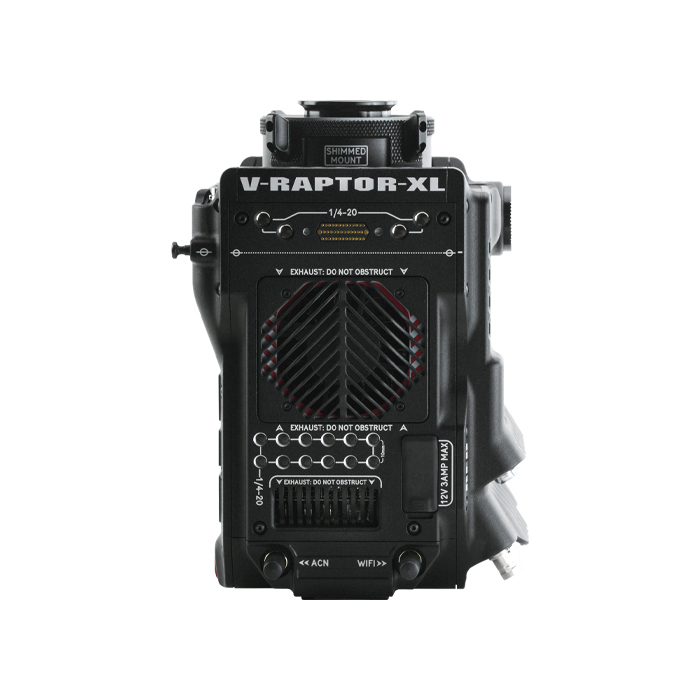

The XL System features an all new three-stage cooling system. Dedicated fans cool both auxiliary power components and camera components separately, while a thermoelectric heat exchanger maintains precise sensor temperature. This advanced cooling system means quieter operation, less black shading, and a more robust system no matter the environment.

All-New Audio Architecture

Newly engineered audio hardware provides cleaner and clearer audio when connecting external microphones.

Advanced Intelligent Focus Options

In-camera processing and on-sensor enhanced phase detect autofocus, plus all-new face-detection offers versatility and confidence for users across all levels of filmmaking.

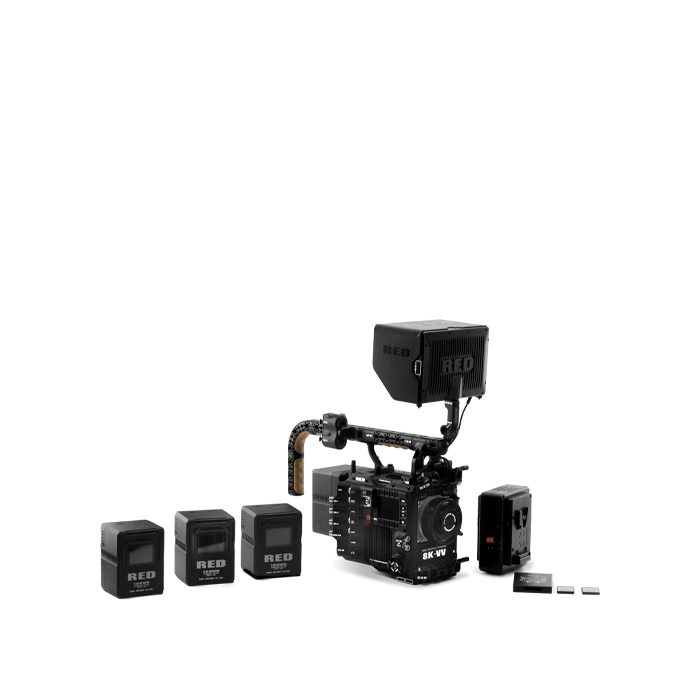

In the Box:

• 1 x V-RAPTOR XL [X] 8K VV (V-Lock)
• 2 x RED PRO CFexpress 2TB
• 1 x RED CFexpress Card Reader
• 4 x REDVOLT XL-V
• 1 x RED Compact Dual V-Lock Charger
• 1 x DSMC3 RED Touch 7.0" LCD
• 1 x -RAPTOR XL Riser Plate
• 1 x V-RAPTOR Top Handle
• 1 x V-RAPTOR Top Handle Extensions
• 1 x DSMC3 RED 5-Pin to Dual XLR Adapter
• 1 x V-RAPTOR XL Top 15mm LWS Rod Support Bracket
• 1 x V-RAPTOR XL Bottom 15mm LWS Rod Support Bracket
• 1 x DSMC3 RMI Cable 18"
• 1 x DSMC3 RED Touch 7.0" LCD Hood
